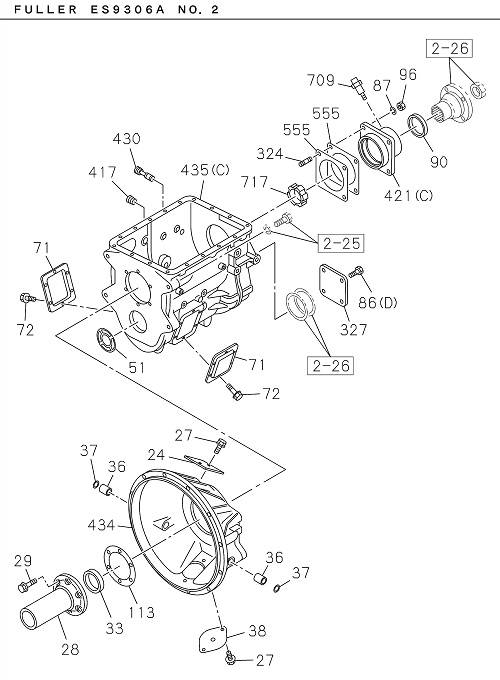

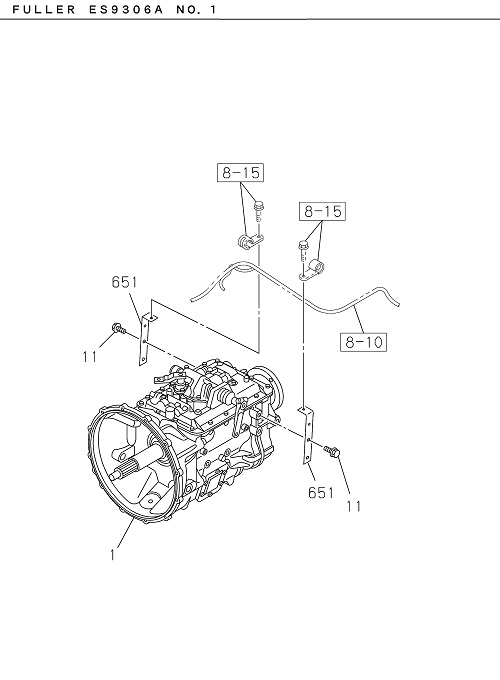

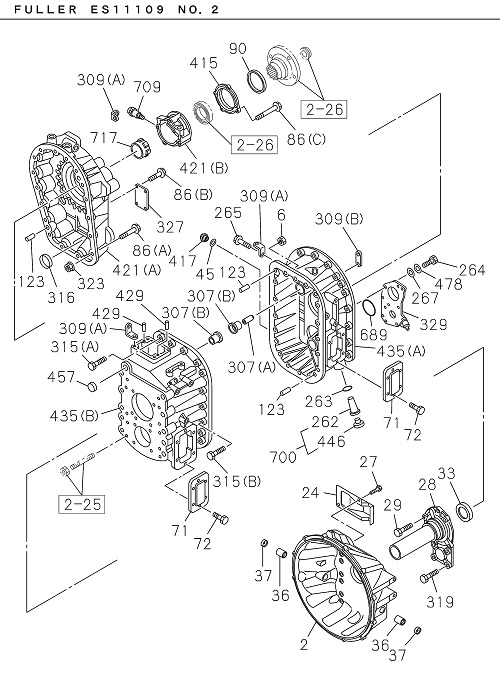

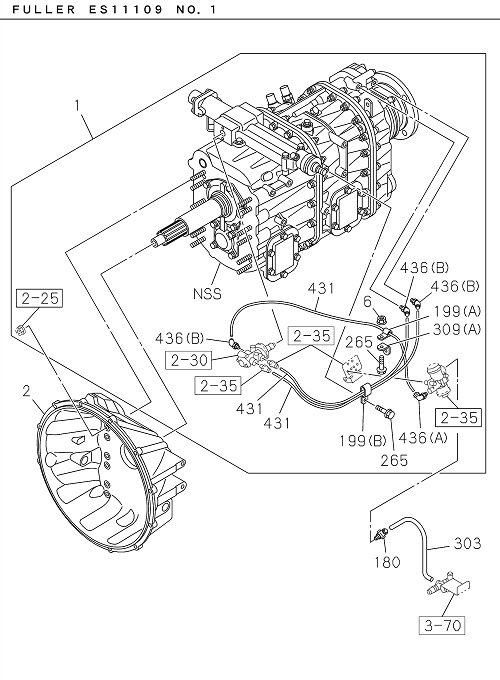

2-20 | MANUAL TRANSMISSION ASM AND CASE
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 038 | IE-33057 500-0 | COVER; CHECK HOLE,LWR | 1 | 2203- | FVR | |||
| 036 | IE-33058 400-0 | BEARING; NEEDLE,CLU HSG | 2 | 2203- | FVR | |||
| 651 | I8-98335 078-0 | BRACKET; T/M HARNESS | 2 | 2203- | FVR | |||
| 036 | IE-33058 400-0 | BEARING; NEEDLE,CLU HSG | 2 | 2203- | FVR | |||
| 430 | IE-22685 800-0 | PLUG; OIL DRAIN | 1 | 2203- | FVR | |||
| 027 | IE-87408 000-0 | BOLT; COVER TO CLU HSG | 4 | 2203- | FVR | |||
| 435 | IE-33009 300-0 | CASE; TRANS | 1 | 2203- | FVR | (C) | ||
| 709 | I8-98349 517-0 | SENSOR; SPEED,M/T | 1 | 2203- | FVR | |||
| 001 | I8-97658 794-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FVR | W/ PTO | ||
| 417 | IE-12120 700-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | FVR | |||
| 430 | IE-22685 800-0 | PLUG; OIL DRAIN | 1 | 2203- | FVR | |||
| 090 | IE-33048 900-0 | SEAL; OIL,RR COVER | 1 | 2203- | FVR | |||
| 327 | IE-43016 070-0 | COVER; RR,COUNTER | 1 | 2203- | FVR | |||
| 555 | IE-43009 780-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.040 | ||
| 087 | IE-23943 600-0 | WASHER; LK,RR COVER | 4 | 2203- | FVR | |||
| 038 | IE-33057 500-0 | COVER; CHECK HOLE,LWR | 1 | 2203- | FVR | |||
| 717 | IE-55015 480-0 | ROTOR | 1 | 2203- | FVR | |||
| 113 | IE-33156 590-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 2203- | FVR | |||
| 086 | IE-33013 300-0 | BOLT; RR COVER | 4 | 2203- | FVR | (D) | ||
| 029 | IE-33013 600-0 | BOLT; FRT COVER | 6 | 2203- | FVR | |||
| 011 | I0-28151 220-0 | BOLT; BRKT | 4 | 2203- | FVR | M12X20 FLANGE | ||
| 555 | IE-33156 630-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.007 | ||
| 555 | IE-33156 620-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.004 | ||
| 001 | I8-97658 794-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FVR | W/ PTO | ||
| 024 | IE-33057 400-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | FVR | |||
| 028 | IE-33051 100-0 | COVER; FRT,TRANS CASE | 1 | 2203- | FVR | |||
| 027 | IE-87408 000-0 | BOLT; COVER TO CLU HSG | 4 | 2203- | FVR | |||
| 096 | IE-33019 500-0 | NUT; RR COVER | 4 | 2203- | FVR | |||
| 434 | IE-33056 100-0 | HOUSING; CLU | 1 | 2203- | FVR | |||
| 072 | IE-33013 200-0 | BOLT; SIDE COVER | 12 | 2203- | FVR | |||
| 651 | I8-98335 078-0 | BRACKET; T/M HARNESS | 2 | 2203- | FVR | |||
| 421 | IE-33012 500-0 | COVER; RR,TRANS | 1 | 2203- | FVR | (C) | ||
| 037 | IE-33058 500-0 | SEAL; DUST,CLU HSG | 2 | 2203- | FVR | |||
| 001 | I8-97658 793-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FVR | W/O PTO | ||
| 421 | IE-33012 500-0 | COVER; RR,TRANS | 1 | 2203- | FVR | (C) | ||
| 071 | I1-33141 074-0 | COVER; SIDE,TRANS CASE | 2 | 2203- | FVR | |||
| 090 | IE-33048 900-0 | SEAL; OIL,RR COVER | 1 | 2203- | FVR | |||
| 434 | IE-33056 100-0 | HOUSING; CLU | 1 | 2203- | FVR | |||
| 113 | IE-33156 590-0 | GASKET; FRT COVER TO TRANS CASE | 1 | 2203- | FVR | |||
| 417 | IE-12120 700-0 | PLUG; OIL FILLER,TRANS | 1 | 2203- | FVR | |||
| 024 | IE-33057 400-0 | COVER; CHECK HOLE,DUST | 1 | 2203- | FVR | |||
| 555 | IE-33156 650-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.020 | ||
| 555 | IE-33156 630-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.007 | ||
| 051 | IE-33156 790-0 | COVER; SEAL,COUNTER,FRT | 1 | 2203- | FVR | |||
| 037 | IE-33058 500-0 | SEAL; DUST,CLU HSG | 2 | 2203- | FVR | |||
| 555 | IE-33156 650-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.020 | ||
| 033 | IE-33048 800-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | FVR | |||
| 011 | I0-28151 220-0 | BOLT; BRKT | 4 | 2203- | FVR | M12X20 FLANGE | ||
| 327 | IE-43016 070-0 | COVER; RR,COUNTER | 1 | 2203- | FVR | |||
| 555 | IE-33156 640-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.010 | ||
| 555 | IE-33156 640-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.010 | ||
| 072 | IE-33013 200-0 | BOLT; SIDE COVER | 12 | 2203- | FVR | |||
| 709 | I8-98349 517-0 | SENSOR; SPEED,M/T | 1 | 2203- | FVR | |||
| 555 | IE-43009 780-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.040 | ||
| 096 | IE-33019 500-0 | NUT; RR COVER | 4 | 2203- | FVR | |||
| 435 | IE-33009 300-0 | CASE; TRANS | 1 | 2203- | FVR | (C) | ||
| 555 | IE-33156 620-0 | SHIM; RR COVER | 1 | 2203- | FVR | T=0.004 | ||
| 087 | IE-23943 600-0 | WASHER; LK,RR COVER | 4 | 2203- | FVR | |||
| 029 | IE-33013 600-0 | BOLT; FRT COVER | 6 | 2203- | FVR | |||
| 086 | IE-33013 300-0 | BOLT; RR COVER | 4 | 2203- | FVR | (D) | ||
| 717 | IE-55015 480-0 | ROTOR | 1 | 2203- | FVR | |||
| 028 | IE-33051 100-0 | COVER; FRT,TRANS CASE | 1 | 2203- | FVR | |||
| 324 | IE-33013 700-0 | STUD; RR COVER | 4 | 2203- | FVR | |||
| 071 | I1-33141 074-0 | COVER; SIDE,TRANS CASE | 2 | 2203- | FVR | |||
| 001 | I8-97658 793-0 | TRANSMISSION ASM; MANUAL | 1 | 2203- | FVR | W/O PTO | ||
| 051 | IE-33156 790-0 | COVER; SEAL,COUNTER,FRT | 1 | 2203- | FVR | |||
| 324 | IE-33013 700-0 | STUD; RR COVER | 4 | 2203- | FVR | |||
| 033 | IE-33048 800-0 | SEAL; OIL,FRT COVER,T/M | 1 | 2203- | FVR |
