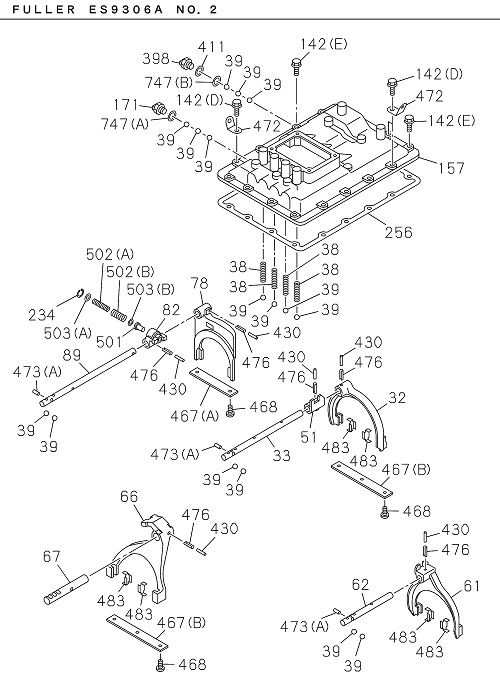

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 234 | IE-21736 000-0 | RING; SNAP | 1 | 2203- | FVR | |||
| 398 | IE-43048 080-0 | SWITCH; REV LAMP | 1 | 2203- | FVR | |||
| 289 | I1-33542 061-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2203- | FVR | (B) | ||
| 163 | IE-33058 800-0 | LEVER; SELECT,INTERNAL | 1 | 2203- | FVR | |||
| 130 | IE-10107 000-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | FVR | (B) | ||
| 066 | IE-61380 000-0 | ARM; SHIFT,5TH & 6TH | 1 | 2203- | FVR | |||
| 305 | I1-33549 233-0 | BOOT; LEVER SHAFT | 1 | 2203- | FVR | |||
| 130 | IE-30037 150-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | FVR | (C) | ||
| 468 | IE-23304 300-0 | SCREW; CAP,RET | 8 | 2203- | FVR | |||
| 039 | IE-10714 000-0 | BALL; DETENT | 16 | 2203- | FVR | |||
| 271 | IE-30036 830-0 | BUSHING; QUAD BOX | 1 | 2203- | FVR | (B) | ||
| 167 | IE-33057 800-0 | LEVER; SELECT,EXTERNAL | 1 | 2203- | FVR | |||
| 157 | IE-30022 930-0 | BOX; QUAD,TRANS | 1 | 2203- | FVR | |||
| 285 | IE-33159 480-0 | BREATHER; AIR,QUAD BOX | 1 | 2203- | FVR | |||
| 051 | IE-33051 800-0 | BLOCK; SHIFT,1ST & 2ND | 1 | 2203- | FVR | |||
| 747 | IE-43017 190-0 | RETAINER | 1 | 2203- | FVR | (B) | ||
| 271 | IE-30036 840-0 | BUSHING; QUAD BOX | 1 | 2203- | FVR | (A) | ||
| 082 | IE-33163 000-0 | BLOCK; SHIFT,REV | 1 | 2203- | FVR | |||
| 061 | IE-61390 000-0 | ARM; SHIFT,3RD & 4TH | 1 | 2203- | FVR | |||
| 157 | IE-30022 930-0 | BOX; QUAD,TRANS | 1 | 2203- | FVR | |||
| 483 | IE-22767 500-0 | BUSHING; SHIFT ARM | 6 | 2203- | FVR | |||
| 298 | IE-33064 800-0 | SHAFT; SHIFT LEVER | 1 | 2203- | FVR | |||
| 298 | IE-33064 800-0 | SHAFT; SHIFT LEVER | 1 | 2203- | FVR | |||
| 289 | IE-33620 690-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2203- | FVR | (A) | ||
| 142 | IE-33013 500-0 | BOLT; QUAD BOX | 14 | 2203- | FVR | (E) | ||
| 210 | I1-33119 568-0 | WASHER; SHIFT LEVER | 1 | 2203- | FVR | |||
| 535 | IE-30039 010-0 | SPRING; LEVER | 1 | 2203- | FVR | |||
| 243 | IE-33620 720-0 | BOLT; COVER | 4 | 2203- | FVR | |||
| 430 | IE-13528 000-0 | PIN; SPR,SHIFT ROD | 6 | 2203- | FVR | |||
| 502 | IE-22834 000-0 | SPRING; PLUNGER | 1 | 2203- | FVR | (B) | ||
| 273 | IE-30036 330-0 | PIN; SPR,STOPPER | 1 | 2203- | FVR | |||
| 741 | IE-33058 900-0 | COVER; QUAD BOX | 1 | 2203- | FVR | |||
| 210 | I1-33119 568-0 | WASHER; SHIFT LEVER | 1 | 2203- | FVR | |||
| 639 | IE-33059 000-0 | CAP | 1 | 2203- | FVR | |||
| 398 | IE-43048 080-0 | SWITCH; REV LAMP | 1 | 2203- | FVR | |||
| 289 | IE-33620 690-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2203- | FVR | (A) | ||
| 032 | IE-33157 720-0 | ARM; SHIFT,1ST & 2ND | 1 | 2203- | FVR | |||
| 224 | IE-30036 860-0 | WASHER; PL,QUAD BOX | 1 | 2203- | FVR | |||
| 171 | IE-43048 090-0 | SWITCH; NEUTRAL | 1 | 2203- | FVR | |||
| 165 | IE-33056 600-0 | LEVER; SHIFT | 1 | 2203- | FVR | |||
| 467 | IE-43012 790-0 | RETAINER; SHIFT ROD | 2 | 2203- | FVR | (B) | ||
| 271 | IE-30036 830-0 | BUSHING; QUAD BOX | 1 | 2203- | FVR | (B) | ||
| 381 | IE-33611 190-0 | BOLT | 1 | 2203- | FVR | |||
| 467 | IE-33157 570-0 | RETAINER; SHIFT ROD | 1 | 2203- | FVR | (A) | ||
| 067 | IE-43014 720-0 | ROD; SHIFT,5TH & 6TH | 1 | 2203- | FVR | |||
| 503 | IE-33162 950-0 | WASHER; PLUNGER | 1 | 2203- | FVR | (A) | ||
| 271 | IE-30036 840-0 | BUSHING; QUAD BOX | 1 | 2203- | FVR | (A) | ||
| 142 | IE-33013 300-0 | BOLT; QUAD BOX | 4 | 2203- | FVR | (C) | ||
| 289 | I1-33542 061-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2203- | FVR | (B) | ||
| 502 | IE-43050 370-0 | SPRING; PLUNGER | 1 | 2203- | FVR | (A) | ||
| 473 | IE-16028 000-0 | PIN; ROLL | 1 | 2203- | FVR | (B) | ||
| 142 | IE-33013 500-0 | BOLT; QUAD BOX | 14 | 2203- | FVR | (E) | ||
| 748 | IE-10098 000-0 | BOX SUB ASM; QUADRANT | 1 | 2203- | FVR | |||
| 154 | IE-13528 000-0 | PIN; SELECT LEVER | 1 | 2203- | FVR | |||
| 058 | I1-33119 571-0 | NUT | 1 | 2203- | FVR | |||
| 151 | IE-33620 680-0 | BUSHING; SELECT LEVER | 1 | 2203- | FVR | |||
| 078 | IE-33158 970-0 | ARM; SHIFT,REV | 1 | 2203- | FVR | |||
| 263 | IE-81007 000-0 | BOLT; LEVER | 1 | 2203- | FVR | |||
| 503 | IE-33162 980-0 | WASHER; PLUNGER | 1 | 2203- | FVR | (B) | ||
| 019 | IE-33060 700-0 | SPRING; COIL COMP | 1 | 2203- | FVR | (F) | ||
| 066 | IE-61380 000-0 | ARM; SHIFT,5TH & 6TH | 1 | 2203- | FVR | |||
| 502 | IE-22834 000-0 | SPRING; PLUNGER | 1 | 2203- | FVR | (B) | ||
| 749 | IE-33060 800-0 | ACTUATOR | 1 | 2203- | FVR | |||
| 503 | IE-33162 980-0 | WASHER; PLUNGER | 1 | 2203- | FVR | (B) | ||
| 130 | IE-30037 150-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | FVR | (C) | ||
| 089 | IE-43026 360-0 | ROD; SHIFT,REV | 1 | 2203- | FVR | |||
| 038 | IE-43050 280-0 | SPRING; DETENT | 4 | 2203- | FVR | |||
| 749 | IE-33060 800-0 | ACTUATOR | 1 | 2203- | FVR | |||
| 033 | IE-43045 610-0 | ROD; SHIFT,LOW & 2ND | 1 | 2203- | FVR | |||
| 411 | IE-15900 000-0 | GASKET; REV LAMP SW | 1 | 2203- | FVR | |||
| 391 | IE-30036 870-0 | PLUG; SW HOLE | 1 | 2203- | FVR | |||
| 067 | IE-43014 720-0 | ROD; SHIFT,5TH & 6TH | 1 | 2203- | FVR | |||
| 151 | IE-33620 680-0 | BUSHING; SELECT LEVER | 1 | 2203- | FVR | |||
| 256 | IE-43008 540-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 2203- | FVR | |||
| 467 | IE-43012 790-0 | RETAINER; SHIFT ROD | 2 | 2203- | FVR | (B) | ||
| 502 | IE-43050 370-0 | SPRING; PLUNGER | 1 | 2203- | FVR | (A) | ||
| 033 | IE-43045 610-0 | ROD; SHIFT,LOW & 2ND | 1 | 2203- | FVR | |||
| 019 | IE-33060 700-0 | SPRING; COIL COMP | 1 | 2203- | FVR | (F) | ||
| 391 | IE-30036 870-0 | PLUG; SW HOLE | 1 | 2203- | FVR | |||
| 473 | IE-16028 000-0 | PIN; ROLL | 1 | 2203- | FVR | (B) | ||
| 061 | IE-61390 000-0 | ARM; SHIFT,3RD & 4TH | 1 | 2203- | FVR | |||
| 468 | IE-23304 300-0 | SCREW; CAP,RET | 8 | 2203- | FVR | |||
| 089 | IE-43026 360-0 | ROD; SHIFT,REV | 1 | 2203- | FVR | |||
| 747 | IE-43017 180-0 | RETAINER | 1 | 2203- | FVR | (A) | ||
| 045 | IE-30036 320-0 | PIN; SPRING,SHIFT LEVER | 1 | 2203- | FVR | |||
| 078 | IE-33158 970-0 | ARM; SHIFT,REV | 1 | 2203- | FVR | |||
| 639 | IE-33059 000-0 | CAP | 1 | 2203- | FVR | |||
| 305 | I1-33549 233-0 | BOOT; LEVER SHAFT | 1 | 2203- | FVR | |||
| 473 | IE-20104 400-0 | PIN; ROLL | 3 | 2203- | FVR | (A) | ||
| 474 | IE-30039 060-0 | WASHER; SPRING STOPPER | 2 | 2203- | FVR | |||
| 535 | IE-30039 010-0 | SPRING; LEVER | 1 | 2203- | FVR | |||
| 032 | IE-33157 720-0 | ARM; SHIFT,1ST & 2ND | 1 | 2203- | FVR | |||
| 058 | I1-33119 571-0 | NUT | 1 | 2203- | FVR | |||
| 617 | IE-33060 600-0 | PLUG | 1 | 2203- | FVR | |||
| 467 | IE-33157 570-0 | RETAINER; SHIFT ROD | 1 | 2203- | FVR | (A) | ||
| 142 | IE-33019 400-0 | BOLT; QUAD BOX | 3 | 2203- | FVR | (D) | ||
| 051 | IE-33051 800-0 | BLOCK; SHIFT,1ST & 2ND | 1 | 2203- | FVR | |||
| 045 | IE-30036 320-0 | PIN; SPRING,SHIFT LEVER | 1 | 2203- | FVR | |||
| 038 | IE-43050 280-0 | SPRING; DETENT | 4 | 2203- | FVR | |||
| 224 | IE-30036 860-0 | WASHER; PL,QUAD BOX | 1 | 2203- | FVR | |||
| 142 | IE-33019 400-0 | BOLT; QUAD BOX | 3 | 2203- | FVR | (D) | ||
| 082 | IE-33163 000-0 | BLOCK; SHIFT,REV | 1 | 2203- | FVR | |||
| 130 | IE-10107 000-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | FVR | (B) | ||
| 617 | IE-33060 600-0 | PLUG | 1 | 2203- | FVR | |||
| 748 | IE-10098 000-0 | BOX SUB ASM; QUADRANT | 1 | 2203- | FVR | |||
| 501 | IE-33162 960-0 | PLUNGER; SHIFT BLOCK | 1 | 2203- | FVR | |||
| 472 | IE-33013 800-0 | EYE; LIFTING | 3 | 2203- | FVR | |||
| 483 | IE-22767 500-0 | BUSHING; SHIFT ARM | 6 | 2203- | FVR | |||
| 741 | IE-33058 900-0 | COVER; QUAD BOX | 1 | 2203- | FVR | |||
| 234 | IE-21736 000-0 | RING; SNAP | 1 | 2203- | FVR | |||
| 503 | IE-33162 950-0 | WASHER; PLUNGER | 1 | 2203- | FVR | (A) | ||
| 381 | IE-33611 190-0 | BOLT | 1 | 2203- | FVR | |||
| 171 | IE-43048 090-0 | SWITCH; NEUTRAL | 1 | 2203- | FVR | |||
| 165 | IE-33056 600-0 | LEVER; SHIFT | 1 | 2203- | FVR | |||
| 463 | IE-33620 750-0 | BUSHING; PINION,QUAD BOX | 1 | 2203- | FVR | |||
| 256 | IE-43008 540-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 2203- | FVR | |||
| 163 | IE-33058 800-0 | LEVER; SELECT,INTERNAL | 1 | 2203- | FVR | |||
| 473 | IE-20104 400-0 | PIN; ROLL | 3 | 2203- | FVR | (A) | ||
| 167 | IE-33057 800-0 | LEVER; SELECT,EXTERNAL | 1 | 2203- | FVR | |||
| 501 | IE-33162 960-0 | PLUNGER; SHIFT BLOCK | 1 | 2203- | FVR | |||
| 062 | IE-43014 710-0 | ROD; SHIFT,3RD & 4TH | 1 | 2203- | FVR | |||
| 411 | IE-15900 000-0 | GASKET; REV LAMP SW | 1 | 2203- | FVR | |||
| 154 | IE-13528 000-0 | PIN; SELECT LEVER | 1 | 2203- | FVR | |||
| 472 | IE-33013 800-0 | EYE; LIFTING | 3 | 2203- | FVR | |||
| 263 | IE-81007 000-0 | BOLT; LEVER | 1 | 2203- | FVR | |||
| 285 | IE-33159 480-0 | BREATHER; AIR,QUAD BOX | 1 | 2203- | FVR | |||
| 747 | IE-43017 180-0 | RETAINER | 1 | 2203- | FVR | (A) | ||
| 273 | IE-30036 330-0 | PIN; SPR,STOPPER | 1 | 2203- | FVR | |||
| 142 | IE-33013 300-0 | BOLT; QUAD BOX | 4 | 2203- | FVR | (C) | ||
| 463 | IE-33620 750-0 | BUSHING; PINION,QUAD BOX | 1 | 2203- | FVR | |||
| 430 | IE-13528 000-0 | PIN; SPR,SHIFT ROD | 6 | 2203- | FVR | |||
| 027 | IE-30036 880-0 | BUSHING; SHIFT ROD | 1 | 2203- | FVR | |||
| 027 | IE-30036 880-0 | BUSHING; SHIFT ROD | 1 | 2203- | FVR | |||
| 476 | IE-16028 000-0 | PIN; SHIFT ROD | 6 | 2203- | FVR | |||
| 062 | IE-43014 710-0 | ROD; SHIFT,3RD & 4TH | 1 | 2203- | FVR | |||
| 747 | IE-43017 190-0 | RETAINER | 1 | 2203- | FVR | (B) | ||
| 039 | IE-10714 000-0 | BALL; DETENT | 16 | 2203- | FVR | |||
| 243 | IE-33620 720-0 | BOLT; COVER | 4 | 2203- | FVR | |||
| 474 | IE-30039 060-0 | WASHER; SPRING STOPPER | 2 | 2203- | FVR |
