2-85 | POWER TAKE OFF CONTROL
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

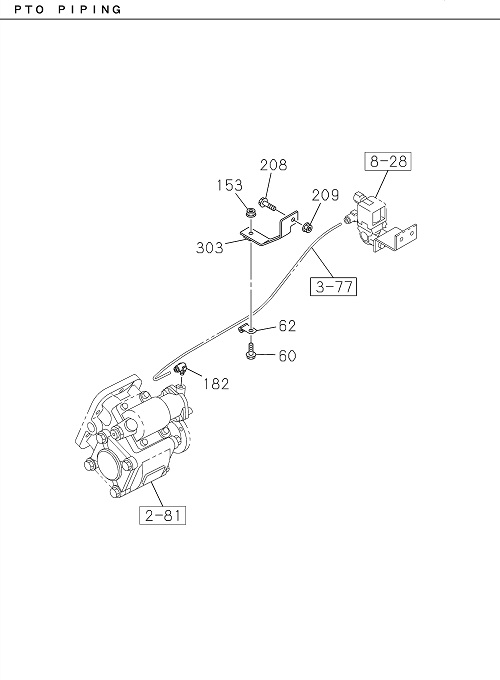

| 153 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FVR | M8 FLANGE | ||

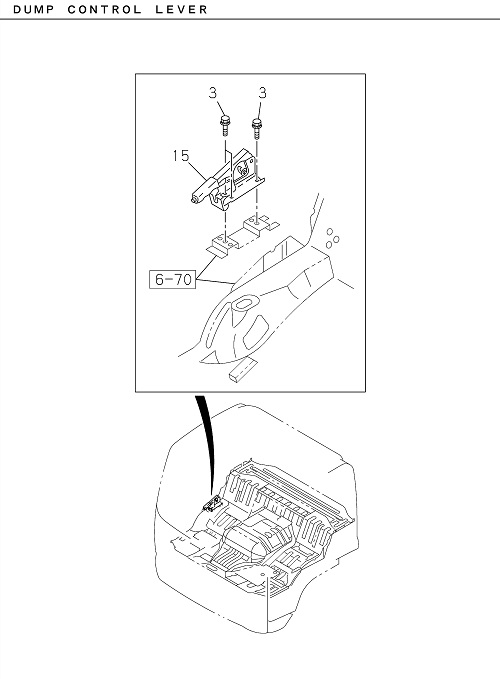

| 003 | I8-94279 207-0 | BOLT; BRKT,DUMP CONT LEVER | 3 | 2203- | FVR | M8X20.5 W/LK&PL WASHER | ||
| 062 | I0-95234 635-0 | CLIP; PIPE,AIR | 1 | 2203- | FVR | ID=7 L=20 | ||
| 060 | I7-04508 025-A | BOLT; CLIP FIX | 1 | 2203- | FVR | M8X20 FLANGE | ||
| 209 | I7-05108 010-A | NUT; BRKT,AIR PIPE | 1 | 2203- | FVR | M8 FLANGE | ||
| 209 | I7-05108 010-A | NUT; BRKT,AIR PIPE | 1 | 2203- | FVR | M8 FLANGE | ||
| 303 | I8-98353 156-0 | BRACKET; CLIP | 1 | 2203- | FVR | |||
| 015 | I1-79996 092-0 | LEVER ASM; PTO CONT | 1 | 2203- | FVR | |||
| 060 | I7-04508 025-A | BOLT; CLIP FIX | 1 | 2203- | FVR | M8X20 FLANGE | ||
| 003 | I8-94279 207-0 | BOLT; BRKT,DUMP CONT LEVER | 3 | 2203- | FVR | M8X20.5 W/LK&PL WASHER | ||
| 303 | I8-98353 156-0 | BRACKET; CLIP | 1 | 2203- | FVR | |||
| 062 | I0-95234 635-0 | CLIP; PIPE,AIR | 1 | 2203- | FVR | ID=7 L=20 | ||
| 208 | I0-28650 830-0 | BOLT; BRKT,AIR PIPE | 1 | 2203- | FVR | M8X30 FLANGE | ||
| 182 | I1-09661 066-0 | CONNECTOR; FLARE | 1 | 2203- | FVR | DIN6 & R1/8 ELBOW | ||
| 015 | I1-79996 092-0 | LEVER ASM; PTO CONT | 1 | 2203- | FVR | |||
| 153 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FVR | M8 FLANGE | ||
| 182 | I1-09661 066-0 | CONNECTOR; FLARE | 1 | 2203- | FVR | DIN6 & R1/8 ELBOW | ||
| 208 | I0-28650 830-0 | BOLT; BRKT,AIR PIPE | 1 | 2203- | FVR | M8X30 FLANGE |
