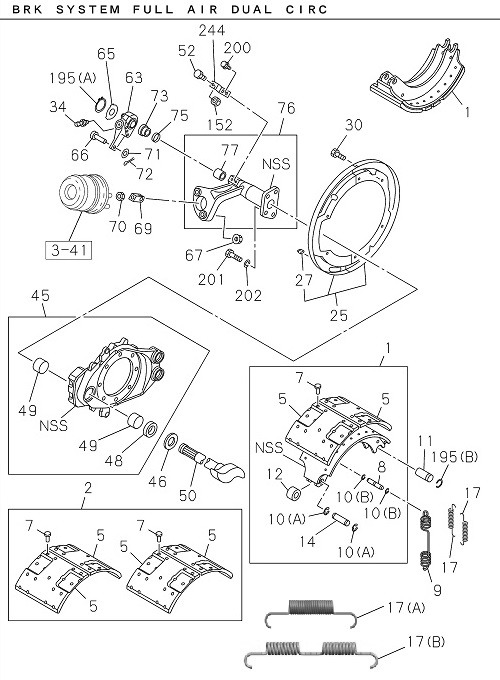

| 063 |
I8-98325 927-0 |
|

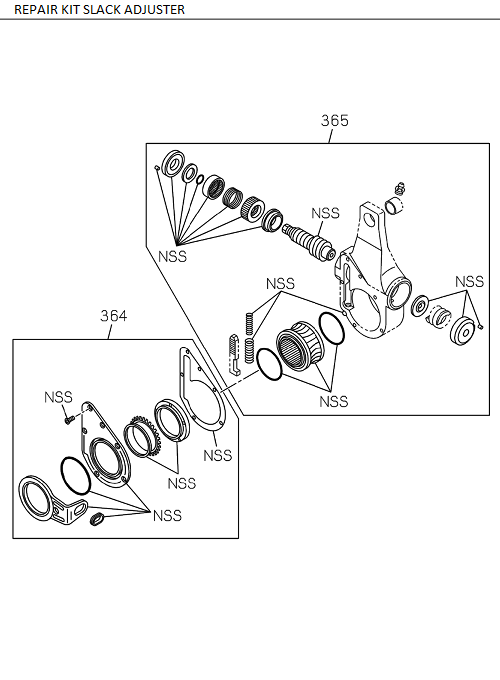

ADJUSTER ASM; SLACK,RR BRK |
2 |
2203- |
|
FVR |
|
| 014 |
I8-97524 552-0 |
|
PIN; CAM ROLLER,BRK SHOE |
4 |
2203-2212 |
|
FVR |
|
| 065 |
I8-97517 193-0 |
|
SPACER; SLACK ADJ,BRK |
2 |
2203- |
|
FVR |
|
| 049 |
I1-47146 003-1 |
|
BUSHING; CM/SHF,RR BRK |
4 |
2203- |
|
FVR |
|
| 017 |
I8-97524 138-0 |
|
SPRING; SHOE HOLD DOWN |
4 |
2203-2212 |
|
FVR |
(A) SINGLE TORSION SPRING |
| 076 |
I8-97517 242-0 |
|
BRACKET; POWER CHAMBER,RR, W/BUSHING |
1 |
2203- |
|
FVR |
|
| 010 |
I8-97524 558-0 |
|
RING; SNAP,SPR PIN |
8 |
2203- |
|
FVR |
(A) |
| 045 |
I8-97524 111-0 |
|
BRACKET; ANCHOR PIN,W/BUSHING |
1 |
2203- |
|
FVR |
|
| 067 |
I0-91180 216-0 |
|
NUT; POWER CHAMBER FIX |
4 |
2203- |
|
FVR |
M16 FLANGE |
| 070 |
I0-91111 516-0 |
|
NUT; LK,JAW JOINT |
2 |
2203- |
|
FVR |
M16 |
| 009 |
I8-97524 156-0 |
|
SPRING; RETURN,BRK SHOE |
2 |
2203- |
|
FVR |
|
| 001 |
I7-55190 817-0 |
|
SHOE; BRK,RR |
2 |
2301- |
|
FVR |
TRAILING |
| 008 |
I8-97524 557-0 |
|
PIN; RETURN SPRING,RR BRK SHOE |
4 |
2203- |
|
FVR |
|
| 195 |
I9-09180 038-0 |
|
RING; SNAP,CM/SHF |
2 |
2203- |
|
FVR |
(A) |
| 050 |
I8-97667 324-0 |
|
CAMSHAFT; BRK,RR BRK |
1 |
2203- |
|
FVR |
|
| 002 |
I1-88311 463-0 |
|
LINING SET; RR BRK,STANDARD |
2 |
2203- |
|
FVR |
LEADING |
| 017 |
I7-55190 071-0 |
|
SPRING; SHOE HOLD DOWN |
4 |
2301- |
|
FVR |
(B) DOUBLE TORSION SPRING |
| 244 |
I8-98316 129-0 |
|
BRACKET; SLACK ADJUSTER |
2 |
2203- |
|
FVR |
|
| 201 |
I0-20851 440-0 |
|
BOLT; BRKT,POWER CHAMBER |
8 |
2203- |
|
FVR |
M14X40 |
| 076 |
I8-97517 242-0 |
|
BRACKET; POWER CHAMBER,RR, W/BUSHING |
1 |
2203- |
|
FVR |
|
| 005 |
I8-97667 177-0 |
|
LINING; RR BRK SHOE,STANDARD |
4 |
2203- |
|
FVR |
TRAILING |
| 046 |
I1-47143 005-0 |
|
RING; SPACER,CM/SHF,RR BRK |
2 |
2203- |
|
FVR |
|
| 045 |
I8-97524 112-0 |
|
BRACKET; ANCHOR PIN,W/BUSHING |
1 |
2203- |
|
FVR |
|
| 010 |
I8-97524 558-0 |
|
RING; SNAP,SPR PIN |
8 |
2203- |
|
FVR |
(A) |
| 073 |
I8-98325 924-0 |
|
COLLAR; FELT RING,CM/SHF |
2 |
2203- |
|
FVR |
|
| 001 |
I8-97667 152-0 |
|
SHOE; BRK,RR |
2 |
2203-2212 |
|
FVR |
LEADING |
| 073 |
I8-98325 924-0 |
|
COLLAR; FELT RING,CM/SHF |
2 |
2203- |
|
FVR |
|
| 048 |
I1-09625 228-0 |
|
SEAL; OIL,CM/SHF,RR BRK |
2 |
2203- |
|
FVR |
|
| 010 |
I8-97524 559-0 |
|
RING; SNAP,SPR PIN |
8 |
2203- |
|
FVR |
(B) |
| 011 |
I8-97524 125-0 |
|
PIN; ANCHOR,RR WHEEL BRK |
4 |
2203- |
|
FVR |
|
| 034 |
I0-90301 510-0 |
|
NIPPLE; GREASE,CHAMBER BRKT |
2 |
2203- |
|
FVR |
PT1/8 ELBOW 67.5 DEGREES |
| 244 |
I8-98316 129-0 |
|
BRACKET; SLACK ADJUSTER |
2 |
2203- |
|
FVR |
|
| 202 |
I0-91510 514-0 |
|
WASHER; LK,BRKT |
8 |
2203- |
|
FVR |
ID=14.2 |
| 017 |
I7-55190 071-0 |
|
SPRING; SHOE HOLD DOWN |
4 |
2301- |
|
FVR |
(B) DOUBLE TORSION SPRING |
| 077 |
I1-47146 003-1 |
|
BUSHING |
2 |
2203- |
|
FVR |
|
| 027 |
I1-09333 151-0 |
|
COVER; CHECK HOLE,DRUM COVER |
4 |
2203- |
|
FVR |
|
| 034 |
I0-90301 510-0 |
|
NIPPLE; GREASE,CHAMBER BRKT |
2 |
2203- |
|
FVR |
PT1/8 ELBOW 67.5 DEGREES |
| 025 |
I1-87831 636-0 |
|
COVER SET; RR BRK DRUM |
2 |
2203- |
|
FVR |
|
| 066 |
I1-09744 088-0 |
|
PIN; JAW JOINT |
2 |
2203- |
|
FVR |
|
| 007 |
I1-09732 034-0 |
|
RIVET; LINING,RR BRK |
AR |
2203- |
|
FVR |
L=18.5 |
| 002 |
I6-88311 463-1 |
|
LINING SET; RR BRK,STANDARD |
1 |
2203- |
|
FVR |
(IADG) LEADING |
| 050 |
I8-97667 323-0 |
|
CAMSHAFT; BRK,RR BRK |
1 |
2203- |
|
FVR |
|
| 066 |
I1-09744 088-0 |
|
PIN; JAW JOINT |
2 |
2203- |
|
FVR |
|
| 075 |
I1-09620 009-0 |
|
RING; FELT,CM/SHF |
2 |
2203- |
|
FVR |
|
| 070 |
I0-91111 516-0 |
|
NUT; LK,JAW JOINT |
2 |
2203- |
|
FVR |
M16 |
| 071 |
I0-91610 616-0 |
|
WASHER; PL,JAW JOINT |
2 |
2203- |
|
FVR |
ID=17 OD=32 |
| 195 |
I8-97524 128-0 |
|
RING; SNAP,CM/SHF |
4 |
2203- |
|
FVR |
(B) |
| 002 |
I6-88311 463-1 |
|
LINING SET; RR BRK,STANDARD |
1 |
2203- |
|
FVR |
(IADG) LEADING |
| 001 |
I8-97667 152-0 |
|
SHOE; BRK,RR |
2 |
2203-2212 |
|
FVR |
LEADING |
| 201 |
I0-20851 440-0 |
|
BOLT; BRKT,POWER CHAMBER |
8 |
2203- |
|
FVR |
M14X40 |
| 001 |
I8-97667 153-0 |
|
SHOE; BRK,RR |
2 |
2203-2212 |
|
FVR |
TRAILING |
| 077 |
I1-47146 003-1 |
|
BUSHING |
2 |
2203- |
|
FVR |
|
| 001 |
I7-55190 816-0 |
|
SHOE; BRK,RR |
2 |
2301- |
|
FVR |
LEADING |
| 195 |
I8-97524 128-0 |
|
RING; SNAP,CM/SHF |
4 |
2203- |
|
FVR |
(B) |
| 052 |
I8-98320 803-0 |
|
BOLT; ANCHOR BRKT |
2 |
2203- |
|
FVR |
|
| 048 |
I1-09625 228-0 |
|
SEAL; OIL,CM/SHF,RR BRK |
2 |
2203- |
|
FVR |
|
| 014 |
I8-97524 552-0 |
|
PIN; CAM ROLLER,BRK SHOE |
4 |
2203-2212 |
|
FVR |
|
| 030 |
I1-47159 187-0 |
|
BOLT; DRUM COVER |
12 |
2203- |
|
FVR |
M10X12 |
| 012 |
I8-97524 550-0 |
|
ROLLER; CAM,BRK SHOE |
4 |
2203- |
|
FVR |
|
| 202 |
I0-91510 514-0 |
|
WASHER; LK,BRKT |
8 |
2203- |
|
FVR |
ID=14.2 |
| 010 |
I8-97524 559-0 |
|
RING; SNAP,SPR PIN |
8 |
2203- |
|
FVR |
(B) |
| 072 |
I0-81124 028-0 |
|
PIN; SPLIT |
2 |
2203- |
|
FVR |
OD=3.7 L=28 |
| 075 |
I1-09620 009-0 |
|
RING; FELT,CM/SHF |
2 |
2203- |
|
FVR |
|
| 069 |
I1-09768 060-1 |
|
JOINT; JAW |
2 |
2203- |
|
FVR |
|
| 001 |
I7-55190 816-0 |
|
SHOE; BRK,RR |
2 |
2301- |
|
FVR |
LEADING |
| 152 |
I8-98011 328-0 |
|
NUT; ANCHOR BRKT |
2 |
2203- |
|
FVR |
M10 |
| 005 |
I8-97667 175-0 |
|
LINING; RR BRK SHOE,STANDARD |
4 |
2203- |
|
FVR |
LEADING |
| 065 |
I8-97517 193-0 |
|
SPACER; SLACK ADJ,BRK |
2 |
2203- |
|
FVR |
|
| 200 |
I0-28050 816-0 |
|
BOLT |
4 |
2203- |
|
FVR |
M8X16 FLANGE |
| 049 |
I1-47146 003-1 |
|
BUSHING; CM/SHF,RR BRK |
4 |
2203- |
|
FVR |
|
| 050 |
I8-97667 323-0 |
|
CAMSHAFT; BRK,RR BRK |
1 |
2203- |
|
FVR |
|
| 069 |
I1-09768 060-1 |
|
JOINT; JAW |
2 |
2203- |
|
FVR |
|
| 002 |
I1-88311 475-0 |
|
LINING SET; RR BRK,STANDARD |
2 |
2203- |
|
FVR |
TRAILING |
| 017 |
I8-97524 138-0 |
|
SPRING; SHOE HOLD DOWN |
4 |
2203-2212 |
|
FVR |
(A) SINGLE TORSION SPRING |
| 009 |
I8-97524 156-0 |
|
SPRING; RETURN,BRK SHOE |
2 |
2203- |
|
FVR |
|
| 045 |
I8-97524 112-0 |
|
BRACKET; ANCHOR PIN,W/BUSHING |
1 |
2203- |
|
FVR |
|
| 007 |
I1-09732 034-0 |
|
RIVET; LINING,RR BRK |
AR |
2203- |
|
FVR |
L=18.5 |
| 152 |
I8-98011 328-0 |
|
NUT; ANCHOR BRKT |
2 |
2203- |
|
FVR |
M10 |
| 005 |
I8-97667 175-0 |
|
LINING; RR BRK SHOE,STANDARD |
4 |
2203- |
|
FVR |
LEADING |
| 030 |
I1-47159 187-0 |
|
BOLT; DRUM COVER |
12 |
2203- |
|
FVR |
M10X12 |
| 200 |
I0-28050 816-0 |
|
BOLT |
4 |
2203- |
|
FVR |
M8X16 FLANGE |
| 050 |
I8-97667 324-0 |
|
CAMSHAFT; BRK,RR BRK |
1 |
2203- |
|
FVR |
|
| 072 |
I0-81124 028-0 |
|
PIN; SPLIT |
2 |
2203- |
|
FVR |
OD=3.7 L=28 |
| 067 |
I0-91180 216-0 |
|
NUT; POWER CHAMBER FIX |
4 |
2203- |
|
FVR |
M16 FLANGE |
| 001 |
I7-55190 817-0 |
|
SHOE; BRK,RR |
2 |
2301- |
|
FVR |
TRAILING |
| 076 |
I8-97517 243-0 |
|
BRACKET; POWER CHAMBER,RR, W/BUSHING |
1 |
2203- |
|
FVR |
|
| 011 |
I8-97524 125-0 |
|
PIN; ANCHOR,RR WHEEL BRK |
4 |
2203- |
|
FVR |
|
| 014 |
I7-55190 318-0 |
|
PIN; CAM ROLLER,BRK SHOE |
4 |
2301- |
|
FVR |
|
| 008 |
I8-97524 557-0 |
|
PIN; RETURN SPRING,RR BRK SHOE |
4 |
2203- |
|
FVR |
|
| 002 |
I1-88311 463-0 |
|
LINING SET; RR BRK,STANDARD |
2 |
2203- |
|
FVR |
LEADING |
| 076 |
I8-97517 243-0 |
|
BRACKET; POWER CHAMBER,RR, W/BUSHING |
1 |
2203- |
|
FVR |
|
| 005 |
I8-97667 177-0 |
|
LINING; RR BRK SHOE,STANDARD |
4 |
2203- |
|
FVR |
TRAILING |
| 063 |
I8-98325 927-0 |
|
ADJUSTER ASM; SLACK,RR BRK |
2 |
2203- |
|
FVR |
|
| 052 |
I8-98320 803-0 |
|
BOLT; ANCHOR BRKT |
2 |
2203- |
|
FVR |
|
| 195 |
I9-09180 038-0 |
|
RING; SNAP,CM/SHF |
2 |
2203- |
|
FVR |
(A) |
| 045 |
I8-97524 111-0 |
|
BRACKET; ANCHOR PIN,W/BUSHING |
1 |
2203- |
|
FVR |
|
| 071 |
I0-91610 616-0 |
|
WASHER; PL,JAW JOINT |
2 |
2203- |
|
FVR |
ID=17 OD=32 |
| 002 |
I1-88311 475-0 |
|
LINING SET; RR BRK,STANDARD |
2 |
2203- |
|
FVR |
TRAILING |
| 014 |
I7-55190 318-0 |
|
PIN; CAM ROLLER,BRK SHOE |
4 |
2301- |
|
FVR |
|
| 046 |
I1-47143 005-0 |
|
RING; SPACER,CM/SHF,RR BRK |
2 |
2203- |
|
FVR |
|
| 025 |
I1-87831 636-0 |
|
COVER SET; RR BRK DRUM |
2 |
2203- |
|
FVR |
|
| 001 |
I8-97667 153-0 |
|
SHOE; BRK,RR |
2 |
2203-2212 |
|
FVR |
TRAILING |
| 027 |
I1-09333 151-0 |
|
COVER; CHECK HOLE,DRUM COVER |
4 |
2203- |
|
FVR |
|
| 012 |
I8-97524 550-0 |
|
ROLLER; CAM,BRK SHOE |
4 |
2203- |
|
FVR |
|
