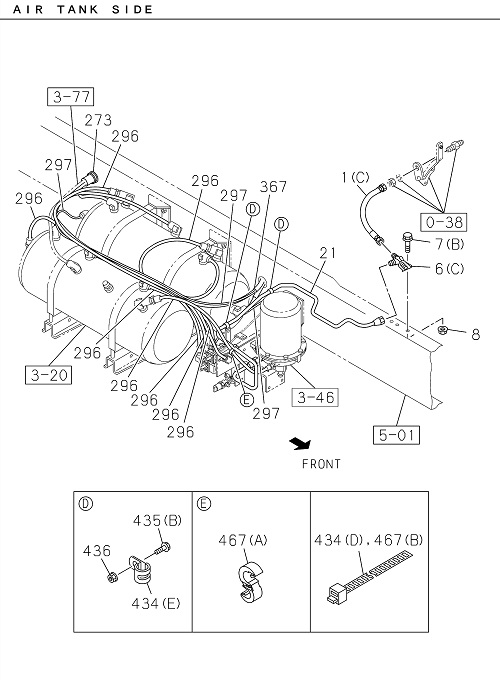

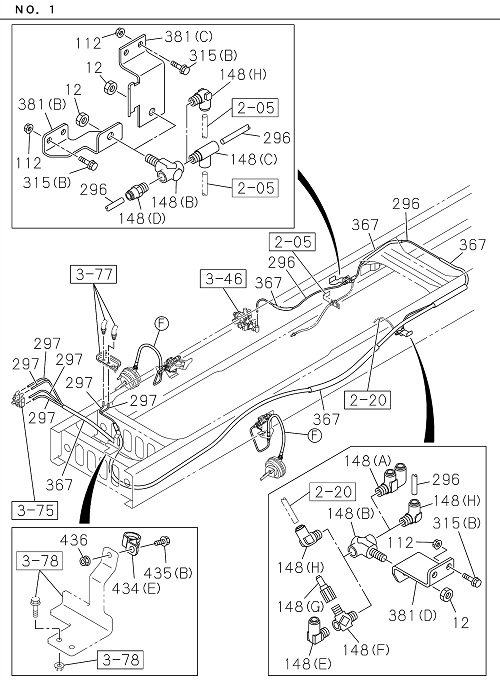

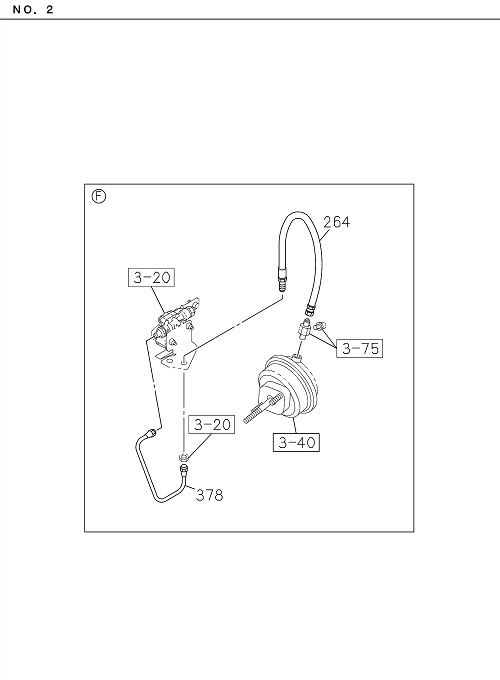

3-70 | BRAKE PIPING; AIR,AIR MASTER
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=10 | ||
| 273 | I9-09956 256-2 | GROMMET | 1 | 2203- | FVR | ID=28 OD=35 T=17 | ||
| 435 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FVR | (B) M8X20 FLANGE | ||
| 021 | I8-97650 548-0 | PIPE; AIR,UNION TO AIR DRYER | 1 | 2203- | FVR | L=1725 | ||
| 297 | I1-87411 015-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 434 | I1-09707 183-0 | CLIP | 6 | 2203- | FVR | (D) L=350 | ||
| 381 | I8-98344 990-0 | BRACKET | 1 | 2203- | FVR | (C) | ||
| 315 | I0-28650 830-0 | BOLT; CONNECTOR | 2 | 2203- | FVR | (B) M8X30 FLANGE | ||
| 148 | I1-09660 956-0 | CONNECTOR; UNION | 1 | 2203- | FVR | (H) DIN8 & R1/4 ELBOW | ||
| 112 | I7-05108 010-A | NUT | 2 | 2203- | FVR | M8 FLANGE | ||
| 112 | I7-05108 010-A | NUT | 2 | 2203- | FVR | M8 FLANGE | ||
| 297 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 367 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=10 | ||
| 434 | I0-95235 536-0 | CLIP | 2 | 2203- | FVR | (B) ID=16 L=20 | ||
| 008 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | FVR | M8 FLANGE | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 435 | I7-04508 025-A | BOLT; CLIP | 2 | 2203- | FVR | (B) M8X20 FLANGE | ||
| 297 | I1-87411 009-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 297 | I1-87411 008-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 148 | I8-98120 049-0 | CONNECTOR; UNION | 1 | 2203- | FVR | (B) M12 & RC1/4X2 2WAY | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 006 | I8-98341 807-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 2203- | FVR | (C) | ||
| 467 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 2203- | FVR | (A) ID=12 & 15 | ||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=25 | ||
| 001 | I8-98319 126-0 | HOSE; FLEX,AIR TANK | 1 | 2203- | FVR | (C) L=330 | ||
| 148 | I1-09660 956-0 | CONNECTOR; UNION | 1 | 2203- | FVR | (H) DIN8 & R1/4 ELBOW | ||
| 297 | I1-87411 014-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 367 | I1-87411 025-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=15 | ||
| 297 | I1-87411 010-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=13 | ||
| 434 | I1-09707 183-0 | CLIP | 6 | 2203- | FVR | (D) L=350 | ||
| 001 | I8-98319 126-0 | HOSE; FLEX,AIR TANK | 1 | 2203- | FVR | (C) L=330 | ||
| 367 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=32 | ||
| 367 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=28 | ||
| 296 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 434 | I1-09700 862-0 | CLIP | 1 | 2203- | FVR | (E) ID=24.5 H=23 L=25 | ||
| 434 | I0-95235 536-0 | CLIP | 2 | 2203- | FVR | (B) ID=16 L=20 | ||
| 273 | I9-09956 256-2 | GROMMET | 1 | 2203- | FVR | ID=28 OD=35 T=17 | ||
| 367 | I1-87411 029-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=22 | ||
| 367 | I1-87411 029-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=22 | ||
| 148 | I8-98120 049-0 | CONNECTOR; UNION | 1 | 2203- | FVR | (B) M12 & RC1/4X2 2WAY | ||
| 297 | I1-87411 009-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 467 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 2203- | FVR | (B) L=350 | ||
| 021 | I8-97650 548-0 | PIPE; AIR,UNION TO AIR DRYER | 1 | 2203- | FVR | L=1725 | ||
| 381 | I8-98344 990-0 | BRACKET | 1 | 2203- | FVR | (C) | ||
| 436 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FVR | M8 FLANGE | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | FVR | M12 | ||
| 367 | I1-87411 033-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=28 | ||
| 297 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 297 | I1-87411 002-0 | TUBE; NYLON | AR | 2203- | FVR | OD=6 | ||
| 367 | I1-87411 025-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=15 | ||
| 315 | I0-28650 830-0 | BOLT; CONNECTOR | 2 | 2203- | FVR | (B) M8X30 FLANGE | ||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | FVR | (B) M8X30 FLANGE | ||
| 367 | I1-87411 027-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=19 | ||
| 436 | I7-05108 010-A | NUT; CLIP | 1 | 2203- | FVR | M8 FLANGE | ||
| 367 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=25 | ||
| 435 | I7-04508 025-A | BOLT; CLIP | 2 | 2203- | FVR | (B) M8X20 FLANGE | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 297 | I1-87411 015-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 148 | I1-09660 963-0 | CONNECTOR; UNION | 1 | 2203- | FVR | (D) DIN8 R1/4 STRAIGHT | ||
| 435 | I7-04508 025-A | BOLT; CLIP | 1 | 2203- | FVR | (B) M8X20 FLANGE | ||
| 296 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 006 | I8-98341 807-0 | BRACKET; FLEX HOSE,AIR TANK | 1 | 2203- | FVR | (C) | ||
| 148 | I1-09660 963-0 | CONNECTOR; UNION | 1 | 2203- | FVR | (D) DIN8 R1/4 STRAIGHT | ||
| 367 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=13 | ||
| 008 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | FVR | M8 FLANGE | ||
| 297 | I1-87411 014-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 007 | I0-28650 830-0 | BOLT; BRKT,FLEX HOSE,AIR TANK | 2 | 2203- | FVR | (B) M8X30 FLANGE | ||
| 467 | I1-09707 183-0 | CLIP; NYLON TUBE | 1 | 2203- | FVR | (B) L=350 | ||
| 434 | I1-09700 862-0 | CLIP | 1 | 2203- | FVR | (E) ID=24.5 H=23 L=25 | ||
| 367 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=32 | ||
| 297 | I1-87411 008-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 | ||
| 012 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | FVR | M12 | ||
| 297 | I1-87411 002-0 | TUBE; NYLON | AR | 2203- | FVR | OD=6 | ||
| 297 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | FVR | OD=12 | ||
| 367 | I1-87411 027-0 | TUBE; CORRUGATE | AR | 2203- | FVR | ID=19 | ||
| 467 | I1-09709 281-1 | CLIP; NYLON TUBE | 1 | 2203- | FVR | (A) ID=12 & 15 | ||
| 297 | I1-87411 010-0 | TUBE; NYLON | AR | 2203- | FVR | OD=8 |
