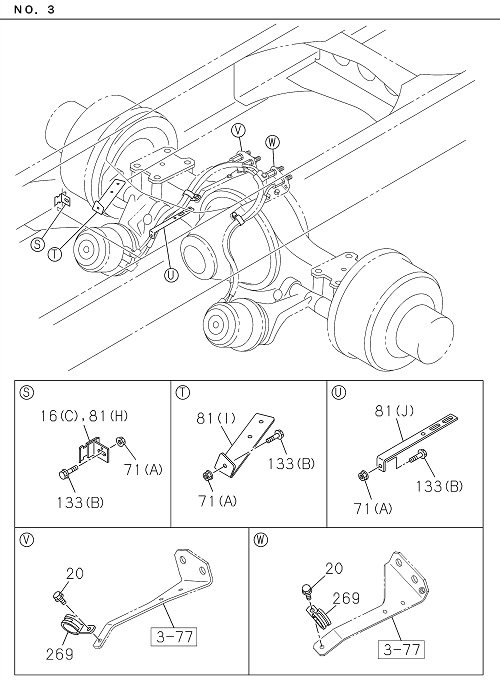

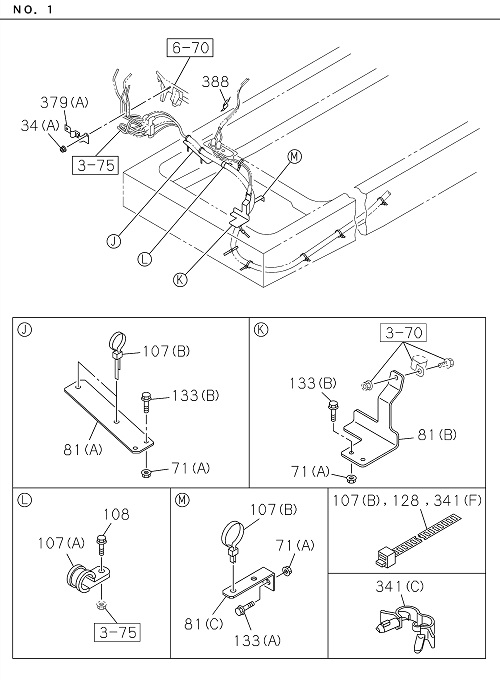

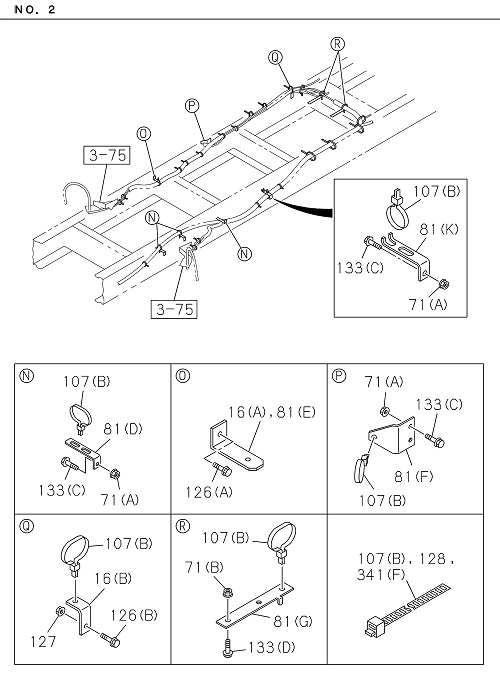

3-78 | FIXING PARTS; AIR PIPING
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 016 | I1-47477 755-1 | BRACKET; PIPE CLIP | 2 | 2203- | FVR | (A) L=90 | ||
| 341 | I1-09707 183-0 | CLIP; HARNESS | 6 | 2203- | FVR | (F) L=350 | ||
| 081 | I8-98311 209-0 | BRACKET; CLIP | 1 | 2203- | FVR | (I) | ||
| 081 | I8-98311 209-0 | BRACKET; CLIP | 1 | 2203- | FVR | (I) | ||
| 071 | I0-91180 112-0 | NUT; BRKT | 2 | 2203- | FVR | (B) M12 FLANGE | ||
| 126 | I0-28650 830-0 | BOLT; CLIP BRKT | 2 | 2203- | FVR | (A) M8X30 FLANGE | ||
| 081 | I1-47477 646-3 | BRACKET; CLIP | 1 | 2203- | FVR | (J) L=225 H=30 | ||
| 127 | I7-05108 010-A | NUT; CLIP BRKT | 1 | 2203- | FVR | M8 FLANGE | ||
| 081 | I8-98371 136-0 | BRACKET; CLIP | 2 | 2203- | FVR | (G) | ||
| 388 | I1-72498 022-1 | SEAL | 3 | 2203- | FVR | 100X40 | ||
| 133 | I0-28051 235-0 | BOLT; BRKT | 2 | 2203- | FVR | (D) M12X35 FLANGE | ||
| 071 | I7-05108 010-A | NUT; BRKT | 8 | 2203- | FVR | (A) M8 FLANGE | ||
| 133 | I0-28650 825-0 | BOLT; BRKT | 3 | 2203- | FVR | (B) M8X25 FLANGE | ||
| 107 | I1-09707 183-0 | CLIP; NYLON TUBE | AR | 2203- | FVR | (B) L=350 | ||
| 081 | I1-47477 716-1 | BRACKET; CLIP | 1 | 2203- | FVR | (E) L=60 H=30 | ||
| 071 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | FVR | (A) M8 FLANGE | ||
| 016 | I8-98119 184-1 | BRACKET; PIPE CLIP | 1 | 2203- | FVR | (C) | ||
| 081 | I8-98119 184-1 | BRACKET; CLIP | 1 | 2203- | FVR | (H) | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 2203- | FVR | (A) | ||
| 107 | I1-09707 183-0 | CLIP; NYLON TUBE | AR | 2203- | FVR | (B) L=350 | ||
| 081 | I8-98325 460-0 | BRACKET; CLIP | 1 | 2203- | FVR | (B) | ||
| 016 | I8-98119 184-1 | BRACKET; PIPE CLIP | 1 | 2203- | FVR | (C) | ||
| 108 | I7-04508 025-A | BOLT; TUBE CLIP | 1 | 2203- | FVR | M8X20 FLANGE | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | FVR | (A) M6 FLANGE | ||
| 081 | I8-98119 184-1 | BRACKET; CLIP | 1 | 2203- | FVR | (H) | ||
| 081 | I1-47476 699-2 | BRACKET; CLIP | 1 | 2203- | FVR | (F) | ||
| 081 | I1-47477 755-1 | BRACKET; CLIP | 1 | 2203- | FVR | (C) L=90 | ||
| 081 | I1-47477 716-1 | BRACKET; CLIP | 3 | 2203- | FVR | (D) L=100 H=30 | ||
| 081 | I1-47476 699-2 | BRACKET; CLIP | 1 | 2203- | FVR | (F) | ||
| 133 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | FVR | (A) M8X20 FLANGE | ||
| 126 | I0-28650 825-0 | BOLT; CLIP BRKT | 1 | 2203- | FVR | (B) M8X25 FLANGE | ||
| 341 | I1-09707 183-0 | CLIP; HARNESS | 6 | 2203- | FVR | (F) L=350 | ||
| 126 | I0-28650 830-0 | BOLT; CLIP BRKT | 1 | 2203- | FVR | (A) M8X30 FLANGE | ||
| 133 | I0-28650 825-0 | BOLT; BRKT | 4 | 2203- | FVR | (B) M8X25 FLANGE | ||
| 133 | I0-28650 830-0 | BOLT; BRKT | 8 | 2203- | FVR | (C) M8X30 FLANGE | ||
| 081 | I8-98325 114-0 | BRACKET; CLIP | 1 | 2203- | FVR | (A) | ||
| 379 | I8-98044 013-0 | BRACKET; NYLON TUBE | 1 | 2203- | FVR | (A) | ||
| 020 | I0-28050 820-0 | BOLT; CLIP | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 016 | I1-47479 080-0 | BRACKET; PIPE CLIP | 1 | 2203- | FVR | (B) | ||
| 071 | I7-05108 010-A | NUT; BRKT | 5 | 2203- | FVR | (A) M8 FLANGE | ||
| 081 | I1-47477 755-1 | BRACKET; CLIP | 1 | 2203- | FVR | (C) L=90 | ||
| 081 | I8-98371 136-0 | BRACKET; CLIP | 2 | 2203- | FVR | (G) | ||
| 133 | I0-28650 825-0 | BOLT; BRKT | 3 | 2203- | FVR | (B) M8X25 FLANGE | ||
| 081 | I8-98343 342-0 | BRACKET; CLIP | 2 | 2203- | FVR | (K) | ||
| 133 | I0-28650 825-0 | BOLT; BRKT | 4 | 2203- | FVR | (B) M8X25 FLANGE | ||
| 341 | I1-09987 221-0 | CLIP; HARNESS | 1 | 2203- | FVR | (C) ID=5-12 L=14.5 | ||
| 081 | I8-98325 460-0 | BRACKET; CLIP | 1 | 2203- | FVR | (B) | ||
| 071 | I7-05108 010-A | NUT; BRKT | 5 | 2203- | FVR | (A) M8 FLANGE | ||
| 126 | I0-28650 830-0 | BOLT; CLIP BRKT | 1 | 2203- | FVR | (A) M8X30 FLANGE | ||
| 081 | I8-98325 114-0 | BRACKET; CLIP | 1 | 2203- | FVR | (A) | ||
| 071 | I0-91180 112-0 | NUT; BRKT | 2 | 2203- | FVR | (B) M12 FLANGE | ||
| 034 | I0-91180 106-0 | NUT; BRKT | 2 | 2203- | FVR | (A) M6 FLANGE | ||
| 269 | I1-09700 945-0 | CLIP; BAND,NYLON TUBE | 2 | 2203- | FVR | ID=35 L=33 | ||
| 133 | I7-04508 025-A | BOLT; BRKT | 1 | 2203- | FVR | (A) M8X20 FLANGE | ||
| 081 | I8-98343 342-0 | BRACKET; CLIP | 2 | 2203- | FVR | (K) | ||
| 020 | I0-28050 820-0 | BOLT; CLIP | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 127 | I7-05108 010-A | NUT; CLIP BRKT | 3 | 2203- | FVR | M8 FLANGE | ||
| 127 | I7-05108 010-A | NUT; CLIP BRKT | 3 | 2203- | FVR | M8 FLANGE | ||
| 071 | I7-05108 010-A | NUT; BRKT | 3 | 2203- | FVR | (A) M8 FLANGE | ||
| 128 | I1-09707 183-0 | CLIP; NYLON TUBE | AR | 2203- | FVR | L=350 | ||
| 107 | I1-09700 329-1 | CLIP; NYLON TUBE | 1 | 2203- | FVR | (A) ID=31 L=35 | ||
| 108 | I7-04508 025-A | BOLT; TUBE CLIP | 1 | 2203- | FVR | M8X20 FLANGE | ||
| 126 | I0-28650 825-0 | BOLT; CLIP BRKT | 1 | 2203- | FVR | (B) M8X25 FLANGE | ||
| 128 | I1-09707 183-0 | CLIP; NYLON TUBE | AR | 2203- | FVR | L=350 | ||
| 127 | I7-05108 010-A | NUT; CLIP BRKT | 1 | 2203- | FVR | M8 FLANGE | ||
| 081 | I1-47477 646-3 | BRACKET; CLIP | 1 | 2203- | FVR | (J) L=225 H=30 | ||
| 133 | I0-28051 235-0 | BOLT; BRKT | 2 | 2203- | FVR | (D) M12X35 FLANGE | ||
| 133 | I0-28650 830-0 | BOLT; BRKT | 8 | 2203- | FVR | (C) M8X30 FLANGE | ||
| 341 | I1-09987 221-0 | CLIP; HARNESS | 1 | 2203- | FVR | (C) ID=5-12 L=14.5 | ||
| 126 | I0-28650 830-0 | BOLT; CLIP BRKT | 2 | 2203- | FVR | (A) M8X30 FLANGE | ||
| 081 | I1-47477 716-1 | BRACKET; CLIP | 1 | 2203- | FVR | (E) L=60 H=30 | ||
| 081 | I1-47477 716-1 | BRACKET; CLIP | 3 | 2203- | FVR | (D) L=100 H=30 | ||
| 016 | I1-47479 080-0 | BRACKET; PIPE CLIP | 1 | 2203- | FVR | (B) | ||
| 269 | I1-09700 945-0 | CLIP; BAND,NYLON TUBE | 2 | 2203- | FVR | ID=35 L=33 | ||
| 388 | I1-72498 022-1 | SEAL | 3 | 2203- | FVR | 100X40 | ||
| 016 | I1-47477 755-1 | BRACKET; PIPE CLIP | 2 | 2203- | FVR | (A) L=90 | ||
| 107 | I1-09700 329-1 | CLIP; NYLON TUBE | 1 | 2203- | FVR | (A) ID=31 L=35 |
