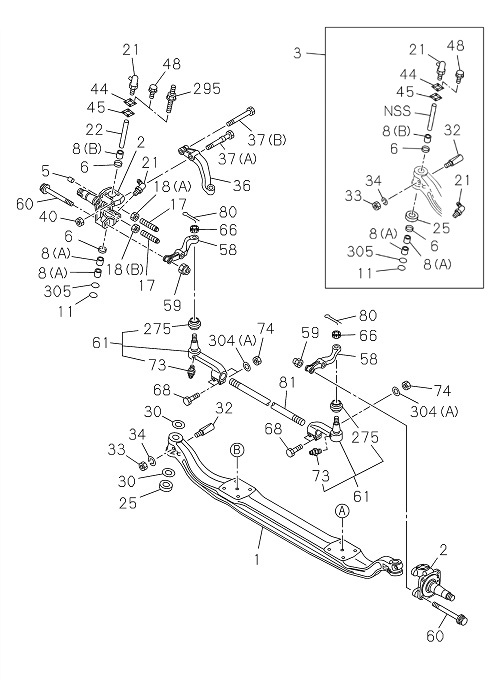

| 305 |
I8-98052 291-0 |
|
COVER; KNUCKLE |
2 |
2203- |
|
FVR |
|
| 030 |
I1-43171 193-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.075 -5.100 |
| 059 |
I1-09449 084-0 |
|
NUT; TIE ROD ARM |
4 |
2203- |
|
FVR |
M22 |
| 275 |
I8-98229 116-0 |
|
BOOT; ROD END,TIE |
2 |
2203- |
|
FVR |
|
| 030 |
I1-43171 188-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.950 -4.975 |
| 030 |
I1-43171 198-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.200 -5.225 |
| 036 |
I8-98296 707-A |
|
ARM; KNUCKLE |
1 |
2203- |
|
FVR |
|
| 036 |
I8-98296 707-A |
|
ARM; KNUCKLE |
1 |
2203- |
|
FVR |
|
| 033 |
I0-91110 510-0 |
|
NUT; KEY BOLT |
2 |
2203- |
|
FVR |
M10 |
| 002 |
I8-98296 705-0 |
|
KNUCKLE; FRT AXLE |
1 |
2203- |
|
FVR |
|
| 005 |
I1-09740 072-0 |
|
PIN; KNUCKLE TO DRUM COVER |
2 |
2203- |
|
FVR |
|
| 018 |
I1-09469 011-1 |
|
NUT; STOPPER BOLT,KNUCKLE |
1 |
2203- |
|
FVR |
(A) M18 |
| 045 |
I1-42319 044-0 |
|
GASKET; KING PIN COVER |
2 |
2203- |
|
FVR |
|
| 018 |
I0-91110 518-0 |
|
NUT; STOPPER BOLT,KNUCKLE |
2 |
2203- |
|
FVR |
(B) M18 |
| 030 |
I1-43171 189-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.975 -5.000 |
| 001 |
I8-98360 752-A |
|
AXLE; FRT |
1 |
2203- |
|
FVR |
|
| 030 |
I1-43171 190-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.000 -5.025 |
| 058 |
I8-98296 711-A |
|
ARM; TIE ROD |
1 |
2203- |
|
FVR |
|
| 060 |
I8-98052 379-1 |
|
BOLT; TIE ROD ARM |
4 |
2203- |
|
FVR |
M22X193 |
| 002 |
I8-98296 706-0 |
|
KNUCKLE; FRT AXLE |
1 |
2203- |
|
FVR |
|
| 040 |
I1-09449 084-0 |
|
NUT; KNUCKLE ARM |
2 |
2203- |
|
FVR |
M22 |
| 003 |
I6-87831 302-0 |
|
KING PIN SET |
2 |
2203- |
|
FVR |
(IADG) |
| 001 |
I8-98360 752-A |
|
AXLE; FRT |
1 |
2203- |
|
FVR |
|
| 021 |
I0-90301 510-0 |
|
NIPPLE; GREASE,KING PIN |
4 |
2203- |
|
FVR |
PT1/8 ELBOW 67.5 DEGREES |
| 045 |
I1-42319 044-0 |
|
GASKET; KING PIN COVER |
2 |
2203- |
|
FVR |
|
| 059 |
I1-09449 084-0 |
|
NUT; TIE ROD ARM |
4 |
2203- |
|
FVR |
M22 |
| 037 |
I8-98052 381-1 |
|
BOLT; KNUCKLE ARM |
1 |
2203- |
|
FVR |
(B) M22X167 |
| 037 |
I8-98052 380-1 |
|
BOLT; KNUCKLE ARM |
1 |
2203- |
|
FVR |
(A) M22X179 |
| 304 |
I9-09164 512-0 |
|
WASHER; PL |
4 |
2203- |
|
FVR |
(A) ID=12.5 |
| 048 |
I0-28051 216-0 |
|
BOLT; COVER |
8 |
2203- |
|
FVR |
M12X16 FLANGE |
| 066 |
I1-09442 032-0 |
|
NUT; TIE ROD END |
2 |
2203- |
|
FVR |
M24 |
| 305 |
I8-98052 291-0 |
|
COVER; KNUCKLE |
2 |
2203- |
|
FVR |
|
| 080 |
I0-81125 035-0 |
|
PIN; SPLIT,ROD END |
2 |
2203- |
|
FVR |
OD=4.6 L=35 |
| 017 |
I1-09009 190-0 |
|
BOLT; STOPPER KNUCKLE |
2 |
2203- |
|
FVR |
(B) M18X43 |
| 068 |
I8-98053 922-0 |
|
BOLT; TIE ROD END |
4 |
2203- |
|
FVR |
M12X65 |
| 275 |
I8-98229 116-0 |
|
BOOT; ROD END,TIE |
2 |
2203- |
|
FVR |
|
| 058 |
I8-98296 711-A |
|
ARM; TIE ROD |
1 |
2203- |
|
FVR |
|
| 030 |
I1-43171 199-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.225 -5.250 |
| 025 |
I1-09829 043-2 |
|
BEARING; THRUST,KING PIN |
2 |
2203- |
|
FVR |
|
| 068 |
I8-98053 922-0 |
|
BOLT; TIE ROD END |
4 |
2203- |
|
FVR |
M12X65 |
| 030 |
I1-43171 191-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.025 -5.050 |
| 058 |
I8-98296 712-A |
|
ARM; TIE ROD |
1 |
2203- |
|
FVR |
|
| 030 |
I1-43171 193-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.075 -5.100 |
| 030 |
I1-43171 195-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.125 -5.150 |
| 030 |
I1-43171 196-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.150 -5.175 |
| 022 |
I8-97948 384-1 |
|
PIN; KING,FRT AXLE |
2 |
2203- |
|
FVR |
|
| 032 |
I1-43116 002-2 |
|
BOLT; KEY,KING PIN |
2 |
2203- |
|
FVR |
|
| 066 |
I1-09442 032-0 |
|
NUT; TIE ROD END |
2 |
2203- |
|
FVR |
M24 |
| 032 |
I1-43116 002-2 |
|
BOLT; KEY,KING PIN |
2 |
2203- |
|
FVR |
|
| 030 |
I1-43171 191-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.025 -5.050 |
| 022 |
I8-97948 384-1 |
|
PIN; KING,FRT AXLE |
2 |
2203- |
|
FVR |
|
| 017 |
I1-09009 066-0 |
|
BOLT; STOPPER KNUCKLE |
1 |
2203- |
|
FVR |
(A) M18X53 |
| 060 |
I8-98052 379-1 |
|
BOLT; TIE ROD ARM |
4 |
2203- |
|
FVR |
M22X193 |
| 058 |
I8-98296 712-A |
|
ARM; TIE ROD |
1 |
2203- |
|
FVR |
|
| 002 |
I8-98296 706-0 |
|
KNUCKLE; FRT AXLE |
1 |
2203- |
|
FVR |
|
| 074 |
I0-91110 512-0 |
|
NUT; TIE ROD END |
4 |
2203- |
|
FVR |
M12 |
| 030 |
I1-43171 186-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.900 -4.925 |
| 034 |
I0-91510 510-0 |
|
WASHER; LK,KEY BOLT |
2 |
2203- |
|
FVR |
ID=10.2 |
| 037 |
I8-98052 380-1 |
|
BOLT; KNUCKLE ARM |
1 |
2203- |
|
FVR |
(A) M22X179 |
| 030 |
I1-43171 194-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.100 -5.125 |
| 003 |
I1-87831 302-3 |
|
KING PIN SET |
2 |
2203- |
|
FVR |
|
| 081 |
I8-98330 971-0 |
|
ROD; TIE |
1 |
2203- |
|
FVR |
|
| 030 |
I1-43171 190-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.000 -5.025 |
| 030 |
I1-43171 192-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.050 -5.075 |
| 040 |
I1-09449 084-0 |
|
NUT; KNUCKLE ARM |
2 |
2203- |
|
FVR |
M22 |
| 030 |
I1-43171 198-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.200 -5.225 |
| 037 |
I8-98052 381-1 |
|
BOLT; KNUCKLE ARM |
1 |
2203- |
|
FVR |
(B) M22X167 |
| 025 |
I1-09829 043-2 |
|
BEARING; THRUST,KING PIN |
2 |
2203- |
|
FVR |
|
| 021 |
I0-90301 510-0 |
|
NIPPLE; GREASE,KING PIN |
4 |
2203- |
|
FVR |
PT1/8 ELBOW 67.5 DEGREES |
| 017 |
I1-09009 190-0 |
|
BOLT; STOPPER KNUCKLE |
2 |
2203- |
|
FVR |
(B) M18X43 |
| 008 |
I9-00096 243-0 |
|
BEARING; NEEDLE,KING PIN |
2 |
2203- |
|
FVR |
(B) |
| 030 |
I1-43171 188-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.950 -4.975 |
| 030 |
I1-43171 185-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.875 -4.900 |
| 073 |
I1-43159 132-0 |
|
NIPPLE; GREASE,TIE ROD END |
2 |
2203- |
|
FVR |
|
| 011 |
I9-09950 204-0 |
|
RING; SNAP,KNUCKLE PLUG |
2 |
2203- |
|
FVR |
|
| 030 |
I1-43171 195-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.125 -5.150 |
| 034 |
I0-91510 510-0 |
|
WASHER; LK,KEY BOLT |
2 |
2203- |
|
FVR |
ID=10.2 |
| 030 |
I1-43171 197-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.175 -5.200 |
| 030 |
I1-43171 185-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.875 -4.900 |
| 073 |
I1-43159 132-0 |
|
NIPPLE; GREASE,TIE ROD END |
2 |
2203- |
|
FVR |
|
| 061 |
I8-98330 517-2 |
|
ROD END; TIE ROD |
1 |
2203- |
|
FVR |
|
| 061 |
I8-98330 518-2 |
|
ROD END; TIE ROD |
1 |
2203- |
|
FVR |
|
| 080 |
I0-81125 035-0 |
|
PIN; SPLIT,ROD END |
2 |
2203- |
|
FVR |
OD=4.6 L=35 |
| 030 |
I1-43171 187-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.925 -4.950 |
| 008 |
I9-00096 242-0 |
|
BEARING; NEEDLE,KING PIN |
4 |
2203- |
|
FVR |
(A) |
| 003 |
I6-87831 302-0 |
|
KING PIN SET |
2 |
2203- |
|
FVR |
(IADG) |
| 081 |
I8-98330 971-0 |
|
ROD; TIE |
1 |
2203- |
|
FVR |
|
| 017 |
I1-09009 066-0 |
|
BOLT; STOPPER KNUCKLE |
1 |
2203- |
|
FVR |
(A) M18X53 |
| 304 |
I9-09164 512-0 |
|
WASHER; PL |
4 |
2203- |
|
FVR |
(A) ID=12.5 |
| 011 |
I9-09950 204-0 |
|
RING; SNAP,KNUCKLE PLUG |
2 |
2203- |
|
FVR |
|
| 018 |
I0-91110 518-0 |
|
NUT; STOPPER BOLT,KNUCKLE |
2 |
2203- |
|
FVR |
(B) M18 |
| 005 |
I1-09740 072-0 |
|
PIN; KNUCKLE TO DRUM COVER |
2 |
2203- |
|
FVR |
|
| 006 |
I9-09926 024-0 |
|
SEAL; KING PIN |
4 |
2203- |
|
FVR |
|
| 018 |
I1-09469 011-1 |
|
NUT; STOPPER BOLT,KNUCKLE |
1 |
2203- |
|
FVR |
(A) M18 |
| 030 |
I1-43171 186-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.900 -4.925 |
| 002 |
I8-98296 705-0 |
|
KNUCKLE; FRT AXLE |
1 |
2203- |
|
FVR |
|
| 030 |
I1-43171 187-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.925 -4.950 |
| 006 |
I9-09926 024-0 |
|
SEAL; KING PIN |
4 |
2203- |
|
FVR |
|
| 030 |
I1-43171 189-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=4.975 -5.000 |
| 030 |
I1-43171 192-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.050 -5.075 |
| 030 |
I1-43171 194-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.100 -5.125 |
| 044 |
I1-43175 014-1 |
|
COVER; KING PIN |
2 |
2203- |
|
FVR |
|
| 048 |
I0-28051 216-0 |
|
BOLT; COVER |
8 |
2203- |
|
FVR |
M12X16 FLANGE |
| 061 |
I8-98330 517-2 |
|
ROD END; TIE ROD |
1 |
2203- |
|
FVR |
|
| 074 |
I0-91110 512-0 |
|
NUT; TIE ROD END |
4 |
2203- |
|
FVR |
M12 |
| 044 |
I1-43175 014-1 |
|
COVER; KING PIN |
2 |
2203- |
|
FVR |
|
| 061 |
I8-98330 518-2 |
|
ROD END; TIE ROD |
1 |
2203- |
|
FVR |
|
| 030 |
I1-43171 199-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.225 -5.250 |
| 003 |
I1-87831 302-3 |
|
KING PIN SET |
2 |
2203- |
|
FVR |
|
| 008 |
I9-00096 242-0 |
|
BEARING; NEEDLE,KING PIN |
4 |
2203- |
|
FVR |
(A) |
| 008 |
I9-00096 243-0 |
|
BEARING; NEEDLE,KING PIN |
2 |
2203- |
|
FVR |
(B) |
| 033 |
I0-91110 510-0 |
|
NUT; KEY BOLT |
2 |
2203- |
|
FVR |
M10 |
| 030 |
I1-43171 197-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.175 -5.200 |
| 030 |
I1-43171 196-0 |
|
WASHER; THRUST,KING PIN |
AR |
2203- |
|
FVR |
T=5.150 -5.175 |
