PORTAL SPAREPART

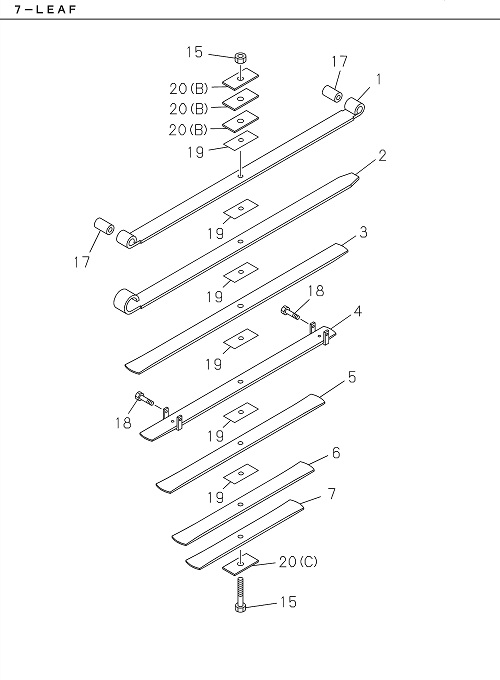

4-55 | FRONT LEAF SPRING

Partial Engine

GIGA E4

GIGA FVR E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
059 I7-00006 155-A SPACER 2 2208- FVR 6-SPRING; T= 6; 80x155
015 I7-00189 100-A BOLT; CENTER,LEAF SPR,FRT 2 2203-2207 FVR 7-SPRING
005 I7-65000 377-A SPRING; LEAF,NO 5,FRT 2 2208- FVR 6-SPRING; T= 13; 80x750
004 I8-97189 004-A SPRING; LEAF,NO 4,FRT 2 2203-2207 FVR 7-SPRING
004 I7-65000 376-A SPRING; LEAF,NO 4,FRT 2 2208- FVR 6-SPRING; T= 14; 80x980
004 I6-97189 004-0 SPRING; LEAF,NO 4,FRT 2 2203-2207 FVR (IADG) 7-SPRING
059 I7-00006 155-A SPACER 2 2208- FVR 6-SPRING; T= 6; 80x155
007 I8-97189 007-A SPRING; LEAF,NO 7,FRT 2 2203-2207 FVR 7-SPRING
002 I6-97189 002-0 SPRING; LEAF,NO 2,FRT 2 2203-2207 FVR (IADG) 7-SPRING
005 I6-97189 005-0 SPRING; LEAF,NO 5,FRT 2 2203-2207 FVR (IADG) 7-SPRING
059 I7-00013 155-A SPACER 2 2208- FVR 6-SPRING; T= 13; 80x155
020 I7-00189 502-A SEAT; LEAF SPR,FRT 2 2203-2207 FVR 7-SPRING
017 I6-00189 200-0 BUSHING; LEAF SPR,FRT 4 2203-2207 FVR (IADG) 7-SPRING
015 I7-42717 135-A BOLT; CENTER,LEAF SPR,FRT 2 2208- FVR 6-SPRING
001 I8-97189 001-B SPRING; LEAF,NO 1,FRT 2 2203-2207 FVR 7-SPRING
004 I6-97189 004-0 SPRING; LEAF,NO 4,FRT 2 2203-2207 FVR (IADG) 7-SPRING
015 I7-00189 100-A BOLT; CENTER,LEAF SPR,FRT 2 2203-2207 FVR 7-SPRING
017 I7-00383 278-A BUSHING; LEAF SPR,FRT 4 2208- FVR 6-SPRING
017 I7-00383 278-A BUSHING; LEAF SPR,FRT 4 2208- FVR 6-SPRING
003 I7-65000 375-A SPRING; LEAF,NO 3,FRT 2 2208- FVR 6-SPRING; T= 14; 80x1200
018 I6-00189 300-0 BOLT; CLIP,LEAF SPR,FRT 4 2203-2207 FVR (IADG) 7-SPRING
059 I7-00010 155-A SPACER 2 2208- FVR 6-SPRING; T= 10; 80x155
002 I8-97189 002-A SPRING; LEAF,NO 2,FRT 2 2203-2207 FVR 7-SPRING
005 I7-65000 377-A SPRING; LEAF,NO 5,FRT 2 2208- FVR 6-SPRING; T= 13; 80x750
059 I7-00178 145-A CENTER SPACER 2 2208- FVR 6-SPRING
006 I6-97189 006-0 SPRING; LEAF,NO 6,FRT 2 2203-2207 FVR (IADG) 7-SPRING
003 I8-97189 003-A SPRING; LEAF,NO 3,FRT 2 2203-2207 FVR 7-SPRING
017 I7-00189 200-A BUSHING; LEAF SPR,FRT 4 2203-2207 FVR 7-SPRING
059 I7-00013 155-A SPACER 2 2208- FVR 6-SPRING; T= 13; 80x155
020 I7-00189 501-A SEAT; LEAF SPR,FRT 2 2203-2207 FVR 7-SPRING
003 I8-97189 003-A SPRING; LEAF,NO 3,FRT 2 2203-2207 FVR 7-SPRING
018 I7-00189 300-A BOLT; CLIP,LEAF SPR,FRT 4 2203-2207 FVR 7-SPRING
006 I7-65000 378-A SPRING; LEAF,NO 6,FRT 2 2208- FVR 6-SPRING; T= 13; 80x520
018 I6-00189 300-0 BOLT; CLIP,LEAF SPR,FRT 4 2203-2207 FVR (IADG) 7-SPRING
018 I7-00189 300-A BOLT; CLIP,LEAF SPR,FRT 4 2203-2207 FVR 7-SPRING
015 I7-42717 135-A BOLT; CENTER,LEAF SPR,FRT 2 2208- FVR 6-SPRING
006 I7-65000 378-A SPRING; LEAF,NO 6,FRT 2 2208- FVR 6-SPRING; T= 13; 80x520
007 I6-97189 007-0 SPRING; LEAF,NO 7,FRT 2 2203-2207 FVR (IADG) 7-SPRING
005 I6-97189 005-0 SPRING; LEAF,NO 5,FRT 2 2203-2207 FVR (IADG) 7-SPRING
003 I7-65000 375-A SPRING; LEAF,NO 3,FRT 2 2208- FVR 6-SPRING; T= 14; 80x1200
017 I6-00189 200-0 BUSHING; LEAF SPR,FRT 4 2203-2207 FVR (IADG) 7-SPRING
007 I8-97189 007-A SPRING; LEAF,NO 7,FRT 2 2203-2207 FVR 7-SPRING
020 I7-00189 502-A SEAT; LEAF SPR,FRT 2 2203-2207 FVR 7-SPRING
001 I8-97189 001-B SPRING; LEAF,NO 1,FRT 2 2203-2207 FVR 7-SPRING
005 I8-97189 005-A SPRING; LEAF,NO 5,FRT 2 2203-2207 FVR 7-SPRING
005 I8-97189 005-A SPRING; LEAF,NO 5,FRT 2 2203-2207 FVR 7-SPRING
004 I7-65000 376-A SPRING; LEAF,NO 4,FRT 2 2208- FVR 6-SPRING; T= 14; 80x980
017 I7-00189 200-A BUSHING; LEAF SPR,FRT 4 2203-2207 FVR 7-SPRING
002 I7-65000 374-A SPRING; LEAF,NO 2,FRT 2 2208- FVR 6-SPRING; T= 13; 80x1678
002 I6-97189 002-0 SPRING; LEAF,NO 2,FRT 2 2203-2207 FVR (IADG) 7-SPRING
001 I6-97189 001-0 SPRING; LEAF,NO 1,FRT 2 2203-2207 FVR (IADG) 7-SPRING
003 I6-97189 003-0 SPRING; LEAF,NO 3,FRT 2 2203-2207 FVR (IADG) 7-SPRING
001 I7-65000 373-A SPRING; LEAF,NO 1,FRT 2 2208- FVR 6-SPRING; T= 13; 80x1796
006 I8-97189 006-A SPRING; LEAF,NO 6,FRT 2 2203-2207 FVR 7-SPRING
007 I6-97189 007-0 SPRING; LEAF,NO 7,FRT 2 2203-2207 FVR (IADG) 7-SPRING
006 I6-97189 006-0 SPRING; LEAF,NO 6,FRT 2 2203-2207 FVR (IADG) 7-SPRING
006 I8-97189 006-A SPRING; LEAF,NO 6,FRT 2 2203-2207 FVR 7-SPRING
059 I7-00178 145-A CENTER SPACER 2 2208- FVR 6-SPRING
001 I6-97189 001-0 SPRING; LEAF,NO 1,FRT 2 2203-2207 FVR (IADG) 7-SPRING
002 I7-65000 374-A SPRING; LEAF,NO 2,FRT 2 2208- FVR 6-SPRING; T= 13; 80x1678
020 I7-00189 501-A SEAT; LEAF SPR,FRT 2 2203-2207 FVR 7-SPRING
003 I6-97189 003-0 SPRING; LEAF,NO 3,FRT 2 2203-2207 FVR (IADG) 7-SPRING
002 I8-97189 002-A SPRING; LEAF,NO 2,FRT 2 2203-2207 FVR 7-SPRING
004 I8-97189 004-A SPRING; LEAF,NO 4,FRT 2 2203-2207 FVR 7-SPRING
001 I7-65000 373-A SPRING; LEAF,NO 1,FRT 2 2208- FVR 6-SPRING; T= 13; 80x1796
059 I7-00010 155-A SPACER 2 2208- FVR 6-SPRING; T= 10; 80x155
