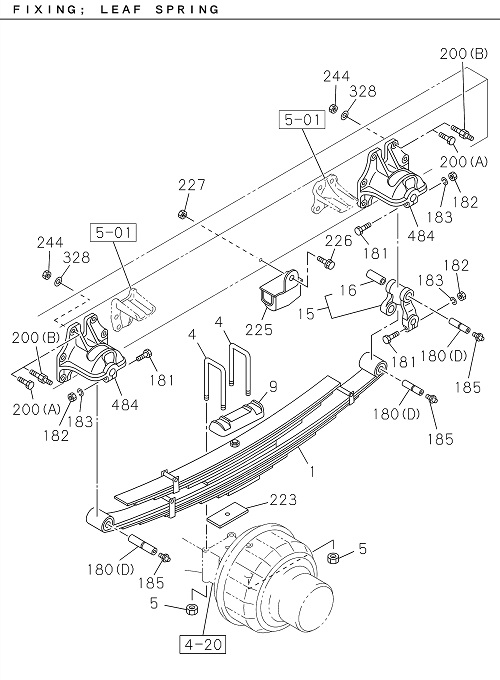

4-60 | REAR SUSPENSION
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 484 | I8-98305 711-0 | BRACKET; REAR SPRING | 4 | 2203- | FVR | |||
| 183 | I0-91510 514-0 | WASHER; LK,PIN,RR SPR | 6 | 2203- | FVR | ID=14.2 | ||
| 005 | I0-91112 824-0 | NUT; U-BOLT,RR SPR | 8 | 2203- | FVR | M24 | ||
| 484 | I8-98305 711-0 | BRACKET; REAR SPRING | 4 | 2203- | FVR | |||
| 244 | I0-91110 514-0 | NUT; BRKT | 24 | 2203- | FVR | M14 | ||
| 244 | I0-91110 514-0 | NUT; BRKT | 24 | 2203- | FVR | M14 | ||
| 223 | I8-98354 245-0 | SPACER; U BOLT,RR SPR | 2 | 2203- | FVR | FVR34L D | ||
| 016 | I8-98347 617-0 | BUSHING; SHACKLE,RR SPR | 2 | 2203- | FVR | |||
| 001 | I7-66002 331-A | SPRING ASM; LEAF,RR | 1 | 2208- | FVR | |||
| 185 | I0-90301 410-0 | NIPPLE; GREASE,PIN,RR SPR | 6 | 2203- | FVR | PT1/8 STRAIGHT | ||
| 226 | I0-28861 445-0 | BOLT | 2 | 2203- | FVR | M14X45 FLANGE | ||
| 005 | I0-91112 824-0 | NUT; U-BOLT,RR SPR | 8 | 2203- | FVR | M24 | ||
| 200 | I0-20951 450-0 | BOLT; BRKT | 24 | 2203- | FVR | (A) M14X50 | ||
| 004 | I8-97696 192-A | U-BOLT; RR SPR | 4 | 2203- | FVR | |||
| 200 | I0-20951 450-0 | BOLT; BRKT | 24 | 2203- | FVR | (A) M14X50 | ||
| 001 | I8-97696 183-A | SPRING ASM; LEAF,RR | 1 | 2203-2207 | FVR | |||
| 223 | I8-98310 347-0 | SPACER; U BOLT,RR SPR | 2 | 2203- | FVR | |||
| 225 | I8-98308 025-1 | RUBBER; CUSHION,RR SPR | 2 | 2203- | FVR | |||
| 016 | I8-98347 617-0 | BUSHING; SHACKLE,RR SPR | 2 | 2203- | FVR | |||
| 227 | I0-91180 214-0 | NUT; CUSHION RUBBER | 2 | 2203- | FVR | M14 FLANGE | ||
| 183 | I0-91510 514-0 | WASHER; LK,PIN,RR SPR | 6 | 2203- | FVR | ID=14.2 | ||
| 004 | I8-97696 192-A | U-BOLT; RR SPR | 4 | 2203- | FVR | |||
| 223 | I8-98354 244-0 | SPACER; U BOLT,RR SPR | 2 | 2203- | FVR | FVR34P | ||
| 181 | I0-10856 480-0 | BOLT; SPR & SHACKLE | 6 | 2203- | FVR | M14X80 | ||
| 328 | I8-98010 627-1 | WASHER; PL,BRKT | 24 | 2203- | FVR | ID=15 | ||
| 015 | I8-97667 320-0 | SHACKLE; RR SPR | 2 | 2203- | FVR | |||
| 180 | I8-98310 348-0 | PIN; RR SPR | 6 | 2203- | FVR | (D) | ||
| 227 | I0-91180 214-0 | NUT; CUSHION RUBBER | 2 | 2203- | FVR | M14 FLANGE | ||
| 223 | I8-98354 245-0 | SPACER; U BOLT,RR SPR | 2 | 2203- | FVR | FVR34L D | ||
| 015 | I8-97667 320-0 | SHACKLE; RR SPR | 2 | 2203- | FVR | |||
| 223 | I8-98354 244-0 | SPACER; U BOLT,RR SPR | 2 | 2203- | FVR | FVR34P | ||
| 009 | I8-98306 032-0 | PAD; U BOLT,RR SPR | 2 | 2203- | FVR | |||
| 185 | I0-90301 410-0 | NIPPLE; GREASE,PIN,RR SPR | 6 | 2203- | FVR | PT1/8 STRAIGHT | ||
| 328 | I8-98010 627-1 | WASHER; PL,BRKT | 24 | 2203- | FVR | ID=15 | ||
| 001 | I8-97696 183-A | SPRING ASM; LEAF,RR | 1 | 2203-2207 | FVR | |||
| 223 | I8-98310 347-0 | SPACER; U BOLT,RR SPR | 2 | 2203- | FVR | |||
| 182 | I0-91110 514-0 | NUT; PIN,RR SPR | 6 | 2203- | FVR | M14 | ||
| 009 | I8-98306 032-0 | PAD; U BOLT,RR SPR | 2 | 2203- | FVR | |||
| 181 | I0-10856 480-0 | BOLT; SPR & SHACKLE | 6 | 2203- | FVR | M14X80 | ||
| 180 | I8-98310 348-0 | PIN; RR SPR | 6 | 2203- | FVR | (D) | ||
| 182 | I0-91110 514-0 | NUT; PIN,RR SPR | 6 | 2203- | FVR | M14 | ||
| 001 | I7-66002 331-A | SPRING ASM; LEAF,RR | 1 | 2208- | FVR | |||
| 225 | I8-98308 025-1 | RUBBER; CUSHION,RR SPR | 2 | 2203- | FVR | |||
| 226 | I0-28861 445-0 | BOLT | 2 | 2203- | FVR | M14X45 FLANGE |
