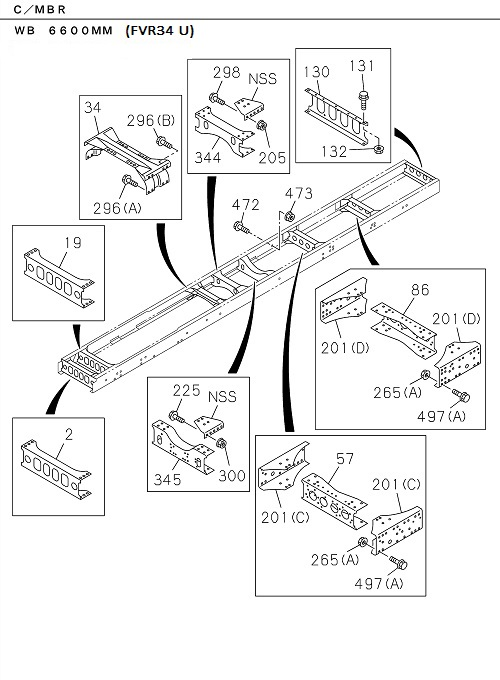

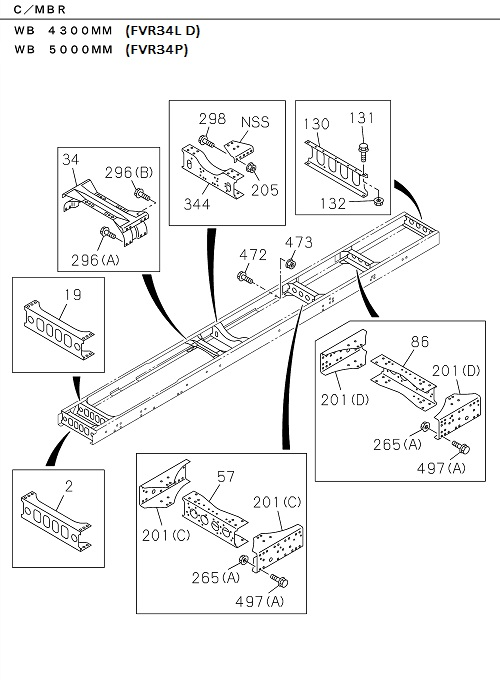

5-01 | FRAME AND OTHER PARTS
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 2203- | FVR | |||
| 201 | I8-98294 496-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (D) | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 4 | 2203- | FVR | M14X35 FLANGE | ||
| 472 | I0-28851 435-0 | BOLT; S/MBR TO REINF | 18 | 2203- | FVR | M14X35 FLANGE; FVR34L D; FVR34P; FVR34Q; FVR34S | ||
| 281 | I8-98010 627-1 | WASHER; LEAF SPR STOPPER | 16 | 2203- | FVR | ID=15 | ||
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 2203- | FVR | |||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 2203- | FVR | (B) ID=16.2 | ||
| 002 | I8-98300 619-1 | MEMBER; CROSS,1ST | 1 | 2203- | FVR | |||

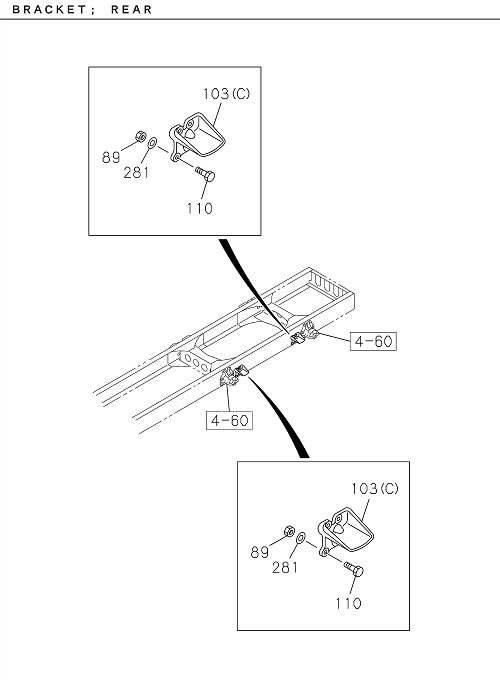

| 103 | I8-98308 043-0 | STOPPER; SUB SPR | 2 | 2203- | FVR | (C) | ||
| 201 | I8-98294 496-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (D) | ||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 2203- | FVR | (A) M14X45 | ||

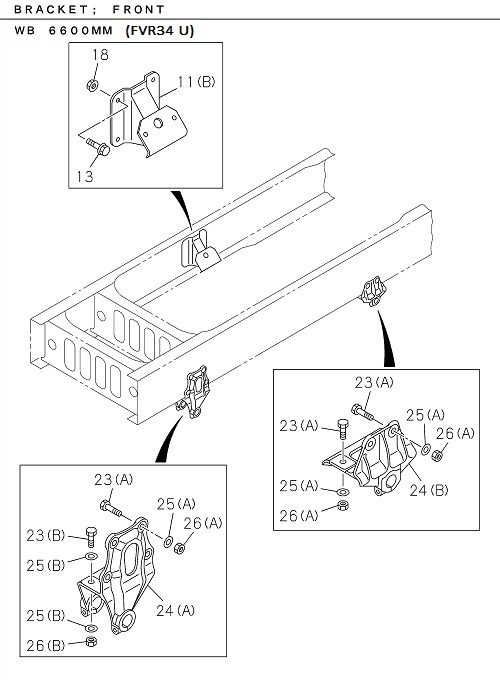

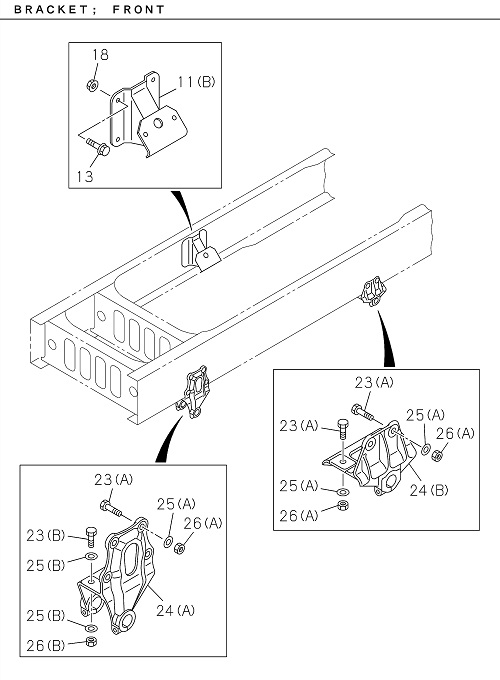

| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVR | (A) | ||
| 472 | I0-28851 435-0 | BOLT; S/MBR TO REINF | 18 | 2203- | FVR | M14X35 FLANGE; FVR34L D; FVR34P; FVR34Q; FVR34S | ||
| 002 | I8-98300 619-1 | MEMBER; CROSS,1ST | 1 | 2203- | FVR | |||
| 057 | I8-98302 834-1 | MEMBER; CROSS,RR SUSP FRT | 1 | 2203- | FVR | |||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 2203- | FVR | (B) | ||
| 300 | I0-91180 214-0 | NUT; 5TH C/MBR | 16 | 2203- | FVR | M14 FLANGE | ||
| 344 | I8-98328 903-3 | MEMBER; CROSS,4TH | 1 | 2203- | FVR | |||
| 473 | I0-91180 214-0 | NUT; S/MBR TO REINF | 26 | 2203- | FVR | M14 FLANGE; FVR34U | ||
| 130 | I8-98300 623-0 | MEMBER; CROSS,END | 1 | 2203- | FVR | |||
| 265 | I0-91180 214-0 | NUT; FRT C/MBR | 38 | 2203- | FVR | (A) M14 FLANGE | ||
| 201 | I8-98294 494-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (C) | ||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 2203- | FVR | M12 FLANGE | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 16 | 2203- | FVR | (A) M14 | ||
| 201 | I8-98294 497-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (D) | ||
| 473 | I0-91180 214-0 | NUT; S/MBR TO REINF | 18 | 2203- | FVR | M14 FLANGE; FVR34L D; FVR34P; FVR34Q; FVR34S | ||
| 265 | I0-91180 214-0 | NUT; FRT C/MBR | 38 | 2203- | FVR | (A) M14 FLANGE | ||
| 103 | I8-98308 044-0 | STOPPER; SUB SPR | 2 | 2203- | FVR | (C) | ||
| 345 | I8-98328 903-3 | MEMBER; CROSS,5TH | 1 | 2203- | FVR | |||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 2203- | FVR | M12 FLANGE | ||
| 344 | I8-98328 903-3 | MEMBER; CROSS,4TH | 1 | 2203- | FVR | |||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 2203- | FVR | (B) M16 | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 4 | 2203- | FVR | M14X35 FLANGE | ||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 2203- | FVR | (A) M14X45 | ||
| 110 | I0-20951 450-0 | BOLT; LEAF SPR STOPPER | 16 | 2203- | FVR | M14X50 | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 2203- | FVR | (A) ID=15 | ||
| 086 | I8-98302 834-1 | MEMBER; CROSS,RR SUSP RR | 1 | 2203- | FVR | |||
| 019 | I8-98300 620-0 | MEMBER; CROSS,2ND | 1 | 2203- | FVR | |||
| 225 | I0-28851 440-0 | BOLT; 5TH C/MBR | 16 | 2203- | FVR | M14X40 FLANGE | ||
| 089 | I0-91110 514-0 | NUT; LEAF SPR STOPPER | 16 | 2203- | FVR | M14 | ||
| 103 | I8-98308 044-0 | STOPPER; SUB SPR | 2 | 2203- | FVR | (C) | ||
| 201 | I8-98294 495-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (C) | ||
| 225 | I0-28851 440-0 | BOLT; 5TH C/MBR | 16 | 2203- | FVR | M14X40 FLANGE | ||
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 2203- | FVR | M12X35 FLANGE | ||
| 103 | I8-98308 043-0 | STOPPER; SUB SPR | 2 | 2203- | FVR | (C) | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 2203- | FVR | (B) ID=16.2 | ||
| 298 | I0-28851 440-0 | BOLT; 4TH C/MBR | 16 | 2203- | FVR | M14X40 FLANGE | ||
| 296 | I8-98339 366-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVR | (B) M14X45 FLANGE | ||
| 473 | I0-91180 214-0 | NUT; S/MBR TO REINF | 18 | 2203- | FVR | M14 FLANGE; FVR34L D; FVR34P; FVR34Q; FVR34S | ||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVR | (A) | ||
| 089 | I0-91110 514-0 | NUT; LEAF SPR STOPPER | 16 | 2203- | FVR | M14 | ||
| 057 | I8-98302 834-1 | MEMBER; CROSS,RR SUSP FRT | 1 | 2203- | FVR | |||
| 086 | I8-98302 834-1 | MEMBER; CROSS,RR SUSP RR | 1 | 2203- | FVR | |||
| 472 | I0-28851 435-0 | BOLT; S/MBR TO REINF | 26 | 2203- | FVR | M14X35 FLANGE; FVR34U | ||
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 2203- | FVR | M12X35 FLANGE | ||
| 300 | I0-91180 214-0 | NUT; 5TH C/MBR | 16 | 2203- | FVR | M14 FLANGE | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 4 | 2203- | FVR | M14 FLANGE | ||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 2203- | FVR | (B) | ||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 2203- | FVR | (B) M16X50 | ||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVR | (A) | ||
| 201 | I8-98294 495-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (C) | ||
| 201 | I8-98294 494-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (C) | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 4 | 2203- | FVR | M14 FLANGE | ||
| 201 | I8-98294 497-0 | GUSSET; C/MBR | 1 | 2203- | FVR | (D) | ||
| 296 | I0-28851 440-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVR | (A) M14X40 FLANGE | ||
| 019 | I8-98300 620-0 | MEMBER; CROSS,2ND | 1 | 2203- | FVR | |||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 2203- | FVR | (A) ID=15 | ||
| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVR | (A) | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 2203- | FVR | (B) M16 | ||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 38 | 2203- | FVR | (A) M14X40 FLANGE | ||
| 281 | I8-98010 627-1 | WASHER; LEAF SPR STOPPER | 16 | 2203- | FVR | ID=15 | ||
| 473 | I0-91180 214-0 | NUT; S/MBR TO REINF | 26 | 2203- | FVR | M14 FLANGE; FVR34U | ||
| 205 | I0-91180 214-0 | NUT; 4TH C/MBR | 16 | 2203- | FVR | M14 FLANGE | ||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 38 | 2203- | FVR | (A) M14X40 FLANGE | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 16 | 2203- | FVR | (A) M14 | ||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 2203- | FVR | (B) | ||
| 130 | I8-98300 623-0 | MEMBER; CROSS,END | 1 | 2203- | FVR | |||
| 345 | I8-98328 903-3 | MEMBER; CROSS,5TH | 1 | 2203- | FVR | |||
| 472 | I0-28851 435-0 | BOLT; S/MBR TO REINF | 26 | 2203- | FVR | M14X35 FLANGE; FVR34U | ||
| 110 | I0-20951 450-0 | BOLT; LEAF SPR STOPPER | 16 | 2203- | FVR | M14X50 | ||
| 205 | I0-91180 214-0 | NUT; 4TH C/MBR | 16 | 2203- | FVR | M14 FLANGE | ||
| 298 | I0-28851 440-0 | BOLT; 4TH C/MBR | 16 | 2203- | FVR | M14X40 FLANGE | ||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 2203- | FVR | (B) M16X50 | ||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 2203- | FVR | (B) | ||
| 296 | I8-98339 366-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVR | (B) M14X45 FLANGE |
