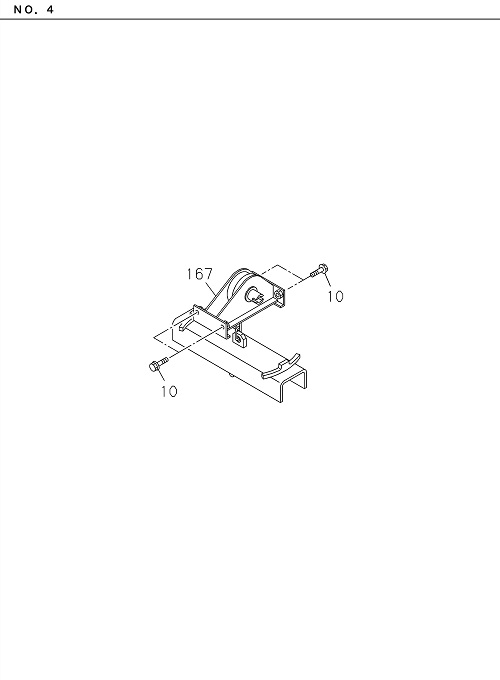

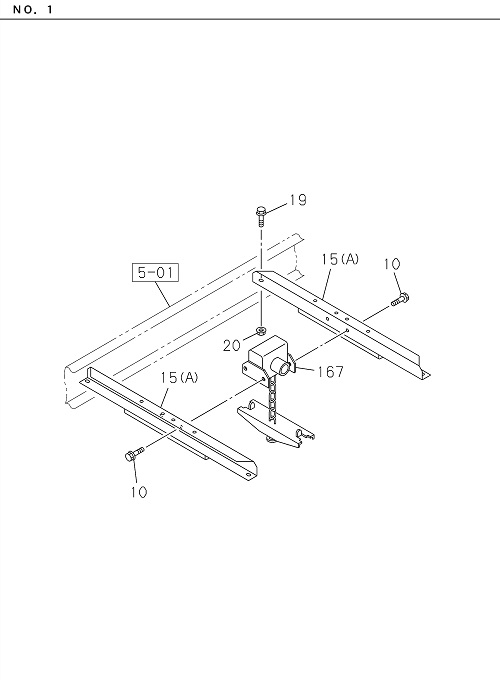

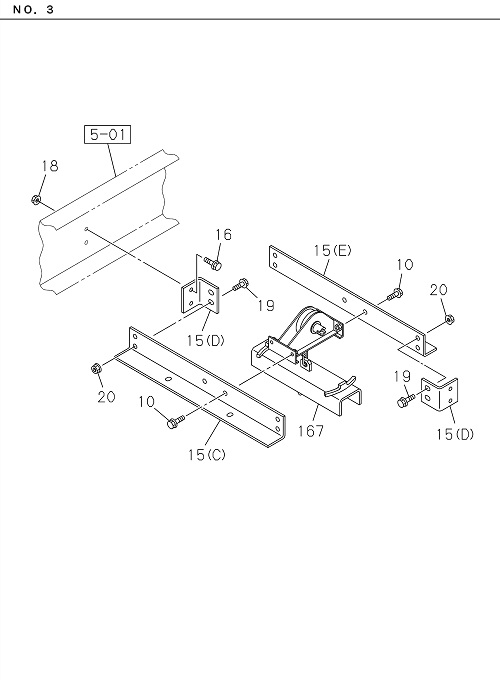

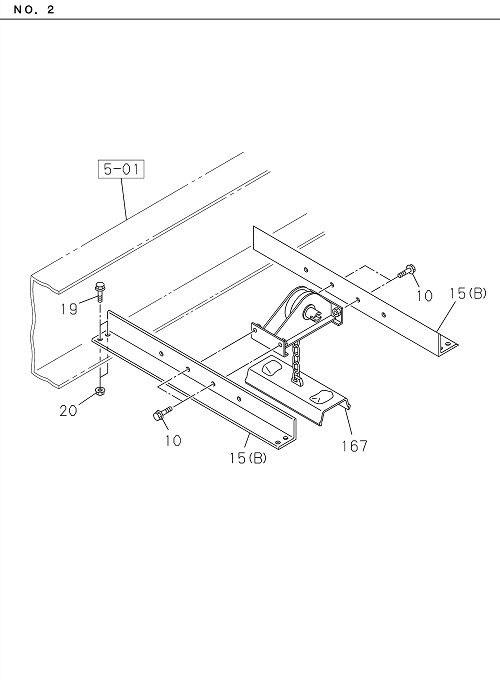

5-30 | SPARE TIRE CARRIER AND COVER
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 2203- | FVR | M12 FLANGE | ||
| 016 | I0-28651 240-0 | BOLT; MEMBER | 8 | 2203- | FVR | M12X40 FLANGE | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 2203- | FVR | M12X35 FLANGE | ||
| 015 | I8-97658 077-0 | MEMBER; CROSS,SPARE TIRE | 1 | 2203- | FVR | (E) | ||
| 167 | I8-98314 445-0 | HANGER; TIRE | 1 | 2203- | FVR | |||
| 015 | I8-97660 727-1 | MEMBER; CROSS,SPARE TIRE | 4 | 2203- | FVR | (D) | ||
| 167 | I8-98314 445-0 | HANGER; TIRE | 1 | 2203- | FVR | |||
| 015 | I8-97682 320-0 | MEMBER; CROSS,SPARE TIRE | 1 | 2203- | FVR | (C) | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 2203- | FVR | M12 FLANGE | ||
| 020 | I0-91180 212-0 | NUT; C/MBR | 8 | 2203- | FVR | M12 FLANGE | ||
| 019 | I0-28651 240-0 | BOLT; C/MBR | 8 | 2203- | FVR | M12X40 FLANGE | ||
| 015 | I8-97658 077-0 | MEMBER; CROSS,SPARE TIRE | 1 | 2203- | FVR | (E) | ||
| 015 | I8-97682 320-0 | MEMBER; CROSS,SPARE TIRE | 1 | 2203- | FVR | (C) | ||
| 016 | I0-28651 240-0 | BOLT; MEMBER | 8 | 2203- | FVR | M12X40 FLANGE | ||
| 018 | I0-91180 212-0 | NUT; MEMBER | 8 | 2203- | FVR | M12 FLANGE | ||
| 019 | I0-28651 240-0 | BOLT; C/MBR | 8 | 2203- | FVR | M12X40 FLANGE | ||
| 015 | I8-97660 727-1 | MEMBER; CROSS,SPARE TIRE | 4 | 2203- | FVR | (D) | ||
| 010 | I0-28651 235-0 | BOLT; TIRE HANGER | 4 | 2203- | FVR | M12X35 FLANGE |
