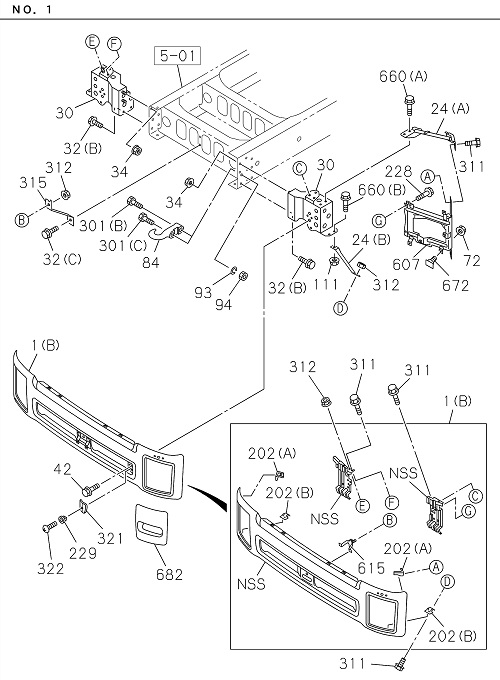

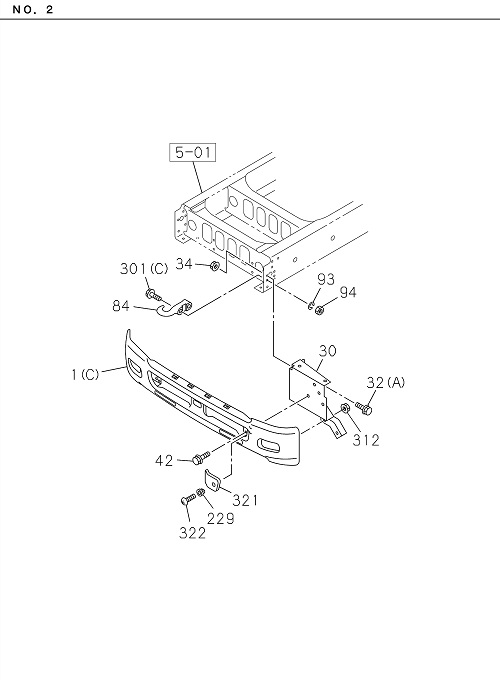

6-01 | FRONT BUMPER
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 042 | I8-94324 205-0 | BOLT; BUMPER | 6 | 2203- | FVR | M10X30 | ||
| 312 | I7-05110 010-A | NUT; BRKT | 4 | 2203- | FVR | M10 FLANGE | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 2203- | FVR | D=7X7 L=7.5 | ||
| 311 | I8-94324 205-0 | BOLT; BRKT | 7 | 2203- | FVR | M10X30 | ||
| 093 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 2203- | FVR | ID=16.2 | ||
| 229 | I5-09983 007-0 | GROMMET | 2 | 2203- | FVR | D=7X7 L=7.5 | ||
| 615 | I8-98184 611-0 | BRACKET; BUMPER CENTER | 1 | 2203- | FVR | |||
| 032 | I0-28051 240-0 | BOLT; BRKT,BUMPER | 4 | 2203- | FVR | (B) M12X40 FLANGE | ||
| 607 | I8-98309 599-1 | BRACKET | 1 | 2203- | FVR | |||
| 001 | I8-97468 134-0 | BUMPER ASM; FRT | 1 | 2203- | FVR | (B) | ||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 2203- | FVR | M5X16 TAPPING HEXALOBULAR | ||
| 315 | I8-98309 607-0 | STAY; BUMPER | 1 | 2203- | FVR | |||
| 084 | I1-57181 027-A | HOOK | 1 | 2203- | FVR | |||
| 660 | I8-94324 205-0 | BOLT; STAY | 4 | 2203- | FVR | (B) M10X30 | ||
| 202 | I8-98184 668-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (B) | ||
| 682 | I8-97469 124-1 | BEZEL; BUMPER | 1 | 2203- | FVR | |||
| 202 | I8-98184 669-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (B) | ||
| 030 | I8-98272 297-0 | BRACKET; FRT BUMPER | 1 | 2203- | FVR | |||
| 024 | I8-98309 619-1 | BAR; FRT BUMPER | 1 | 2203- | FVR | (B) | ||
| 682 | I8-97469 123-1 | BEZEL; BUMPER | 1 | 2203- | FVR | |||
| 321 | I8-97616 297-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FVR | |||
| 672 | I8-98486 018-0 | STUD; STEP | 8 | 2203- | FVR | M6X20 | ||
| 682 | I8-97469 123-1 | BEZEL; BUMPER | 1 | 2203- | FVR | |||
| 301 | I0-20951 660-0 | BOLT; HOOK TO FRAME | 1 | 2203- | FVR | (B) M16X60 | ||
| 607 | I8-98309 599-1 | BRACKET | 1 | 2203- | FVR | |||
| 311 | I8-94324 205-0 | BOLT; BRKT | 7 | 2203- | FVR | M10X30 | ||
| 072 | I0-91180 106-0 | NUT; BRKT | 8 | 2203- | FVR | M6 FLANGE | ||
| 111 | I7-05110 010-A | NUT; STAY | 2 | 2203- | FVR | M10 FLANGE | ||
| 202 | I8-98184 664-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (A) | ||
| 301 | I0-10961 670-0 | BOLT; HOOK TO FRAME | 1 | 2203- | FVR | (C) M16X70 | ||
| 042 | I8-94324 205-0 | BOLT; BUMPER | 6 | 2203- | FVR | M10X30 | ||
| 202 | I8-98184 663-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (A) | ||
| 615 | I8-98184 611-0 | BRACKET; BUMPER CENTER | 1 | 2203- | FVR | |||
| 202 | I8-98184 668-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (B) | ||
| 024 | I8-98309 611-0 | BAR; FRT BUMPER | 1 | 2203- | FVR | (A) | ||
| 084 | I1-57181 027-A | HOOK | 1 | 2203- | FVR | |||
| 032 | I8-98055 942-0 | BOLT; BRKT,BUMPER | 1 | 2203- | FVR | (C) M10X30 FLANGE | ||
| 660 | I0-28651 025-0 | BOLT; STAY | 4 | 2203- | FVR | (A) M10X25 FLANGE | ||
| 024 | I8-98309 612-0 | BAR; FRT BUMPER | 1 | 2203- | FVR | (A) | ||
| 321 | I8-97616 296-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FVR | |||
| 321 | I8-97616 296-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FVR | |||
| 030 | I8-98272 298-0 | BRACKET; FRT BUMPER | 1 | 2203- | FVR | |||
| 024 | I8-98309 611-0 | BAR; FRT BUMPER | 1 | 2203- | FVR | (A) | ||
| 093 | I0-91510 816-0 | WASHER; LK,HOOK | 2 | 2203- | FVR | ID=16.2 | ||
| 301 | I0-20951 660-0 | BOLT; HOOK TO FRAME | 1 | 2203- | FVR | (B) M16X60 | ||
| 034 | I0-91180 212-0 | NUT; BRKT,BUMPER | 4 | 2203- | FVR | M12 FLANGE | ||
| 030 | I8-98272 298-0 | BRACKET; FRT BUMPER | 1 | 2203- | FVR | |||
| 024 | I8-98309 618-1 | BAR; FRT BUMPER | 1 | 2203- | FVR | (B) | ||
| 322 | I0-72180 516-0 | SCREW; COVER FIX | 2 | 2203- | FVR | M5X16 TAPPING HEXALOBULAR | ||
| 682 | I8-97469 124-1 | BEZEL; BUMPER | 1 | 2203- | FVR | |||
| 094 | I0-91110 516-0 | NUT; HOOK | 2 | 2203- | FVR | M16 | ||
| 111 | I7-05110 010-A | NUT; STAY | 2 | 2203- | FVR | M10 FLANGE | ||
| 228 | I0-28651 025-0 | BOLT; BRKT | 4 | 2203- | FVR | M10X25 FLANGE | ||
| 660 | I0-28651 025-0 | BOLT; STAY | 4 | 2203- | FVR | (A) M10X25 FLANGE | ||
| 024 | I8-98309 612-0 | BAR; FRT BUMPER | 1 | 2203- | FVR | (A) | ||
| 032 | I8-98055 942-0 | BOLT; BRKT,BUMPER | 1 | 2203- | FVR | (C) M10X30 FLANGE | ||
| 315 | I8-98309 607-0 | STAY; BUMPER | 1 | 2203- | FVR | |||
| 228 | I0-28651 025-0 | BOLT; BRKT | 4 | 2203- | FVR | M10X25 FLANGE | ||
| 607 | I8-98309 598-1 | BRACKET | 1 | 2203- | FVR | |||
| 202 | I8-98184 663-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (A) | ||
| 607 | I8-98309 598-1 | BRACKET | 1 | 2203- | FVR | |||
| 202 | I8-98184 664-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (A) | ||
| 312 | I7-05110 010-A | NUT; BRKT | 4 | 2203- | FVR | M10 FLANGE | ||
| 024 | I8-98309 619-1 | BAR; FRT BUMPER | 1 | 2203- | FVR | (B) | ||
| 034 | I0-91180 212-0 | NUT; BRKT,BUMPER | 4 | 2203- | FVR | M12 FLANGE | ||
| 094 | I0-91110 516-0 | NUT; HOOK | 2 | 2203- | FVR | M16 | ||
| 024 | I8-98309 618-1 | BAR; FRT BUMPER | 1 | 2203- | FVR | (B) | ||
| 301 | I0-10961 670-0 | BOLT; HOOK TO FRAME | 1 | 2203- | FVR | (C) M16X70 | ||
| 030 | I8-98272 297-0 | BRACKET; FRT BUMPER | 1 | 2203- | FVR | |||
| 321 | I8-97616 297-1 | COVER; BUMPER FRT SIDE | 1 | 2203- | FVR | |||
| 202 | I8-98184 669-0 | BRACKET; BUMPER SIDE | 1 | 2203- | FVR | (B) | ||
| 672 | I8-98486 018-0 | STUD; STEP | 8 | 2203- | FVR | M6X20 | ||
| 032 | I0-28051 240-0 | BOLT; BRKT,BUMPER | 4 | 2203- | FVR | (B) M12X40 FLANGE | ||
| 660 | I8-94324 205-0 | BOLT; STAY | 4 | 2203- | FVR | (B) M10X30 | ||
| 001 | I8-97468 134-0 | BUMPER ASM; FRT | 1 | 2203- | FVR | (B) | ||
| 072 | I0-91180 106-0 | NUT; BRKT | 8 | 2203- | FVR | M6 FLANGE |
