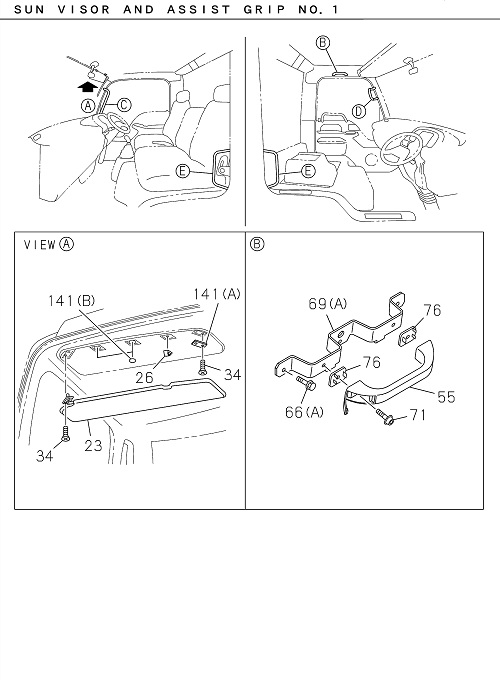

7-43 | SUN VISOR AND ASSIST GRIP
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 341 | I8-98025 428-2 | HINGE; LID,HEADER SHELF | 2 | 2203- | FVR | |||
| 039 | I7-15815 370-A | HANDLE; ASSIST,A-POST | 1 | 2203- | FVR | (A) | ||
| 048 | I0-28660 830-0 | BOLT; ASSIST GRIP | 4 | 2203- | FVR | (A) M8X30 FLANGE | ||
| 039 | I7-15815 370-A | HANDLE; ASSIST,A-POST | 1 | 2203- | FVR | (A) | ||
| 359 | I8-98041 754-0 | HOLDER; HEADER TRAY | 4 | 2203- | FVR | |||
| 026 | I8-97405 171-0 | HOLDER; SUN VISOR | 1 | 2203- | FVR | |||
| 069 | I8-98057 972-2 | BRACKET; ASSIST GRIP | 1 | 2203- | FVR | (B) | ||
| 066 | I0-28050 816-0 | BOLT; ASSIST GRIP BRKT | 4 | 2203- | FVR | (B) M8X16 FLANGE | ||
| 072 | I8-97386 939-A | GRIP; ASSIST,CAB ENTRY,BACK | 2 | 2203- | FVR | |||
| 053 | I7-04508 025-A | SCREW; ASSIST HANDLE | 2 | 2203- | FVR | (A) BOLT M8X20 FLANGE | ||
| 069 | I8-98057 972-2 | BRACKET; ASSIST GRIP | 1 | 2203- | FVR | (B) | ||
| 059 | I8-97656 947-0 | COVER; ASSIST GRIP | 2 | 2203- | FVR | (A) | ||
| 071 | I8-98004 344-0 | SCREW | 2 | 2203- | FVR | M6X28 | ||
| 356 | I8-98010 059-0 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (B) | ||
| 356 | I8-98023 257-2 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (D) | ||
| 066 | I8-97108 669-0 | BOLT; ASSIST GRIP BRKT | 3 | 2203- | FVR | (A) M6X12 FLANGE | ||
| 356 | I8-97386 874-1 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (A) | ||
| 141 | I8-97902 999-0 | COVER; SUN VISOR | 2 | 2203- | FVR | (B) OD=30 T=0.05 | ||
| 023 | I8-97407 373-A | SUN VISOR | 1 | 2203- | FVR | |||
| 055 | I8-97405 285-2 | GRIP; ASSIST,CAB SIDE UPR | 1 | 2203- | FVR | |||
| 039 | I8-97407 943-4 | HANDLE; ASSIST,A-POST | 1 | 2203- | FVR | (A) | ||

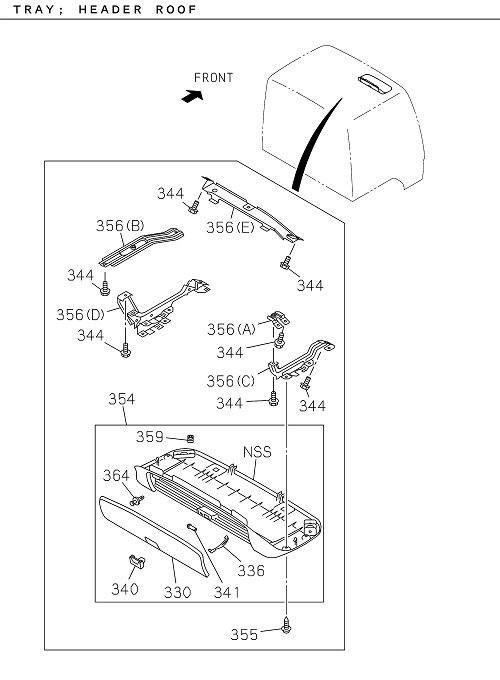

| 354 | I8-97903 040-0 | TRAY; HEADER ROOF | 1 | 2203- | FVR | |||
| 355 | I0-72380 516-0 | SCREW; TRAY | 4 | 2203- | FVR | M5X16 TAPPING HEXALOBULAR | ||
| 364 | I8-98010 867-1 | STOPPER; LID | 3 | 2203- | FVR | |||
| 059 | I8-97657 077-0 | COVER; ASSIST GRIP | 2 | 2203- | FVR | (B) | ||
| 055 | I8-97405 285-2 | GRIP; ASSIST,CAB SIDE UPR | 1 | 2203- | FVR | |||
| 103 | I8-97826 330-0 | GRIP; ASSIST,FRT PNL | 1 | 2203- | FVR | |||
| 344 | I8-97108 669-0 | BOLT; BRKT,FRT | 10 | 2203- | FVR | M6X12 FLANGE | ||
| 048 | I0-28660 830-0 | BOLT; ASSIST GRIP | 4 | 2203- | FVR | (A) M8X30 FLANGE | ||
| 059 | I8-97407 417-1 | COVER; ASSIST GRIP | 1 | 2203- | FVR | (C) | ||
| 141 | I8-97902 999-0 | COVER; SUN VISOR | 2 | 2203- | FVR | (B) OD=30 T=0.05 | ||
| 341 | I8-98025 428-2 | HINGE; LID,HEADER SHELF | 2 | 2203- | FVR | |||
| 069 | I8-98014 094-0 | BRACKET; ASSIST GRIP | 1 | 2203- | FVR | (A) | ||
| 059 | I8-97656 947-0 | COVER; ASSIST GRIP | 2 | 2203- | FVR | (A) | ||
| 355 | I0-72380 516-0 | SCREW; TRAY | 4 | 2203- | FVR | M5X16 TAPPING HEXALOBULAR | ||
| 344 | I8-97108 669-0 | BOLT; BRKT,FRT | 10 | 2203- | FVR | M6X12 FLANGE | ||
| 356 | I8-97386 874-1 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (A) | ||
| 069 | I8-98057 971-2 | BRACKET; ASSIST GRIP | 1 | 2203- | FVR | (B) | ||
| 066 | I0-28050 816-0 | BOLT; ASSIST GRIP BRKT | 4 | 2203- | FVR | (B) M8X16 FLANGE | ||
| 103 | I8-97826 330-0 | GRIP; ASSIST,FRT PNL | 1 | 2203- | FVR | |||
| 354 | I8-97903 040-0 | TRAY; HEADER ROOF | 1 | 2203- | FVR | |||
| 356 | I8-98042 015-3 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (E) | ||
| 336 | I1-72448 379-3 | STAY; LID | 2 | 2203- | FVR | |||
| 071 | I8-98004 344-0 | SCREW | 2 | 2203- | FVR | M6X28 | ||
| 076 | I8-97405 286-0 | SPACER; ASSIST GRIP | 2 | 2203- | FVR | |||
| 356 | I8-98010 059-0 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (B) | ||
| 356 | I8-98023 257-2 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (D) | ||
| 059 | I8-97657 077-0 | COVER; ASSIST GRIP | 2 | 2203- | FVR | (B) | ||
| 359 | I8-98041 754-0 | HOLDER; HEADER TRAY | 4 | 2203- | FVR | |||
| 072 | I8-97386 939-A | GRIP; ASSIST,CAB ENTRY,BACK | 2 | 2203- | FVR | |||
| 048 | I0-28060 816-0 | BOLT; ASSIST GRIP | 4 | 2203- | FVR | (B) M8X16 FLANGE | ||
| 340 | I1-72448 376-0 | LOCK; HEADER SHELF | 1 | 2203- | FVR | |||
| 076 | I8-97405 286-0 | SPACER; ASSIST GRIP | 2 | 2203- | FVR | |||
| 039 | I8-97407 943-4 | HANDLE; ASSIST,A-POST | 1 | 2203- | FVR | (A) | ||
| 364 | I8-98010 867-1 | STOPPER; LID | 3 | 2203- | FVR | |||
| 141 | I8-97408 029-0 | COVER; SUN VISOR | 1 | 2203- | FVR | (A) L=66 B=30 | ||
| 330 | I8-97407 834-1 | LID; HEADER SHELF | 1 | 2203- | FVR | |||
| 048 | I0-28060 816-0 | BOLT; ASSIST GRIP | 4 | 2203- | FVR | (B) M8X16 FLANGE | ||
| 356 | I8-98014 088-3 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (C) | ||
| 059 | I8-97407 417-2 | COVER; ASSIST GRIP | 1 | 2203- | FVR | (C) | ||
| 340 | I1-72448 376-0 | LOCK; HEADER SHELF | 1 | 2203- | FVR | |||
| 026 | I8-97405 171-0 | HOLDER; SUN VISOR | 1 | 2203- | FVR | |||
| 053 | I7-04508 025-A | SCREW; ASSIST HANDLE | 2 | 2203- | FVR | (A) BOLT M8X20 FLANGE | ||
| 103 | I8-97826 329-0 | GRIP; ASSIST,FRT PNL | 1 | 2203- | FVR | |||
| 066 | I8-97108 669-0 | BOLT; ASSIST GRIP BRKT | 3 | 2203- | FVR | (A) M6X12 FLANGE | ||
| 069 | I8-98014 094-0 | BRACKET; ASSIST GRIP | 1 | 2203- | FVR | (A) | ||
| 023 | I8-97407 373-A | SUN VISOR | 1 | 2203- | FVR | |||
| 034 | I8-98033 674-0 | SCREW; SUN VISOR | 4 | 2203- | FVR | M6X26 | ||
| 141 | I8-97408 029-0 | COVER; SUN VISOR | 1 | 2203- | FVR | (A) L=66 B=30 | ||
| 336 | I1-72448 379-3 | STAY; LID | 2 | 2203- | FVR | |||
| 356 | I8-98042 015-3 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (E) | ||
| 356 | I8-98014 088-3 | BRACKET; ROOF OUTER | 1 | 2203- | FVR | (C) | ||
| 330 | I8-97407 834-1 | LID; HEADER SHELF | 1 | 2203- | FVR | |||
| 034 | I8-98033 674-0 | SCREW; SUN VISOR | 4 | 2203- | FVR | M6X26 | ||
| 069 | I8-98057 971-2 | BRACKET; ASSIST GRIP | 1 | 2203- | FVR | (B) | ||
| 103 | I8-97826 329-0 | GRIP; ASSIST,FRT PNL | 1 | 2203- | FVR |
