8-28 | CHASSIS ELECTRICAL
GIGA E4
GIGA FVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 2 | 2203- | FVR | (B) DIN6 & R1/4 ELBOW | ||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 2 | 2203- | FVR | (D) M12 & PT1/4 ELBOW | ||

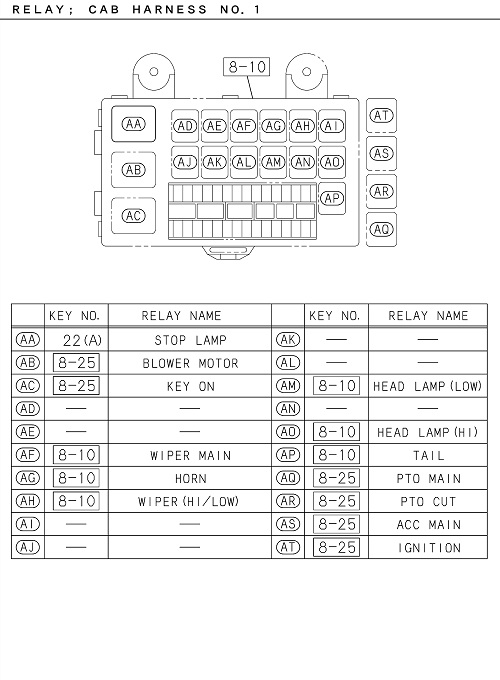

| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | FVR | (B) 24V 10A | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | FVR | (IADG) (B) 24V 10A | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | FVR | M6X16 FLANGE | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | FVR | M6 FLANGE | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | FVR | PT1/4 | ||

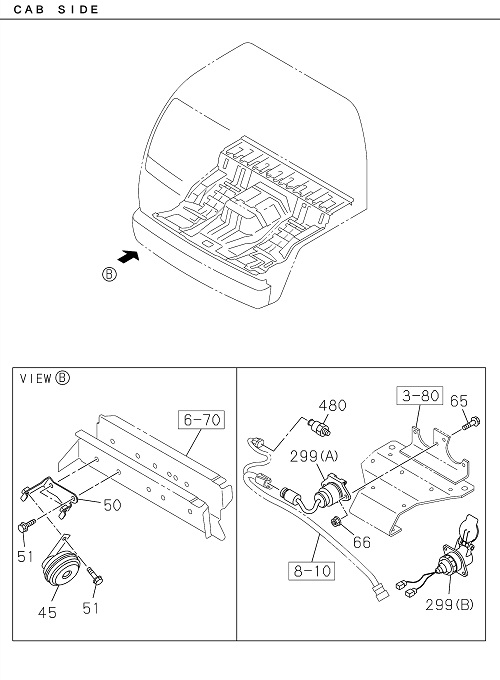

| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | FVR | |||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | FVR | M6X16 FLANGE | ||
| 036 | I7-04508 025-A | BOLT; MAG VLV,PTO CONT | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | FVR | |||
| 039 | I0-28650 835-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FVR | (B) M8X35 FLANGE | ||
| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 2 | 2203- | FVR | (B) DIN6 & R1/4 ELBOW | ||
| 282 | I8-98311 998-0 | BRACKET; MAG VLV | 1 | 2203- | FVR | |||

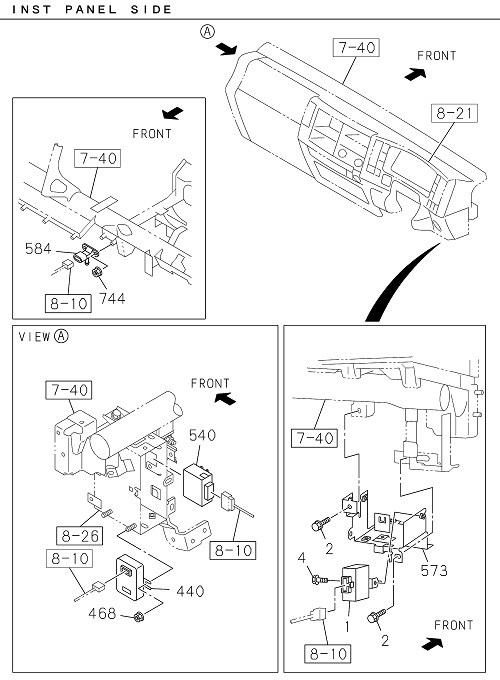

| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | FVR | |||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | FVR | |||
| 036 | I7-04508 025-A | BOLT; MAG VLV,PTO CONT | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 039 | I0-28650 835-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FVR | (B) M8X35 FLANGE | ||
| 034 | I1-09650 430-0 | CONNECTOR; MAG VLV,INL PORT | 2 | 2203- | FVR | (D) M12 & PT1/4 ELBOW | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | FVR | |||
| 041 | I7-05108 010-A | NUT; BRKT,MAG VLV | 2 | 2203- | FVR | M8 FLANGE | ||
| 041 | I7-05108 010-A | NUT; BRKT,MAG VLV | 2 | 2203- | FVR | M8 FLANGE | ||

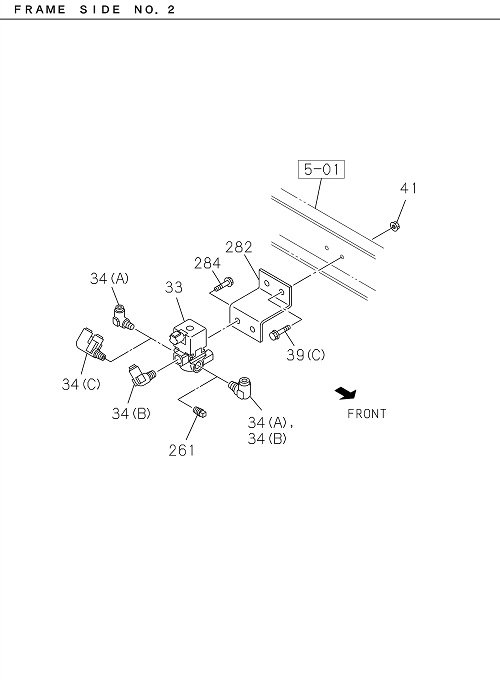

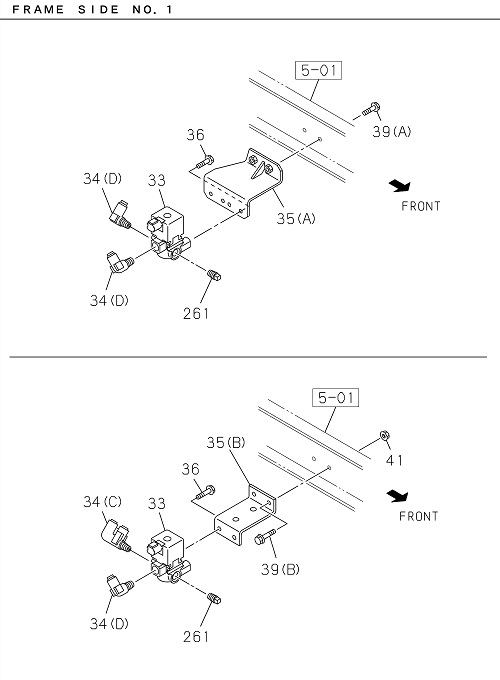

| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | FVR | |||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | FVR | M8X20 W/LK&PL WASHER | ||
| 035 | I1-47471 374-1 | BRACKET; MAG VLV,PTO CONT | 1 | 2203- | FVR | (B) | ||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | FVR | (B) 24V 10A | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | FVR | (IADG) 24V 10A | ||

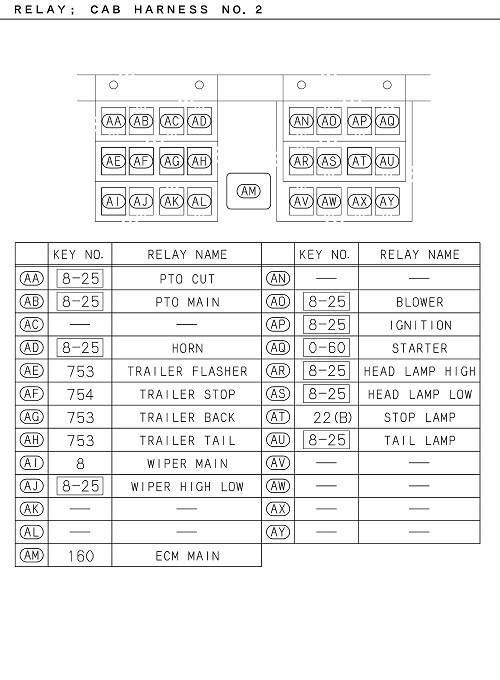

| 160 | I8-98259 779-0 | RELAY; ECM | 1 | 2203- | FVR | 24V 30A | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | FVR | (IADG) (B) 24V 10A | ||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FVR | (C) M8X30 FLANGE | ||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | FVR | |||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | FVR | (IADG) 24V 10A | ||
| 284 | I7-04508 025-A | BOLT; MAG VLV | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | FVR | |||
| 039 | I0-28650 830-0 | BOLT; BRKT,MAG VLV | 2 | 2203- | FVR | (C) M8X30 FLANGE | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | FVR | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | FVR | |||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | FVR | |||
| 034 | I1-09660 956-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | FVR | (A) DIN8 & R1/4 ELBOW | ||
| 034 | I1-09660 956-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | FVR | (A) DIN8 & R1/4 ELBOW | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | FVR | 24V 10A | ||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | FVR | M6 FLANGE | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | FVR | PT1/4 | ||
| 284 | I7-04508 025-A | BOLT; MAG VLV | 2 | 2203- | FVR | M8X20 FLANGE | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | FVR | 24V 10A | ||
| 160 | I8-98259 779-0 | RELAY; ECM | 1 | 2203- | FVR | 24V 30A | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | FVR | M8X20 W/LK&PL WASHER | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | FVR | |||
| 001 | I8-98025 533-A | UNIT; FLASHER | 1 | 2203- | FVR | |||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | FVR | M6X16 FLANGE | ||
| 282 | I8-98311 998-0 | BRACKET; MAG VLV | 1 | 2203- | FVR | |||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | FVR | |||
| 035 | I1-47471 374-1 | BRACKET; MAG VLV,PTO CONT | 1 | 2203- | FVR | (B) | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | FVR | M6X16 FLANGE |
