8-50 | AIR CONDITIONING SYSTEM; FRONT
GIGA E4
GIGA FVR E4

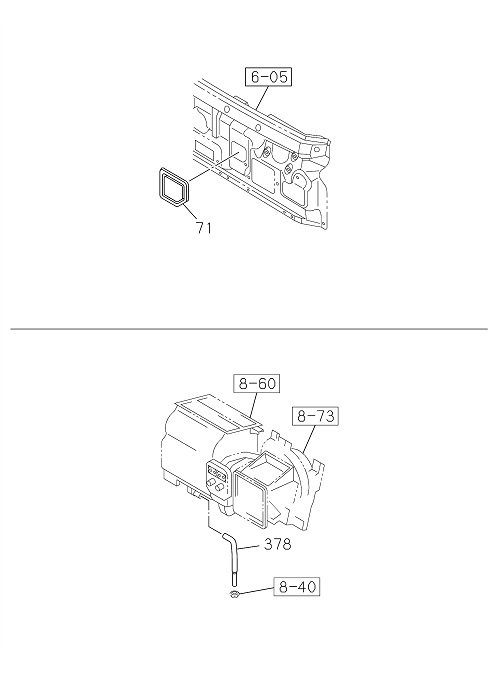

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 378 | I8-98041 428-0 | HOSE; DRAIN,EVAPORATOR | 1 | 2203- | FVR | |||
| 112 | I0-28050 816-0 | BOLT; STAY | 2 | 2203- | FVR | M8X16 FLANGE | ||
| 131 | I8-94393 451-0 | STAY; CMPR BRKT | 1 | 2203- | FVR | |||
| 131 | I8-94393 451-0 | STAY; CMPR BRKT | 1 | 2203- | FVR | |||
| 071 | I8-98017 234-1 | COVER; EVAP,A/C | 1 | 2203- | FVR | |||
| 071 | I8-98017 234-1 | COVER; EVAP,A/C | 1 | 2203- | FVR | |||
| 112 | I0-28050 816-0 | BOLT; STAY | 2 | 2203- | FVR | M8X16 FLANGE | ||
| 378 | I8-98041 428-0 | HOSE; DRAIN,EVAPORATOR | 1 | 2203- | FVR |
