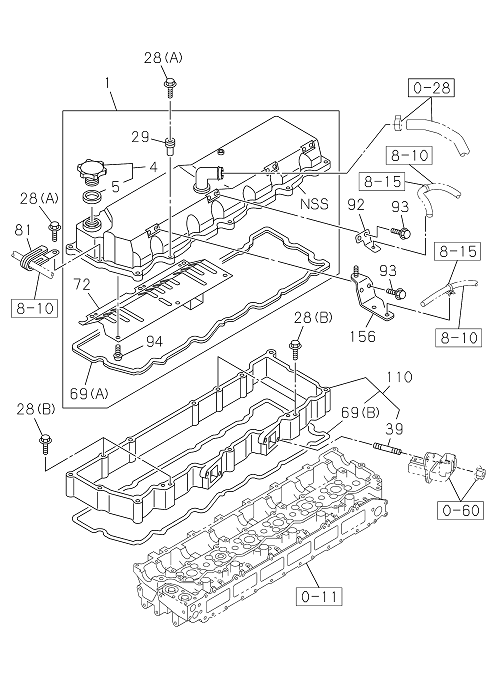

0-10 | CYLINDER HEAD COVER
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 069 | I8-94391 379-1 | GASKET; HD TO COVER | 1 | 2203- | FVZ | (A) | ||
| 004 | I8-94399 723-0 | CAP; OIL FILLER | 1 | 2203- | FVZ | |||
| 028 | I0-28050 870-0 | BOLT; HD COVER | 11 | 2203- | FVZ | (A) M8X70 FLANGE | ||
| 081 | I8-97367 985-1 | CLIP; HARNESS | 1 | 2203- | FVZ | ID=18 L=44 | ||
| 069 | I8-94391 380-0 | GASKET; HD TO COVER | 1 | 2203- | FVZ | (B) | ||
| 110 | I8-94390 862-3 | COVER; CYL HEAD LWR | 1 | 2203- | FVZ | |||
| 005 | I8-94399 689-0 | GASKET; OIL FILLER | 1 | 2203- | FVZ | ID=49 OD=58 | ||
| 028 | I0-28050 845-0 | BOLT; HD COVER | 4 | 2203- | FVZ | (B) M8X45 FLANGE | ||
| 093 | I0-28050 812-A | BOLT; BRKT | 4 | 2203- | FVZ | M8X12 FLANGE | ||
| 156 | I8-97616 751-0 | BRACKET; ENGINE COVER | 1 | 2203- | FVZ | |||
| 094 | I0-35050 408-0 | SCREW; BAFFLE PLATE,CYL HD COVER | 6 | 2203- | FVZ | M4X8 | ||
| 072 | I8-94392 655-0 | PLATE; INNER HD COVER | 1 | 2203- | FVZ | |||
| 092 | I8-98271 674-0 | BRACKET; CLIP | 1 | 2203- | FVZ | |||
| 029 | I8-97601 849-1 | RUBBER; MTG,HD COVER | 11 | 2203- | FVZ | |||
| 001 | I8-97846 569-0 | COVER; CYL HD | 1 | 2203- | FVZ | |||
| 039 | I8-97658 193-0 | STUD; COVER,HD | 2 | 2203- | FVZ | M8X7.5 M8X24.5 L=38 |
