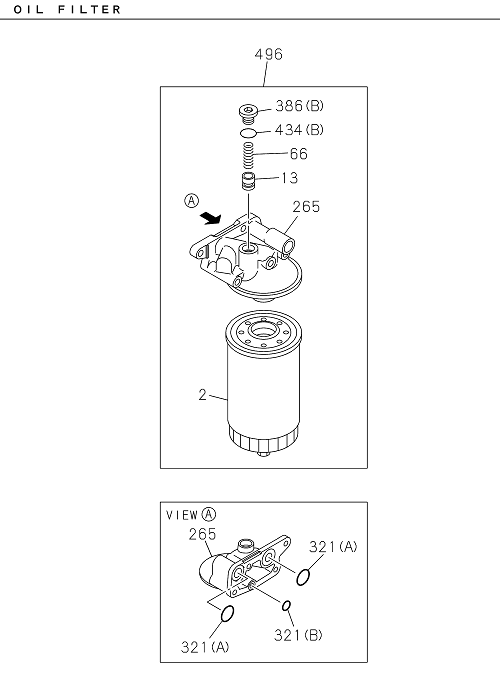

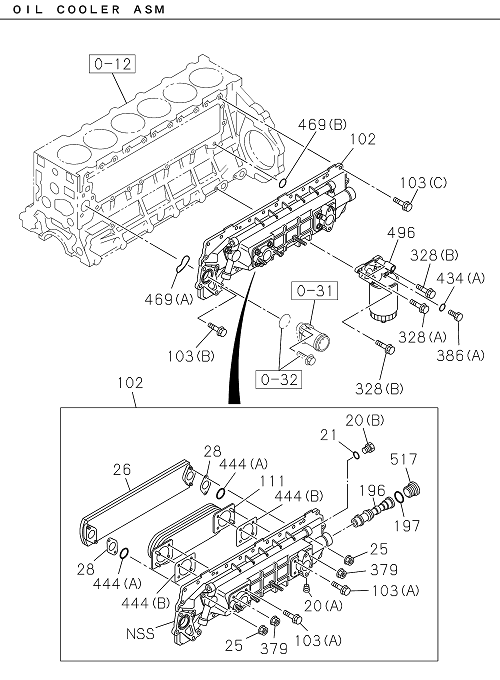

0-50 | OIL COOLER AND OIL FILTER
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 103 | I8-98251 758-0 | BOLT; OIL COOLER | 4 | 2203- | FVZ | (A) M8X18 FLANGE | ||
| 002 | I8-94391 049-4 | ELEMENT; OIL FILTER | 1 | 2203- | FVZ | |||
| 328 | I0-28151 030-0 | BOLT; OIL FILTER | 2 | 2203- | FVZ | (A) M10X30 FLANGE | ||
| 321 | I8-94399 399-0 | GASKET; OIL FILTER TO C/BL | 2 | 2203- | FVZ | (A) ID=22.1 | ||
| 103 | I0-28050 835-0 | BOLT; OIL COOLER | 3 | 2203- | FVZ | (B) M8X35 FLANGE | ||
| 517 | I8-94391 731-0 | PLUG; THERMOSTAT,OIL COOLER | 1 | 2203- | FVZ | |||
| 328 | I0-28151 090-0 | BOLT; OIL FILTER | 2 | 2203- | FVZ | (B) M10X90 FLANGE | ||
| 066 | I8-98238 943-0 | SPRING; VLV | 1 | 2203- | FVZ | |||
| 196 | I8-97600 936-0 | THERMOSTAT; OIL COOLER | 1 | 2203- | FVZ | 90 CELSIUS | ||
| 103 | I0-28650 830-0 | BOLT; OIL COOLER | 24 | 2203- | FVZ | (C) M8X30 FLANGE | ||
| 020 | I1-13219 240-0 | PLUG; COOLER BODY | 2 | 2203- | FVZ | (A) | ||
| 321 | I8-94399 339-0 | GASKET; OIL FILTER TO C/BL | 1 | 2203- | FVZ | (B) ID=9.8 | ||
| 026 | I8-98062 207-0 | CORE ASM; OIL COOLER | 1 | 2203- | FVZ | |||
| 444 | I1-09623 299-0 | GASKET; ELEMENT TO BODY | 2 | 2203- | FVZ | (A) ID=38.7 | ||
| 379 | I0-91180 108-0 | NUT; OIL COOLER | 4 | 2203- | FVZ | M8 FLANGE | ||
| 002 | I6-94396 375-0 | ELEMENT; OIL FILTER | 1 | 2203- | FVZ | (IADG) | ||
| 496 | I8-98236 649-0 | FILTER ASM; OIL | 1 | 2203- | FVZ | |||
| 265 | I8-98238 939-0 | BODY; OIL FILTER | 1 | 2203- | FVZ | |||
| 020 | I8-97608 567-0 | PLUG; COOLER BODY | 2 | 2203- | FVZ | (B) | ||
| 013 | I8-98238 944-0 | VALVE; RELIEF | 1 | 2203- | FVZ | |||
| 002 | I8-94396 375-A | ELEMENT; OIL FILTER | 1 | 2203- | FVZ | |||
| 386 | I0-28051 012-0 | PLUG; OIL FILTER | 1 | 2203- | FVZ | (A) M10X10 | ||
| 028 | I8-94394 930-0 | GASKET; CORE TO BODY | 2 | 2203- | FVZ | |||
| 102 | I8-98236 650-0 | COOLER ASM; OIL | 1 | 2203- | FVZ | |||
| 496 | I8-98236 649-1 | FILTER ASM; OIL | 1 | 2203- | FVZ | |||
| 434 | I1-09630 083-0 | GASKET; PLUG,OIL FILTER | 1 | 2203- | FVZ | (A) ID=10.2 OD=15.2 | ||
| 021 | I8-97608 568-0 | GASKET; PLUG | 2 | 2203- | FVZ | ID=17.8 | ||
| 444 | I8-97601 801-0 | GASKET; ELEMENT TO BODY | 2 | 2203- | FVZ | (B) | ||
| 469 | I8-94399 002-0 | GASKET; OIL COOLER TO C/BL | 1 | 2203- | FVZ | (A) | ||
| 469 | I8-98045 449-0 | GASKET; OIL COOLER TO C/BL | 1 | 2203- | FVZ | (B) ID=20 | ||
| 025 | I1-13219 324-0 | NUT; CORE TO BODY | 4 | 2203- | FVZ | M10 FLANGE | ||
| 197 | I8-94391 728-0 | GASKET; THERMOSTAT | 1 | 2203- | FVZ | |||
| 434 | I8-98238 942-0 | GASKET; PLUG,OIL FILTER | 1 | 2203- | FVZ | (B) | ||
| 386 | I8-98238 941-0 | PLUG; OIL FILTER | 1 | 2203- | FVZ | (B) | ||
| 111 | I8-98063 863-0 | CORE; OIL COOLER | 1 | 2203- | FVZ |
