1-30 | AIR CLEANER
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

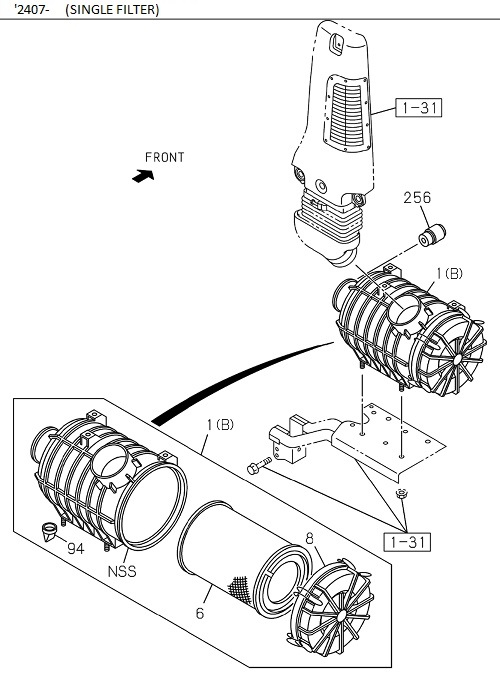

| 001 | I8-98388 871-0 | CLEANER ASM; AIR | 1 | 2407- | FVZ | (B) "ONLY OUTER" TYPE | ||
| 027 | I8-98071 421-0 | FILTER; ACL,OUTER | 1 | 2203- | FVZ | |||
| 008 | I8-98388 889-0 | COVER ASM; ACL | 1 | 2407- | FVZ | |||
| 008 | I8-98066 740-0 | COVER ASM; ACL | 1 | 2203-2406 | FVZ | |||

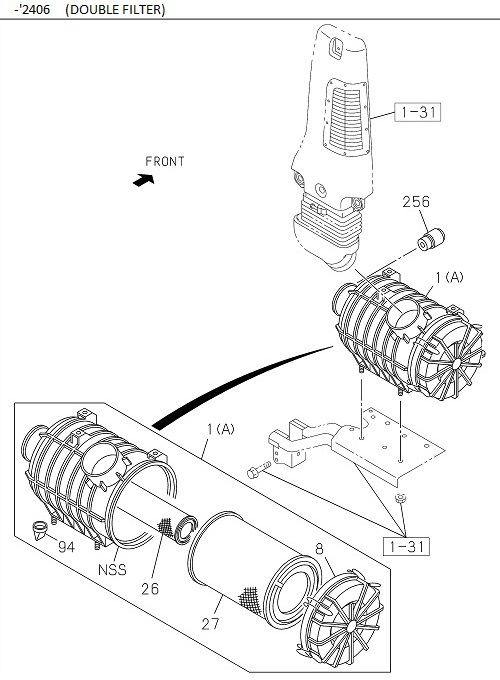

| 001 | I8-97948 126-1 | CLEANER ASM; AIR | 1 | 2203-2406 | FVZ | (A) "INNER+OUTER" TYPE | ||
| 256 | I1-14219 212-0 | SENSOR; AIRFLOW | 1 | 2203- | FVZ | |||
| 006 | I8-98071 421-0 | FILTER; ACL | 1 | 2407- | FVZ | |||
| 027 | I8-98071 421-A | FILTER; ACL,OUTER | 1 | 2203- | FVZ | (IADG) | ||
| 006 | I8-98071 421-A | FILTER; ACL | 1 | 2407- | FVZ | |||
| 026 | I8-98071 422-0 | FILTER; ACL,INNER | 1 | 2203- | FVZ | |||
| 026 | I8-98071 422-A | FILTER; ACL,INNER | 1 | 2203- | FVZ | (IADG) | ||
| 001 | I8-98082 165-2 | CLEANER ASM; AIR | 1 | 2407- | FVZ | (A) "INNER+OUTER" TYPE | ||
| 094 | I1-14219 279-0 | VALVE; VACUATOR | 1 | 2203- | FVZ |
