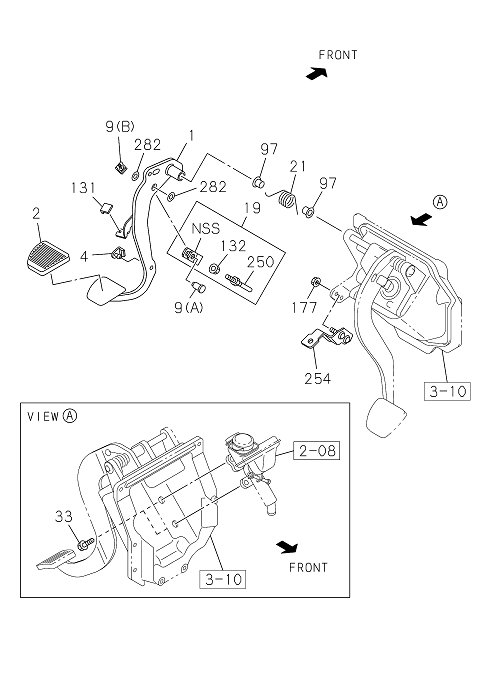

2-03 | CLUTCH PEDAL AND CONTROL
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 282 | I8-98070 329-0 | SPACER; CLU PEDAL | 2 | 2203- | FVZ | |||
| 250 | I8-97615 589-0 | ROD; PUSH,CLU | 1 | 2203- | FVZ | |||
| 001 | I8-97613 941-1 | PEDAL; CLU | 1 | 2203- | FVZ | |||
| 177 | I0-91180 108-0 | NUT; BRKT | 2 | 2203- | FVZ | M8 FLANGE | ||
| 097 | I8-94238 596-0 | BUSHING; CLU PEDAL SHAFT | 2 | 2203- | FVZ | |||
| 004 | I8-98079 251-0 | STOPPER; CLU PEDAL | 1 | 2203- | FVZ | |||
| 009 | I8-98007 161-0 | PIN; CLU PEDAL | 1 | 2203- | FVZ | (B) | ||
| 131 | I8-97302 305-0 | STOPPER; CLU SW | 1 | 2203- | FVZ | |||
| 254 | I8-98021 377-1 | BRACKET; CLU SENSOR | 1 | 2203- | FVZ | |||
| 021 | I8-98367 967-0 | SPRING; RETURN,CLU PEDAL | 1 | 2203- | FVZ | |||
| 009 | I8-98147 657-0 | PIN; CLU PEDAL | 1 | 2203- | FVZ | (A) | ||
| 132 | I0-91180 108-0 | NUT; LK,PUSH ROD | 1 | 2203- | FVZ | M8 FLANGE | ||
| 002 | I8-98056 865-0 | COVER; CLU PEDAL | 1 | 2203- | FVZ | |||
| 033 | I0-28051 220-0 | BOLT; CLU M/CYL TO BRKT | 2 | 2203- | FVZ | M12X20 FLANGE | ||
| 019 | I8-98021 406-1 | ROD ASM; PUSH,CLU | 1 | 2203- | FVZ |
