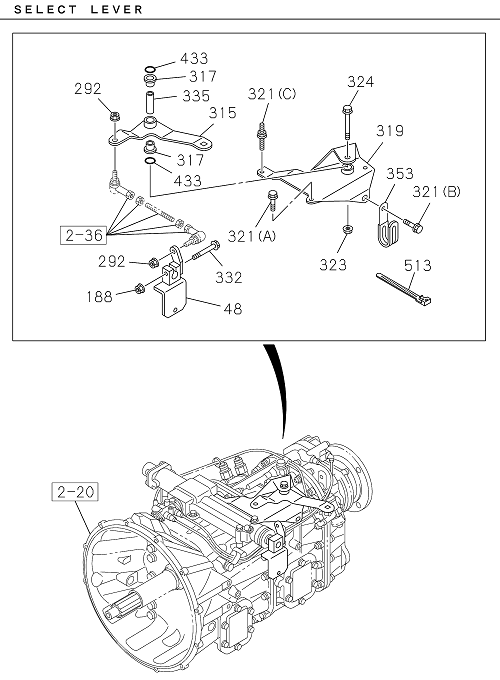

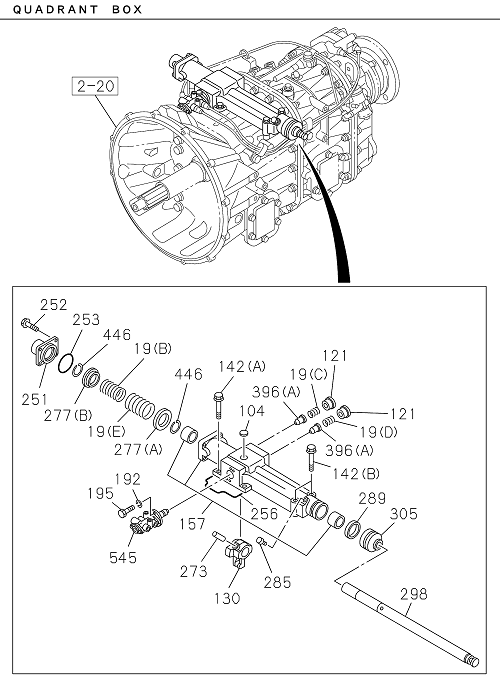

2-30 | GEAR SHIFTER AND QUADRANT BOX
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 410 | IE-55685 100-0 | GASKET; REV SW | 1 | 2203- | FVZ | |||
| 532 | IE-88807 590-0 | PLATE; SHIFT FORK | 1 | 2203- | FVZ | (B) | ||
| 347 | IE-88727 370-0 | ARM; SHIFT,RANGE CHANGE | 1 | 2203- | FVZ | |||
| 304 | I1-33511 575-0 | BLOCK; SHIFT SHAFT | 1 | 2203- | FVZ | |||
| 001 | I8-97268 266-0 | ARM; SHIFT,1ST & REV | 1 | 2208- | FVZ | |||
| 394 | IE-27715 320-0 | SWITCH; RANGE CHANGE | 1 | 2203- | FVZ | |||
| 256 | IE-88806 380-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 2203- | FVZ | |||
| 324 | I0-28051 060-0 | BOLT; SHAFT | 1 | 2203- | FVZ | M10X60 FLANGE | ||
| 321 | I8-97178 725-0 | BOLT; BRKT,RELAY LEVER | 1 | 2203- | FVZ | (C) M10X35 L=65 | ||
| 253 | IE-88806 390-0 | GASKET; SIDE COVER | 1 | 2203- | FVZ | |||
| 363 | IE-81091 000-0 | BOLT; AIR CYL | 3 | 2203- | FVZ | |||
| 545 | IE-88800 550-0 | VALVE; POPPET | 1 | 2203-2207 | FVZ | |||
| 332 | I0-29261 060-0 | BOLT; 4TH,SHIFT LEVER | 1 | 2203- | FVZ | |||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 2203- | FVZ | |||
| 315 | I8-98032 139-0 | LEVER; SELECT | 1 | 2203- | FVZ | |||
| 244 | IE-30801 000-0 | WASHER; LK,COVER | 2 | 2203- | FVZ | |||
| 356 | IE-88751 790-0 | PISTON; AIR CYL | 1 | 2203- | FVZ | |||
| 019 | IE-88713 950-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (B) | ||
| 019 | I8-97268 241-0 | SPRING; COIL COMP | 1 | 2208- | FVZ | (C) | ||
| 104 | IE-88714 860-0 | PLUG; PLATE | 1 | 2203- | FVZ | |||
| 396 | I8-98350 777-0 | PLUNGER; SHIFT ROD | 1 | 2203- | FVZ | (B) | ||
| 121 | IE-88803 010-0 | PLUG; DETENT SPR | 2 | 2203- | FVZ | |||
| 353 | I8-94224 891-1 | CLIP; AIR HOSE | 1 | 2203- | FVZ | L=36 | ||
| 091 | IE-88786 650-0 | PIN; SPR,SHIFT ARM | 1 | 2203- | FVZ | |||
| 049 | IE-88754 970-0 | ARM; SHIFT,4TH & 5TH | 1 | 2203- | FVZ | |||
| 321 | I0-28751 025-0 | BOLT; BRKT,RELAY LEVER | 1 | 2203- | FVZ | (B) M10X25 FLANGE | ||
| 359 | IE-14345 000-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (E) | ||
| 324 | I0-28051 060-0 | BOLT; SHAFT | 1 | 2203- | FVZ | M10X60 FLANGE | ||
| 513 | I1-09707 107-1 | CLIP; BAND | 4 | 2203- | FVZ | L=600 | ||
| 359 | IE-88752 920-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (B) | ||
| 538 | IE-88702 590-0 | COVER; DETENT | 1 | 2203- | FVZ | |||
| 001 | I8-97268 266-0 | ARM; SHIFT,1ST & REV | 1 | 2208- | FVZ | |||
| 188 | I0-91180 110-0 | NUT; SELECT LEVER | 1 | 2203- | FVZ | M10 FLANGE | ||
| 350 | IE-88736 910-0 | SCREW; SHIFT ARM | 1 | 2203-2207 | FVZ | |||
| 446 | IE-88744 500-0 | RING; SNAP,SPR SEAT | 2 | 2203- | FVZ | |||
| 054 | IE-88702 770-0 | PIN; SPR,SHIFT BLOCK | 1 | 2203- | FVZ | |||
| 171 | IE-88803 150-0 | SWITCH; NEUTRAL | 1 | 2203- | FVZ | |||
| 433 | I1-09623 594-0 | GASKET; BUSHING | 2 | 2203- | FVZ | |||
| 298 | I8-98346 607-0 | SHAFT; SHIFT LEVER | 1 | 2203- | FVZ | |||
| 532 | IE-88723 280-0 | PLATE; SHIFT FORK | 1 | 2203- | FVZ | (A) | ||
| 298 | I8-98346 607-0 | SHAFT; SHIFT LEVER | 1 | 2203- | FVZ | |||
| 019 | IE-88815 930-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (D) | ||
| 358 | IE-91602 000-0 | NUT; SHIFT ROD | 1 | 2203- | FVZ | |||
| 317 | I1-09330 119-0 | BUSHING; LEVER | 2 | 2203- | FVZ | |||
| 030 | IE-88752 670-0 | PIN; INTER LK | 1 | 2203- | FVZ | |||
| 019 | IE-88815 920-0 | SPRING; COIL COMP | 1 | 2203-2207 | FVZ | (C) | ||
| 172 | IE-55685 100-0 | GASKET; NEUTRAL SW | 1 | 2203- | FVZ | |||
| 277 | IE-88765 670-0 | PLATE; SPRING SEAT | 1 | 2203- | FVZ | (B) | ||
| 359 | IE-14344 000-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (D) | ||
| 054 | IE-88702 770-0 | PIN; SPR,SHIFT BLOCK | 1 | 2203- | FVZ | |||
| 253 | IE-88806 390-0 | GASKET; SIDE COVER | 1 | 2203- | FVZ | |||
| 025 | IE-88807 600-0 | ARM; SHIFT,2ND & 3RD | 1 | 2203- | FVZ | |||
| 256 | IE-88806 380-0 | GASKET; QUAD BOX TO TRANS CASE | 1 | 2203- | FVZ | |||
| 545 | I8-97268 244-0 | VALVE; POPPET | 1 | 2208- | FVZ | |||
| 545 | IE-88800 550-0 | VALVE; POPPET | 1 | 2203-2207 | FVZ | |||
| 359 | IE-88712 580-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (C) | ||
| 398 | IE-27715 320-0 | SWITCH; REV LAMP | 1 | 2203- | FVZ | |||
| 323 | I0-91180 110-0 | NUT; LK,SELECT LEVER | 1 | 2203- | FVZ | M10 FLANGE | ||
| 305 | I1-33549 233-0 | BOOT; LEVER SHAFT | 1 | 2203- | FVZ | |||
| 410 | IE-55685 100-0 | GASKET; REV SW | 1 | 2203- | FVZ | |||
| 251 | IE-88804 770-0 | COVER; SIDE | 1 | 2203- | FVZ | |||
| 304 | I1-33511 575-0 | BLOCK; SHIFT SHAFT | 1 | 2203- | FVZ | |||
| 285 | IE-20142 100-0 | BREATHER; AIR,QUAD BOX | 1 | 2203- | FVZ | |||
| 027 | IE-88782 400-0 | BUSHING; SHIFT ROD | 1 | 2203- | FVZ | |||
| 171 | IE-88803 150-0 | SWITCH; NEUTRAL | 1 | 2203- | FVZ | |||
| 252 | IE-80847 000-0 | BOLT; SIDE COVER | 4 | 2203- | FVZ | |||
| 392 | IE-55685 100-0 | GASKET; PLUG & SW | 1 | 2203- | FVZ | |||
| 359 | IE-14345 000-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (E) | ||
| 192 | IE-30602 000-0 | WASHER; PL | 2 | 2203- | FVZ | |||
| 142 | IE-81091 000-0 | BOLT; QUAD BOX | 2 | 2203- | FVZ | (B) | ||
| 049 | IE-88754 970-0 | ARM; SHIFT,4TH & 5TH | 1 | 2203- | FVZ | |||
| 019 | IE-88748 970-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (A) | ||
| 019 | IE-88763 450-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (E) | ||
| 273 | IE-88713 780-0 | PIN; SPR,STOPPER | 1 | 2203- | FVZ | |||
| 352 | IE-88726 260-0 | ROD; SHIFT,RANGE CHANGE | 1 | 2203- | FVZ | |||
| 392 | IE-55685 100-0 | GASKET; PLUG & SW | 1 | 2203- | FVZ | |||
| 433 | I1-09623 594-0 | GASKET; BUSHING | 2 | 2203- | FVZ | |||
| 513 | I1-09707 183-0 | CLIP; BAND | 1 | 2203- | FVZ | L=350 | ||
| 273 | IE-88713 780-0 | PIN; SPR,STOPPER | 1 | 2203- | FVZ | |||
| 104 | IE-88714 860-0 | PLUG; PLATE | 1 | 2203- | FVZ | |||
| 261 | I8-97268 263-0 | ROD; GEAR CONT | 1 | 2208- | FVZ | |||
| 142 | IE-81094 000-0 | BOLT; QUAD BOX | 8 | 2203- | FVZ | (A) M10X35 | ||
| 321 | I0-28751 025-0 | BOLT; BRKT,RELAY LEVER | 1 | 2203- | FVZ | (B) M10X25 FLANGE | ||
| 292 | I1-09440 062-1 | NUT; LINK ROD | 2 | 2203- | FVZ | M8 FLANGE | ||
| 347 | IE-88727 370-0 | ARM; SHIFT,RANGE CHANGE | 1 | 2203- | FVZ | |||
| 394 | IE-27715 320-0 | SWITCH; RANGE CHANGE | 1 | 2203- | FVZ | |||
| 091 | IE-88786 650-0 | PIN; SPR,SHIFT ARM | 1 | 2203- | FVZ | |||
| 532 | IE-88807 590-0 | PLATE; SHIFT FORK | 1 | 2203- | FVZ | (B) | ||
| 396 | I8-98350 777-0 | PLUNGER; SHIFT ROD | 1 | 2203- | FVZ | (B) | ||
| 350 | I8-97268 267-0 | SCREW; SHIFT ARM | 1 | 2208- | FVZ | |||
| 358 | IE-91602 000-0 | NUT; SHIFT ROD | 1 | 2203- | FVZ | |||
| 027 | IE-88782 400-0 | BUSHING; SHIFT ROD | 1 | 2203- | FVZ | |||
| 332 | I0-29261 060-0 | BOLT; 4TH,SHIFT LEVER | 1 | 2203- | FVZ | |||
| 188 | I0-91180 110-0 | NUT; SELECT LEVER | 1 | 2203- | FVZ | M10 FLANGE | ||
| 356 | IE-88751 790-0 | PISTON; AIR CYL | 1 | 2203- | FVZ | |||
| 532 | IE-88723 280-0 | PLATE; SHIFT FORK | 1 | 2203- | FVZ | (A) | ||
| 019 | IE-88713 950-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (B) | ||
| 048 | I8-98031 634-0 | LEVER; 4TH,SHIFT | 1 | 2203- | FVZ | |||
| 289 | I1-33542 061-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2203- | FVZ | |||
| 321 | I0-28151 060-0 | BOLT; BRKT,RELAY LEVER | 1 | 2203- | FVZ | (A) M10X60 FLANGE | ||
| 353 | I8-94224 891-1 | CLIP; AIR HOSE | 1 | 2203- | FVZ | L=36 | ||
| 251 | IE-88804 770-0 | COVER; SIDE | 1 | 2203- | FVZ | |||
| 019 | IE-88748 970-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (A) | ||
| 545 | I8-97268 244-0 | VALVE; POPPET | 1 | 2208- | FVZ | |||
| 396 | IE-88809 860-0 | PLUNGER; SHIFT ROD | 2 | 2203- | FVZ | (A) | ||
| 195 | IE-80634 000-0 | BOLT | 2 | 2203- | FVZ | |||
| 261 | I8-97268 263-0 | ROD; GEAR CONT | 1 | 2208- | FVZ | |||
| 319 | I1-33657 816-0 | BRACKET; SELECT LEVER | 1 | 2203- | FVZ | |||
| 019 | IE-88763 450-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (E) | ||
| 277 | IE-88765 660-0 | PLATE; SPRING SEAT | 1 | 2203- | FVZ | (A) | ||
| 277 | IE-88765 670-0 | PLATE; SPRING SEAT | 1 | 2203- | FVZ | (B) | ||
| 470 | IE-88705 900-0 | GASKET; SPRING COVER | 1 | 2203- | FVZ | |||
| 130 | IE-88802 980-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | FVZ | |||
| 157 | IE-88802 580-0 | BOX; QUAD,TRANS | 1 | 2203- | FVZ | |||
| 121 | IE-88803 010-0 | PLUG; DETENT SPR | 2 | 2203- | FVZ | |||
| 019 | IE-88815 920-0 | SPRING; COIL COMP | 1 | 2203-2207 | FVZ | (C) | ||
| 195 | IE-80634 000-0 | BOLT | 2 | 2203- | FVZ | |||
| 335 | I1-33659 220-0 | COLLAR; DIST,RELAY LEVER ASM | 1 | 2203- | FVZ | |||
| 350 | I8-97268 267-0 | SCREW; SHIFT ARM | 1 | 2208- | FVZ | |||
| 192 | IE-30602 000-0 | WASHER; PL | 2 | 2203- | FVZ | |||
| 335 | I1-33659 220-0 | COLLAR; DIST,RELAY LEVER ASM | 1 | 2203- | FVZ | |||
| 285 | IE-20142 100-0 | BREATHER; AIR,QUAD BOX | 1 | 2203- | FVZ | |||
| 398 | IE-27715 320-0 | SWITCH; REV LAMP | 1 | 2203- | FVZ | |||
| 359 | IE-88730 080-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (A) | ||
| 497 | IE-88707 110-0 | BALL; SWITCH | 2 | 2203- | FVZ | |||
| 513 | I1-09707 183-0 | CLIP; BAND | 1 | 2203- | FVZ | L=350 | ||
| 446 | IE-88744 500-0 | RING; SNAP,SPR SEAT | 2 | 2203- | FVZ | |||
| 359 | IE-88752 920-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (B) | ||
| 025 | IE-88807 600-0 | ARM; SHIFT,2ND & 3RD | 1 | 2203- | FVZ | |||
| 323 | I0-91180 110-0 | NUT; LK,SELECT LEVER | 1 | 2203- | FVZ | M10 FLANGE | ||
| 350 | IE-88736 910-0 | SCREW; SHIFT ARM | 1 | 2203-2207 | FVZ | |||
| 001 | IE-88754 990-0 | ARM; SHIFT,1ST & REV | 1 | 2203-2207 | FVZ | |||
| 319 | I1-33657 816-0 | BRACKET; SELECT LEVER | 1 | 2203- | FVZ | |||
| 321 | I8-97178 725-0 | BOLT; BRKT,RELAY LEVER | 1 | 2203- | FVZ | (C) M10X35 L=65 | ||
| 363 | IE-81091 000-0 | BOLT; AIR CYL | 3 | 2203- | FVZ | |||
| 252 | IE-80847 000-0 | BOLT; SIDE COVER | 4 | 2203- | FVZ | |||
| 019 | I8-97268 241-0 | SPRING; COIL COMP | 1 | 2208- | FVZ | (C) | ||
| 359 | IE-14344 000-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (D) | ||
| 142 | IE-81094 000-0 | BOLT; QUAD BOX | 8 | 2203- | FVZ | (A) M10X35 | ||
| 321 | I0-28151 060-0 | BOLT; BRKT,RELAY LEVER | 1 | 2203- | FVZ | (A) M10X60 FLANGE | ||
| 470 | IE-88705 900-0 | GASKET; SPRING COVER | 1 | 2203- | FVZ | |||
| 396 | IE-88809 860-0 | PLUNGER; SHIFT ROD | 2 | 2203- | FVZ | (A) | ||
| 352 | IE-88726 260-0 | ROD; SHIFT,RANGE CHANGE | 1 | 2203- | FVZ | |||
| 292 | I1-09440 062-1 | NUT; LINK ROD | 2 | 2203- | FVZ | M8 FLANGE | ||
| 243 | IE-80801 000-0 | BOLT; COVER | 2 | 2203- | FVZ | |||
| 261 | I8-98349 521-0 | ROD; GEAR CONT | 1 | 2203-2207 | FVZ | |||
| 243 | IE-80801 000-0 | BOLT; COVER | 2 | 2203- | FVZ | |||
| 142 | IE-81091 000-0 | BOLT; QUAD BOX | 2 | 2203- | FVZ | (B) | ||
| 361 | IE-88754 300-0 | CYLINDER; AIR,SHIFT | 1 | 2203- | FVZ | |||
| 359 | IE-88712 580-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (C) | ||
| 315 | I8-98032 139-0 | LEVER; SELECT | 1 | 2203- | FVZ | |||
| 001 | IE-88754 990-0 | ARM; SHIFT,1ST & REV | 1 | 2203-2207 | FVZ | |||
| 030 | IE-88752 670-0 | PIN; INTER LK | 1 | 2203- | FVZ | |||
| 157 | IE-88802 580-0 | BOX; QUAD,TRANS | 1 | 2203- | FVZ | |||
| 172 | IE-55685 100-0 | GASKET; NEUTRAL SW | 1 | 2203- | FVZ | |||
| 277 | IE-88765 660-0 | PLATE; SPRING SEAT | 1 | 2203- | FVZ | (A) | ||
| 538 | IE-88702 590-0 | COVER; DETENT | 1 | 2203- | FVZ | |||
| 261 | I8-98349 521-0 | ROD; GEAR CONT | 1 | 2203-2207 | FVZ | |||
| 048 | I8-98031 634-0 | LEVER; 4TH,SHIFT | 1 | 2203- | FVZ | |||
| 019 | IE-88815 930-0 | SPRING; COIL COMP | 1 | 2203- | FVZ | (D) | ||
| 497 | IE-88707 110-0 | BALL; SWITCH | 2 | 2203- | FVZ | |||
| 130 | IE-88802 980-0 | LEVER; SHIFT,INTERNAL | 1 | 2203- | FVZ | |||
| 361 | IE-88754 300-0 | CYLINDER; AIR,SHIFT | 1 | 2203- | FVZ | |||
| 289 | I1-33542 061-0 | SEAL; OIL,CONT SHAFT,QUAD BOX | 1 | 2203- | FVZ | |||
| 513 | I1-09707 107-1 | CLIP; BAND | 4 | 2203- | FVZ | L=600 | ||
| 305 | I1-33549 233-0 | BOOT; LEVER SHAFT | 1 | 2203- | FVZ | |||
| 244 | IE-30801 000-0 | WASHER; LK,COVER | 2 | 2203- | FVZ | |||
| 359 | IE-88730 080-0 | GASKET; AIR CYL | 1 | 2203- | FVZ | (A) |
