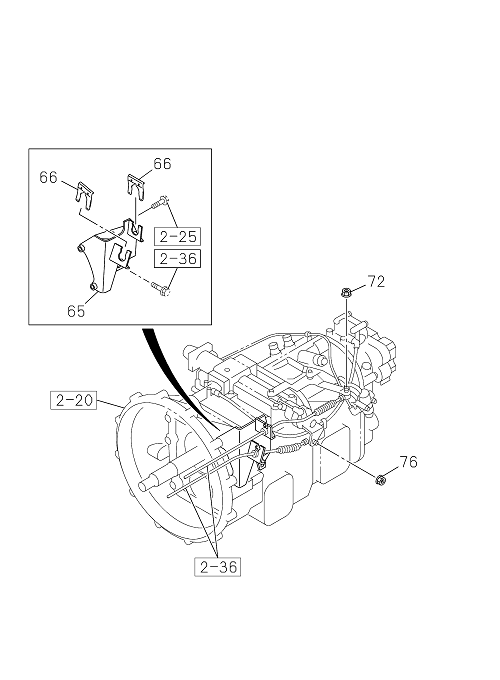

2-37 | MANUAL TRANSMISSION CONT; MISSION SIDE
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 076 | I1-09440 062-1 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FVZ | M8 FLANGE | ||
| 065 | I8-98131 609-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FVZ | |||
| 076 | I1-09440 062-1 | NUT; BALL JOINT,SELECT WIRE | 1 | 2203- | FVZ | M8 FLANGE | ||
| 065 | I8-98131 609-0 | BRACKET; SHIFT TO SELECT,TRANS CONT | 1 | 2203- | FVZ | |||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FVZ | ID=22.2 | ||
| 066 | I1-09701 209-1 | CLIP; SELECT BRKT | 2 | 2203- | FVZ | ID=22.2 | ||
| 072 | I1-09440 062-1 | NUT; TRANS CONT,SELECT | 1 | 2203- | FVZ | M8 FLANGE | ||
| 072 | I1-09440 062-1 | NUT; TRANS CONT,SELECT | 1 | 2203- | FVZ | M8 FLANGE |
