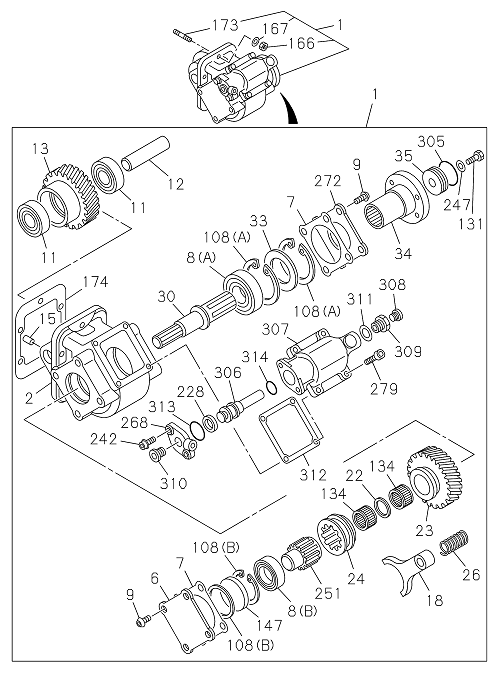

| 007 |
I8-98350 996-0 |
|
GASKET; OUTPUT SHAFT COVER, SIDE PTO |
2 |
2203- |
|
FVZ |
|
| 002 |
I8-98351 031-0 |
|
CASE; GEAR,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 147 |
I8-98351 039-0 |
|
PLUG; OIL PUMP,PTO |
1 |
2203- |
|
FVZ |
|
| 009 |
I8-98350 987-0 |
|
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PTO |
8 |
2203- |
|
FVZ |
|
| 174 |
I8-98351 002-0 |
|
GASKET; PTO |
1 |
2203- |
|
FVZ |
T=0.5 |
| 033 |
I8-98351 008-0 |
|
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 134 |
I8-98351 015-0 |
|
BEARING; NEEDLE,OUTPUT SHAFT |
2 |
2203- |
|
FVZ |
|
| 310 |
I8-98351 038-0 |
|
PLUG; COVER |
1 |
2203- |
|
FVZ |
|
| 001 |
I8-98326 008-1 |
|
POWER TAKE OFF ASM; TRANS SIDE |
1 |
2203- |
|
FVZ |
|
| 166 |
I8-98351 045-0 |
|
NUT; PTO T/M SIDE |
6 |
2203- |
|
FVZ |
|
| 030 |
I8-98351 016-0 |
|
SHAFT; OUTPUT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 001 |
I8-98326 008-1 |
|
POWER TAKE OFF ASM; TRANS SIDE |
1 |
2203- |
|
FVZ |
|
| 312 |
I8-98350 997-0 |
|
GASKET; HOUSING |
1 |
2203- |
|
FVZ |
|
| 311 |
I8-98350 993-0 |
|
WASHER |
1 |
2203- |
|
FVZ |
|
| 023 |
I8-98351 048-0 |
|
GEAR; OUTPUT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 242 |
I8-98350 989-0 |
|
SCREW; PTO |
2 |
2203- |
|
FVZ |
|
| 006 |
I8-98351 044-0 |
|
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 308 |
I8-98392 698-0 |
|
PLUG |
1 |
2203- |
|
FVZ |
|
| 247 |
I8-98350 990-0 |
|
WASHER |
1 |
2203- |
|
FVZ |
|
| 174 |
I8-98351 002-0 |
|
GASKET; PTO |
1 |
2203- |
|
FVZ |
T=0.5 |
| 272 |
I8-98351 007-0 |
|
PLATE; PTO |
1 |
2203- |
|
FVZ |
|
| 279 |
I8-98350 988-0 |
|
PLUG |
4 |
2203- |
|
FVZ |
|
| 305 |
I8-98350 995-0 |
|
GASKET |
1 |
2203- |
|
FVZ |
|
| 034 |
I8-98392 697-0 |
|
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 309 |
I8-98351 037-0 |
|
PLUG; HOUSING |
1 |
2203- |
|
FVZ |
|
| 166 |
I8-98351 045-0 |
|
NUT; PTO T/M SIDE |
6 |
2203- |
|
FVZ |
|
| 026 |
I8-98351 034-0 |
|
SPRING; SHIFTER ROD,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 024 |
I8-98351 053-0 |
|
SLEEVE; DOG CLU,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 131 |
I8-98350 986-0 |
|
BOLT; FLANGE |
1 |
2203- |
|
FVZ |
|
| 035 |
I8-98350 992-0 |
|
WASHER; PL,FLANGE FIX,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 018 |
I8-98351 035-0 |
|
ARM; GEAR SHIFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 279 |
I8-98350 988-0 |
|
PLUG |
4 |
2203- |
|
FVZ |
|
| 108 |
I8-98351 009-0 |
|
RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO |
2 |
2203- |
|
FVZ |
(A) |
| 147 |
I8-98351 039-0 |
|
PLUG; OIL PUMP,PTO |
1 |
2203- |
|
FVZ |
|
| 131 |
I8-98350 986-0 |
|
BOLT; FLANGE |
1 |
2203- |
|
FVZ |
|
| 251 |
I8-98351 054-0 |
|
BUSHING |
1 |
2203- |
|
FVZ |
|
| 307 |
I8-98351 032-0 |
|
HOUSING; PISTON |
1 |
2203- |
|
FVZ |
|
| 314 |
I8-98350 998-0 |
|
GASKET; PISTON |
1 |
2203- |
|
FVZ |
|
| 268 |
I8-98351 043-0 |
|
COVER; PTO |
1 |
2203- |
|
FVZ |
|
| 012 |
I8-98351 030-0 |
|
SHAFT; IDLE GEAR,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 310 |
I8-98351 038-0 |
|
PLUG; COVER |
1 |
2203- |
|
FVZ |
|
| 134 |
I8-98351 015-0 |
|
BEARING; NEEDLE,OUTPUT SHAFT |
2 |
2203- |
|
FVZ |
|
| 012 |
I8-98351 030-0 |
|
SHAFT; IDLE GEAR,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 306 |
I8-98351 040-0 |
|
PISTON |
1 |
2203- |
|
FVZ |
|
| 242 |
I8-98350 989-0 |
|
SCREW; PTO |
2 |
2203- |
|
FVZ |
|
| 015 |
I8-98392 704-0 |
|
PIN; SPR,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 023 |
I8-98351 048-0 |
|
GEAR; OUTPUT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 011 |
I8-98351 014-0 |
|
BEARING; IDLE GEAR,TRANS SIDE PTO |
2 |
2203- |
|
FVZ |
|
| 002 |
I8-98351 031-0 |
|
CASE; GEAR,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 008 |
I8-98351 012-0 |
|
BEARING; OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
(A) |
| 307 |
I8-98351 032-0 |
|
HOUSING; PISTON |
1 |
2203- |
|
FVZ |
|
| 006 |
I8-98351 044-0 |
|
COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 001 |
I6-98326 008-0 |
|
POWER TAKE OFF ASM; TRANS SIDE |
1 |
2203- |
|
FVZ |
(IADG) |
| 167 |
I8-98350 994-0 |
|
WASHER; PTO A/T SIDE |
6 |
2203- |
|
FVZ |
|
| 026 |
I8-98351 034-0 |
|
SPRING; SHIFTER ROD,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 034 |
I8-98392 697-0 |
|
FLANGE; OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 313 |
I8-98351 000-0 |
|
GASKET |
1 |
2203- |
|
FVZ |
|
| 018 |
I8-98351 035-0 |
|
ARM; GEAR SHIFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 022 |
I8-98351 052-0 |
|
COLLAR; DIST,OUTPUT SHAFT, TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 313 |
I8-98351 000-0 |
|
GASKET |
1 |
2203- |
|
FVZ |
|
| 311 |
I8-98350 993-0 |
|
WASHER |
1 |
2203- |
|
FVZ |
|
| 108 |
I8-98351 010-0 |
|
RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO |
2 |
2203- |
|
FVZ |
(B) |
| 247 |
I8-98350 990-0 |
|
WASHER |
1 |
2203- |
|
FVZ |
|
| 314 |
I8-98350 998-0 |
|
GASKET; PISTON |
1 |
2203- |
|
FVZ |
|
| 167 |
I8-98350 994-0 |
|
WASHER; PTO A/T SIDE |
6 |
2203- |
|
FVZ |
|
| 007 |
I8-98350 996-0 |
|
GASKET; OUTPUT SHAFT COVER, SIDE PTO |
2 |
2203- |
|
FVZ |
|
| 305 |
I8-98350 995-0 |
|
GASKET |
1 |
2203- |
|
FVZ |
|
| 228 |
I8-98351 042-0 |
|
COLLAR; STOPPER |
1 |
2203- |
|
FVZ |
|
| 251 |
I8-98351 054-0 |
|
BUSHING |
1 |
2203- |
|
FVZ |
|
| 268 |
I8-98351 043-0 |
|
COVER; PTO |
1 |
2203- |
|
FVZ |
|
| 001 |
I6-98326 008-0 |
|
POWER TAKE OFF ASM; TRANS SIDE |
1 |
2203- |
|
FVZ |
(IADG) |
| 013 |
I8-98351 051-0 |
|
GEAR; IDLE,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 306 |
I8-98351 040-0 |
|
PISTON |
1 |
2203- |
|
FVZ |
|
| 008 |
I8-98351 013-0 |
|
BEARING; OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
(B) |
| 013 |
I8-98351 051-0 |
|
GEAR; IDLE,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 272 |
I8-98351 007-0 |
|
PLATE; PTO |
1 |
2203- |
|
FVZ |
|
| 309 |
I8-98351 037-0 |
|
PLUG; HOUSING |
1 |
2203- |
|
FVZ |
|
| 228 |
I8-98351 042-0 |
|
COLLAR; STOPPER |
1 |
2203- |
|
FVZ |
|
| 035 |
I8-98350 992-0 |
|
WASHER; PL,FLANGE FIX,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 173 |
I8-98351 046-0 |
|
STUD; PTO |
6 |
2203- |
|
FVZ |
|
| 015 |
I8-98392 704-0 |
|
PIN; SPR,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 108 |
I8-98351 009-0 |
|
RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO |
2 |
2203- |
|
FVZ |
(A) |
| 011 |
I8-98351 014-0 |
|
BEARING; IDLE GEAR,TRANS SIDE PTO |
2 |
2203- |
|
FVZ |
|
| 009 |
I8-98350 987-0 |
|
BOLT; OUTPUT SHAFT COVER,TRANS SIDE PTO |
8 |
2203- |
|
FVZ |
|
| 308 |
I8-98392 698-0 |
|
PLUG |
1 |
2203- |
|
FVZ |
|
| 008 |
I8-98351 013-0 |
|
BEARING; OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
(B) |
| 312 |
I8-98350 997-0 |
|
GASKET; HOUSING |
1 |
2203- |
|
FVZ |
|
| 108 |
I8-98351 010-0 |
|
RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO |
2 |
2203- |
|
FVZ |
(B) |
| 030 |
I8-98351 016-0 |
|
SHAFT; OUTPUT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 008 |
I8-98351 012-0 |
|
BEARING; OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
(A) |
| 033 |
I8-98351 008-0 |
|
SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 022 |
I8-98351 052-0 |
|
COLLAR; DIST,OUTPUT SHAFT, TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 024 |
I8-98351 053-0 |
|
SLEEVE; DOG CLU,TRANS SIDE PTO |
1 |
2203- |
|
FVZ |
|
| 173 |
I8-98351 046-0 |
|
STUD; PTO |
6 |
2203- |
|
FVZ |
|
