3-26 | TRAILER CONTROL
GIGA E4
GIGA FVZ E4

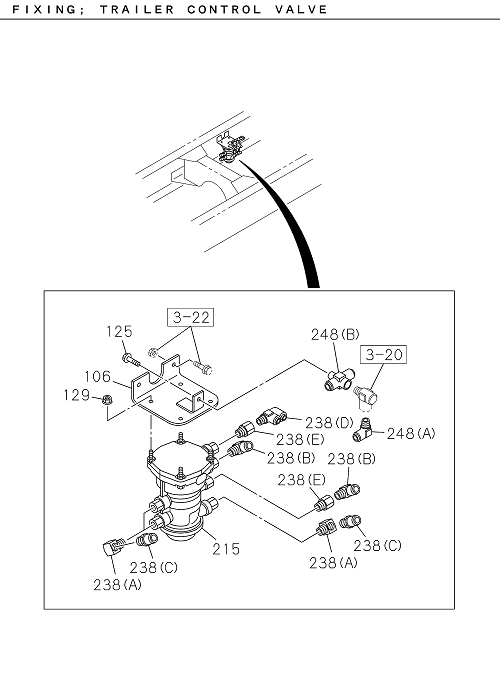

| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 238 | I1-09660 957-0 | CONNECTOR | 2 | 2203- | FVZ | (B) DIN8 & R3/8 ELBOW | ||
| 238 | I1-09660 965-0 | CONNECTOR | 3 | 2203- | FVZ | (C) DIN12 & R3/8 STRAIGHT | ||
| 248 | I1-09660 959-0 | UNION | 1 | 2203- | FVZ | (A) DIN12 & R3/8 ELBOW | ||
| 112 | I8-98314 607-2 | BRACKET; CONT VLV | 1 | 2203- | FVZ | (C) | ||
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 3 | 2203- | FVZ | (A) DIN8 & M16 ELBOW | ||
| 151 | I0-52000 616-0 | BOLT; VLV BRKT | 2 | 2203- | FVZ | (A) M6X16 | ||
| 112 | I8-98314 604-2 | BRACKET; CONT VLV | 1 | 2203- | FVZ | (A) | ||
| 112 | I8-98314 605-0 | BRACKET; CONT VLV | 1 | 2203- | FVZ | (B) | ||
| 125 | I0-28050 816-0 | BOLT; RELAY VLV | 1 | 2203- | FVZ | M8X16 FLANGE | ||
| 206 | I0-28650 620-0 | BOLT; HAND BRK VALVE | 2 | 2203- | FVZ | M6X20 FLANGE | ||
| 248 | I1-09660 959-0 | UNION | 1 | 2203- | FVZ | (A) DIN12 & R3/8 ELBOW | ||
| 151 | I0-52000 820-0 | BOLT; VLV BRKT | 4 | 2203- | FVZ | (B) M8X20 W/LK&PL WASHER | ||
| 112 | I8-98314 607-2 | BRACKET; CONT VLV | 1 | 2203- | FVZ | (C) | ||
| 125 | I0-28050 816-0 | BOLT; RELAY VLV | 1 | 2203- | FVZ | M8X16 FLANGE | ||
| 256 | I1-76798 029-0 | SEAL | 6 | 2203- | FVZ | OD=25 BLACK | ||
| 151 | I0-52000 616-0 | BOLT; VLV BRKT | 2 | 2203- | FVZ | (A) M6X16 | ||
| 112 | I8-98314 604-2 | BRACKET; CONT VLV | 1 | 2203- | FVZ | (A) | ||
| 206 | I0-28650 620-0 | BOLT; HAND BRK VALVE | 2 | 2203- | FVZ | M6X20 FLANGE | ||
| 032 | I8-98299 003-0 | VALVE; BRK,HAND CONT | 1 | 2203- | FVZ | (A) | ||
| 238 | I1-09661 303-0 | CONNECTOR | 3 | 2203- | FVZ | (A) PT3/8 & PT3/8 ELBOW | ||
| 112 | I8-98314 605-0 | BRACKET; CONT VLV | 1 | 2203- | FVZ | (B) | ||
| 256 | I1-76798 029-0 | SEAL | 6 | 2203- | FVZ | OD=25 BLACK | ||
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 2 | 2203- | FVZ | (A) DIN8 & M16 ELBOW | ||
| 032 | I8-98299 003-0 | VALVE; BRK,HAND CONT | 1 | 2203- | FVZ | (A) | ||
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 2 | 2203- | FVZ | (A) DIN8 & M16 ELBOW | ||
| 129 | I0-91180 108-0 | NUT; VLV | 4 | 2203- | FVZ | M8 FLANGE | ||
| 138 | I1-09661 520-0 | CONNECTOR; DELIVERY | 3 | 2203- | FVZ | (A) DIN8 & M16 ELBOW | ||
| 238 | I1-09660 965-0 | CONNECTOR | 3 | 2203- | FVZ | (C) DIN12 & R3/8 STRAIGHT | ||
| 238 | I1-09660 957-0 | CONNECTOR | 2 | 2203- | FVZ | (B) DIN8 & R3/8 ELBOW | ||
| 129 | I0-91180 108-0 | NUT; VLV | 4 | 2203- | FVZ | M8 FLANGE | ||
| 151 | I0-52000 820-0 | BOLT; VLV BRKT | 4 | 2203- | FVZ | (B) M8X20 W/LK&PL WASHER | ||
| 238 | I1-09661 303-0 | CONNECTOR | 3 | 2203- | FVZ | (A) PT3/8 & PT3/8 ELBOW |
