| 054 |
I1-09650 074-1 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(J) M12 & PT1/4 STRAIGHT |
| 054 |
I1-09661 303-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(B) PT3/8 & PT3/8 ELBOW |
| 111 |
I1-48199 526-0 |
|
PLATE; GOVERNOR |
1 |
2203- |
|
FVZ |
|
| 075 |
I1-48199 562-0 |
|
COVER; CASE,AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 114 |
I8-98292 688-0 |
|
PISTON ASM; GOVERNOR |
1 |
2203- |
|
FVZ |
|
| 065 |
I1-48199 517-0 |
|
BOLT; PURGE VLV |
1 |
2203- |
|
FVZ |
|
| 070 |
I8-97948 152-0 |
|
VALVE; AIR DRYER |
1 |
2203- |
|
FVZ |
(A) |
| 078 |
I1-48199 557-0 |
|
BOLT; OIL FILTER,AIR DRYER |
4 |
2203- |
|
FVZ |
|
| 130 |
I0-28050 816-0 |
|
BOLT |
2 |
2203- |
|
FVZ |
M8X16 FLANGE |
| 007 |
I1-48199 579-0 |
|
RING; SNAP,AIR DRYER |
1 |
2203- |
|
FVZ |
(A) |
| 054 |
I8-98032 527-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(G) DIN18 & R3/8 & RC3/8 3WAY |
| 054 |
I1-09660 956-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(C) DIN8 & R1/4 ELBOW |

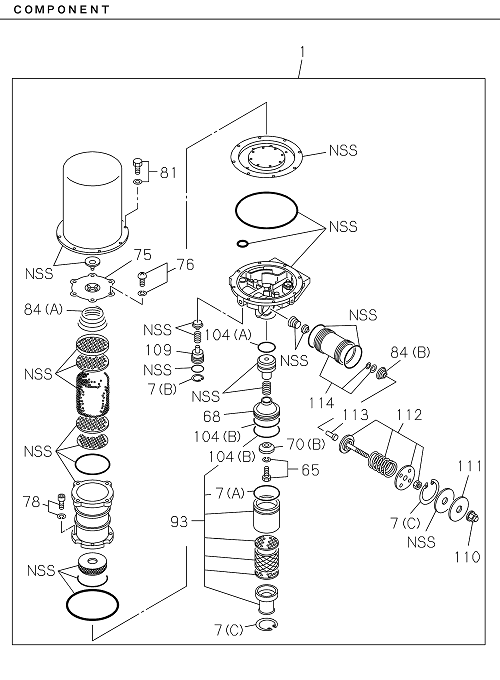

| 001 |
I8-97678 565-0 |
|
DRYER; AIR |
1 |
2203- |
|
FVZ |
|
| 054 |
I1-09660 960-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(E) DIN12 & R1/2 ELBOW |
| 001 |
I8-97678 565-0 |
|
DRYER; AIR |
1 |
2203- |
|
FVZ |
|
| 144 |
I8-97609 249-0 |
|
SWITCH; PRESSURE |
1 |
2203- |
|
FVZ |
STAMP 5.5 |
| 076 |
I1-48199 561-0 |
|
BOLT; COVER,AIR DRYER |
6 |
2203- |
|
FVZ |
|
| 084 |
I1-48199 564-0 |
|
SPRING; AIR DRYER |
1 |
2203- |
|
FVZ |
(A) |
| 054 |
I8-98148 475-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(H) M12 & R3/8 & RC1/4 ELBOW 3WAY |
| 107 |
I1-48110 288-3 |
|
VALVE ASM; PROTECTION,AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 070 |
I8-97948 152-0 |
|
VALVE; AIR DRYER |
1 |
2203- |
|
FVZ |
(A) |
| 010 |
I0-28051 225-0 |
|
BOLT; AIR DRYER |
3 |
2203- |
|
FVZ |
M12X25 FLANGE |
| 016 |
I0-91180 110-0 |
|
NUT; BRKT |
2 |
2203- |
|
FVZ |
M10 FLANGE |
| 093 |
I1-48199 619-0 |
|
SILENCER; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 054 |
I1-09660 965-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(F) DIN12 & R3/8 STRAIGHT |
| 054 |
I1-09661 303-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(B) PT3/8 & PT3/8 ELBOW |
| 070 |
I1-48199 504-0 |
|
VALVE; AIR DRYER |
1 |
2203- |
|
FVZ |
(B) |
| 054 |
I1-09660 956-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(C) DIN8 & R1/4 ELBOW |
| 070 |
I1-48199 504-0 |
|
VALVE; AIR DRYER |
1 |
2203- |
|
FVZ |
(B) |
| 110 |
I1-48199 527-0 |
|
NUT; CAP |
1 |
2203- |
|
FVZ |
|
| 009 |
I1-09660 966-0 |
|
CONNECTOR; PIPE,AIR DRYER |
1 |
2203- |
|
FVZ |
(B) DIN12 & R1/2 STRAIGHT |
| 144 |
I8-97609 249-0 |
|
SWITCH; PRESSURE |
1 |
2203- |
|
FVZ |
STAMP 5.5 |
| 081 |
I1-48199 436-0 |
|
BOLT; CASE,AIR DRYER |
8 |
2203- |
|
FVZ |
|
| 112 |
I8-98292 687-0 |
|
SCREW & SPRING ASM; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 128 |
I9-99204 513-0 |
|
PLUG |
1 |
2203- |
|
FVZ |
PT1/4 |
| 054 |
I1-09660 959-0 |
|
CONNECTOR |
2 |
2203- |
|
FVZ |
(D) DIN12 & R3/8 ELBOW |
| 113 |
I1-48199 522-0 |
|
STEM; EXHAUST |
1 |
2203- |
|
FVZ |
|
| 145 |
I1-48119 625-0 |
|
COVER; VALVE |
4 |
2203- |
|
FVZ |
|
| 054 |
I1-09660 965-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(F) DIN12 & R3/8 STRAIGHT |
| 145 |
I1-48119 625-0 |
|
COVER; VALVE |
4 |
2203- |
|
FVZ |
|
| 109 |
I1-48199 539-0 |
|
STOPPER; CHECK VALVE |
1 |
2203- |
|
FVZ |
|
| 009 |
I0-92121 815-0 |
|
CONNECTOR; PIPE,AIR DRYER |
1 |
2203- |
|
FVZ |
(A) M22 & PT1/2 FLARE |
| 007 |
I1-48199 520-0 |
|
RING; SNAP,AIR DRYER |
2 |
2203- |
|
FVZ |
(C) |
| 068 |
I1-48199 515-0 |
|
BODY; VALVE |
1 |
2203- |
|
FVZ |
|

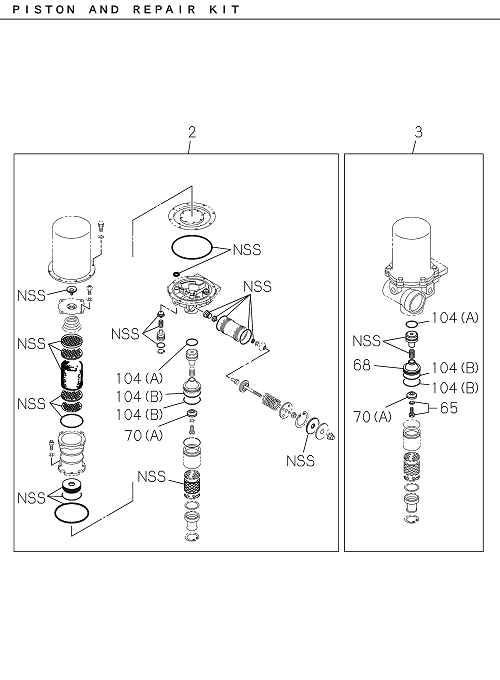

| 003 |
I8-98226 322-0 |
|
PISTON KIT; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 002 |
I8-98226 328-0 |
|
REPAIR KIT; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 054 |
I8-98299 777-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(I) M12 & PT1/4 ELBOW |
| 080 |
I0-28650 820-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVZ |
M8X20 FLANGE |
| 054 |
I8-98299 777-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(I) M12 & PT1/4 ELBOW |

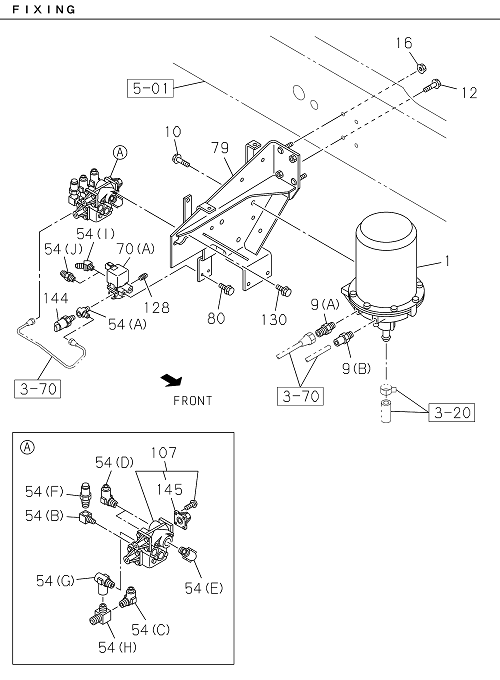

| 079 |
I8-98341 806-0 |
|
BRACKET; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 080 |
I0-28650 820-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVZ |
M8X20 FLANGE |
| 009 |
I1-09660 966-0 |
|
CONNECTOR; PIPE,AIR DRYER |
1 |
2203- |
|
FVZ |
(B) DIN12 & R1/2 STRAIGHT |
| 010 |
I0-28051 225-0 |
|
BOLT; AIR DRYER |
3 |
2203- |
|
FVZ |
M12X25 FLANGE |
| 084 |
I1-48199 523-0 |
|
SPRING; AIR DRYER |
1 |
2203- |
|
FVZ |
(B) |
| 054 |
I1-09660 960-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(E) DIN12 & R1/2 ELBOW |
| 054 |
I1-09656 586-1 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(A) M12 & PT1/4 3WAY |
| 084 |
I1-48199 564-0 |
|
SPRING; AIR DRYER |
1 |
2203- |
|
FVZ |
(A) |
| 076 |
I1-48199 561-0 |
|
BOLT; COVER,AIR DRYER |
6 |
2203- |
|
FVZ |
|
| 104 |
I8-98226 321-0 |
|
GASKET |
1 |
2203- |
|
FVZ |
(A) |
| 075 |
I1-48199 562-0 |
|
COVER; CASE,AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 084 |
I1-48199 523-0 |
|
SPRING; AIR DRYER |
1 |
2203- |
|
FVZ |
(B) |
| 114 |
I8-98292 688-0 |
|
PISTON ASM; GOVERNOR |
1 |
2203- |
|
FVZ |
|
| 079 |
I8-98341 806-0 |
|
BRACKET; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 065 |
I1-48199 517-0 |
|
BOLT; PURGE VLV |
1 |
2203- |
|
FVZ |
|
| 007 |
I1-48199 520-0 |
|
RING; SNAP,AIR DRYER |
2 |
2203- |
|
FVZ |
(C) |
| 009 |
I0-92121 815-0 |
|
CONNECTOR; PIPE,AIR DRYER |
1 |
2203- |
|
FVZ |
(A) M22 & PT1/2 FLARE |
| 016 |
I0-91180 110-0 |
|
NUT; BRKT |
2 |
2203- |
|
FVZ |
M10 FLANGE |
| 093 |
I1-48199 619-0 |
|
SILENCER; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 007 |
I1-48199 579-0 |
|
RING; SNAP,AIR DRYER |
1 |
2203- |
|
FVZ |
(A) |
| 104 |
I8-98226 321-0 |
|
GASKET |
1 |
2203- |
|
FVZ |
(A) |
| 128 |
I9-99204 513-0 |
|
PLUG |
1 |
2203- |
|
FVZ |
PT1/4 |
| 054 |
I1-09650 074-1 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(J) M12 & PT1/4 STRAIGHT |
| 054 |
I8-98032 527-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(G) DIN18 & R3/8 & RC3/8 3WAY |
| 113 |
I1-48199 522-0 |
|
STEM; EXHAUST |
1 |
2203- |
|
FVZ |
|
| 130 |
I0-28050 816-0 |
|
BOLT |
2 |
2203- |
|
FVZ |
M8X16 FLANGE |
| 012 |
I0-28651 035-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVZ |
M10X35 FLANGE |
| 104 |
I1-48199 496-0 |
|
GASKET |
2 |
2203- |
|
FVZ |
(B) |
| 007 |
I1-48199 529-0 |
|
RING; SNAP,AIR DRYER |
1 |
2203- |
|
FVZ |
(B) |
| 112 |
I8-98292 687-0 |
|
SCREW & SPRING ASM; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 111 |
I1-48199 526-0 |
|
PLATE; GOVERNOR |
1 |
2203- |
|
FVZ |
|
| 003 |
I8-98226 322-0 |
|
PISTON KIT; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 007 |
I1-48199 529-0 |
|
RING; SNAP,AIR DRYER |
1 |
2203- |
|
FVZ |
(B) |
| 054 |
I1-09656 586-1 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(A) M12 & PT1/4 3WAY |

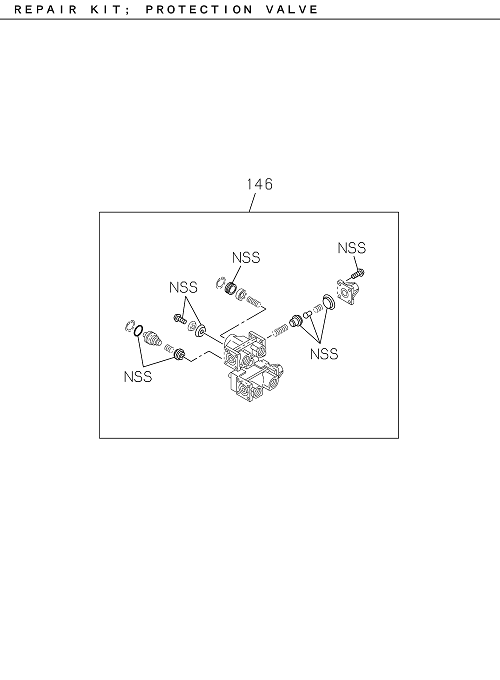

| 146 |
I1-85576 451-2 |
|
REPAIR KIT; PROTECTION VALVE |
1 |
2203- |
|
FVZ |
|
| 107 |
I1-48110 288-3 |
|
VALVE ASM; PROTECTION,AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 054 |
I1-09660 959-0 |
|
CONNECTOR |
2 |
2203- |
|
FVZ |
(D) DIN12 & R3/8 ELBOW |
| 146 |
I1-85576 451-2 |
|
REPAIR KIT; PROTECTION VALVE |
1 |
2203- |
|
FVZ |
|
| 068 |
I1-48199 515-0 |
|
BODY; VALVE |
1 |
2203- |
|
FVZ |
|
| 012 |
I0-28651 035-0 |
|
BOLT; BRKT |
2 |
2203- |
|
FVZ |
M10X35 FLANGE |
| 110 |
I1-48199 527-0 |
|
NUT; CAP |
1 |
2203- |
|
FVZ |
|
| 081 |
I1-48199 436-0 |
|
BOLT; CASE,AIR DRYER |
8 |
2203- |
|
FVZ |
|
| 054 |
I8-98148 475-0 |
|
CONNECTOR |
1 |
2203- |
|
FVZ |
(H) M12 & R3/8 & RC1/4 ELBOW 3WAY |
| 109 |
I1-48199 539-0 |
|
STOPPER; CHECK VALVE |
1 |
2203- |
|
FVZ |
|
| 002 |
I8-98226 328-0 |
|
REPAIR KIT; AIR DRYER |
1 |
2203- |
|
FVZ |
|
| 104 |
I1-48199 496-0 |
|
GASKET |
2 |
2203- |
|
FVZ |
(B) |
| 078 |
I1-48199 557-0 |
|
BOLT; OIL FILTER,AIR DRYER |
4 |
2203- |
|
FVZ |
|
