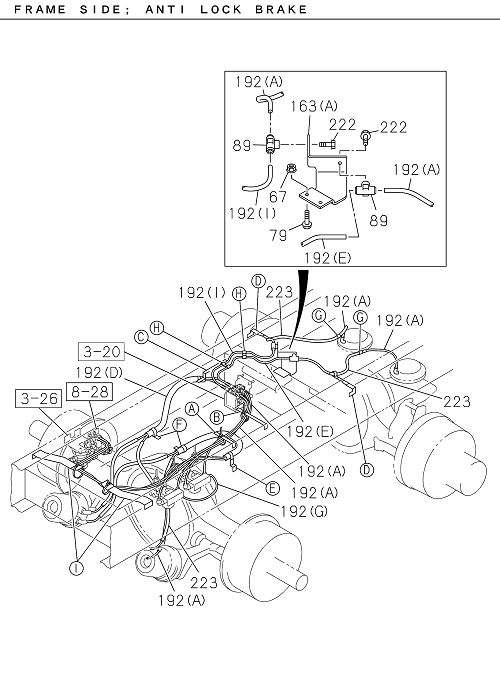

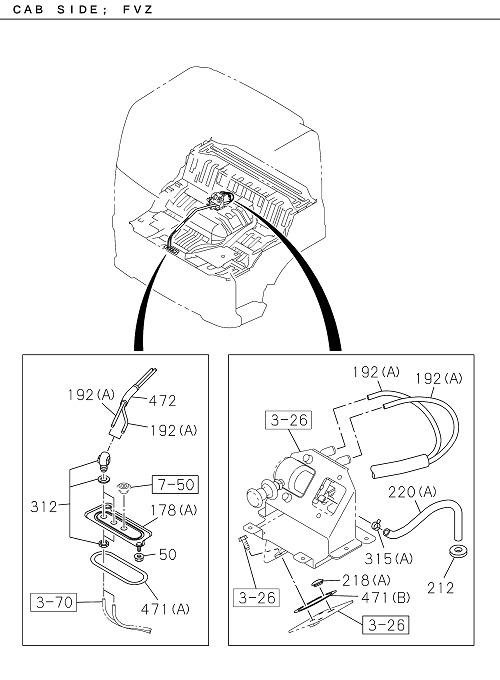

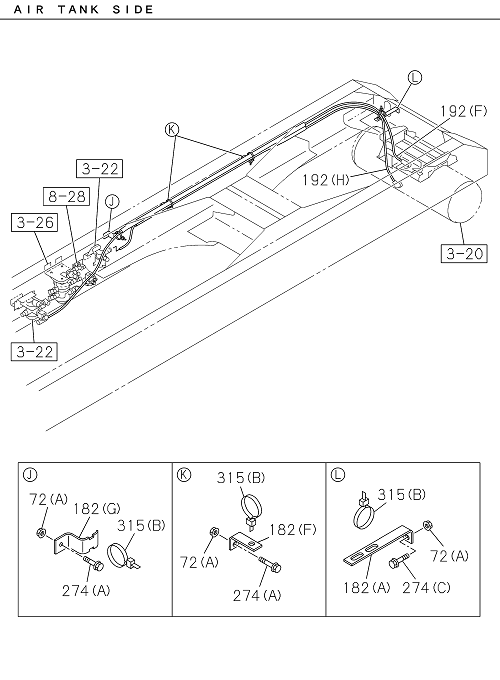

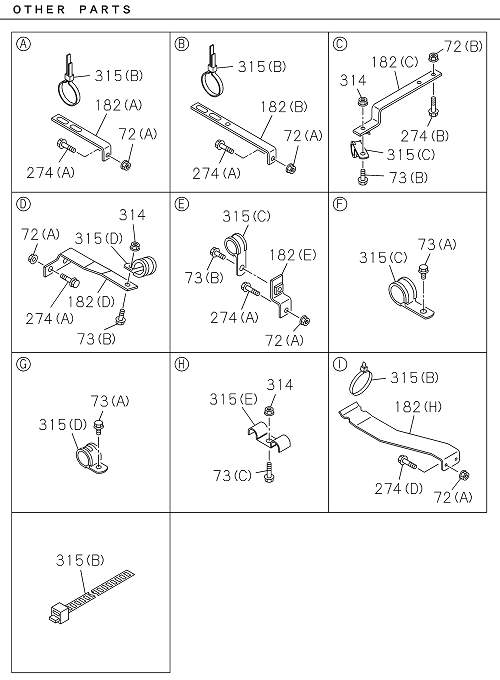

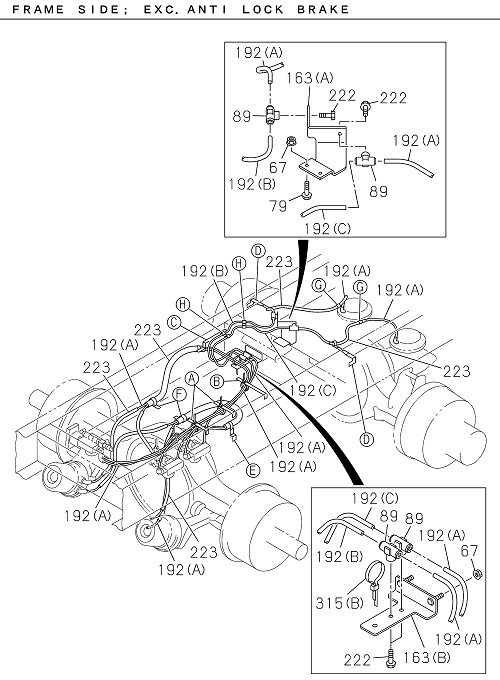

3-77 | BRAKE PIPING; AIR,REAR
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 067 | I0-91180 110-0 | NUT; HOSE BRKT | 2 | 2203- | FVZ | M10 FLANGE | ||
| 073 | I0-28650 830-0 | BOLT; CLIP | 3 | 2203- | FVZ | (C) M8X30 FLANGE | ||
| 182 | I8-98325 651-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (D) | ||
| 223 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=13 | ||
| 182 | I1-47477 716-1 | BRACKET; TUBE CLIP | 2 | 2203- | FVZ | (F) L=60 H=30 | ||
| 218 | I9-09956 226-A | GROMMET; VINYL HOSE | 1 | 2203- | FVZ | (A) OD=22 | ||
| 315 | I1-09707 183-0 | CLIP | 6 | 2203- | FVZ | (B) L=350 | ||
| 067 | I0-91180 110-0 | NUT; HOSE BRKT | 4 | 2203- | FVZ | M10 FLANGE | ||
| 471 | I1-79738 794-1 | SEAL; BRKT | 1 | 2203- | FVZ | (A) L=215 | ||
| 223 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=10 | ||
| 079 | I0-28651 030-0 | BOLT; HOSE BRKT | 2 | 2203- | FVZ | M10X30 FLANGE | ||
| 073 | I0-28650 820-0 | BOLT; CLIP | 3 | 2203- | FVZ | (B) M8X20 FLANGE | ||
| 182 | I8-98325 650-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (D) | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 2203- | FVZ | (B) L=360 | ||
| 274 | I0-28650 840-0 | BOLT; BRKT | 8 | 2203- | FVZ | (A) M8X40 FLANGE | ||
| 223 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=32 | ||
| 220 | I1-09360 320-0 | HOSE; VINYL,EXH,PARKING BRK VLV | 1 | 2203- | FVZ | (A) L=295 SERVICED BY L=1800 | ||
| 212 | I9-61166 007-0 | GROMMET; AIR PIPE | 2 | 2203- | FVZ | OD=24 | ||
| 315 | I1-09701 324-0 | CLIP | 2 | 2203- | FVZ | (E) ID=19 & 19 | ||
| 182 | I8-98348 574-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (C) | ||
| 182 | I8-98315 518-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (E) | ||
| 315 | I8-98082 035-0 | CLIP | 4 | 2203- | FVZ | (D) ID=17 L=21 | ||
| 274 | I0-28651 030-0 | BOLT; BRKT | 2 | 2203- | FVZ | (B) M10X30 FLANGE | ||
| 182 | I1-47477 646-3 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (B) L=225 H=30 | ||
| 472 | I8-98067 708-0 | TUBE; SPUTTER | 1 | 2203- | FVZ | |||
| 192 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=4000 OD=12 | ||
| 315 | I1-09701 261-0 | CLIP | 4 | 2203- | FVZ | (C) ID=28 L=40 | ||
| 073 | I0-28050 812-A | BOLT; CLIP | 4 | 2203- | FVZ | (A) M8X12 FLANGE | ||
| 192 | I8-97553 360-0 | TUBE; NYLON | 1 | 2203- | FVZ | (C) | ||
| 192 | I1-87411 007-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=4000 OD=8 | ||
| 072 | I0-91180 110-0 | NUT; BRKT | 2 | 2203- | FVZ | (B) M10 FLANGE | ||
| 314 | I0-91180 108-0 | NUT; CLIP | 5 | 2203- | FVZ | M8 FLANGE | ||
| 222 | I0-28050 816-0 | BOLT; CONNECTOR | 2 | 2203- | FVZ | M8X16 FLANGE | ||
| 220 | I1-09360 320-0 | HOSE; VINYL,EXH,PARKING BRK VLV | 1 | 2203- | FVZ | (B) L=270 SERVICED BY L=1800 | ||
| 079 | I0-28651 030-0 | BOLT; HOSE BRKT | 2 | 2203- | FVZ | M10X30 FLANGE | ||
| 182 | I1-47477 629-2 | BRACKET; TUBE CLIP | 2 | 2203- | FVZ | (A) L=150 H=30 | ||
| 312 | I8-97611 963-1 | CONNECTOR; SUPPLY | 3 | 2203- | FVZ | DIN8X2 ELBOW | ||
| 222 | I0-28050 816-0 | BOLT; CONNECTOR | 2 | 2203- | FVZ | M8X16 FLANGE | ||
| 212 | I9-61166 007-0 | GROMMET; AIR PIPE | 2 | 2203- | FVZ | OD=24 | ||
| 274 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | FVZ | (C) M8X25 FLANGE | ||
| 223 | I1-87411 035-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=32 | ||
| 312 | I8-97611 963-1 | CONNECTOR; SUPPLY | 2 | 2203- | FVZ | DIN8X2 ELBOW | ||
| 315 | I1-09707 183-0 | CLIP | 13 | 2203- | FVZ | (B) L=350 | ||
| 220 | I1-09360 320-0 | HOSE; VINYL,EXH,PARKING BRK VLV | 1 | 2203- | FVZ | (A) L=295 SERVICED BY L=1800 | ||
| 274 | I0-28650 835-0 | BOLT; BRKT | 4 | 2203- | FVZ | (D) M8X35 FLANGE | ||
| 050 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 2203- | FVZ | M8 FLANGE | ||
| 274 | I0-28650 835-0 | BOLT; BRKT | 4 | 2203- | FVZ | (D) M8X35 FLANGE | ||
| 182 | I8-98325 651-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (D) | ||
| 312 | I8-97611 963-1 | CONNECTOR; SUPPLY | 2 | 2203- | FVZ | DIN8X2 ELBOW | ||
| 073 | I0-28650 820-0 | BOLT; CLIP | 3 | 2203- | FVZ | (B) M8X20 FLANGE | ||
| 274 | I0-28650 840-0 | BOLT; BRKT | 8 | 2203- | FVZ | (A) M8X40 FLANGE | ||
| 163 | I8-98348 573-0 | BRACKET; FLEX HOSE | 1 | 2203- | FVZ | (A) | ||
| 471 | I1-79738 832-0 | SEAL; BRKT | 1 | 2203- | FVZ | (B) L=360 | ||
| 315 | I1-09704 102-0 | CLIP | 1 | 2203- | FVZ | (A) ID=14 | ||
| 218 | I9-09956 226-A | GROMMET; VINYL HOSE | 1 | 2203- | FVZ | (A) OD=22 | ||
| 192 | I8-97553 359-0 | TUBE; NYLON | 1 | 2203- | FVZ | (B) | ||
| 472 | I8-98067 708-0 | TUBE; SPUTTER | 2 | 2203- | FVZ | |||
| 182 | I1-47477 716-1 | BRACKET; TUBE CLIP | 2 | 2203- | FVZ | (F) L=60 H=30 | ||
| 192 | I8-97553 359-0 | TUBE; NYLON | 1 | 2203- | FVZ | (B) | ||
| 050 | I0-91180 108-0 | NUT; UNION BRKT | 2 | 2203- | FVZ | M8 FLANGE | ||
| 182 | I1-47477 646-3 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (B) L=225 H=30 | ||
| 089 | I1-09661 128-0 | CONNECTOR; NYLON TUBE | 2 | 2203- | FVZ | DIN7.5X2 & M8 2WAY | ||
| 223 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=25 | ||
| 274 | I0-28650 825-0 | BOLT; BRKT | 1 | 2203- | FVZ | (C) M8X25 FLANGE | ||
| 192 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=4000 OD=12 | ||
| 072 | I0-91180 108-0 | NUT; BRKT | 8 | 2203- | FVZ | (A) M8 FLANGE | ||
| 072 | I0-91180 110-0 | NUT; BRKT | 2 | 2203- | FVZ | (B) M10 FLANGE | ||
| 212 | I9-61166 007-0 | GROMMET; AIR PIPE | 1 | 2203- | FVZ | OD=24 | ||
| 315 | I1-09707 183-0 | CLIP | 2 | 2203- | FVZ | (B) L=350 | ||
| 315 | I8-98082 035-0 | CLIP | 4 | 2203- | FVZ | (D) ID=17 L=21 | ||
| 315 | I1-09701 324-0 | CLIP | 2 | 2203- | FVZ | (E) ID=19 & 19 | ||
| 072 | I0-91180 108-0 | NUT; BRKT | 15 | 2203- | FVZ | (A) M8 FLANGE | ||
| 182 | I8-98348 574-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (C) | ||
| 182 | I8-98315 518-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (E) | ||
| 192 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=2000 OD=8 | ||
| 067 | I0-91180 110-0 | NUT; HOSE BRKT | 4 | 2203- | FVZ | M10 FLANGE | ||
| 192 | I1-87411 007-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=4000 OD=8 | ||
| 192 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=2000 OD=12 | ||
| 223 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=13 | ||
| 178 | I8-98017 054-1 | BRACKET; UNION | 1 | 2203- | FVZ | (A) | ||
| 072 | I0-91180 108-0 | NUT; BRKT | 8 | 2203- | FVZ | (A) M8 FLANGE | ||
| 274 | I0-28651 030-0 | BOLT; BRKT | 2 | 2203- | FVZ | (B) M10X30 FLANGE | ||
| 315 | I1-09707 183-0 | CLIP | 6 | 2203- | FVZ | (B) L=350 | ||
| 223 | I1-87411 019-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=10 | ||
| 212 | I9-61166 007-0 | GROMMET; AIR PIPE | 1 | 2203- | FVZ | OD=24 | ||
| 472 | I8-98067 708-0 | TUBE; SPUTTER | 1 | 2203- | FVZ | |||
| 067 | I0-91180 110-0 | NUT; HOSE BRKT | 2 | 2203- | FVZ | M10 FLANGE | ||
| 315 | I1-09701 261-0 | CLIP | 4 | 2203- | FVZ | (C) ID=28 L=40 | ||
| 220 | I1-09360 320-0 | HOSE; VINYL,EXH,PARKING BRK VLV | 1 | 2203- | FVZ | (B) L=270 SERVICED BY L=1800 | ||
| 163 | I8-98348 549-0 | BRACKET; FLEX HOSE | 1 | 2203- | FVZ | (B) | ||
| 089 | I1-09661 128-0 | CONNECTOR; NYLON TUBE | 2 | 2203- | FVZ | DIN7.5X2 & M8 2WAY | ||
| 315 | I1-09704 102-0 | CLIP | 1 | 2203- | FVZ | (A) ID=14 | ||
| 314 | I0-91180 108-0 | NUT; CLIP | 5 | 2203- | FVZ | M8 FLANGE | ||
| 163 | I8-98348 573-0 | BRACKET; FLEX HOSE | 1 | 2203- | FVZ | (A) | ||
| 223 | I1-87411 031-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=25 | ||
| 471 | I1-79738 794-1 | SEAL; BRKT | 1 | 2203- | FVZ | (A) L=215 | ||
| 274 | I0-28650 840-0 | BOLT; BRKT | 10 | 2203- | FVZ | (A) M8X40 FLANGE | ||
| 073 | I0-28050 812-A | BOLT; CLIP | 4 | 2203- | FVZ | (A) M8X12 FLANGE | ||
| 192 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=2000 OD=8 | ||
| 163 | I8-98348 549-0 | BRACKET; FLEX HOSE | 1 | 2203- | FVZ | (B) | ||
| 072 | I0-91180 108-0 | NUT; BRKT | 15 | 2203- | FVZ | (A) M8 FLANGE | ||
| 178 | I8-98017 054-1 | BRACKET; UNION | 1 | 2203- | FVZ | (A) | ||
| 182 | I8-98325 650-0 | BRACKET; TUBE CLIP | 1 | 2203- | FVZ | (D) | ||
| 192 | I8-97553 360-0 | TUBE; NYLON | 1 | 2203- | FVZ | (C) | ||
| 274 | I0-28650 840-0 | BOLT; BRKT | 10 | 2203- | FVZ | (A) M8X40 FLANGE | ||
| 312 | I8-97611 963-1 | CONNECTOR; SUPPLY | 3 | 2203- | FVZ | DIN8X2 ELBOW | ||
| 472 | I8-98067 708-0 | TUBE; SPUTTER | 2 | 2203- | FVZ | |||
| 073 | I0-28650 830-0 | BOLT; CLIP | 3 | 2203- | FVZ | (C) M8X30 FLANGE | ||
| 315 | I1-09707 183-0 | CLIP | 2 | 2203- | FVZ | (B) L=350 | ||
| 182 | I1-47477 629-2 | BRACKET; TUBE CLIP | 2 | 2203- | FVZ | (A) L=150 H=30 | ||
| 192 | I1-87411 011-0 | TUBE; NYLON | AR | 2203- | FVZ | (A) SERVICED BY L=2000 OD=12 |
