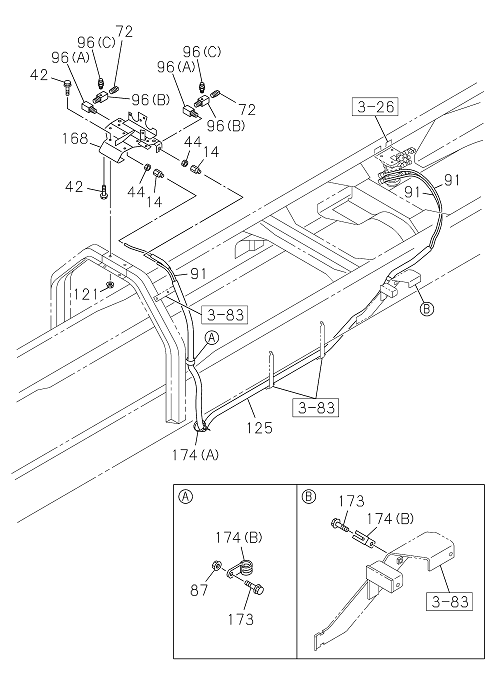

3-80 | BRAKE PIPING; TRAILER
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 042 | I0-28651 025-0 | BOLT; BRKT | 4 | 2203- | FVZ | M10X25 FLANGE | ||
| 091 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | FVZ | SERVICED BY L=4000 OD=12 | ||
| 125 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=13 | ||
| 173 | I0-28650 820-0 | BOLT | 2 | 2203- | FVZ | M8X20 FLANGE | ||
| 091 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FVZ | SERVICED BY L=2000 OD=8 | ||
| 087 | I0-91180 108-0 | NUT | 1 | 2203- | FVZ | M8 FLANGE | ||
| 091 | I1-87411 006-0 | TUBE; NYLON | AR | 2203- | FVZ | SERVICED BY L=2000 OD=8 | ||
| 042 | I0-28651 025-0 | BOLT; BRKT | 4 | 2203- | FVZ | M10X25 FLANGE | ||
| 125 | I1-87411 022-0 | TUBE; CORRUGATE | AR | 2203- | FVZ | SERVICED BY L=2000 ID=13 | ||
| 087 | I0-91180 108-0 | NUT | 1 | 2203- | FVZ | M8 FLANGE | ||
| 121 | I0-91110 510-0 | NUT; BRKT | 2 | 2203- | FVZ | M10 | ||
| 091 | I1-87411 012-0 | TUBE; NYLON | AR | 2203- | FVZ | SERVICED BY L=4000 OD=12 | ||
| 121 | I0-91110 510-0 | NUT; BRKT | 2 | 2203- | FVZ | M10 | ||
| 174 | I1-09707 183-0 | CLIP | 10 | 2203- | FVZ | (A) L=350 | ||
| 174 | I1-09707 183-0 | CLIP | 10 | 2203- | FVZ | (A) L=350 | ||
| 173 | I0-28650 820-0 | BOLT | 2 | 2203- | FVZ | M8X20 FLANGE |
