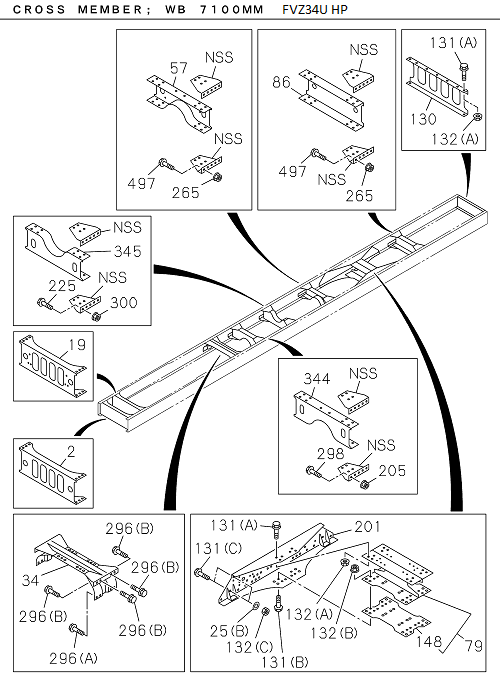

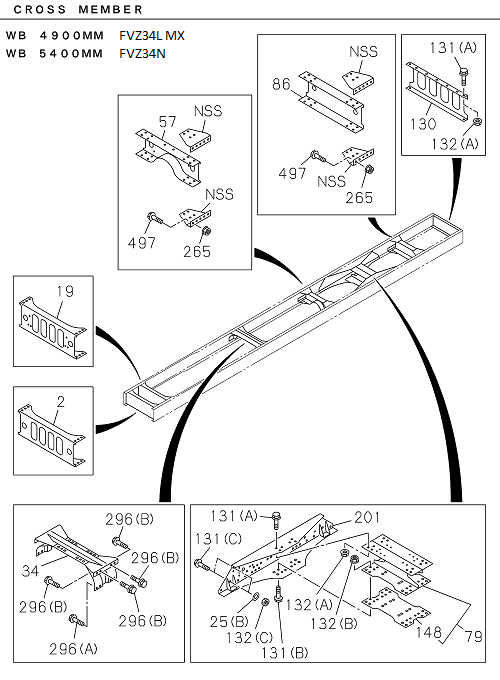

5-01 | FRAME AND OTHER PARTS
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 131 | I1-09044 090-1 | BOLT; END C/MBR | 12 | 2203- | FVZ | (B) M16X50 | ||
| 344 | I8-98328 903-3 | MEMBER; CROSS,4TH | 1 | 2203- | FVZ | |||
| 096 | I8-98313 256-A | PAD; RR SPR | 2 | 2203- | FVZ | |||
| 265 | I0-91180 214-0 | NUT; FRT C/MBR | 32 | 2203- | FVZ | M14 FLANGE | ||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 2203- | FVZ | (B) M16 | ||

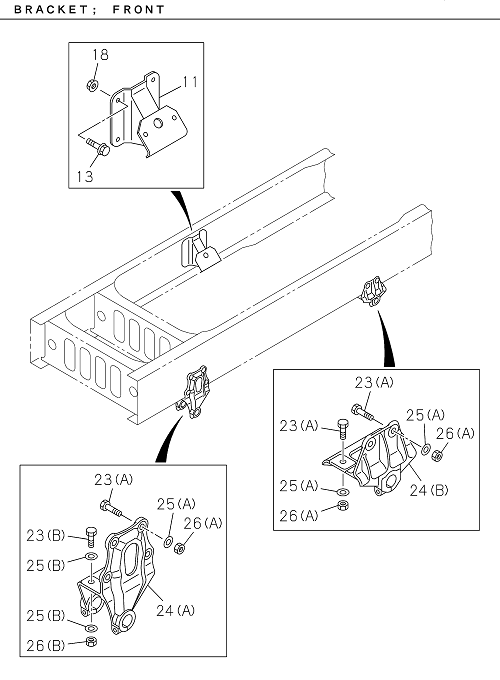

| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVZ | (A) | ||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 54 | 2203- | FVZ | (C) M16X50 FLANGE | ||
| 205 | I0-91180 214-0 | NUT; 4TH C/MBR | 16 | 2203- | FVZ | M14 FLANGE | ||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 2203- | FVZ | |||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 32 | 2203- | FVZ | (C) M16X50 FLANGE | ||
| 345 | I8-98328 903-3 | MEMBER; CROSS,5TH | 1 | 2203- | FVZ | |||
| 130 | I8-98294 482-1 | MEMBER; CROSS,END | 1 | 2203- | FVZ | |||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 2203- | FVZ | M12 FLANGE | ||
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 2203- | FVZ | FVZ MIXER; FVZ-N | ||

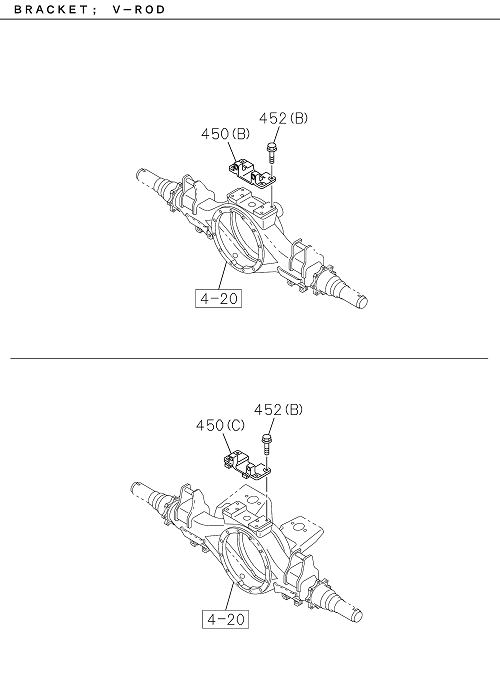

| 450 | I8-97558 214-A | BRACKET; V ROD | 1 | 2203- | FVZ | (B) | ||
| 130 | I8-98294 482-1 | MEMBER; CROSS,END | 1 | 2203- | FVZ | |||
| 131 | I8-98339 366-0 | BOLT; END C/MBR | 12 | 2203- | FVZ | (D) M14X45 FLANGE | ||
| 034 | I8-98294 476-1 | MEMBER; CROSS,3RD | 1 | 2203- | FVZ | FVZ-U | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 12 | 2203- | FVZ | (A) M14X35 FLANGE | ||
| 201 | I8-98369 245-A | GUSSET; C/MBR | 1 | 2203- | FVZ | FVZ-U | ||
| 132 | I0-91180 216-0 | NUT; END C/MBR | 12 | 2203- | FVZ | (B) M16 FLANGE | ||

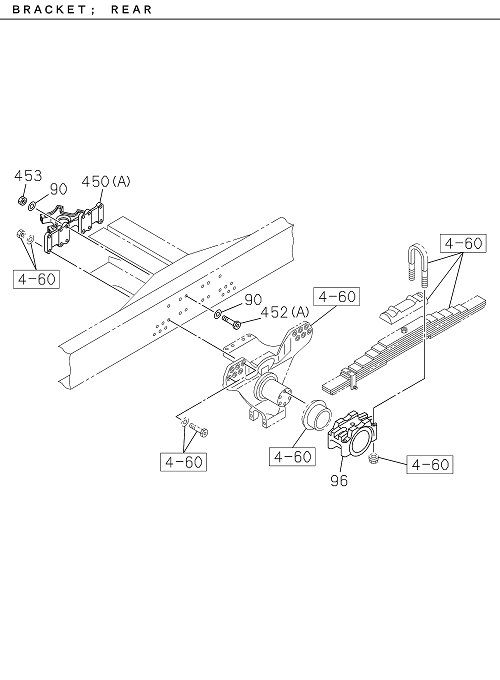

| 450 | I8-98313 244-0 | BRACKET; V ROD | 2 | 2203- | FVZ | (A) | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 16 | 2203- | FVZ | (A) M14 | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 32 | 2203- | FVZ | (B) ID=16.2 | ||
| 345 | I8-98328 903-3 | MEMBER; CROSS,5TH | 1 | 2203- | FVZ | |||
| 131 | I1-09044 090-1 | BOLT; END C/MBR | 12 | 2203- | FVZ | (B) M16X50 | ||
| 011 | I8-98294 501-0 | BRACKET; ENG MTG | 2 | 2203- | FVZ | |||
| 096 | I8-98313 256-A | PAD; RR SPR | 2 | 2203- | FVZ | |||
| 296 | I8-98339 366-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVZ | (B) M14X45 FLANGE | ||
| 024 | I8-97502 718-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVZ | (A) | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 32 | 2203- | FVZ | (C) M16 | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 16 | 2203- | FVZ | (A) M14 FLANGE | ||
| 296 | I8-98339 366-0 | BOLT; 3RD C/MBR | 16 | 2203- | FVZ | (B) M14X45 FLANGE | ||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 32 | 2203- | FVZ | (C) M16X50 FLANGE | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 2203- | FVZ | (A) ID=15 | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 24 | 2203- | FVZ | (A) M14 FLANGE | ||
| 019 | I8-98311 933-0 | MEMBER; CROSS,2ND | 1 | 2203- | FVZ | |||
| 019 | I8-98311 933-0 | MEMBER; CROSS,2ND | 1 | 2203- | FVZ | |||
| 132 | I0-91180 216-0 | NUT; END C/MBR | 12 | 2203- | FVZ | (B) M16 FLANGE | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 54 | 2203- | FVZ | (B) ID=16.2 | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 32 | 2203- | FVZ | (C) M16 | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 2203- | FVZ | (B) ID=16.2 | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 8 | 2203- | FVZ | (B) ID=16.2 | ||
| 265 | I0-91180 214-0 | NUT; FRT C/MBR | 32 | 2203- | FVZ | M14 FLANGE | ||
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 2203- | FVZ | M12X35 FLANGE | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 24 | 2203- | FVZ | (A) M14 FLANGE | ||
| 450 | I8-97558 215-A | BRACKET; V ROD | 1 | 2203- | FVZ | (C) | ||
| 132 | I0-91180 214-0 | NUT; END C/MBR | 16 | 2203- | FVZ | (A) M14 FLANGE | ||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 2203- | FVZ | (A) M14X45 | ||
| 086 | I8-98294 852-1 | MEMBER; CROSS,RR SUSP RR | 1 | 2203- | FVZ | |||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 54 | 2203- | FVZ | (B) ID=16.2 | ||
| 296 | I8-98339 366-0 | BOLT; 3RD C/MBR | 16 | 2203- | FVZ | (B) M14X45 FLANGE | ||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVZ | (A) | ||
| 023 | I0-20951 445-0 | BOLT; BRKT,SPR | 16 | 2203- | FVZ | (A) M14X45 | ||
| 086 | I8-98294 852-1 | MEMBER; CROSS,RR SUSP RR | 1 | 2203- | FVZ | |||
| 296 | I0-28851 440-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVZ | (A) M14X40 FLANGE | ||
| 079 | I8-97528 156-0 | MEMBER; CROSS,TRUNNION ASM | 1 | 2203- | FVZ | |||
| 011 | I8-98305 208-0 | BRACKET; ENG MTG | 2 | 2203- | FVZ | FVZ-U | ||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 2203- | FVZ | (B) | ||
| 201 | I8-98369 245-A | GUSSET; C/MBR | 1 | 2203- | FVZ | FVZ-U | ||
| 225 | I0-28851 440-0 | BOLT; 5TH C/MBR | 16 | 2203- | FVZ | M14X40 FLANGE | ||
| 300 | I0-91180 214-0 | NUT; 5TH C/MBR | 16 | 2203- | FVZ | M14 FLANGE | ||
| 225 | I0-28851 440-0 | BOLT; 5TH C/MBR | 16 | 2203- | FVZ | M14X40 FLANGE | ||
| 002 | I8-98311 932-0 | MEMBER; CROSS,1ST | 1 | 2203- | FVZ | |||
| 131 | I8-98339 366-0 | BOLT; END C/MBR | 12 | 2203- | FVZ | (D) M14X45 FLANGE | ||
| 452 | I8-98345 486-0 | BOLT; V ROD | 20 | 2203- | FVZ | (A) | ||
| 090 | I1-09503 162-0 | WASHER; PL | 20 | 2203- | FVZ | ID=19 | ||
| 131 | I0-29261 650-0 | BOLT; END C/MBR | 54 | 2203- | FVZ | (C) M16X50 FLANGE | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 16 | 2203- | FVZ | (A) M14X35 FLANGE | ||
| 205 | I0-91180 214-0 | NUT; 4TH C/MBR | 16 | 2203- | FVZ | M14 FLANGE | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 54 | 2203- | FVZ | (C) M16 | ||
| 201 | I8-97529 527-0 | GUSSET; C/MBR | 2 | 2203- | FVZ | |||
| 296 | I0-28851 440-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVZ | (A) M14X40 FLANGE | ||
| 002 | I8-98311 932-0 | MEMBER; CROSS,1ST | 1 | 2203- | FVZ | |||
| 057 | I8-98328 903-3 | MEMBER; CROSS,RR SUSP FRT | 1 | 2203- | FVZ | |||
| 452 | I1-09044 090-1 | BOLT; V ROD | 8 | 2203- | FVZ | (B) M16X50 | ||
| 013 | I0-28051 235-0 | BOLT; BRKT,ENG MTG | 8 | 2203- | FVZ | M12X35 FLANGE | ||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 2203- | FVZ | (B) M16X50 | ||
| 201 | I8-97529 527-0 | GUSSET; C/MBR | 2 | 2203- | FVZ | |||
| 148 | I8-97528 158-0 | SPACER; C/MBR | 1 | 2203- | FVZ | |||
| 026 | I0-91110 516-0 | NUT; BRKT,SPR | 4 | 2203- | FVZ | (B) M16 | ||
| 201 | I8-98369 244-A | GUSSET; C/MBR | 1 | 2203- | FVZ | FVZ-U | ||
| 011 | I8-98305 208-0 | BRACKET; ENG MTG | 2 | 2203- | FVZ | FVZ-U | ||
| 201 | I8-98369 244-A | GUSSET; C/MBR | 1 | 2203- | FVZ | FVZ-U | ||
| 024 | I8-97502 717-0 | BRACKET; FRT SPR,FRT | 1 | 2203- | FVZ | (A) | ||
| 453 | I8-97542 759-0 | NUT; V ROD | 20 | 2203- | FVZ | M18 FLANGE | ||
| 453 | I8-97542 759-0 | NUT; V ROD | 20 | 2203- | FVZ | M18 FLANGE | ||
| 344 | I8-98328 903-3 | MEMBER; CROSS,4TH | 1 | 2203- | FVZ | |||
| 452 | I1-09044 090-1 | BOLT; V ROD | 8 | 2203- | FVZ | (B) M16X50 | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 16 | 2203- | FVZ | (A) M14X35 FLANGE | ||
| 131 | I0-28851 435-0 | BOLT; END C/MBR | 12 | 2203- | FVZ | (A) M14X35 FLANGE | ||
| 300 | I0-91180 214-0 | NUT; 5TH C/MBR | 16 | 2203- | FVZ | M14 FLANGE | ||
| 034 | I8-98294 476-1 | MEMBER; CROSS,3RD | 1 | 2203- | FVZ | FVZ-U | ||
| 023 | I0-20951 650-0 | BOLT; BRKT,SPR | 4 | 2203- | FVZ | (B) M16X50 | ||
| 025 | I1-09503 316-0 | WASHER; PL,BRKT | 32 | 2203- | FVZ | (B) ID=16.2 | ||
| 148 | I8-97528 158-0 | SPACER; C/MBR | 1 | 2203- | FVZ | |||
| 296 | I8-98339 366-0 | BOLT; 3RD C/MBR | 8 | 2203- | FVZ | (B) M14X45 FLANGE | ||
| 079 | I8-97528 156-0 | MEMBER; CROSS,TRUNNION ASM | 1 | 2203- | FVZ | |||
| 018 | I0-91180 112-0 | NUT; BRKT,ENG MTG | 8 | 2203- | FVZ | M12 FLANGE | ||
| 034 | I8-98315 397-2 | MEMBER; CROSS,3RD | 1 | 2203- | FVZ | FVZ MIXER; FVZ-N | ||
| 452 | I8-98345 486-0 | BOLT; V ROD | 20 | 2203- | FVZ | (A) | ||
| 026 | I0-91110 514-0 | NUT; BRKT,SPR | 16 | 2203- | FVZ | (A) M14 | ||
| 450 | I8-97558 215-A | BRACKET; V ROD | 1 | 2203- | FVZ | (C) | ||
| 025 | I8-98010 627-1 | WASHER; PL,BRKT | 16 | 2203- | FVZ | (A) ID=15 | ||
| 090 | I1-09503 162-0 | WASHER; PL | 20 | 2203- | FVZ | ID=19 | ||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 32 | 2203- | FVZ | M14X40 FLANGE | ||
| 132 | I0-91110 516-0 | NUT; END C/MBR | 54 | 2203- | FVZ | (C) M16 | ||
| 497 | I0-28851 440-0 | BOLT; C/MBR | 32 | 2203- | FVZ | M14X40 FLANGE | ||
| 024 | I8-97526 185-0 | BRACKET; FRT SPR,FRT | 2 | 2203- | FVZ | (B) | ||
| 450 | I8-97558 214-A | BRACKET; V ROD | 1 | 2203- | FVZ | (B) | ||
| 057 | I8-98328 903-3 | MEMBER; CROSS,RR SUSP FRT | 1 | 2203- | FVZ | |||
| 450 | I8-98313 244-0 | BRACKET; V ROD | 2 | 2203- | FVZ | (A) | ||
| 298 | I0-28851 440-0 | BOLT; 4TH C/MBR | 16 | 2203- | FVZ | M14X40 FLANGE |
