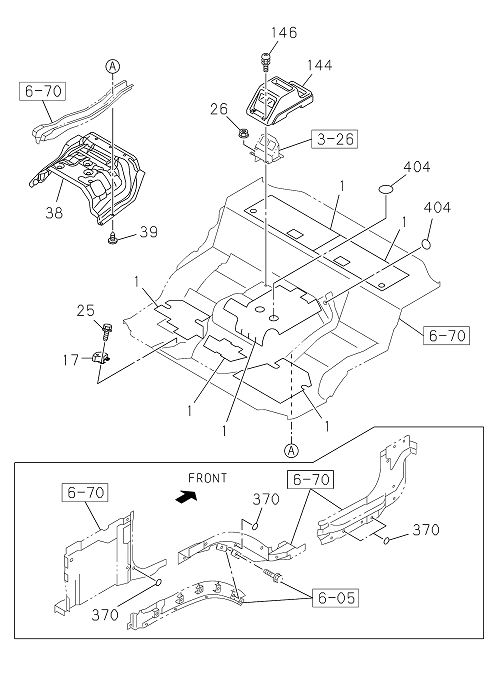

6-76 | FLOOR EQUIPMENT AND SEALING
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 2 | 2203- | FVZ | OD=25 BLACK | ||
| 026 | I0-91180 108-0 | NUT; FLANGE | 2 | 2203- | FVZ | M8 FLANGE | ||
| 038 | I8-98314 464-1 | INSULATOR; ENG COVER | 1 | 2203- | FVZ | |||
| 001 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 2203- | FVZ | NON ASBESTOS 1000X600 T=1.5 PARTS ONLY | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 2 | 2203- | FVZ | OD=25 BLACK | ||
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 2203- | FVZ | OD=30 T=0.8 | ||
| 144 | I8-97466 678-1 | COVER; HAND BRK VLV | 1 | 2203- | FVZ | |||
| 146 | I0-38050 616-0 | BOLT; COVER BRKT | 4 | 2203- | FVZ | M6X16 HEXALOBULAR | ||
| 039 | I8-97808 623-0 | CLIP; INSULATOR,COVER | 17 | 2203- | FVZ | ID=6.2 L=11.4 | ||
| 146 | I0-38050 616-0 | BOLT; COVER BRKT | 4 | 2203- | FVZ | M6X16 HEXALOBULAR | ||
| 039 | I8-97808 623-0 | CLIP; INSULATOR,COVER | 17 | 2203- | FVZ | ID=6.2 L=11.4 | ||
| 026 | I0-91180 108-0 | NUT; FLANGE | 2 | 2203- | FVZ | M8 FLANGE | ||
| 001 | I8-94262 093-0 | SHEET; MELTING,FLOOR | AR | 2203- | FVZ | NON ASBESTOS 1000X600 T=1.5 PARTS ONLY | ||
| 370 | I8-98230 420-0 | SEAL; LOCATION HOLE | 8 | 2203- | FVZ | OD=30 T=0.8 | ||
| 017 | I8-98076 322-2 | REST; FOOT,DRIVER | 1 | 2203- | FVZ | |||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 12 | 2203- | FVZ | OD=25 BLACK | ||
| 404 | I1-76798 029-0 | SEAL; FLOOR,HOLE | 12 | 2203- | FVZ | OD=25 BLACK | ||
| 144 | I8-97466 678-1 | COVER; HAND BRK VLV | 1 | 2203- | FVZ | |||
| 038 | I8-98314 464-1 | INSULATOR; ENG COVER | 1 | 2203- | FVZ | |||
| 025 | I8-94279 201-0 | SCREW; FOOT REST | 3 | 2203- | FVZ | M6X19.5 W/LK&PL WASHER | ||
| 025 | I8-94279 201-0 | SCREW; FOOT REST | 3 | 2203- | FVZ | M6X19.5 W/LK&PL WASHER | ||
| 017 | I8-98076 322-2 | REST; FOOT,DRIVER | 1 | 2203- | FVZ |
