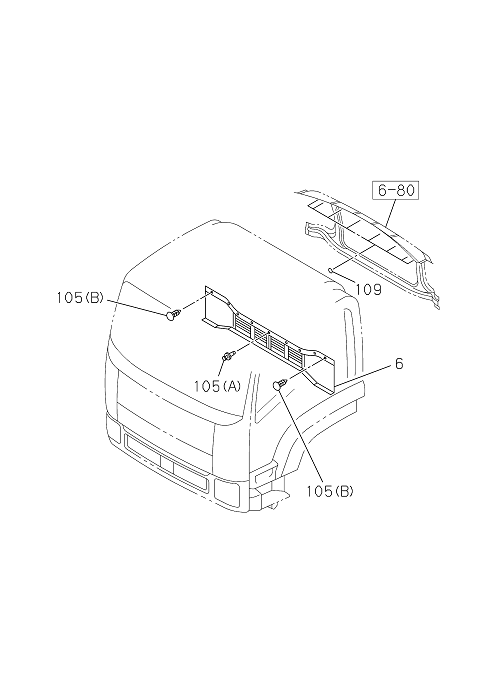

6-84 | BACK TRIM
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 105 | I8-97408 022-0 | CLIP; BACK TRIM | 7 | 2203- | FVZ | (A) | ||
| 109 | I8-98059 421-0 | SEAL; HOLE | 2 | 2203- | FVZ | OD=20 T=0.05 WHITE | ||
| 105 | I8-97407 467-0 | CLIP; BACK TRIM | 2 | 2203- | FVZ | (B) | ||
| 105 | I8-97408 022-0 | CLIP; BACK TRIM | 7 | 2203- | FVZ | (A) | ||
| 109 | I8-98059 421-0 | SEAL; HOLE | 6 | 2203- | FVZ | OD=20 T=0.05 WHITE | ||
| 105 | I8-97407 467-0 | CLIP; BACK TRIM | 2 | 2203- | FVZ | (B) | ||
| 006 | I8-97925 565-0 | MAT; SILENCER,CAB BACK | 1 | 2203- | FVZ | |||
| 006 | I8-97925 565-0 | MAT; SILENCER,CAB BACK | 1 | 2203- | FVZ | |||
| 109 | I8-98059 421-0 | SEAL; HOLE | 6 | 2203- | FVZ | OD=20 T=0.05 WHITE | ||
| 109 | I8-98059 421-0 | SEAL; HOLE | 2 | 2203- | FVZ | OD=20 T=0.05 WHITE |
