7-50 | FRONT SEAT
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|

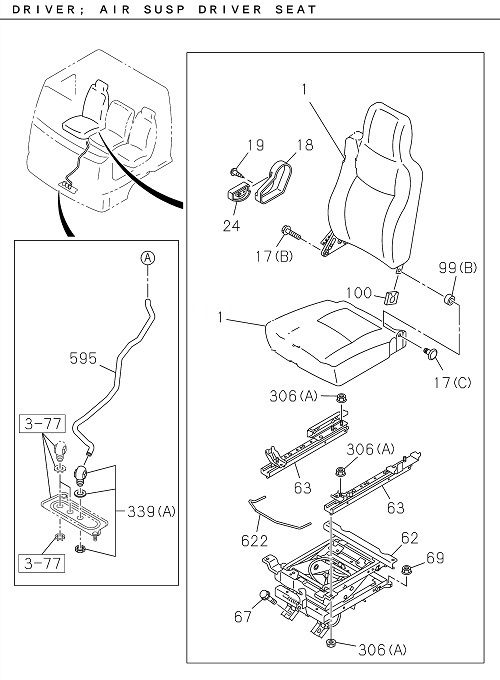

| 001 | I7-31011 310-A | SEAT ASM; DRVR | 1 | 2203- | FVZ | AIR SUSP DRIVER SEAT | ||
| 077 | I8-98368 246-0 | PIN; DAMPER | 2 | 2203- | FVZ | |||

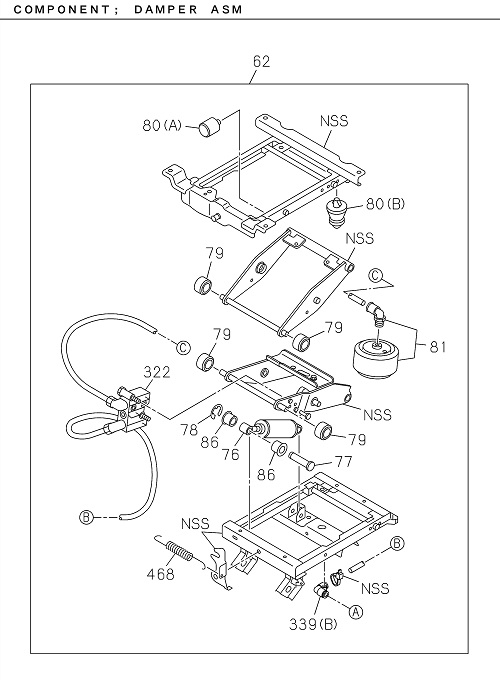

| 062 | I8-97523 709-0 | DAMPER ASM; SEAT SUSP | 1 | 2203- | FVZ | |||
| 081 | I8-98368 247-0 | SPRING; AIR | 1 | 2203- | FVZ | |||
| 360 | I0-70040 514-0 | SCREW; PARCEL | 2 | 2203- | FVZ | (A) M5X14 TAPPING CK-HEAD | ||
| 063 | I8-98370 873-0 | ADJUSTER; SEAT SLIDE | 1 | 2203- | FVZ | |||
| 078 | I8-98368 250-0 | RING; SNAP | 2 | 2203- | FVZ | |||
| 360 | I0-70040 416-0 | SCREW; PARCEL | 6 | 2203- | FVZ | (B) M4X16 | ||

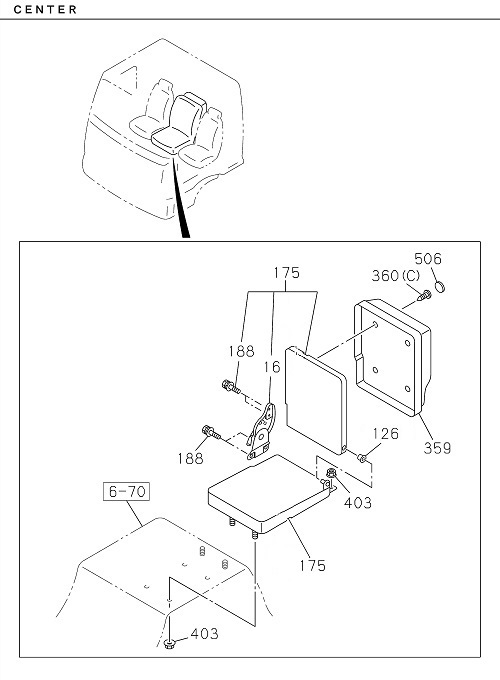

| 175 | I7-31021 312-A | SEAT ASM; FRT CTR | 1 | 2203- | FVZ | CENTER | ||
| 019 | I8-98062 663-A | SCREW; COVER | 1 | 2203- | FVZ | M5 | ||
| 339 | I8-98370 503-0 | UNION; DRIVER SEAT | 1 | 2203- | FVZ | (B) | ||
| 360 | I0-70040 416-0 | SCREW; PARCEL | 6 | 2203- | FVZ | (B) M4X16 | ||
| 017 | I8-98092 334-0 | BOLT; RECLINING | 2 | 2203- | FVZ | (A) M8X20 | ||
| 595 | I1-87411 001-0 | TUBE; NYLON | 1 | 2203- | FVZ | L=1000 | ||
| 086 | I8-98368 235-0 | BUSHING; GUIDE | 4 | 2203- | FVZ | |||
| 339 | I8-98014 971-0 | UNION; DRIVER SEAT | 1 | 2203- | FVZ | (A) | ||
| 019 | I8-98062 663-A | SCREW; COVER | 1 | 2203- | FVZ | M5 | ||
| 126 | I8-97854 900-0 | BUSHING; HINGE,RECLINING | 1 | 2203- | FVZ | |||
| 016 | I1-75418 062-1 | ADJUSTER ASM; RECLINING | 1 | 2203- | FVZ | |||
| 081 | I8-98368 247-0 | SPRING; AIR | 1 | 2203- | FVZ | |||
| 126 | I8-97854 900-0 | BUSHING; HINGE,RECLINING | 1 | 2203- | FVZ | |||
| 627 | I8-98063 224-0 | WASHER; FRT SEAT | 1 | 2203- | FVZ | (B) | ||
| 360 | I0-70040 514-0 | SCREW; PARCEL | 2 | 2203- | FVZ | (A) M5X14 TAPPING CK-HEAD | ||
| 536 | I1-72538 187-0 | RUBBER; CUSHION | 2 | 2203- | FVZ | |||
| 188 | I1-75198 053-0 | BOLT; BACK TO CUSHION | 4 | 2203- | FVZ | M10X16 FLANGE | ||
| 017 | I8-98370 891-0 | BOLT; RECLINING | 1 | 2203- | FVZ | (C) | ||
| 024 | I8-97469 325-0 | KNOB; RECLINING,FRT,SEAT | 1 | 2203- | FVZ | |||
| 063 | I8-98370 872-0 | ADJUSTER; SEAT SLIDE | 1 | 2203- | FVZ | |||
| 063 | I8-98370 872-0 | ADJUSTER; SEAT SLIDE | 1 | 2203- | FVZ | |||
| 627 | I8-98063 223-0 | WASHER; FRT SEAT | 1 | 2203- | FVZ | (A) | ||
| 067 | I0-28451 020-0 | BOLT; FRT SEAT TO BODY | 2 | 2203- | FVZ | M10X20 FLANGE | ||
| 080 | I8-98368 236-0 | RUBBER; STOPPER | 1 | 2203- | FVZ | (A) | ||
| 001 | I7-31011 310-A | SEAT ASM; DRVR | 1 | 2203- | FVZ | AIR SUSP DRIVER SEAT | ||
| 099 | I8-98370 890-0 | BUSHING; SEAT BACK | 1 | 2203- | FVZ | (B) | ||
| 627 | I8-98063 224-0 | WASHER; FRT SEAT | 1 | 2203- | FVZ | (B) | ||
| 018 | I8-97469 324-0 | COVER; RECLINING | 1 | 2203- | FVZ | |||
| 306 | I0-91180 110-0 | NUT; SEAT ADJ | 2 | 2203- | FVZ | (B) M10 FLANGE | ||
| 403 | I0-91180 108-0 | NUT; CENTER SEAT | 4 | 2203- | FVZ | M8 FLANGE | ||
| 506 | I8-97409 980-1 | CAP; PARCEL BOX | 2 | 2203- | FVZ | |||
| 468 | I8-98368 237-0 | SPRING; RETURN | 1 | 2203- | FVZ | |||
| 080 | I8-98368 243-0 | RUBBER; STOPPER | 2 | 2203- | FVZ | (B) | ||
| 622 | I8-98370 874-0 | HANDLE; SEAT ADJUSTER | 1 | 2203- | FVZ | |||

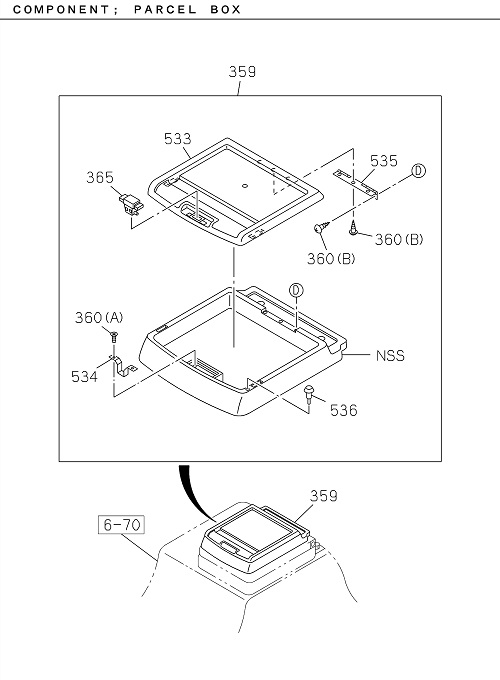

| 359 | I8-97417 261-0 | BOX; PARCEL | 1 | 2203- | FVZ | |||
| 403 | I0-91180 108-0 | NUT; CENTER SEAT | 4 | 2203- | FVZ | M8 FLANGE | ||
| 306 | I0-91180 110-0 | NUT; SEAT ADJ | 2 | 2203- | FVZ | (B) M10 FLANGE | ||
| 062 | I8-97523 709-0 | DAMPER ASM; SEAT SUSP | 1 | 2203- | FVZ | |||
| 099 | I8-98112 751-0 | BUSHING; SEAT BACK | 1 | 2203- | FVZ | (A) | ||
| 535 | I1-72448 264-1 | HINGE; PARCEL BOX | 1 | 2203- | FVZ | |||
| 536 | I1-72538 187-0 | RUBBER; CUSHION | 2 | 2203- | FVZ | |||
| 595 | I1-87411 001-0 | TUBE; NYLON | 1 | 2203- | FVZ | L=1000 | ||
| 080 | I8-98368 243-0 | RUBBER; STOPPER | 2 | 2203- | FVZ | (B) | ||
| 017 | I8-98092 334-0 | BOLT; RECLINING | 2 | 2203- | FVZ | (A) M8X20 | ||
| 630 | I8-98063 225-0 | NUT; CAP | 1 | 2203- | FVZ | M8 | ||
| 100 | I8-98370 964-0 | COVER; HINGE | 1 | 2203- | FVZ | |||
| 046 | I0-28451 020-0 | BOLT; STAND TO FLOOR | 2 | 2203- | FVZ | M10X20 FLANGE | ||
| 535 | I1-72448 264-1 | HINGE; PARCEL BOX | 1 | 2203- | FVZ | |||
| 175 | I7-31021 312-A | SEAT ASM; FRT CTR | 1 | 2203- | FVZ | CENTER | ||
| 360 | I8-98062 663-A | SCREW; PARCEL | 4 | 2203- | FVZ | (C) M5 | ||
| 046 | I0-28451 020-0 | BOLT; STAND TO FLOOR | 2 | 2203- | FVZ | M10X20 FLANGE | ||
| 468 | I8-98368 237-0 | SPRING; RETURN | 1 | 2203- | FVZ | |||
| 188 | I1-75198 053-0 | BOLT; BACK TO CUSHION | 4 | 2203- | FVZ | M10X16 FLANGE | ||
| 079 | I8-98368 248-0 | ROLLER ASM; AIR SUSP | 4 | 2203- | FVZ | |||
| 076 | I8-98368 234-0 | DAMPER; AIR SUSP | 1 | 2203- | FVZ | |||
| 622 | I8-98370 874-0 | HANDLE; SEAT ADJUSTER | 1 | 2203- | FVZ | |||
| 322 | I8-98370 506-1 | VALVE; AIR SPRING | 1 | 2203- | FVZ | |||
| 322 | I8-98370 506-1 | VALVE; AIR SPRING | 1 | 2203- | FVZ | |||
| 339 | I8-98014 971-0 | UNION; DRIVER SEAT | 1 | 2203- | FVZ | (A) | ||
| 306 | I8-98370 875-0 | NUT; SEAT ADJ | 9 | 2203- | FVZ | (A) M10 FLANGE | ||
| 359 | I8-97417 261-0 | BOX; PARCEL | 1 | 2203- | FVZ | |||
| 017 | I8-98062 661-0 | BOLT; RECLINING | 2 | 2203- | FVZ | (B) M10X20 | ||
| 063 | I8-98370 873-0 | ADJUSTER; SEAT SLIDE | 1 | 2203- | FVZ | |||
| 099 | I8-98370 890-0 | BUSHING; SEAT BACK | 1 | 2203- | FVZ | (B) | ||
| 123 | I8-98070 026-0 | SCREW; COVER,RECLINING | 1 | 2203- | FVZ | M5 | ||
| 077 | I8-98368 246-0 | PIN; DAMPER | 2 | 2203- | FVZ | |||
| 339 | I8-98370 503-0 | UNION; DRIVER SEAT | 1 | 2203- | FVZ | (B) | ||
| 018 | I8-97469 324-0 | COVER; RECLINING | 1 | 2203- | FVZ | |||
| 076 | I8-98368 234-0 | DAMPER; AIR SUSP | 1 | 2203- | FVZ | |||
| 365 | I1-72538 312-0 | LOCK ASM; SEAT | 1 | 2203- | FVZ | |||
| 016 | I1-75418 062-1 | ADJUSTER ASM; RECLINING | 1 | 2203- | FVZ | |||
| 122 | I7-32221 311-A | COVER; ADJ,RECLINING | 1 | 2203- | FVZ | |||
| 100 | I8-98370 964-0 | COVER; HINGE | 1 | 2203- | FVZ | |||
| 534 | I1-72538 190-0 | STRIKER; PARCEL BOX | 1 | 2203- | FVZ | |||
| 627 | I8-98063 223-0 | WASHER; FRT SEAT | 1 | 2203- | FVZ | (A) | ||
| 365 | I1-72538 312-0 | LOCK ASM; SEAT | 1 | 2203- | FVZ | |||
| 534 | I1-72538 190-0 | STRIKER; PARCEL BOX | 1 | 2203- | FVZ | |||
| 080 | I8-98368 236-0 | RUBBER; STOPPER | 1 | 2203- | FVZ | (A) | ||
| 506 | I8-97409 980-1 | CAP; PARCEL BOX | 2 | 2203- | FVZ | |||
| 122 | I7-32221 311-A | COVER; ADJ,RECLINING | 1 | 2203- | FVZ | |||
| 123 | I8-98070 026-0 | SCREW; COVER,RECLINING | 1 | 2203- | FVZ | M5 | ||

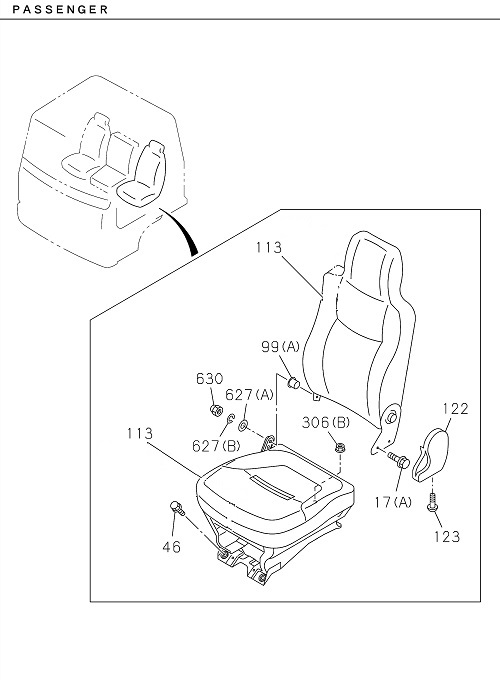

| 113 | I7-31031 312-A | SEAT ASM; PSG | 1 | 2203- | FVZ | PASSENGER | ||
| 024 | I8-97469 325-0 | KNOB; RECLINING,FRT,SEAT | 1 | 2203- | FVZ | |||
| 079 | I8-98368 248-0 | ROLLER ASM; AIR SUSP | 4 | 2203- | FVZ | |||
| 069 | I0-91180 110-0 | NUT; FRT SEAT | 2 | 2203- | FVZ | M10 FLANGE | ||
| 086 | I8-98368 235-0 | BUSHING; GUIDE | 4 | 2203- | FVZ | |||
| 099 | I8-98112 751-0 | BUSHING; SEAT BACK | 1 | 2203- | FVZ | (A) | ||
| 078 | I8-98368 250-0 | RING; SNAP | 2 | 2203- | FVZ | |||
| 069 | I0-91180 110-0 | NUT; FRT SEAT | 2 | 2203- | FVZ | M10 FLANGE | ||
| 533 | I8-97417 263-0 | LID; PARCEL BOX | 1 | 2203- | FVZ | |||
| 533 | I8-97417 263-0 | LID; PARCEL BOX | 1 | 2203- | FVZ | |||
| 017 | I8-98062 661-0 | BOLT; RECLINING | 2 | 2203- | FVZ | (B) M10X20 | ||
| 113 | I7-31031 312-A | SEAT ASM; PSG | 1 | 2203- | FVZ | PASSENGER | ||
| 017 | I8-98370 891-0 | BOLT; RECLINING | 1 | 2203- | FVZ | (C) | ||
| 067 | I0-28451 020-0 | BOLT; FRT SEAT TO BODY | 2 | 2203- | FVZ | M10X20 FLANGE | ||
| 630 | I8-98063 225-0 | NUT; CAP | 1 | 2203- | FVZ | M8 | ||
| 360 | I8-98062 663-A | SCREW; PARCEL | 4 | 2203- | FVZ | (C) M5 | ||
| 306 | I8-98370 875-0 | NUT; SEAT ADJ | 9 | 2203- | FVZ | (A) M10 FLANGE |
