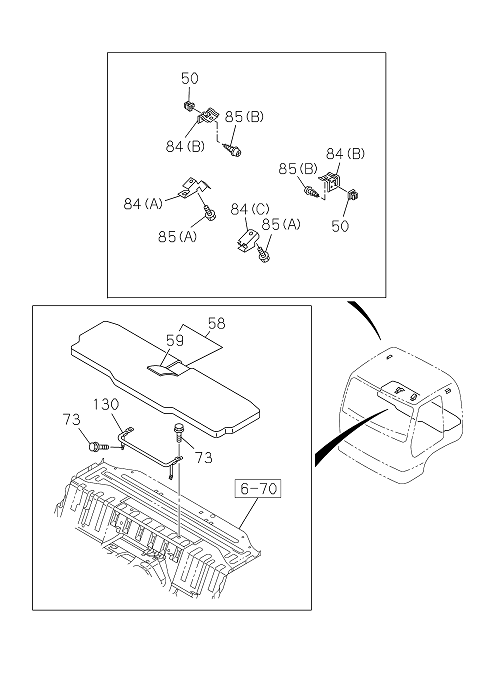

7-70 | SEPARATER AND BED
GIGA E4
GIGA FVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 058 | I8-97696 429-A | BED; MAT | 1 | 2203- | FVZ | |||
| 059 | I8-97414 135-0 | COVER ASM; TRIM,BED MAT | 1 | 2203- | FVZ | |||
| 085 | I5-09981 093-0 | SCREW; BRKT | 2 | 2203- | FVZ | (B) M5X20 | ||
| 059 | I8-97414 135-0 | COVER ASM; TRIM,BED MAT | 1 | 2203- | FVZ | |||
| 084 | I8-98049 290-1 | BRACKET; CURTAIN RAIL | 1 | 2203- | FVZ | (A) | ||
| 085 | I8-97108 669-0 | SCREW; BRKT | 2 | 2203- | FVZ | (A) BOLT M6X12 FLANGE | ||
| 073 | I0-28450 820-0 | BOLT; GUARD PIPE | 4 | 2203- | FVZ | M8X20 FLANGE | ||
| 084 | I8-98049 290-1 | BRACKET; CURTAIN RAIL | 1 | 2203- | FVZ | (A) | ||
| 058 | I8-97696 429-A | BED; MAT | 1 | 2203- | FVZ | |||
| 130 | I8-98014 968-A | PIPE; GUARD,BED | 1 | 2203- | FVZ | |||
| 085 | I5-09981 093-0 | SCREW; BRKT | 2 | 2203- | FVZ | (B) M5X20 | ||
| 084 | I8-98074 740-0 | BRACKET; CURTAIN RAIL | 1 | 2203- | FVZ | (C) | ||
| 050 | I8-94279 078-A | GROMMET; SCREW,CURTAIN RAIL | 2 | 2203- | FVZ | D=8.6X7.7 L=7.5 | ||
| 084 | I8-98042 152-0 | BRACKET; CURTAIN RAIL | 2 | 2203- | FVZ | (B) | ||
| 084 | I8-98042 152-0 | BRACKET; CURTAIN RAIL | 2 | 2203- | FVZ | (B) | ||
| 073 | I0-28450 820-0 | BOLT; GUARD PIPE | 4 | 2203- | FVZ | M8X20 FLANGE | ||
| 130 | I8-98014 968-A | PIPE; GUARD,BED | 1 | 2203- | FVZ | |||
| 085 | I8-97108 669-0 | SCREW; BRKT | 2 | 2203- | FVZ | (A) BOLT M6X12 FLANGE | ||
| 084 | I8-98074 740-0 | BRACKET; CURTAIN RAIL | 1 | 2203- | FVZ | (C) | ||
| 050 | I8-94279 078-A | GROMMET; SCREW,CURTAIN RAIL | 2 | 2203- | FVZ | D=8.6X7.7 L=7.5 |
