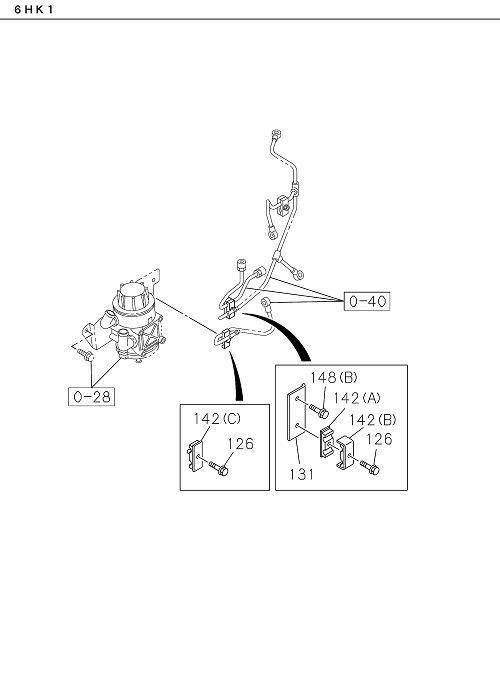

0-42 | FUEL PUMP AND PIPE
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 142 | I8-98000 010-2 | CLIP; FUEL PIPE | 1 | 2203- | GVR | (B) ID=7 & 9 L=25 | ||
| 142 | I8-98000 011-2 | CLIP; FUEL PIPE | 1 | 2203- | GVR | (A) ID=7 & 9 L=25 | ||
| 142 | I5-09709 103-0 | CLIP; FUEL PIPE | 1 | 2203- | GVR | (C) L=48 | ||
| 126 | I0-28650 635-0 | BOLT; CLIP,FUEL PIPE | 2 | 2203- | GVR | M6X35 FLANGE | ||
| 131 | I1-15419 391-1 | BRACKET; FUEL PIPE CLIP | 1 | 2203- | GVR | |||
| 148 | I0-28050 812-A | BOLT; BRKT | 1 | 2203- | GVR | (B) M8X12 FLANGE |
