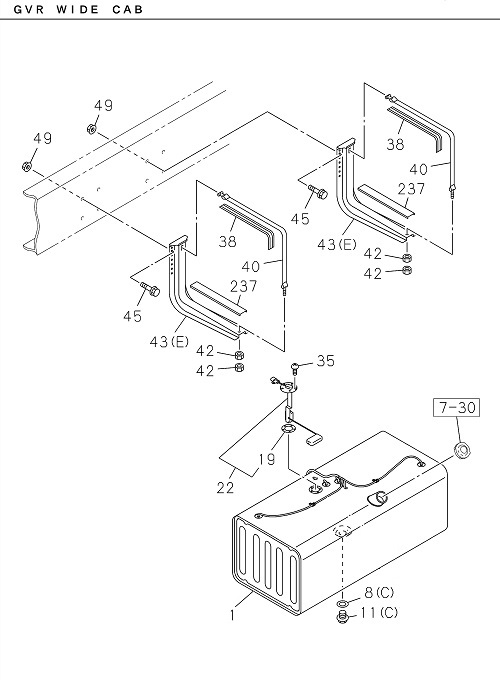

1-40 | FUEL TANK
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 008 | I8-97913 627-0 | GASKET; DRAIN PLUG,FUEL TANK | 1 | 2203- | GVR | (C) | ||
| 042 | I0-91110 510-0 | NUT; SUPPORT BELT | 4 | 2203- | GVR | M10 | ||
| 045 | I0-28051 245-0 | BOLT; BRKT,FUEL TANK | 12 | 2203- | GVR | M12X45 FLANGE | ||
| 035 | I1-22419 012-0 | SCREW; FUEL TANK UNIT | 5 | 2203- | GVR | |||
| 040 | I8-97922 748-1 | BELT; SUPPORT,FUEL TANK | 2 | 2203- | GVR | L=1135 | ||
| 022 | I8-98365 119-0 | UNIT; FUEL TANK | 1 | 2203- | GVR | |||
| 237 | I8-98272 681-0 | GASKET; BRKT TO FUEL TANK | 2 | 2203- | GVR | |||
| 043 | I8-98272 028-1 | BRACKET; FUEL TANK | 2 | 2203- | GVR | (E) | ||
| 038 | I8-97922 175-0 | INSULATION; SUPPORT BELT | 2 | 2203- | GVR | |||
| 001 | I8-97790 110-0 | TANK; FUEL | 1 | 2203- | GVR | |||
| 019 | I1-83149 003-0 | GASKET; FUEL TANK UNIT | 1 | 2203- | GVR | ID=45 OD=67 | ||
| 049 | I0-91180 212-0 | NUT; BRKT | 12 | 2203- | GVR | M12 FLANGE | ||
| 011 | I8-97913 628-0 | PLUG; DRAIN,FUEL TANK | 1 | 2203- | GVR | (C) |
