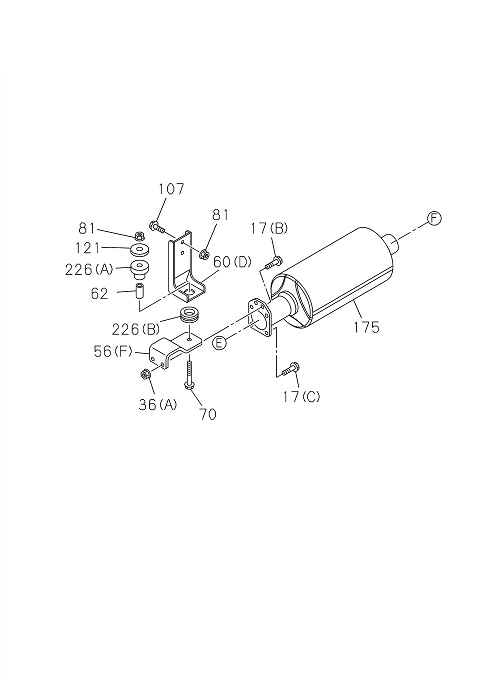

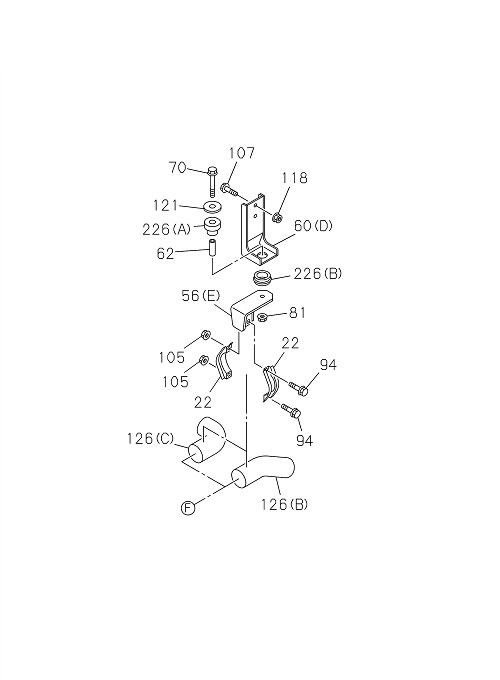

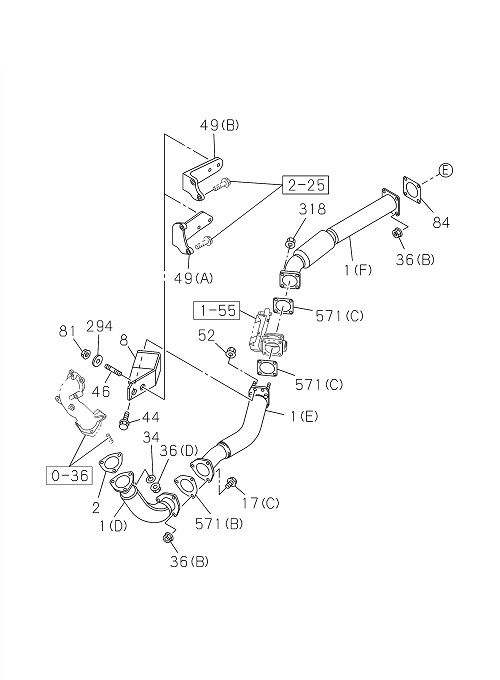

1-50 | EXHAUST PIPE AND SILENCER
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 044 | I0-28651 035-0 | BOLT; BRKT | 2 | 2203- | GVR | M10X35 FLANGE | ||
| 126 | I8-98314 047-A | PIPE; EXH,RR | 1 | 2203- | GVR | (C) | ||
| 571 | I1-22116 043-0 | GASKET | 2 | 2203- | GVR | (C) ID=85.8 | ||
| 002 | I8-98043 481-0 | GASKET; PIPE TO MANIF | 1 | 2203- | GVR | ID=81 | ||
| 571 | I8-98043 481-0 | GASKET | 1 | 2203- | GVR | (B) ID=81 | ||
| 001 | I8-98337 090-A | PIPE; EXH | 1 | 2203- | GVR | (D) | ||
| 017 | I0-28051 235-0 | BOLT; EXH PIPE | 3 | 2203- | GVR | (C) M12X35 FLANGE | ||
| 036 | I7-05110 010-A | NUT; EXH PIPE | 2 | 2203- | GVR | (A) M10 FLANGE | ||
| 105 | I7-05110 010-A | NUT; CLAMP | 2 | 2203- | GVR | M10 FLANGE | ||
| 107 | I0-28651 035-0 | BOLT; BRKT | 2 | 2203- | GVR | M10X35 FLANGE | ||
| 017 | I0-28651 035-0 | BOLT; EXH PIPE | 2 | 2203- | GVR | (B) M10X35 FLANGE | ||
| 036 | I1-09400 010-0 | NUT; EXH PIPE | 3 | 2203- | GVR | (D) M12 | ||
| 084 | I8-98096 305-0 | GASKET; EXH PIPE | 1 | 2203- | GVR | |||
| 022 | I1-22133 233-A | CLAMP; EXH PIPE | 2 | 2203- | GVR | |||
| 008 | I8-98069 914-A | BRACKET; EXH PIPE | 1 | 2203- | GVR | |||
| 036 | I0-91180 212-0 | NUT; EXH PIPE | 4 | 2203- | GVR | (B) M12 FLANGE | ||
| 049 | I8-98314 061-0 | BRACKET; EXH PIPE TO TRANS | 1 | 2203- | GVR | (A) | ||
| 056 | I8-98314 420-A | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GVR | (E) | ||
| 294 | I8-98073 091-0 | WASHER; PL,CLAMP TO BRKT,EXH PIPE | 2 | 2203- | GVR | ID=10.5 | ||
| 318 | I7-05110 010-A | NUT; EXH PIPE,FRT | 4 | 2203- | GVR | M10 FLANGE | ||
| 017 | I0-28051 235-0 | BOLT; EXH PIPE | 4 | 2203- | GVR | (C) M12X35 FLANGE | ||
| 062 | I8-97948 228-0 | TUBE; DIST,BRKT | 1 | 2203- | GVR | |||
| 056 | I8-98314 428-0 | BRACKET; CLAMP,EXH PIPE | 1 | 2203- | GVR | (F) | ||
| 118 | I7-05110 010-A | NUT; SILENCER MTG BRKT | 2 | 2203- | GVR | M10 FLANGE | ||
| 081 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | GVR | M10 FLANGE | ||
| 001 | I8-98337 031-A | PIPE; EXH | 1 | 2203- | GVR | (F) | ||
| 052 | I7-05110 010-A | NUT; BRKT | 2 | 2203- | GVR | M10 FLANGE | ||
| 060 | I8-98314 418-A | BRACKET; FRAME TO BRKT | 1 | 2203- | GVR | (D) | ||
| 094 | I0-28651 040-0 | BOLT; CLAMP | 2 | 2203- | GVR | M10X40 FLANGE | ||
| 175 | I8-97549 899-0 | CONVERTER; CATALYST | 1 | 2203- | GVR | |||
| 121 | I1-09503 154-2 | WASHER; PL,BRKT | 1 | 2203- | GVR | ID=11 OD=54 | ||
| 070 | I0-28051 070-0 | BOLT; BRKT | 1 | 2203- | GVR | M10X70 FLANGE | ||
| 081 | I7-05110 010-A | NUT; BRKT | 1 | 2203- | GVR | M10 FLANGE | ||
| 226 | I8-94457 277-A | RUBBER; CUSHION | 1 | 2203- | GVR | (A) | ||
| 034 | I1-09500 030-0 | WASHER; EXH PIPE | 3 | 2203- | GVR | ID=13 OD=24 DISH | ||
| 036 | I0-91180 212-0 | NUT; EXH PIPE | 3 | 2203- | GVR | (B) M12 FLANGE | ||
| 046 | I0-44011 025-0 | BOLT; BRKT,EXH PIPE | 2 | 2203- | GVR | M10X25 L=40 | ||
| 001 | I8-98336 569-A | PIPE; EXH | 1 | 2203- | GVR | (E) | ||
| 226 | I8-94457 278-A | RUBBER; CUSHION | 1 | 2203- | GVR | (B) |
