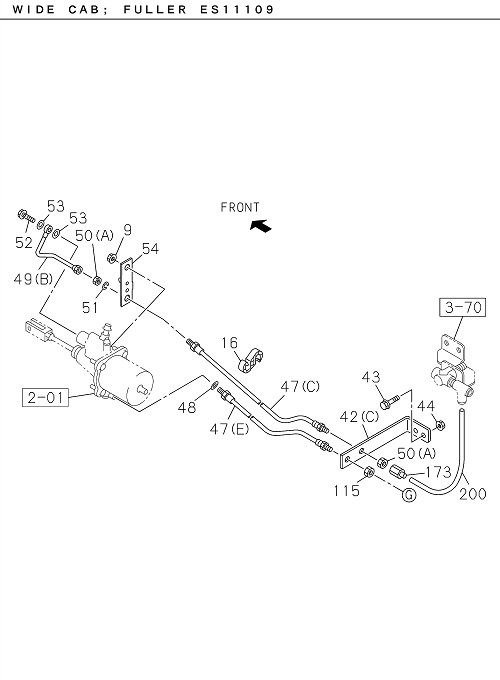

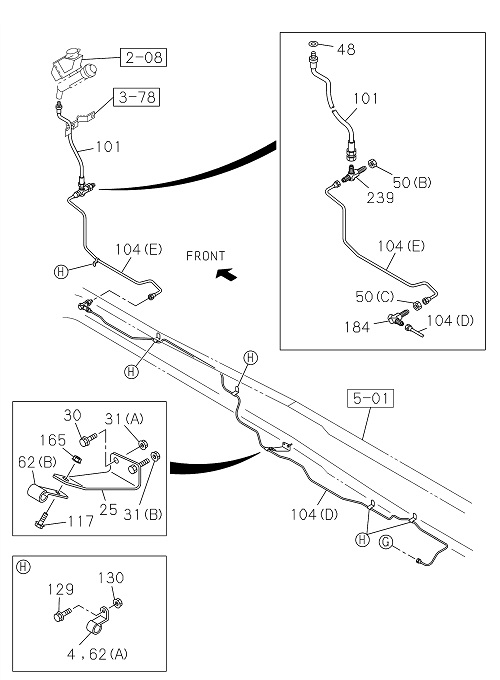

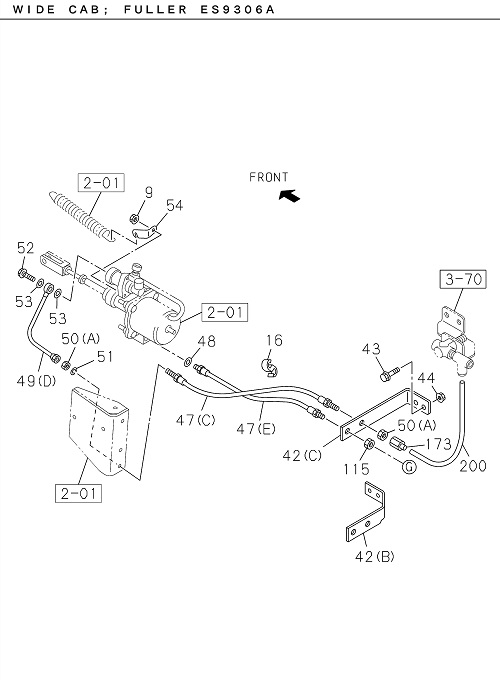

2-05 | CLUTCH PIPING FRAME SIDE
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 054 | I8-98081 247-0 | BRACKET; AIR,FLEX HOSE | 1 | 2203- | GVR 280 | EATON 9S | ||
| 052 | I1-09675 086-0 | BOLT; EYE,AIR PIPE | 1 | 2203- | GVR | M14X27 EYE-BOLT | ||
| 117 | I0-28650 830-0 | BOLT; CLIP,FLEX HOSE | 1 | 2203- | GVR | M8X30 FLANGE | ||
| 101 | I8-98072 350-A | HOSE; FLEX,OIL PIPE TO OIL PIPE | 1 | 2203- | GVR | L=500 | ||
| 047 | I1-09363 657-0 | HOSE; FLEX,CLU CONT | 1 | 2203- | GVR 280 | (C) L=520 | ||
| 047 | I1-09363 720-0 | HOSE; FLEX,CLU CONT | 1 | 2203- | GVR 245 | (C) L=500 | ||
| 165 | I7-05108 010-A | NUT; CLIP,FLEX HOSE | 1 | 2203- | GVR | M8 FLANGE | ||
| 104 | I8-98343 752-A | PIPE; OIL,FLEX HOSE TO CONNECTOR | 1 | 2203- | GVR | (D) L=2585 | ||
| 129 | I0-28650 830-0 | BOLT; PIPE CLIP | 4 | 2203- | GVR | M8X30 FLANGE | ||
| 104 | I1-47426 384-0 | PIPE; OIL,FLEX HOSE TO CONNECTOR | 1 | 2203- | GVR | (E) L=802 | ||
| 030 | I0-28650 830-0 | BOLT; BRKT | 1 | 2203- | GVR | M8X30 FLANGE | ||
| 050 | I0-91111 512-0 | NUT; UNION | 1 | 2203- | GVR | (B) M12 | ||
| 129 | I7-04508 025-A | BOLT; PIPE CLIP | 1 | 2203- | GVR | M8X20 FLANGE | ||
| 184 | I0-92125 208-0 | UNION; FLEX HOSE | 1 | 2203- | GVR | M14 ELBOW | ||
| 053 | I8-98251 345-0 | GASKET; JOINT BOLT | 2 | 2203- | GVR | ID=14.2 OD=19.2 | ||
| 062 | I0-95234 825-0 | CLIP; CLU PIPE | 1 | 2203- | GVR | (B) ID=9 L=16 | ||
| 042 | I8-98309 074-0 | BRACKET; FLEX HOSE,CLU CONT | 1 | 2203- | GVR | (C) | ||
| 049 | I1-49124 974-A | PIPE; AIR,FLEX HOSE TO CLU BOOSTER | 1 | 2203- | GVR 280 | (B) L=232 | ||
| 049 | I8-98311 313-A | PIPE; AIR,FLEX HOSE TO CLU BOOSTER | 1 | 2203- | GVR 245 | (D) L=250 | ||
| 200 | I1-87411 006-0 | TUBE; NYLON | 1 | 2203- | GVR | OD=8 | ||
| 025 | I8-98335 184-0 | BRACKET; OIL PIPE | 1 | 2203- | GVR | |||
| 004 | I1-09700 604-0 | CLIP; FLEX HOSE,CLU CONT | 1 | 2203- | GVR | ID=8 H=20 L=20 | ||
| 009 | I7-05110 010-A | NUT; BRKT,FLEX HOSE | 2 | 2203- | GVR | M10 FLANGE | ||
| 031 | I7-05108 010-A | NUT; BRKT | 1 | 2203- | GVR | (A) M8 FLANGE | ||
| 173 | I1-09660 873-0 | CONNECTOR | 1 | 2203- | GVR | DIN8 & M12 STRAIGHT | ||
| 031 | I0-91180 110-0 | NUT; BRKT | 1 | 2203- | GVR | (B) M10 FLANGE | ||
| 115 | I0-91111 514-0 | NUT; FLEX HOSE,CLU CONT | 1 | 2203- | GVR | M14 | ||
| 050 | I9-09840 280-0 | NUT; UNION | 2 | 2203- | GVR | (A) M12 | ||
| 130 | I7-05108 010-A | NUT; PIPE CLIP | 5 | 2203- | GVR | M8 FLANGE | ||
| 062 | I1-09700 604-0 | CLIP; CLU PIPE | 4 | 2203- | GVR | (A) ID=8 H=20 L=20 | ||
| 047 | I8-98072 327-A | HOSE; FLEX,CLU CONT | 1 | 2203- | GVR 245 | (E) L=500 | ||
| 050 | I0-91111 514-0 | NUT; UNION | 1 | 2203- | GVR | (C) M14 | ||
| 044 | I7-05108 010-A | NUT; BRKT,FLEX HOSE,CLU BOOSTER | 2 | 2203- | GVR | M8 FLANGE | ||
| 051 | I0-91510 512-0 | WASHER; LK | 1 | 2203- | GVR | ID=12.2 | ||
| 048 | I9-09571 410-0 | GASKET; FLEX HOSE,CLU CONT | 2 | 2203- | GVR | ID=10.2 OD=16.0 | ||
| 054 | I8-98379 129-0 | BRACKET; AIR,FLEX HOSE | 1 | 2203- | GVR 245 | |||
| 016 | I1-09709 278-1 | CLIP; FLEX HOSE | 1 | 2203- | GVR | ID=10 & 12 | ||
| 047 | I8-98072 325-A | HOSE; FLEX,CLU CONT | 1 | 2203- | GVR 280 | (E) L=470 | ||
| 043 | I0-28650 835-0 | BOLT; BRKT,FLEX HOSE,CLU BOOSTER | 2 | 2203- | GVR | M8X35 FLANGE | ||
| 239 | I1-09654 141-2 | UNION; CLU HOSE | 1 | 2203- | GVR | M12 & M14 2WAY |
