| 405 |
I9-09571 422-0 |
|
GASKET |
2 |
2203- |
|
GVR |
ID=22.5 |
| 010 |
I9-99204 513-0 |
|
PLUG; AIR TANK |
3 |
2203- |
|
GVR |
(A) PT1/4 |
| 291 |
I0-91614 608-0 |
|
WASHER; PL,BRKT |
8 |
2203- |
|
GVR |
ID=8.4 OD=18 |
| 102 |
I8-98311 987-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(D) |
| 102 |
I8-98326 277-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(A) |
| 102 |
I8-98325 913-1 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(E) |
| 126 |
I8-98166 127-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(P) R3/8 & RC3/8 & RC1/4 3WAY |
| 166 |
I8-98346 869-0 |
|
SWITCH ASM; LOW PRESSURE,MAIN TANK |
1 |
2203- |
|
GVR |
THREAD R1/4 SENSOR AIR METER |
| 291 |
I0-91614 608-0 |
|
WASHER; PL,BRKT |
8 |
2203- |
|
GVR |
ID=8.4 OD=18 |
| 038 |
I8-97556 117-0 |
|
BAND; AIR TANK |
2 |
2203- |
|
GVR |
(A) |
| 001 |
I8-98343 548-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
GVR |
(F) |
| 317 |
I1-09650 179-1 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(A) M16 & PT3/8 STRAIGHT |
| 007 |
I1-09630 145-0 |
|
GASKET; DRAIN COCK |
4 |
2203- |
|
GVR |
ID=14 |
| 005 |
I1-09660 959-0 |
|
UNION; AIR TANK |
2 |
2203- |
|
GVR |
(A) DIN12 & R3/8 ELBOW |
| 109 |
I8-98215 454-1 |
|
MODULATOR; FRT |
2 |
2203- |
|
GVR |
|
| 064 |
I8-97649 461-0 |
|
STAY; AIR TANK,MAIN |
1 |
2203- |
|
GVR |
(F) |
| 126 |
I1-09660 693-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(H) PT1/4 & PT1/4 2WAY |
| 126 |
I1-09660 957-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(N) DIN8 & R3/8 ELBOW |
| 001 |
I8-98382 798-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
GVR |
(G) |
| 335 |
I1-09660 959-0 |
|
CONNECTOR; MODULATOR |
4 |
2203- |
|
GVR |
(B) DIN12 & R3/8 ELBOW |
| 102 |
I8-98326 277-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(A) |
| 176 |
I1-09650 494-1 |
|
ADAPTER |
2 |
2203- |
|
GVR |
(B) INNER PT3/8,OUTER M22 |
| 107 |
I8-98215 454-1 |
|
MODULATOR; RR |
2 |
2203- |
|
GVR |
|
| 028 |
I8-97556 118-0 |
|
BRACKET; AIR TANK |
2 |
2203- |
|
GVR |
(D) |
| 101 |
I7-05108 010-A |
|
NUT; MODULATOR |
2 |
2203- |
|
GVR 280 |
(A) M8 FLANGE |
| 126 |
I1-09660 959-0 |
|
CONNECTOR; ELBOW |
5 |
2203- |
|
GVR |
(L) DIN12 & R3/8 ELBOW |
| 102 |
I8-98325 913-1 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(E) |
| 119 |
I0-28651 025-0 |
|
BOLT; STAY |
1 |
2203- |
|
GVR |
M10X25 FLANGE |
| 176 |
I1-09660 693-0 |
|
ADAPTER |
2 |
2203- |
|
GVR |
(A) PT1/4 & PT1/4 2WAY |
| 126 |
I1-09660 959-0 |
|
CONNECTOR; ELBOW |
5 |
2203- |
|
GVR |
(L) DIN12 & R3/8 ELBOW |
| 126 |
I1-09660 693-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(H) PT1/4 & PT1/4 2WAY |
| 009 |
I8-98346 869-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
2203- |
|
GVR |
(B) THREAD R1/4 SENSOR AIR METER |
| 100 |
I0-28055 815-0 |
|
BOLT; MODULATOR |
2 |
2203- |
|
GVR |
(C) M8X150 FLANGE |
| 178 |
I8-98150 355-0 |
|
CLIP; HOSE |
1 |
2203- |
|
GVR |
(A) ID=21 |
| 006 |
I1-48312 015-0 |
|
COCK; DRAIN,AIR TANK |
4 |
2203- |
|
GVR |
|
| 100 |
I0-28055 815-0 |
|
BOLT; MODULATOR |
2 |
2203- |
|
GVR |
(C) M8X150 FLANGE |
| 067 |
I8-97556 120-0 |
|
STAY; SUB TANK |
1 |
2203- |
|
GVR |
(C) |
| 317 |
I1-09650 494-1 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(B) INNER PT3/8,OUTER M22 |
| 126 |
I1-09660 965-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(M) DIN12 & R3/8 STRAIGHT |
| 045 |
I0-91180 208-0 |
|
NUT; AIR TANK,MAIN |
2 |
2203- |
|
GVR |
(B) M8 FLANGE |
| 166 |
I8-98346 869-0 |
|
SWITCH ASM; LOW PRESSURE,MAIN TANK |
1 |
2203- |
|
GVR |
THREAD R1/4 SENSOR AIR METER |
| 100 |
I0-28060 890-0 |
|
BOLT; MODULATOR |
4 |
2203- |
|
GVR |
(A) M8X90 FLANGE |
| 203 |
I0-91180 214-0 |
|
NUT |
4 |
2203- |
|
GVR |
M14 FLANGE |
| 001 |
I8-98343 548-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
GVR |
(F) |
| 335 |
I1-09650 494-1 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(A) INNER PT3/8,OUTER M22 |
| 005 |
I1-09660 959-0 |
|
UNION; AIR TANK |
2 |
2203- |
|
GVR |
(A) DIN12 & R3/8 ELBOW |
| 126 |
I1-09660 965-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(M) DIN12 & R3/8 STRAIGHT |
| 317 |
I1-09661 050-0 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(C) DIN12 & M22 STRAIGHT |
| 042 |
I0-91614 608-0 |
|
WASHER; PL |
4 |
2203- |
|
GVR |
ID=8.4 OD=18 |
| 041 |
I8-97556 121-0 |
|
PIN; BAND FIX |
2 |
2203- |
|
GVR |
|
| 102 |
I8-98326 276-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(C) |
| 126 |
I1-09661 026-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(O) DIN12X2 & PT3/8 DOUBLE ELBOW |
| 043 |
I0-28651 025-0 |
|
BOLT; STAY,AIR TANK,MAIN |
1 |
2203- |
|
GVR |
(B) M10X25 FLANGE |
| 172 |
I7-05110 010-A |
|
NUT; STAY,AIR TANK,MAIN |
1 |
2203- |
|
GVR |
(B) M10 FLANGE |
| 045 |
I7-05110 010-A |
|
NUT; AIR TANK,MAIN |
12 |
2203- |
|
GVR |
(A) M10 FLANGE |
| 177 |
I0-03566 300-0 |
|
HOSE; RUBBER,DRAIN |
1 |
2203- |
|
GVR |
L=60 |
| 003 |
I1-48320 031-1 |
|
VALVE; CHECK,AIR TANK |
3 |
2203- |
|
GVR |
(A) R3/8 & RC3/8 CHECK VALVE |
| 105 |
I8-98326 385-0 |
|
COVER; MODULATOR |
1 |
2203- |
|
GVR |
|
| 126 |
I1-09661 026-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(O) DIN12X2 & PT3/8 DOUBLE ELBOW |
| 067 |
I8-97556 120-0 |
|
STAY; SUB TANK |
1 |
2203- |
|
GVR |
(C) |
| 041 |
I8-97556 121-0 |
|
PIN; BAND FIX |
2 |
2203- |
|
GVR |
|
| 045 |
I7-05110 010-A |
|
NUT; AIR TANK,MAIN |
12 |
2203- |
|
GVR |
(A) M10 FLANGE |
| 172 |
I7-05110 010-A |
|
NUT; STAY,AIR TANK,MAIN |
1 |
2203- |
|
GVR |
(B) M10 FLANGE |
| 001 |
I8-98382 798-0 |
|
TANK ASM; AIR |
1 |
2203- |
|
GVR |
(G) |
| 003 |
I1-48320 031-1 |
|
VALVE; CHECK,AIR TANK |
3 |
2203- |
|
GVR |
(A) R3/8 & RC3/8 CHECK VALVE |
| 101 |
I0-91111 516-0 |
|
NUT; MODULATOR |
2 |
2203- |
|
GVR |
(B) M16 |
| 009 |
I8-97609 249-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
2203- |
|
GVR |
(A) STAMP 5.5 |
| 005 |
I1-09660 965-0 |
|
UNION; AIR TANK |
2 |
2203- |
|
GVR |
(B) DIN12 & R3/8 STRAIGHT |
| 100 |
I0-28650 830-0 |
|
BOLT; MODULATOR |
4 |
2203- |
|
GVR |
(B) M8X30 FLANGE |
| 317 |
I1-09650 179-1 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(A) M16 & PT3/8 STRAIGHT |
| 241 |
I7-04508 025-A |
|
BOLT; SET,CONT VLV |
2 |
2203- |
|
GVR |
M8X20 FLANGE |
| 101 |
I0-91180 108-0 |
|
NUT; MODULATOR |
4 |
2203- |
|
GVR 245 |
(A) M8 FLANGE |
| 317 |
I1-09661 050-0 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(C) DIN12 & M22 STRAIGHT |
| 005 |
I1-09660 965-0 |
|
UNION; AIR TANK |
2 |
2203- |
|
GVR |
(B) DIN12 & R3/8 STRAIGHT |
| 335 |
I1-09660 959-0 |
|
CONNECTOR; MODULATOR |
4 |
2203- |
|
GVR |
(B) DIN12 & R3/8 ELBOW |
| 176 |
I1-09650 494-1 |
|
ADAPTER |
4 |
2203- |
|
GVR 280 |
(B) INNER PT3/8,OUTER M22 |
| 102 |
I8-98311 987-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(D) |
| 335 |
I1-09664 210-0 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(C) PT3/8X2 STRAIGHT |
| 107 |
I8-98215 454-1 |
|
MODULATOR; RR |
2 |
2203- |
|
GVR |
|
| 038 |
I8-97556 116-0 |
|
BAND; AIR TANK |
2 |
2203- |
|
GVR |
(B) |
| 126 |
I8-98166 127-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(P) R3/8 & RC3/8 & RC1/4 3WAY |
| 177 |
I0-03566 300-0 |
|
HOSE; RUBBER,DRAIN |
1 |
2203- |
|
GVR |
L=60 |
| 028 |
I8-97556 118-0 |
|
BRACKET; AIR TANK |
2 |
2203- |
|
GVR |
(D) |
| 010 |
I9-09204 517-0 |
|
PLUG; AIR TANK |
2 |
2203- |
|
GVR |
(B) PT3/8 |
| 006 |
I1-48312 015-0 |
|
COCK; DRAIN,AIR TANK |
4 |
2203- |
|
GVR |
|
| 176 |
I1-09650 494-1 |
|
ADAPTER |
2 |
2203- |
|
GVR |
(B) INNER PT3/8,OUTER M22 |
| 005 |
I1-09660 957-0 |
|
UNION; AIR TANK |
1 |
2203- |
|
GVR |
(C) DIN8 & R3/8 ELBOW |
| 038 |
I8-97556 117-0 |
|
BAND; AIR TANK |
2 |
2203- |
|
GVR |
(A) |
| 042 |
I0-91614 608-0 |
|
WASHER; PL |
4 |
2203- |
|
GVR |
ID=8.4 OD=18 |
| 038 |
I8-97556 116-0 |
|
BAND; AIR TANK |
2 |
2203- |
|
GVR |
(B) |
| 405 |
I9-09571 422-0 |
|
GASKET |
2 |
2203- |
|
GVR |
ID=22.5 |
| 203 |
I0-91180 214-0 |
|
NUT |
4 |
2203- |
|
GVR |
M14 FLANGE |
| 005 |
I1-09660 957-0 |
|
UNION; AIR TANK |
1 |
2203- |
|
GVR |
(C) DIN8 & R3/8 ELBOW |
| 010 |
I9-99204 513-0 |
|
PLUG; AIR TANK |
3 |
2203- |
|
GVR |
(A) PT1/4 |
| 241 |
I7-04508 025-A |
|
BOLT; SET,CONT VLV |
2 |
2203- |
|
GVR |
M8X20 FLANGE |
| 126 |
I1-09660 957-0 |
|
CONNECTOR; ELBOW |
1 |
2203- |
|
GVR |
(N) DIN8 & R3/8 ELBOW |
| 104 |
I7-05108 010-A |
|
NUT; BRKT |
2 |
2203- |
|
GVR |
M8 FLANGE |
| 101 |
I0-91180 108-0 |
|
NUT; MODULATOR |
4 |
2203- |
|
GVR 245 |
(A) M8 FLANGE |
| 102 |
I8-98311 986-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(B) |
| 101 |
I0-91111 516-0 |
|
NUT; MODULATOR |
2 |
2203- |
|
GVR |
(B) M16 |
| 104 |
I7-05108 010-A |
|
NUT; BRKT |
2 |
2203- |
|
GVR |
M8 FLANGE |
| 335 |
I1-09664 210-0 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(C) PT3/8X2 STRAIGHT |
| 176 |
I1-09650 494-1 |
|
ADAPTER |
4 |
2203- |
|
GVR 280 |
(B) INNER PT3/8,OUTER M22 |
| 109 |
I8-98215 454-1 |
|
MODULATOR; FRT |
2 |
2203- |
|
GVR |
|
| 064 |
I8-97649 461-0 |
|
STAY; AIR TANK,MAIN |
1 |
2203- |
|
GVR |
(F) |
| 100 |
I0-28060 890-0 |
|
BOLT; MODULATOR |
4 |
2203- |
|
GVR |
(A) M8X90 FLANGE |
| 007 |
I1-09630 145-0 |
|
GASKET; DRAIN COCK |
4 |
2203- |
|
GVR |
ID=14 |
| 101 |
I7-05108 010-A |
|
NUT; MODULATOR |
2 |
2203- |
|
GVR 280 |
(A) M8 FLANGE |
| 105 |
I8-98326 385-0 |
|
COVER; MODULATOR |
1 |
2203- |
|
GVR |
|
| 100 |
I0-28650 830-0 |
|
BOLT; MODULATOR |
4 |
2203- |
|
GVR |
(B) M8X30 FLANGE |
| 045 |
I0-91180 208-0 |
|
NUT; AIR TANK,MAIN |
2 |
2203- |
|
GVR |
(B) M8 FLANGE |
| 178 |
I8-98150 355-0 |
|
CLIP; HOSE |
1 |
2203- |
|
GVR |
(A) ID=21 |
| 009 |
I8-98346 869-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
2203- |
|
GVR |
(B) THREAD R1/4 SENSOR AIR METER |
| 102 |
I8-98311 986-0 |
|
BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(B) |
| 176 |
I1-09660 693-0 |
|
ADAPTER |
2 |
2203- |
|
GVR |
(A) PT1/4 & PT1/4 2WAY |
| 102 |
I8-98326 276-0 |
|

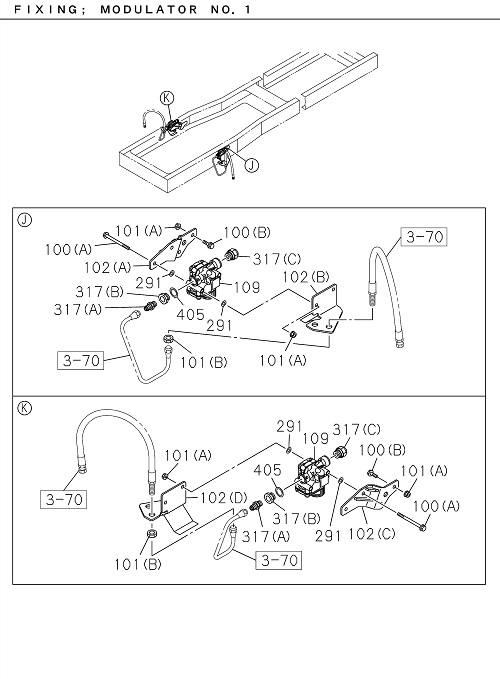

BRACKET; MODULATOR |
1 |
2203- |
|
GVR |
(C) |
| 317 |
I1-09650 494-1 |
|
CONNECTOR; MODULATOR |
2 |
2203- |
|
GVR |
(B) INNER PT3/8,OUTER M22 |
| 009 |
I8-97609 249-0 |
|
SWITCH; LOW PRESSURE GAGE,AIR TANK |
1 |
2203- |
|
GVR |
(A) STAMP 5.5 |
| 010 |
I9-09204 517-0 |
|
PLUG; AIR TANK |
2 |
2203- |
|
GVR |
(B) PT3/8 |
| 054 |
I7-05110 010-A |
|
NUT; STAY |
1 |
2203- |
|
GVR |
M10 FLANGE |
| 043 |
I0-28651 025-0 |
|
BOLT; STAY,AIR TANK,MAIN |
1 |
2203- |
|
GVR |
(B) M10X25 FLANGE |
| 119 |
I0-28651 025-0 |
|
BOLT; STAY |
1 |
2203- |
|
GVR |
M10X25 FLANGE |
