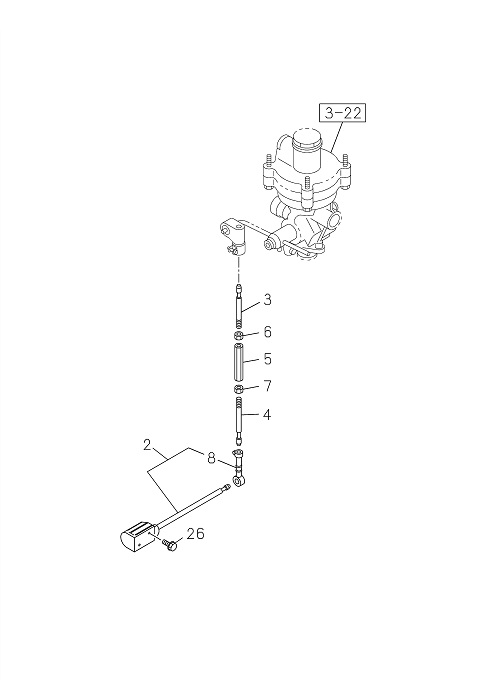

3-45 | LOAD SENSING PROPORTIONING VALVE
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I1-47725 012-0 | DAMPER | 1 | 2203- | GVR | |||
| 003 | I1-09765 290-0 | ROD; UPR | 1 | 2203- | GVR | |||
| 008 | I1-47723 001-0 | ROD END | 1 | 2203- | GVR | |||
| 006 | I0-91111 508-0 | NUT; LK,UPR | 1 | 2203- | GVR | M8 | ||
| 005 | I1-09768 091-0 | JOINT | 1 | 2203- | GVR | |||
| 007 | I1-09409 002-0 | NUT; LK,LWR | 1 | 2203- | GVR | M8 LH THREAD | ||
| 004 | I1-09765 283-0 | ROD; LWR | 1 | 2203- | GVR | |||
| 008 | I1-47723 001-0 | ROD END | 1 | 2203- | GVR | |||
| 002 | I1-47725 012-0 | DAMPER | 1 | 2203- | GVR | |||
| 026 | I0-28050 812-A | BOLT; DAMPER | 2 | 2203- | GVR | M8X12 FLANGE | ||
| 003 | I1-09765 290-0 | ROD; UPR | 1 | 2203- | GVR | |||
| 007 | I1-09409 002-0 | NUT; LK,LWR | 1 | 2203- | GVR | M8 LH THREAD | ||
| 005 | I1-09768 091-0 | JOINT | 1 | 2203- | GVR | |||
| 004 | I1-09765 283-0 | ROD; LWR | 1 | 2203- | GVR | |||
| 026 | I0-28050 812-A | BOLT; DAMPER | 2 | 2203- | GVR | M8X12 FLANGE | ||
| 006 | I0-91111 508-0 | NUT; LK,UPR | 1 | 2203- | GVR | M8 |
