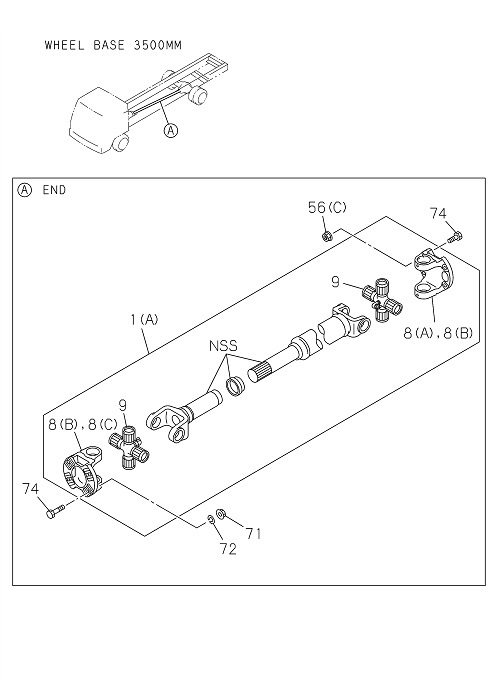

4-01 | PROPELLER SHAFT
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 001 | I8-97653 941-0 | SHAFT; PROP | 1 | 2203- | GVR 245 | (A) GVR34J | ||
| 056 | I8-97365 444-0 | NUT; YOKE | 4 | 2203- | GVR | (C) M14 FLANGE | ||
| 008 | I8-97656 617-0 | YOKE; FLANGE,PROP SHAFT | 2 | 2203- | GVR 280 | (B) | ||
| 001 | I8-97653 943-0 | SHAFT; PROP | 1 | 2203- | GVR 280 | (A) GVR34J HP ABS | ||
| 071 | I8-97365 444-0 | NUT; YOKE | 4 | 2203- | GVR | M14 FLANGE | ||
| 074 | I1-09000 645-0 | BOLT; YOKE,TRANS | 4 | 2203- | GVR | M14X50 | ||
| 009 | I8-97656 620-0 | JOURNAL ASM; PROP SHAFT | 2 | 2203- | GVR | |||
| 056 | I8-97365 444-0 | NUT; YOKE | 4 | 2203- | GVR | (C) M14 FLANGE | ||
| 008 | I8-97656 618-0 | YOKE; FLANGE,PROP SHAFT | 1 | 2203- | GVR 245 | (C) | ||
| 071 | I8-97365 444-0 | NUT; YOKE | 4 | 2203- | GVR | M14 FLANGE | ||
| 074 | I1-09000 645-0 | BOLT; YOKE,TRANS | 4 | 2203- | GVR | M14X50 | ||
| 001 | I8-97653 943-0 | SHAFT; PROP | 1 | 2203- | GVR 280 | (A) GVR34J HP ABS | ||
| 008 | I8-97656 617-0 | YOKE; FLANGE,PROP SHAFT | 2 | 2203- | GVR 280 | (B) | ||
| 009 | I8-97656 620-0 | JOURNAL ASM; PROP SHAFT | 2 | 2203- | GVR | |||
| 008 | I8-97656 618-0 | YOKE; FLANGE,PROP SHAFT | 1 | 2203- | GVR 245 | (C) | ||
| 001 | I8-97653 941-0 | SHAFT; PROP | 1 | 2203- | GVR 245 | (A) GVR34J |
