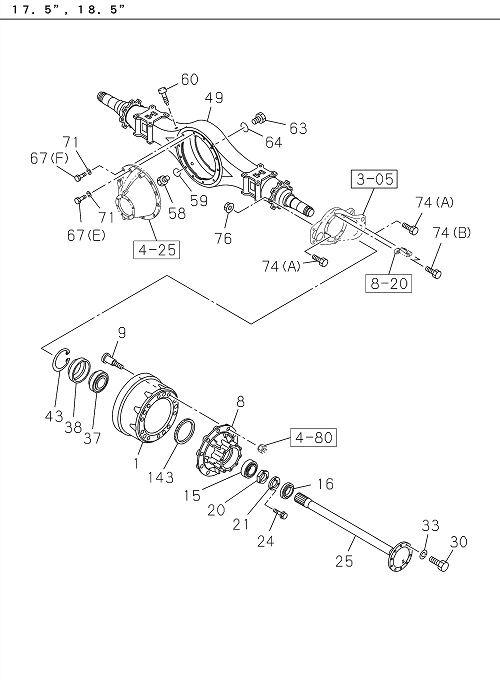

4-20 | REAR AXLE CASE AND SHAFT
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 074 | I8-98353 031-0 | BOLT; RR BRK ASM SETTING | 12 | 2203- | GVR | (A) M14X50 FLANGE | ||
| 059 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 2203- | GVR | ID=26.8 | ||
| 008 | I8-98128 135-A | HUB; RR AXLE | 2 | 2203- | GVR 245 | EATON 6S | ||
| 025 | I8-98146 168-0 | SHAFT; AXLE,RR | 2 | 2203- | GVR 280 | L=1050 | ||
| 060 | I1-09893 011-1 | BREATHER; RR AXLE CASE | 1 | 2203- | GVR | |||
| 037 | I1-09812 233-0 | BEARING; HUB INNER,RR AXLE | 2 | 2203- | GVR | |||
| 015 | I1-09812 232-A | BEARING; HUB OUTER,RR AXLE | 2 | 2203- | GVR | (IADG) | ||
| 009 | I8-98332 611-0 | PIN; WHEEL,RR AXLE | 20 | 2203- | GVR | M22X98 RH THREAD | ||
| 059 | I1-09623 179-0 | GASKET; DRAIN PLUG | 1 | 2203- | GVR | ID=26.8 | ||
| 060 | I1-09893 011-1 | BREATHER; RR AXLE CASE | 1 | 2203- | GVR | |||
| 025 | I8-98146 164-0 | SHAFT; AXLE,RR | 2 | 2203- | GVR 245 | L=1050 | ||
| 008 | I8-98128 136-A | HUB; RR AXLE | 2 | 2203- | GVR 280 | EATON 9S | ||
| 067 | I0-10956 670-0 | BOLT; FINAL DRIVE SETTING | 6 | 2203- | GVR | (E) M16X70 | ||
| 076 | I8-98149 153-0 | NUT; RR BRK ASM SETTING | 16 | 2203- | GVR | M14 FLANGE | ||
| 025 | I8-98146 168-0 | SHAFT; AXLE,RR | 2 | 2203- | GVR 280 | L=1050 | ||
| 064 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 2203- | GVR | ID=26.8 | ||
| 016 | I1-09625 444-1 | SEAL; OIL,RR HUB,OUTER | 2 | 2203- | GVR | |||
| 037 | I1-09812 233-0 | BEARING; HUB INNER,RR AXLE | 2 | 2203- | GVR | |||
| 015 | I1-09812 232-0 | BEARING; HUB OUTER,RR AXLE | 2 | 2203- | GVR | |||
| 064 | I1-09623 179-0 | GASKET; OIL FILLER,AXLE CASE | 1 | 2203- | GVR | ID=26.8 | ||
| 038 | I1-09625 350-0 | SEAL; OIL,RR HUB,INNER | 2 | 2203- | GVR | |||
| 071 | I0-91510 816-0 | WASHER; LK,FINAL DRIVE SETTING | 12 | 2203- | GVR | ID=16.2 | ||
| 049 | I8-98335 713-2 | CASE; RR AXLE | 1 | 2203- | GVR 245 | RATIO 39/7; 17.5" | ||
| 009 | I8-98332 611-0 | PIN; WHEEL,RR AXLE | 20 | 2203- | GVR | M22X98 RH THREAD | ||
| 063 | I1-09604 022-0 | PLUG; OIL FILLER,AXLE CASE | 1 | 2203- | GVR | M24X17 FLANGE | ||
| 049 | I8-98306 904-2 | CASE; RR AXLE | 1 | 2203- | GVR 280 | RATIO 41/8; 18.5" | ||
| 071 | I0-91510 816-0 | WASHER; LK,FINAL DRIVE SETTING | 12 | 2203- | GVR | ID=16.2 | ||
| 143 | I8-98323 111-0 | RING; EXCITER | 2 | 2203- | GVR | |||
| 043 | I1-09587 057-0 | RING; SNAP,HUB SEAL,RR AXLE | 2 | 2203- | GVR 245 | OD=179 | ||
| 043 | I1-09587 057-0 | RING; SNAP,HUB SEAL,RR AXLE | 2 | 2203- | GVR 245 | OD=179 | ||
| 020 | I8-97551 183-0 | NUT; BRG,RR HUB | 2 | 2203- | GVR | M88 | ||
| 058 | I1-09604 023-0 | PLUG; DRAIN,AXLE CASE | 1 | 2203- | GVR | M24X17 FLANGE | ||
| 067 | I0-20951 640-0 | BOLT; FINAL DRIVE SETTING | 6 | 2203- | GVR | (F) M16X40 | ||
| 037 | I1-09812 233-A | BEARING; HUB INNER,RR AXLE | 2 | 2203- | GVR | (IADG) | ||
| 058 | I1-09604 023-0 | PLUG; DRAIN,AXLE CASE | 1 | 2203- | GVR | M24X17 FLANGE | ||
| 008 | I8-98128 136-A | HUB; RR AXLE | 2 | 2203- | GVR 280 | EATON 9S | ||
| 074 | I8-98353 031-0 | BOLT; RR BRK ASM SETTING | 12 | 2203- | GVR | (A) M14X50 FLANGE | ||
| 025 | I8-98146 164-0 | SHAFT; AXLE,RR | 2 | 2203- | GVR 245 | L=1050 | ||
| 063 | I1-09604 022-0 | PLUG; OIL FILLER,AXLE CASE | 1 | 2203- | GVR | M24X17 FLANGE | ||
| 067 | I0-10956 670-0 | BOLT; FINAL DRIVE SETTING | 6 | 2203- | GVR | (E) M16X70 | ||
| 143 | I8-98323 111-0 | RING; EXCITER | 2 | 2203- | GVR | |||
| 074 | I8-98353 032-0 | BOLT; RR BRK ASM SETTING | 4 | 2203- | GVR | (B) M14X80 FLANGE | ||
| 049 | I8-98335 713-2 | CASE; RR AXLE | 1 | 2203- | GVR 245 | RATIO 39/7; 17.5" | ||
| 015 | I1-09812 232-0 | BEARING; HUB OUTER,RR AXLE | 2 | 2203- | GVR | |||
| 038 | I1-09625 350-0 | SEAL; OIL,RR HUB,INNER | 2 | 2203- | GVR | |||
| 030 | I1-09000 582-0 | BOLT; HUB TO AXLE SHAFT | 20 | 2203- | GVR 245 | M14X58 | ||
| 021 | I9-09854 112-0 | WASHER; LK,BRG NUT | 2 | 2203- | GVR 245 | ID=88 | ||
| 067 | I0-20951 640-0 | BOLT; FINAL DRIVE SETTING | 6 | 2203- | GVR | (F) M16X40 | ||
| 016 | I1-09625 444-1 | SEAL; OIL,RR HUB,OUTER | 2 | 2203- | GVR | |||
| 033 | I0-91510 814-0 | WASHER; AXLE SHAFT | 20 | 2203- | GVR 245 | ID=14.2 | ||
| 024 | I0-28650 616-0 | BOLT; LK WASHER | 6 | 2203- | GVR | M6X16 FLANGE | ||
| 020 | I8-97551 183-0 | NUT; BRG,RR HUB | 2 | 2203- | GVR | M88 | ||
| 008 | I8-98128 135-A | HUB; RR AXLE | 2 | 2203- | GVR 245 | EATON 6S | ||
| 076 | I8-98149 153-0 | NUT; RR BRK ASM SETTING | 16 | 2203- | GVR | M14 FLANGE | ||
| 021 | I9-09854 112-0 | WASHER; LK,BRG NUT | 2 | 2203- | GVR 245 | ID=88 | ||
| 037 | I1-09812 233-A | BEARING; HUB INNER,RR AXLE | 2 | 2203- | GVR | (IADG) | ||
| 049 | I8-98306 904-2 | CASE; RR AXLE | 1 | 2203- | GVR 280 | RATIO 41/8; 18.5" | ||
| 001 | I8-98085 728-A | DRUM; BRK,RR | 2 | 2203- | GVR | |||
| 033 | I0-91510 814-0 | WASHER; AXLE SHAFT | 20 | 2203- | GVR 245 | ID=14.2 | ||
| 074 | I8-98353 032-0 | BOLT; RR BRK ASM SETTING | 4 | 2203- | GVR | (B) M14X80 FLANGE | ||
| 030 | I1-09000 582-0 | BOLT; HUB TO AXLE SHAFT | 20 | 2203- | GVR 245 | M14X58 | ||
| 024 | I0-28650 616-0 | BOLT; LK WASHER | 6 | 2203- | GVR | M6X16 FLANGE | ||
| 001 | I8-98085 728-A | DRUM; BRK,RR | 2 | 2203- | GVR | |||
| 015 | I1-09812 232-A | BEARING; HUB OUTER,RR AXLE | 2 | 2203- | GVR | (IADG) |
