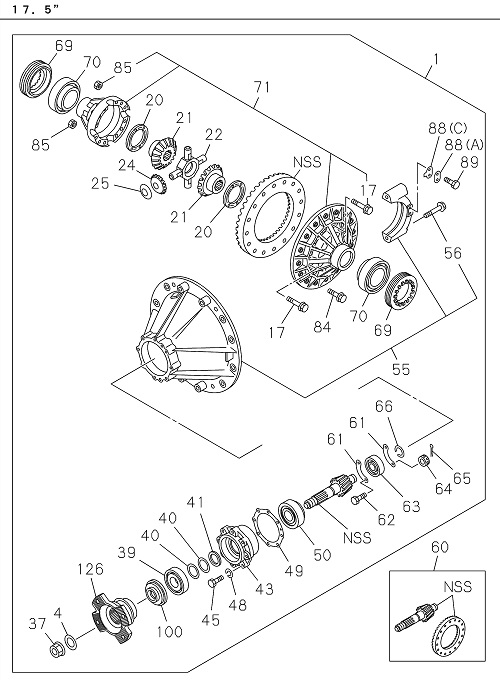

| 088 |
I9-41124 005-0 |
|
PLATE; LK,ADJ NUT |
2 |
2203- |
|
GVR 245 |
(A) T=1.0 |
| 049 |
I1-41154 079-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=0.30 |
| 020 |
I1-41562 112-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=2.8 |
| 025 |
I1-41552 003-0 |
|
WASHER; THRUST,PINION |
4 |
2203- |
|
GVR 280 |
T=1.6 |
| 060 |
I1-41210 617-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 280 |
41/8; 18.5" |
| 001 |
I1-41002 376-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2203- |
|
GVR 245 |
39/7 |
| 017 |
I1-09070 018-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
2203- |
|
GVR 245 |
M16X113 |
| 061 |
I1-41227 008-0 |
|
RETAINER; PILOT BRG,PINION |
1 |
2203- |
|
GVR 280 |
T=3.2; 18.5" |
| 001 |
I1-41002 376-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2203- |
|
GVR 245 |
39/7 |
| 060 |
I1-41210 604-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 245 |
39/7; 17.5" |
| 020 |
I1-41562 113-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=2.9 |
| 040 |
I1-41229 246-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.26 |
| 085 |
I0-91110 516-0 |
|
NUT; DIFF CAGE SETTING |
12 |
2203- |
|
GVR |
M16 |
| 050 |
I1-09812 074-3 |
|
BEARING; FINAL PINION |
1 |
2203- |
|
GVR |
|
| 048 |
I0-91510 516-0 |
|
WASHER; LK,FINAL PINION |
8 |
2203- |
|
GVR |
ID=16.2 |
| 037 |
I1-09449 071-0 |
|
NUT; DRIVING PINION |
1 |
2203- |
|
GVR |
M46 FLANGE |
| 040 |
I1-41229 251-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.31 |
| 020 |
I1-41562 118-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.4 |
| 020 |
I1-41562 117-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.3 |
| 060 |
I1-41210 617-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 280 |
41/8; 18.5" |
| 045 |
I0-16806 655-0 |
|
BOLT; FINAL PINION CAGE |
8 |
2203- |
|
GVR |
M16X55 |
| 084 |
I1-09009 049-1 |
|
BOLT; FINAL DRIVE GEAR |
18 |
2203- |
|
GVR |
M18X38 FLANGE |
| 025 |
I1-41552 017-0 |
|
WASHER; THRUST,PINION |
4 |
2203- |
|
GVR 245 |
T=1.6 |
| 020 |
I1-41562 274-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.2 |
| 069 |
I1-41121 050-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
R |
GVR 280 |
|
| 041 |
I1-41229 240-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.20 |
| 089 |
I0-28751 020-0 |
|
BOLT; LK PLATE |
4 |
2203- |
|
GVR 280 |
M10X20 FLANGE |
| 089 |
I0-28751 020-0 |
|
BOLT; LK PLATE |
4 |
2203- |
|
GVR 280 |
M10X20 FLANGE |
| 088 |
I1-41124 006-0 |
|
PLATE; LK,ADJ NUT |
2 |
2203- |
|
GVR 245 |
(C) T=3.2 |
| 070 |
I1-09812 225-0 |
|
BEARING; DIFF CAGE |
2 |
2203- |
|
GVR 245 |
ID=92 OD=152 T=40 |
| 022 |
I1-41521 052-0 |
|
SPIDER; DIFF PINION |
1 |
2203- |
|
GVR 280 |
OD=35 |
| 049 |
I1-41154 058-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=0.40 |
| 025 |
I1-41552 003-0 |
|
WASHER; THRUST,PINION |
4 |
2203- |
|
GVR 280 |
T=1.6 |
| 060 |
I6-41210 617-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 280 |
(IADG) 41/8; 18.5" |
| 066 |
I1-09588 086-2 |
|
RING; SNAP,PILOT BRG |
1 |
2203- |
|
GVR 245 |
OD=37.2 |
| 041 |
I1-41229 238-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=7.80 |
| 056 |
I1-09070 042-0 |
|
BOLT; BRG CAP |
4 |
2203- |
|
GVR 245 |
M20X112 |
| 040 |
I1-41229 245-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.25 |
| 040 |
I1-41229 255-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.35 |
| 063 |
I1-09810 152-0 |
|
BEARING; PINION PILOT |
1 |
2203- |
|
GVR 280 |
|
| 024 |
I8-98302 297-0 |
|
GEAR; PINION,DIFF |
4 |
2203- |
|
GVR 280 |
Z=10 |
| 056 |
I1-09070 042-0 |
|
BOLT; BRG CAP |
4 |
2203- |
|
GVR 245 |
M20X112 |
| 001 |
I1-41002 394-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2203- |
|
GVR 280 |
41/8 |
| 020 |
I1-41562 116-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.2 |
| 049 |
I1-41154 057-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=0.30 |
| 126 |
I1-37245 343-0 |
|
COUPLING; DRIVING PINION |
1 |
2203- |
|
GVR |
|
| 017 |
I1-09070 014-0 |
|
BOLT; DIFF CAGE SETTING |
4 |
2203- |
|
GVR 280 |
M16X105 FLANGE |
| 040 |
I1-41229 250-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.30 |
| 429 |
I1-41279 014-0 |
|
PLATE; DUMMY |
1 |
2203- |
|
GVR |
|
| 022 |
I1-41521 037-2 |
|
SPIDER; DIFF PINION |
1 |
2203- |
|
GVR 245 |
OD=35 |
| 063 |
I1-09810 183-0 |
|
BEARING; PINION PILOT |
1 |
2203- |
|
GVR 245 |
|
| 040 |
I1-41229 248-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.28 |
| 040 |
I1-41229 247-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.27 |
| 043 |
I1-41151 057-0 |
|
CAGE; FINAL PINION |
1 |
2203- |
|
GVR 280 |
T=82 |
| 049 |
I1-41154 077-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=0.50 |
| 040 |
I1-41229 246-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.26 |
| 069 |
I1-41121 002-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
L |
GVR 245 |
M155 H=30 |
| 020 |
I1-41562 117-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.3 |
| 100 |
I1-09625 322-0 |
|
SEAL; OIL,FINAL PINION |
1 |
2203- |
|
GVR |
|
| 069 |
I1-41121 051-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
L |
GVR 280 |
|
| 071 |
I1-41510 141-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2203- |
|
GVR 245 |
|
| 060 |
I1-41210 604-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 245 |
39/7; 17.5" |
| 055 |
I1-41110 109-0 |
|
CARRIER; DIFF |
1 |
2203- |
|
GVR 245 |
|
| 020 |
I1-41562 271-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=2.9 |
| 017 |
I1-09070 007-0 |
|
BOLT; DIFF CAGE SETTING |
4 |
2203- |
|
GVR 245 |
M16X125 |
| 041 |
I1-41229 243-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.80 |
| 020 |
I1-41562 115-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.1 |
| 062 |
I1-09042 038-1 |
|
BOLT; RET |
2 |
2203- |
|
GVR 245 |
M8X40 W/PIN HOLE |
| 088 |
I1-41124 026-0 |
|
PLATE; LK,ADJ NUT |
2 |
2203- |
|
GVR |
(E) T=3.2 |
| 041 |
I1-41229 239-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.00 |
| 060 |
I6-41210 604-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 245 |
(IADG) 39/7; 17.5" |
| 020 |
I1-41562 270-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=2.8 |
| 049 |
I1-41154 025-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=1.00 |
| 024 |
I8-98302 297-0 |
|
GEAR; PINION,DIFF |
4 |
2203- |
|
GVR 280 |
Z=10 |
| 049 |
I1-41154 080-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=0.40 |
| 049 |
I1-41154 025-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=1.00 |
| 071 |
I8-98379 463-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2203- |
|
GVR 280 |
|
| 040 |
I1-41229 252-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.32 |
| 070 |
I1-09812 225-0 |
|
BEARING; DIFF CAGE |
2 |
2203- |
|
GVR 245 |
ID=92 OD=152 T=40 |
| 430 |
I7-04508 025-A |
|
BOLT; PLATE,DUMMY |
3 |
2203- |
|
GVR |
M8X20 FLANGE |
| 020 |
I1-41562 118-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.4 |
| 061 |
I1-41227 012-0 |
|
RETAINER; PILOT BRG,PINION |
2 |
2203- |
|
GVR 245 |
T=3.2; 17.5" |
| 020 |
I1-41562 273-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.1 |
| 041 |
I1-41229 237-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=7.60 |
| 040 |
I1-41229 247-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.27 |
| 066 |
I1-09588 061-0 |
|
RING; SNAP,PILOT BRG |
1 |
2203- |
|
GVR 280 |
OD=45.9 |
| 050 |
I1-09812 074-3 |
|
BEARING; FINAL PINION |
1 |
2203- |
|
GVR |
|
| 021 |
I8-98345 119-0 |
|
GEAR; SIDE,DIFF |
2 |
2203- |
|
GVR 280 |
Z=16 |
| 024 |
I8-97795 734-0 |
|
GEAR; PINION,DIFF |
4 |
2203- |
|
GVR 245 |
Z=10 |
| 061 |
I1-41227 008-0 |
|
RETAINER; PILOT BRG,PINION |
1 |
2203- |
|
GVR 280 |
T=3.2; 18.5" |
| 061 |
I1-41227 012-0 |
|
RETAINER; PILOT BRG,PINION |
2 |
2203- |
|
GVR 245 |
T=3.2; 17.5" |
| 069 |
I1-41121 001-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
R |
GVR 245 |
M155 H=26 |
| 041 |
I1-41229 243-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.80 |
| 062 |
I1-09042 038-1 |
|
BOLT; RET |
2 |
2203- |
|
GVR 245 |
M8X40 W/PIN HOLE |
| 062 |
I0-20850 816-0 |
|
BOLT; RET |
2 |
2203- |
|
GVR 280 |
M8X16 |
| 040 |
I1-41229 248-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.28 |
| 041 |
I1-41229 241-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.40 |
| 022 |
I1-41521 037-2 |
|
SPIDER; DIFF PINION |
1 |
2203- |
|
GVR 245 |
OD=35 |
| 070 |
I1-09812 226-0 |
|
BEARING; DIFF CAGE |
2 |
2203- |
|
GVR 280 |
ID=110 OD=170 T=38 |
| 049 |
I1-41154 078-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=1.000 |
| 062 |
I0-20850 816-0 |
|
BOLT; RET |
2 |
2203- |
|
GVR 280 |
M8X16 |
| 020 |
I1-41562 276-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.4 |
| 084 |
I1-09009 049-1 |
|
BOLT; FINAL DRIVE GEAR |
18 |
2203- |
|
GVR |
M18X38 FLANGE |
| 041 |
I1-41229 244-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=9.00 |
| 041 |
I1-41229 239-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.00 |
| 021 |
I8-97795 807-0 |
|
GEAR; SIDE,DIFF |
2 |
2203- |
|
GVR 245 |
Z=16 |
| 020 |
I1-41562 275-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.3 |
| 039 |
I1-09812 076-1 |
|
BEARING; FINAL PINION |
1 |
2203- |
|
GVR |
|
| 017 |
I1-09070 007-0 |
|
BOLT; DIFF CAGE SETTING |
4 |
2203- |
|
GVR 245 |
M16X125 |
| 071 |
I1-41510 141-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2203- |
|
GVR 245 |
|
| 040 |
I1-41229 254-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.34 |
| 039 |
I1-09812 076-1 |
|
BEARING; FINAL PINION |
1 |
2203- |
|
GVR |
|
| 066 |
I1-09588 086-2 |
|
RING; SNAP,PILOT BRG |
1 |
2203- |
|
GVR 245 |
OD=37.2 |
| 004 |
I1-09623 386-0 |
|
GASKET; FLANGE,FINAL PINION |
1 |
2203- |
|
GVR |
ID=57 |
| 020 |
I1-41562 274-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.2 |
| 056 |
I1-09070 015-0 |
|
BOLT; BRG CAP |
4 |
2203- |
|
GVR 280 |
M20X125 FLANGE |
| 049 |
I1-41154 024-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=0.50 |
| 088 |
I1-41124 006-0 |
|
PLATE; LK,ADJ NUT |
2 |
2203- |
|
GVR 245 |
(C) T=3.2 |
| 049 |
I1-41154 080-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=0.40 |
| 043 |
I1-41151 057-0 |
|
CAGE; FINAL PINION |
1 |
2203- |
|
GVR 280 |
T=82 |
| 025 |
I1-41552 017-0 |
|
WASHER; THRUST,PINION |
4 |
2203- |
|
GVR 245 |
T=1.6 |
| 069 |
I1-41121 002-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
L |
GVR 245 |
M155 H=30 |
| 055 |
I1-41110 109-0 |
|
CARRIER; DIFF |
1 |
2203- |
|
GVR 245 |
|
| 089 |
I0-20850 816-0 |
|
BOLT; LK PLATE |
4 |
2203- |
|
GVR 245 |
M8X16 |
| 060 |
I6-41210 604-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 245 |
(IADG) 39/7; 17.5" |
| 040 |
I1-41229 253-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.33 |
| 040 |
I1-41229 250-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.30 |
| 429 |
I1-41279 014-0 |
|
PLATE; DUMMY |
1 |
2203- |
|
GVR |
|
| 020 |
I1-41562 270-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=2.8 |
| 017 |
I1-09070 013-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
2203- |
|
GVR 280 |
M16X141 FLANGE |
| 049 |
I1-41154 058-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=0.40 |
| 020 |
I1-41562 112-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=2.8 |
| 049 |
I1-41154 077-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=0.50 |
| 070 |
I1-09812 226-0 |
|
BEARING; DIFF CAGE |
2 |
2203- |
|
GVR 280 |
ID=110 OD=170 T=38 |
| 041 |
I1-41229 240-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.20 |
| 020 |
I1-41562 276-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.4 |
| 040 |
I1-41229 252-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.32 |
| 085 |
I0-91110 516-0 |
|
NUT; DIFF CAGE SETTING |
12 |
2203- |
|
GVR |
M16 |
| 017 |
I1-09070 018-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
2203- |
|
GVR 245 |
M16X113 |
| 024 |
I8-97795 734-0 |
|
GEAR; PINION,DIFF |
4 |
2203- |
|
GVR 245 |
Z=10 |
| 040 |
I1-41229 254-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.34 |
| 020 |
I1-41562 115-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.1 |
| 066 |
I1-09588 061-0 |
|
RING; SNAP,PILOT BRG |
1 |
2203- |
|
GVR 280 |
OD=45.9 |
| 020 |
I1-41562 114-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.0 |
| 071 |
I8-98379 463-0 |
|
CAGE ASM; DIFF,FINAL DRIVE |
1 |
2203- |
|
GVR 280 |
|
| 060 |
I6-41210 617-0 |
|
GEAR SET; FINAL DRIVE,RR |
1 |
2203- |
|
GVR 280 |
(IADG) 41/8; 18.5" |
| 020 |
I1-41562 114-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.0 |
| 020 |
I1-41562 272-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.0 |
| 055 |
I8-98379 453-0 |
|
CARRIER; DIFF |
1 |
2203- |
|
GVR 280 |
|
| 041 |
I1-41229 238-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=7.80 |
| 089 |
I0-20850 816-0 |
|
BOLT; LK PLATE |
4 |
2203- |
|
GVR 245 |
M8X16 |
| 041 |
I1-41229 244-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=9.00 |
| 017 |
I1-09070 014-0 |
|
BOLT; DIFF CAGE SETTING |
4 |
2203- |
|
GVR 280 |
M16X105 FLANGE |
| 063 |
I1-09810 152-0 |
|
BEARING; PINION PILOT |
1 |
2203- |
|
GVR 280 |
|
| 063 |
I1-09810 183-0 |
|
BEARING; PINION PILOT |
1 |
2203- |
|
GVR 245 |
|
| 043 |
I1-41151 030-0 |
|
CAGE; FINAL PINION |
1 |
2203- |
|
GVR 245 |
T=81 |
| 048 |
I0-91510 516-0 |
|
WASHER; LK,FINAL PINION |
8 |
2203- |
|
GVR |
ID=16.2 |
| 001 |
I1-41002 394-0 |
|
DRIVE ASM; FINAL,RR |
1 |
2203- |
|
GVR 280 |
41/8 |
| 088 |
I1-41124 026-0 |
|
PLATE; LK,ADJ NUT |
2 |
2203- |
|
GVR |
(E) T=3.2 |
| 021 |
I8-97795 807-0 |
|
GEAR; SIDE,DIFF |
2 |
2203- |
|
GVR 245 |
Z=16 |
| 020 |
I1-41562 116-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=3.2 |
| 020 |
I1-41562 271-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=2.9 |
| 056 |
I1-09070 015-0 |
|
BOLT; BRG CAP |
4 |
2203- |
|
GVR 280 |
M20X125 FLANGE |
| 041 |
I1-41229 242-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.60 |
| 004 |
I1-09623 386-0 |
|
GASKET; FLANGE,FINAL PINION |
1 |
2203- |
|
GVR |
ID=57 |
| 020 |
I1-41562 272-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.0 |
| 049 |
I1-41154 024-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=0.50 |
| 020 |
I1-41562 113-0 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR 245 |
T=2.9 |
| 069 |
I1-41121 001-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
R |
GVR 245 |
M155 H=26 |
| 022 |
I1-41521 052-0 |
|
SPIDER; DIFF PINION |
1 |
2203- |
|
GVR 280 |
OD=35 |
| 037 |
I1-09449 071-0 |
|
NUT; DRIVING PINION |
1 |
2203- |
|
GVR |
M46 FLANGE |
| 126 |
I1-37245 343-0 |
|
COUPLING; DRIVING PINION |
1 |
2203- |
|
GVR |
|
| 088 |
I9-41124 005-0 |
|
PLATE; LK,ADJ NUT |
2 |
2203- |
|
GVR 245 |
(A) T=1.0 |
| 020 |
I1-41562 273-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.1 |
| 045 |
I0-16806 655-0 |
|
BOLT; FINAL PINION CAGE |
8 |
2203- |
|
GVR |
M16X55 |
| 049 |
I1-41154 057-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 245 |
T=0.30 |
| 021 |
I8-98345 119-0 |
|
GEAR; SIDE,DIFF |
2 |
2203- |
|
GVR 280 |
Z=16 |
| 041 |
I1-41229 242-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.60 |
| 040 |
I1-41229 253-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.33 |
| 069 |
I1-41121 051-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
L |
GVR 280 |
|
| 100 |
I1-09625 322-0 |
|
SEAL; OIL,FINAL PINION |
1 |
2203- |
|
GVR |
|
| 040 |
I1-41229 255-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.35 |
| 049 |
I1-41154 079-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=0.30 |
| 055 |
I8-98379 453-0 |
|
CARRIER; DIFF |
1 |
2203- |
|
GVR 280 |
|
| 040 |
I1-41229 249-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.29 |
| 041 |
I1-41229 241-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=8.40 |
| 041 |
I1-41229 237-0 |
|
SPACER; FINAL DRIVE PINION BRG |
AR |
2203- |
|
GVR |
T=7.60 |
| 040 |
I1-41229 249-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.29 |
| 040 |
I1-41229 251-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.31 |
| 017 |
I1-09070 013-0 |
|
BOLT; DIFF CAGE SETTING |
8 |
2203- |
|
GVR 280 |
M16X141 FLANGE |
| 043 |
I1-41151 030-0 |
|
CAGE; FINAL PINION |
1 |
2203- |
|
GVR 245 |
T=81 |
| 049 |
I1-41154 078-0 |
|
SHIM; FINAL PINION CAGE |
AR |
2203- |
|
GVR 280 |
T=1.000 |
| 430 |
I7-04508 025-A |
|
BOLT; PLATE,DUMMY |
3 |
2203- |
|
GVR |
M8X20 FLANGE |
| 020 |
I1-41562 275-1 |
|
WASHER; THRUST,SIDE GEAR |
AR |
2203- |
|
GVR |
T=3.3 |
| 069 |
I1-41121 050-0 |
|
NUT; ADJ,DIFF CAGE |
1 |
2203- |
R |
GVR 280 |
|
| 040 |
I1-41229 245-0 |
|
SHIM; FINAL PINION |
AR |
2203- |
|
GVR |
T=3.25 |
