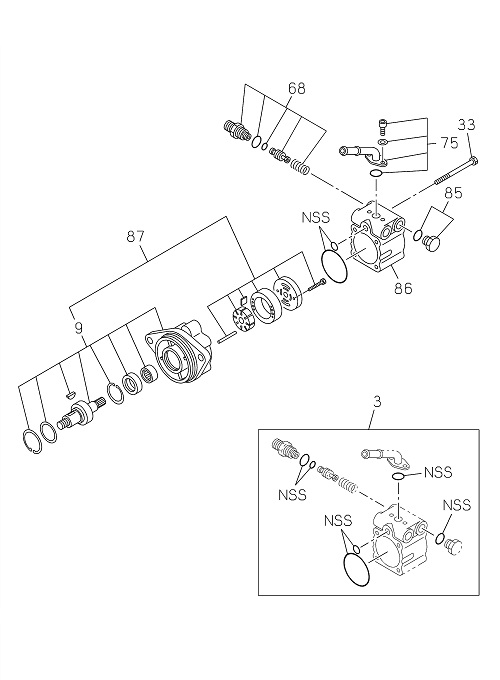

4-42 | POWER STEERING OIL PUMP
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 086 | I8-98382 638-0 | BODY; RR,OIL PUMP | 1 | 2203- | GVR | |||
| 075 | I8-98382 639-0 | PIPE KIT; OIL PUMP | 1 | 2203- | GVR | |||
| 085 | I8-98382 641-0 | PLUG KIT; BODY | 1 | 2203- | GVR | |||
| 087 | I8-97495 729-0 | BODY ASM; WITH CARTRIDGE | 1 | 2203- | GVR | |||
| 068 | I8-97495 730-0 | VALVE KIT; OIL PUMP | 1 | 2203- | GVR | |||
| 075 | I8-98382 639-0 | PIPE KIT; OIL PUMP | 1 | 2203- | GVR | |||
| 009 | I8-98382 635-0 | BODY ASM; FRT,OIL PUMP | 1 | 2203- | GVR | |||
| 009 | I8-98382 635-0 | BODY ASM; FRT,OIL PUMP | 1 | 2203- | GVR | |||
| 068 | I8-97495 730-0 | VALVE KIT; OIL PUMP | 1 | 2203- | GVR | |||
| 003 | I8-98382 637-0 | SEAL KIT; OIL PUMP,POWER STRG | 1 | 2203- | GVR | |||
| 085 | I8-98382 641-0 | PLUG KIT; BODY | 1 | 2203- | GVR | |||
| 003 | I8-98382 637-0 | SEAL KIT; OIL PUMP,POWER STRG | 1 | 2203- | GVR | |||
| 087 | I8-97495 729-0 | BODY ASM; WITH CARTRIDGE | 1 | 2203- | GVR | |||
| 033 | I8-98382 642-0 | BOLT; COVER | 4 | 2203- | GVR | |||
| 086 | I8-98382 638-0 | BODY; RR,OIL PUMP | 1 | 2203- | GVR | |||
| 033 | I8-98382 642-0 | BOLT; COVER | 4 | 2203- | GVR |
