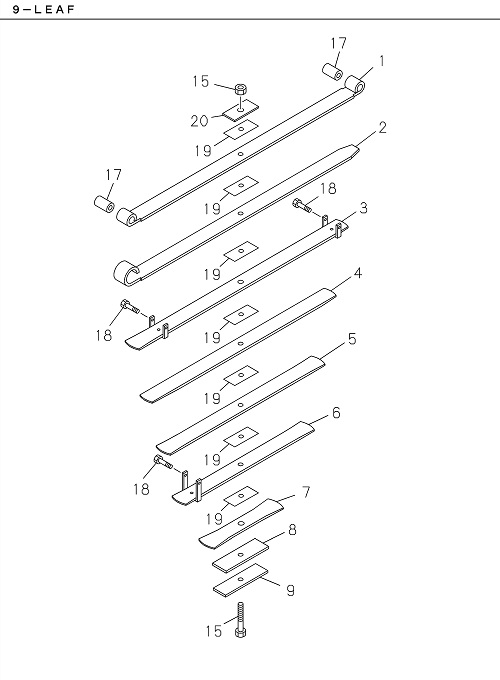

4-55 | FRONT LEAF SPRING

Partial Engine

GIGA E4

GIGA GVR E4

Key PART NO ITC DESCRIPTION QTY APP DATE LR MODEL REMARKS
002 I7-65000 364-A SPRING; LEAF,NO 2,FRT 2 2203- GVR
007 I7-65000 369-A SPRING; LEAF,NO 7,FRT 2 2203- GVR
005 I7-65000 367-A SPRING; LEAF,NO 5,FRT 2 2203- GVR
003 I7-65000 365-A SPRING; LEAF,NO 3,FRT 2 2203- GVR
004 I7-65000 366-A SPRING; LEAF,NO 4,FRT 2 2203- GVR
009 I7-65000 372-A SPRING; LEAF,NO 9,FRT 2 2203- GVR
003 I7-65000 365-A SPRING; LEAF,NO 3,FRT 2 2203- GVR
004 I7-65000 366-A SPRING; LEAF,NO 4,FRT 2 2203- GVR
002 I7-65000 364-A SPRING; LEAF,NO 2,FRT 2 2203- GVR
006 I7-65000 368-A SPRING; LEAF,NO 6,FRT 2 2203- GVR
018 I7-10095 100-A BOLT; CLIP,LEAF SPR,FRT 4 2203- GVR
019 I7-06801 550-A SPACER; LEAF SPRING,FRT 4 2203- GVR
020 I7-17814 500-A SEAT; LEAF SPR,FRT 2 2203- GVR
015 I7-16135 100-A BOLT; CENTER,LEAF SPR,FRT 2 2203- GVR
019 I7-06801 550-A SPACER; LEAF SPRING,FRT 4 2203- GVR
017 I7-38327 800-A BUSHING; LEAF SPR,FRT 4 2203- GVR
008 I7-65000 371-A SPRING; LEAF,NO 8,FRT 2 2203- GVR
001 I7-65000 363-A SPRING; LEAF,NO 1,FRT 2 2203- GVR
017 I7-38327 800-A BUSHING; LEAF SPR,FRT 4 2203- GVR
007 I7-65000 369-A SPRING; LEAF,NO 7,FRT 2 2203- GVR
008 I7-65000 371-A SPRING; LEAF,NO 8,FRT 2 2203- GVR
020 I7-17814 500-A SEAT; LEAF SPR,FRT 2 2203- GVR
009 I7-65000 372-A SPRING; LEAF,NO 9,FRT 2 2203- GVR
018 I7-10095 100-A BOLT; CLIP,LEAF SPR,FRT 4 2203- GVR
015 I7-16135 100-A BOLT; CENTER,LEAF SPR,FRT 2 2203- GVR
001 I7-65000 363-A SPRING; LEAF,NO 1,FRT 2 2203- GVR
006 I7-65000 368-A SPRING; LEAF,NO 6,FRT 2 2203- GVR
005 I7-65000 367-A SPRING; LEAF,NO 5,FRT 2 2203- GVR
