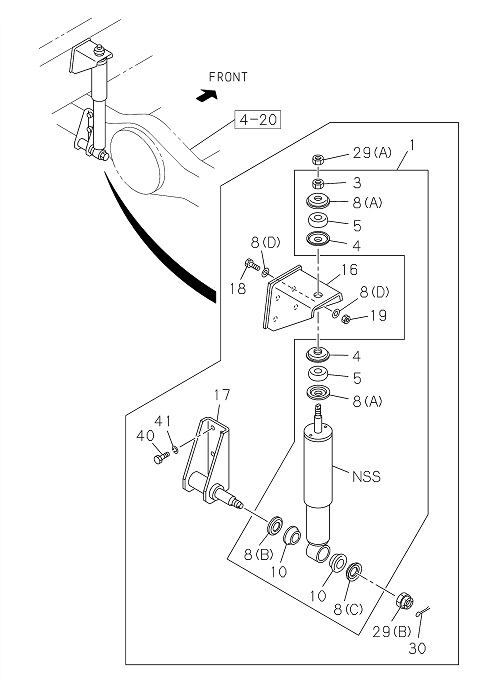

4-61 | SHOCK ABSORBER; REAR SUSPENSION
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 040 | I0-20851 430-0 | BOLT; LWR BRKT | 8 | 2203- | GVR | M14X30 | ||
| 008 | I8-98010 627-1 | WASHER; S/ABS | 16 | 2203- | GVR | (D) ID=15 | ||
| 004 | I1-51631 072-0 | WASHER; CENTER,S/ABS | 4 | 2203- | GVR | |||
| 029 | I9-99116 524-0 | NUT; LK,S/ABS,RR SUSP | 2 | 2203- | GVR | (B) M24 | ||
| 029 | I0-91111 518-0 | NUT; LK,S/ABS,RR SUSP | 2 | 2203- | GVR | (A) M18 | ||
| 005 | I1-51631 073-0 | BUSHING; RUBBER,S/ABS,UPR | 4 | 2203- | GVR | |||
| 017 | I1-51681 717-0 | BRACKET; S/ABS LWR | 1 | 2203- | GVR | |||
| 029 | I9-99116 524-0 | NUT; LK,S/ABS,RR SUSP | 2 | 2203- | GVR | (B) M24 | ||
| 019 | I0-91110 514-0 | NUT; S/ABS BRKT | 8 | 2203- | GVR | M14 | ||
| 003 | I9-99111 418-0 | NUT; S/ABS | 2 | 2203- | GVR | M18 | ||
| 019 | I0-91110 514-0 | NUT; S/ABS BRKT | 8 | 2203- | GVR | M14 | ||
| 001 | I8-98357 229-0 | ABSORBER ASM; SHOCK,RR | 2 | 2203- | GVR | |||
| 029 | I0-91111 518-0 | NUT; LK,S/ABS,RR SUSP | 2 | 2203- | GVR | (A) M18 | ||
| 040 | I0-20851 430-0 | BOLT; LWR BRKT | 8 | 2203- | GVR | M14X30 | ||
| 003 | I9-99111 418-0 | NUT; S/ABS | 2 | 2203- | GVR | M18 | ||
| 005 | I1-51631 073-0 | BUSHING; RUBBER,S/ABS,UPR | 4 | 2203- | GVR | |||
| 008 | I1-51631 075-0 | WASHER; S/ABS | 2 | 2203- | GVR | (C) | ||
| 041 | I0-91510 614-0 | WASHER; LK | 8 | 2203- | GVR | ID=14.2 | ||
| 017 | I1-51681 716-0 | BRACKET; S/ABS LWR | 1 | 2203- | GVR | |||
| 041 | I0-91510 614-0 | WASHER; LK | 8 | 2203- | GVR | ID=14.2 | ||
| 008 | I8-98010 627-1 | WASHER; S/ABS | 16 | 2203- | GVR | (D) ID=15 | ||
| 008 | I1-51631 075-0 | WASHER; S/ABS | 2 | 2203- | GVR | (C) | ||
| 008 | I1-51631 071-0 | WASHER; S/ABS | 4 | 2203- | GVR | (A) | ||
| 030 | I0-81125 045-0 | PIN; SPLIT,S/ABS,RR SUSP | 2 | 2203- | GVR | OD=4.6 L=45 | ||
| 016 | I8-98308 049-0 | BRACKET; S/ABS,RR | 2 | 2203- | GVR | |||
| 018 | I0-20951 450-0 | BOLT; S/ABS BRKT | 8 | 2203- | GVR | M14X50 | ||
| 016 | I8-98308 049-0 | BRACKET; S/ABS,RR | 2 | 2203- | GVR | |||
| 017 | I1-51681 717-0 | BRACKET; S/ABS LWR | 1 | 2203- | GVR | |||
| 010 | I1-51631 076-0 | BUSHING; RUBBER,S/ABS | 4 | 2203- | GVR | |||
| 008 | I1-51631 071-0 | WASHER; S/ABS | 4 | 2203- | GVR | (A) | ||
| 018 | I0-20951 450-0 | BOLT; S/ABS BRKT | 8 | 2203- | GVR | M14X50 | ||
| 008 | I1-51631 074-0 | WASHER; S/ABS | 2 | 2203- | GVR | (B) | ||
| 001 | I8-98357 229-0 | ABSORBER ASM; SHOCK,RR | 2 | 2203- | GVR | |||
| 004 | I1-51631 072-0 | WASHER; CENTER,S/ABS | 4 | 2203- | GVR | |||
| 010 | I1-51631 076-0 | BUSHING; RUBBER,S/ABS | 4 | 2203- | GVR | |||
| 008 | I1-51631 074-0 | WASHER; S/ABS | 2 | 2203- | GVR | (B) | ||
| 030 | I0-81125 045-0 | PIN; SPLIT,S/ABS,RR SUSP | 2 | 2203- | GVR | OD=4.6 L=45 | ||
| 017 | I1-51681 716-0 | BRACKET; S/ABS LWR | 1 | 2203- | GVR |
