Isuzu | Part Center System

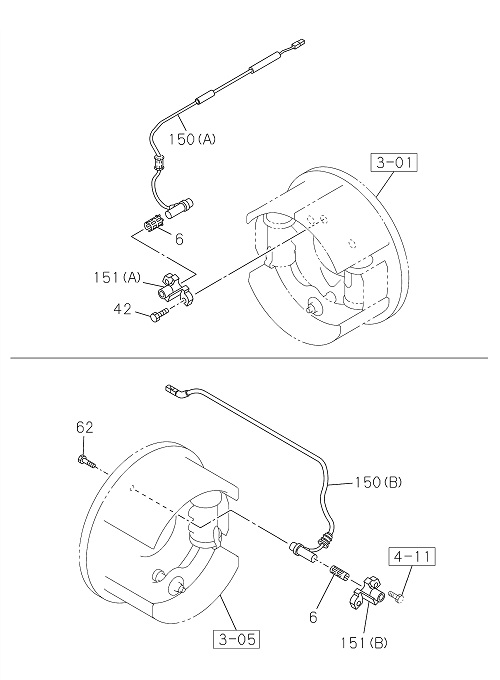

8-20 | METER CABLE

GIGA E4

GIGA GVR E4

Key	PART NO	DESCRIPTION	QTY	APP DATE	LR	MODEL	REMARKS

150	I8-97668 539-1	SENSOR; SPEED,ABS	1	2203-	L	GVR	(B)
150	I8-98315 349-0	SENSOR; SPEED,ABS	2	2203-		GVR	(A)
150	I8-97668 538-1	SENSOR; SPEED,ABS	1	2203-	R	GVR	(B)
151	I8-98315 353-0	BRACKET; SPD SENSOR	1	2203-	L	GVR	(A)
042	I0-20851 240-0	BOLT; BRKT	2	2203-		GVR	M12X40
062	I0-58330 816-0	BOLT; SENSOR	2	2203-		GVR	M8X16 HEX SOCKET
062	I0-58330 816-0	BOLT; SENSOR	2	2203-		GVR	M8X16 HEX SOCKET
006	I8-97546 016-0	HOLDER; SPD SENSOR	2	2203-		GVR
151	I8-98315 353-0	BRACKET; SPD SENSOR	1	2203-	L	GVR	(A)
151	I8-98315 353-0	BRACKET; SPD SENSOR	1	2203-	L	GVR	(A)
151	I8-98315 352-0	BRACKET; SPD SENSOR	1	2203-	R	GVR	(A)
006	I8-97546 016-0	HOLDER; SPD SENSOR	2	2203-		GVR
151	I1-83129 405-0	BRACKET; SPD SENSOR	1	2203-	R	GVR	(B) MARK 405
042	I0-20851 240-0	BOLT; BRKT	2	2203-		GVR	M12X40
150	I8-98315 349-0	SENSOR; SPEED,ABS	2	2203-		GVR	(A)
151	I1-83129 406-0	BRACKET; SPD SENSOR	1	2203-	L	GVR	(B) MARK 406
006	I8-97546 016-0	HOLDER; SPD SENSOR	2	2203-		GVR
150	I8-97668 539-1	SENSOR; SPEED,ABS	1	2203-	L	GVR	(B)
151	I1-83129 406-0	BRACKET; SPD SENSOR	1	2203-	L	GVR	(B) MARK 406
062	I0-58330 816-0	BOLT; SENSOR	2	2203-		GVR	M8X16 HEX SOCKET
151	I8-98315 352-0	BRACKET; SPD SENSOR	1	2203-	R	GVR	(A)
150	I8-98315 349-1	SENSOR; SPEED,ABS	2	2203-		GVR	(A)
151	I1-83129 405-0	BRACKET; SPD SENSOR	1	2203-	R	GVR	(B) MARK 405
151	I1-83129 405-0	BRACKET; SPD SENSOR	1	2203-	R	GVR	(B) MARK 405
150	I8-97668 538-1	SENSOR; SPEED,ABS	1	2203-	R	GVR	(B)
150	I8-97668 539-1	SENSOR; SPEED,ABS	1	2203-	L	GVR	(B)
150	I8-97668 538-1	SENSOR; SPEED,ABS	1	2203-	R	GVR	(B)
042	I0-20851 240-0	BOLT; BRKT	2	2203-		GVR	M12X40
150	I8-98315 349-0	SENSOR; SPEED,ABS	2	2203-		GVR	(A)
151	I1-83129 406-0	BRACKET; SPD SENSOR	1	2203-	L	GVR	(B) MARK 406
151	I8-98315 352-0	BRACKET; SPD SENSOR	1	2203-	R	GVR	(A)
