8-28 | CHASSIS ELECTRICAL
GIGA E4
GIGA GVR E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 480 | I8-98010 858-0 | SWITCH; TRAILER COCK | 1 | 2203- | GVR | STAMP 2.2 | ||
| 753 | I8-97173 035-1 | RELAY; TRAILER FLASHER | 3 | 2203- | GVR | 24V 10A | ||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 2203- | GVR | (A) 7P | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | GVR | M6X16 FLANGE | ||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | GVR | |||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | GVR | M6 FLANGE | ||
| 041 | I7-05108 010-A | NUT; BRKT,MAG VLV | 2 | 2203- | GVR | M8 FLANGE | ||

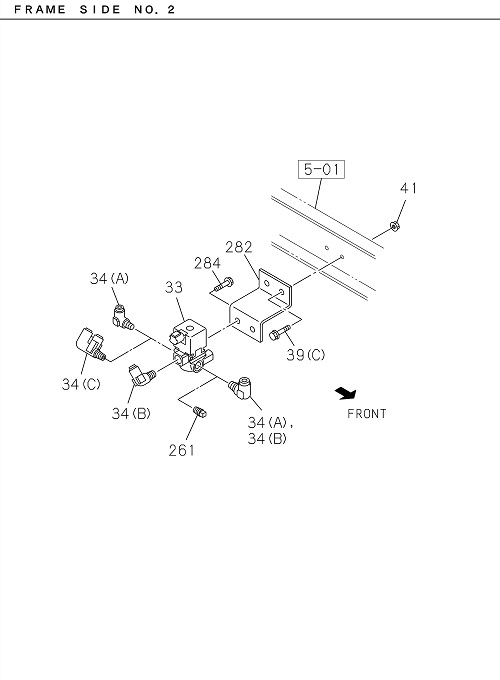

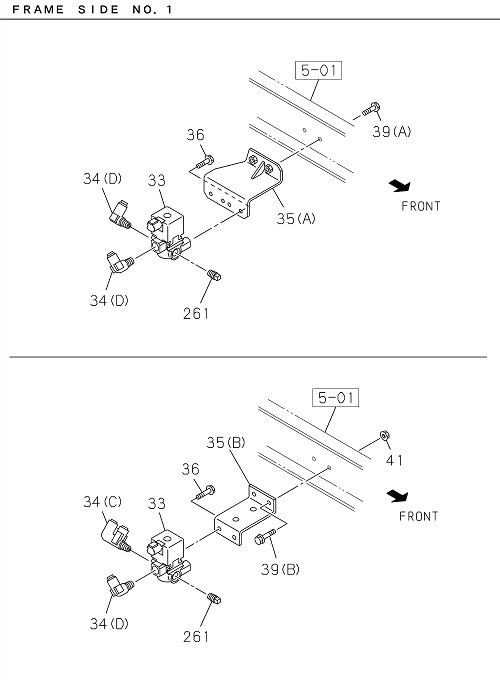

| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | GVR | |||
| 754 | I8-97173 035-1 | RELAY; TRAILER STOP | 1 | 2203- | GVR | 24V 10A | ||
| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVR | (B) DIN6 & R1/4 ELBOW | ||
| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2203- | GVR | 24V 30A | ||
| 033 | I8-97948 152-0 | VALVE; MAG,PTO CONT | 1 | 2203- | GVR | |||
| 299 | I1-82523 014-0 | SOCKET; PARKING | 1 | 2203- | GVR | (A) 7P | ||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 2203- | GVR | M8X25 FLANGE | ||
| 754 | I6-97173 035-0 | RELAY; TRAILER STOP | 1 | 2203- | GVR | (IADG) 24V 10A | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | GVR | |||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | GVR | |||
| 744 | I0-91180 106-0 | NUT; SENSOR | 2 | 2203- | GVR | M6 FLANGE | ||
| 065 | I0-28650 825-0 | BOLT; SOCKET FIX | 2 | 2203- | GVR | M8X25 FLANGE | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | GVR | (IADG) 24V 10A | ||
| 480 | I8-98010 858-0 | SWITCH; TRAILER COCK | 1 | 2203- | GVR | STAMP 2.2 | ||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | GVR | (IADG) (B) 24V 10A | ||
| 034 | I1-09661 067-0 | CONNECTOR; MAG VLV,INL PORT | 1 | 2203- | GVR | (B) DIN6 & R1/4 ELBOW | ||
| 753 | I6-97173 035-0 | RELAY; TRAILER FLASHER | 3 | 2203- | GVR | (IADG) 24V 10A | ||
| 468 | I0-91180 106-0 | NUT; MODULE | 2 | 2203- | GVR | M6 FLANGE | ||

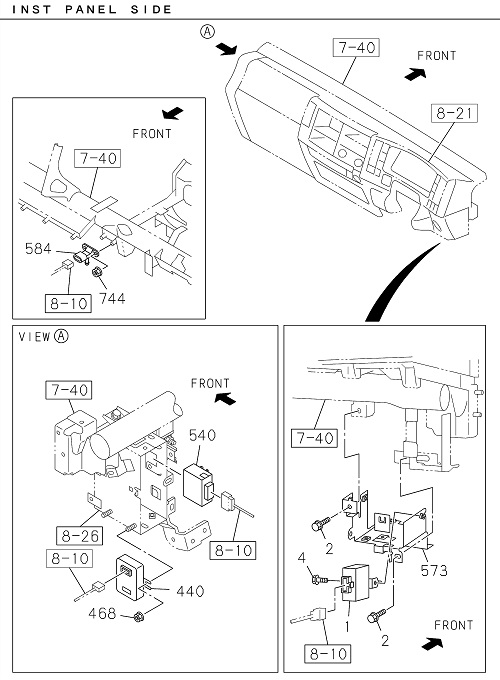

| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 2203- | GVR | |||
| 440 | I8-98382 043-0 | MODULE; INFORMATION,ABS | 1 | 2203- | GVR | |||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | GVR | (B) 24V 10A | ||
| 573 | I8-98246 458-0 | BRACKET; FLASHER UNIT | 1 | 2203- | GVR | |||
| 050 | I8-97613 300-2 | BRACKET; HORN | 1 | 2203- | GVR | |||
| 066 | I7-05108 010-A | NUT; SOCKET FIX | 2 | 2203- | GVR | M8 FLANGE | ||

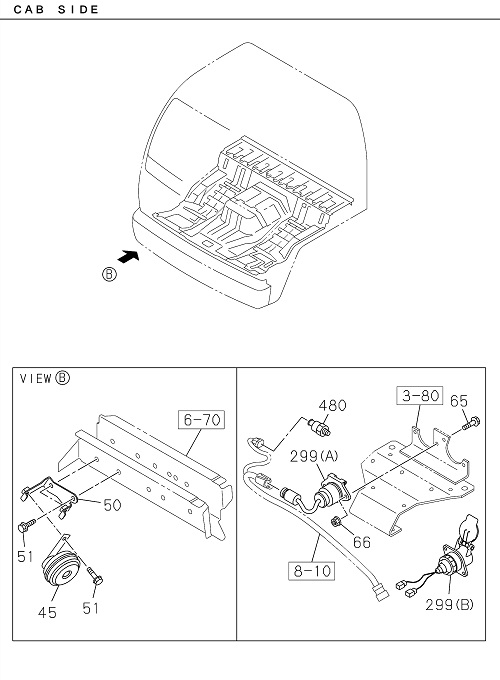

| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | GVR | |||
| 299 | I8-98105 162-1 | SOCKET; PARKING | 1 | 2203- | GVR | (B) | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | GVR | 24V 10A | ||
| 753 | I6-97173 035-0 | RELAY; TRAILER FLASHER | 3 | 2203- | GVR | (IADG) 24V 10A | ||
| 584 | I8-98020 514-0 | SENSOR; PRESSURE | 1 | 2203- | GVR | |||
| 284 | I7-04508 025-A | BOLT; MAG VLV | 2 | 2203- | GVR | M8X20 FLANGE | ||
| 008 | I6-97173 035-0 | RELAY; WIPER | 1 | 2203- | GVR | (IADG) 24V 10A | ||
| 754 | I8-97173 035-1 | RELAY; TRAILER STOP | 1 | 2203- | GVR | 24V 10A | ||
| 001 | I8-97613 970-1 | UNIT; FLASHER | 1 | 2203- | GVR | |||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | GVR | M8X20 W/LK&PL WASHER | ||
| 022 | I8-97173 035-1 | RELAY; STOP LAMP | 1 | 2203- | GVR | (B) 24V 10A | ||
| 753 | I8-97173 035-1 | RELAY; TRAILER FLASHER | 3 | 2203- | GVR | 24V 10A | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | GVR | |||
| 468 | I0-91180 106-0 | NUT; MODULE | 2 | 2203- | GVR | M6 FLANGE | ||
| 051 | I8-97086 825-0 | BOLT; HORN TO BRKT | 3 | 2203- | GVR | M8X20 W/LK&PL WASHER | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | GVR | PT1/4 | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | GVR | M6X16 FLANGE | ||
| 008 | I8-97173 035-1 | RELAY; WIPER | 1 | 2203- | GVR | 24V 10A | ||
| 540 | I8-98233 976-0 | RELAY; WIPER INTERVAL | 1 | 2203- | GVR | |||
| 754 | I6-97173 035-0 | RELAY; TRAILER STOP | 1 | 2203- | GVR | (IADG) 24V 10A | ||
| 004 | I0-28050 616-0 | SCREW; FLASHER UNIT | 1 | 2203- | GVR | M6X16 FLANGE | ||
| 002 | I0-28650 616-0 | BOLT; FLASHER UNIT | 2 | 2203- | GVR | M6X16 FLANGE | ||
| 045 | I7-43600 341-A | HORN; LOW NOTE | 1 | 2203- | GVR | |||
| 284 | I7-04508 025-A | BOLT; MAG VLV | 2 | 2203- | GVR | M8X20 FLANGE | ||
| 440 | I8-98382 043-0 | MODULE; INFORMATION,ABS | 1 | 2203- | GVR | |||
| 022 | I6-97173 035-0 | RELAY; STOP LAMP | 1 | 2203- | GVR | (IADG) (B) 24V 10A | ||
| 299 | I8-98105 162-1 | SOCKET; PARKING | 1 | 2203- | GVR | (B) | ||
| 160 | I8-97833 987-0 | RELAY; ECM | 1 | 2203- | GVR | 24V 30A | ||
| 066 | I7-05108 010-A | NUT; SOCKET FIX | 2 | 2203- | GVR | M8 FLANGE | ||
| 041 | I7-05108 010-A | NUT; BRKT,MAG VLV | 2 | 2203- | GVR | M8 FLANGE | ||
| 261 | I9-99204 513-0 | PLUG; MAG VLV | 1 | 2203- | GVR | PT1/4 |
