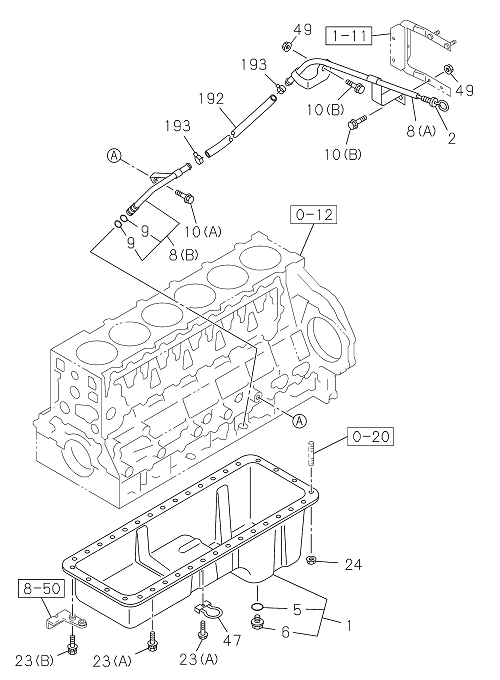

0-13 | OIL PAN AND LEVEL GAUGE
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I5-09623 002-0 | GASKET; GUIDE TUBE,OIL LEVEL GAUGE | 2 | 2203- | GVZ | ID=11 | ||
| 023 | I0-28080 818-0 | BOLT; OIL PAN | 28 | 2203- | GVZ | (A) M8X18 FLANGE | ||
| 192 | I8-98286 301-0 | HOSE; GUIDE TUBE | 1 | 2203- | GVZ | L=328 | ||
| 023 | I8-97329 626-0 | BOLT; OIL PAN | 2 | 2203- | GVZ | (B) M8X28 FLANGE | ||
| 049 | I0-91180 108-0 | NUT; GUIDE TUBE | 2 | 2203- | GVZ | M8 FLANGE | ||
| 047 | I8-98303 447-0 | CLIP; HOSE,AIR BREATHER | 1 | 2203- | GVZ | |||
| 010 | I7-04508 025-A | BOLT; GUIDE TUBE | 2 | 2203- | GVZ | (B) M8X20 FLANGE | ||
| 005 | I1-09623 057-0 | GASKET; PLUG,OIL DRAIN | 1 | 2203- | GVZ | ID=24.4 | ||
| 008 | I8-98063 554-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 2203- | GVZ | (B) | ||
| 024 | I0-91180 108-0 | NUT; OIL PAN | 4 | 2203- | GVZ | M8 FLANGE | ||
| 010 | I0-28151 035-0 | BOLT; GUIDE TUBE | 1 | 2203- | GVZ | (A) M10X35 FLANGE | ||
| 008 | I8-98324 242-0 | TUBE; GUIDE,OIL LEVEL GAUGE | 1 | 2203- | GVZ | (A) | ||
| 006 | I9-09662 012-0 | PLUG; OIL DRAIN | 1 | 2203- | GVZ | M20X16.5 | ||
| 001 | I8-98179 005-0 | PAN ASM; OIL | 1 | 2203- | GVZ | |||
| 002 | I8-97537 317-0 | GAUGE; OIL LEVEL | 1 | 2203- | GVZ | |||
| 193 | I1-09707 158-0 | CLIP; HOSE,GUIDE TUBE | 2 | 2203- | GVZ | ID=17 |
