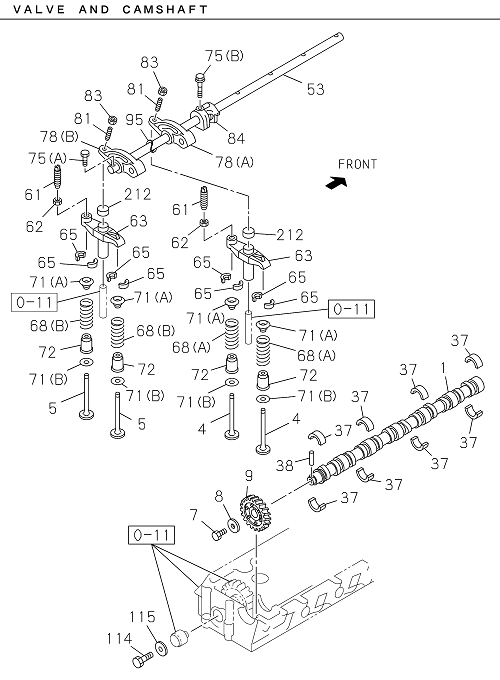

0-14 | CAMSHAFT AND VALVE
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 009 | I8-98018 934-3 | GEAR; CM/SHF | 1 | 2203- | GVZ | Z=35 | ||
| 212 | I8-94396 015-2 | CAP; ADJ SCREW | 12 | 2203- | GVZ | |||
| 068 | I8-97648 793-A | SPRING; VLV | 12 | 2203- | GVZ | (A) MARK BLUE | ||
| 053 | I8-97389 918-0 | SHAFT; ROCKER ARM | 1 | 2203- | GVZ | |||
| 072 | I8-97376 720-0 | SEAL; VLV GUIDE | 24 | 2203- | GVZ | |||
| 075 | I8-94393 131-0 | BOLT; BRKT | 5 | 2203- | GVZ | (B) M10X62 FLANGE | ||
| 068 | I8-97210 682-0 | SPRING; VLV | 12 | 2203- | GVZ | (B) MARK RED | ||

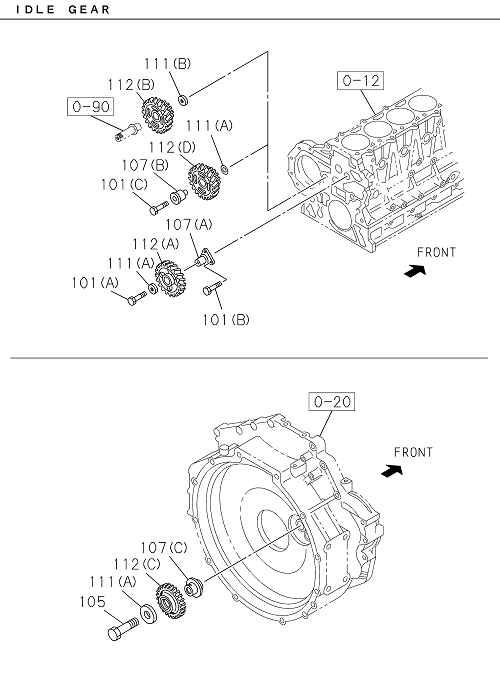

| 112 | I8-97606 767-0 | GEAR; IDLE | 1 | 2203- | GVZ | (A) Z=61 | ||
| 114 | I8-94372 221-1 | BOLT; IDLE GEAR | 1 | 2203- | GVZ | M14X36.5 | ||
| 107 | I8-97350 021-A | SHAFT; IDLE GEAR | 1 | 2203- | GVZ | (A) | ||
| 065 | I5-12565 004-0 | COLLAR; SPLIT | 48 | 2203- | GVZ | |||
| 037 | I8-97386 189-0 | METAL; CM/SHF | 4 | 2203- | GVZ | UPPER B=16 | ||
| 004 | I8-94395 882-2 | VALVE; INL | 12 | 2203- | GVZ | |||
| 061 | I8-94394 803-0 | SCREW; ADJ,BRIDGE | 12 | 2203- | GVZ | M8X21 | ||
| 095 | I8-94392 999-0 | SPRING; ROCKER SHAFT | 6 | 2203- | GVZ | |||
| 101 | I0-28060 816-0 | BOLT; THRUST COLLAR | 3 | 2203- | GVZ | (B) M8X16 FLANGE | ||
| 081 | I8-94395 024-0 | SCREW; ADJ,ROCKER ARM | 12 | 2203- | GVZ | M10 L=32 | ||
| 078 | I8-97306 424-3 | ARM; ROCKER | 6 | 2203- | GVZ | (B) EXHAUST | ||
| 007 | I8-94396 439-0 | BOLT; CM/SHF GEAR | 1 | 2203- | GVZ | M14X40 | ||
| 115 | I8-97209 728-A | WASHER; THRUST,IDLE GEAR | 1 | 2203- | GVZ | ID=14.5 OD=46 | ||
| 037 | I8-97602 699-0 | METAL; CM/SHF | 4 | 2203- | GVZ | LOWER B=26 | ||
| 111 | I8-94396 897-0 | COLLAR; THRUST,IDLE GEAR | 1 | 2203- | GVZ | (B) ID=24 OD=60 | ||
| 001 | I8-98233 214-1 | CAMSHAFT | 1 | 2203- | GVZ | |||
| 105 | I8-97113 167-0 | BOLT; IDLE GEAR SHAFT | 1 | 2203- | GVZ | M14X65 | ||
| 062 | I9-09844 574-0 | NUT; ADJ SCREW LK BRIDGE | 12 | 2203- | GVZ | M8 | ||
| 112 | I8-97606 771-0 | GEAR; IDLE | 1 | 2203- | GVZ | (C) Z=34 | ||
| 111 | I8-97209 728-A | COLLAR; THRUST,IDLE GEAR | 2 | 2203- | GVZ | (A) ID=14.5 OD=46 | ||
| 005 | I8-97209 876-4 | VALVE; EXH | 12 | 2203- | GVZ | |||
| 063 | I8-94392 002-3 | BRIDGE | 12 | 2203- | GVZ | |||
| 078 | I8-97306 421-3 | ARM; ROCKER | 6 | 2203- | GVZ | (A) INLET | ||
| 084 | I8-94395 836-2 | BRACKET; ROCKER SHAFT,INTER | 5 | 2203- | GVZ | |||
| 071 | I8-94391 468-0 | SEAT; SPR | 24 | 2203- | GVZ | (B) LOWER ID=14.3 T=1.0 | ||
| 038 | I8-94399 487-0 | PIN; CAM BRG SET | 1 | 2203- | GVZ | OD=7 L=7.5 | ||
| 083 | I0-91111 510-0 | NUT; ADJ SCREW,LK | 12 | 2203- | GVZ | M10 | ||
| 107 | I8-94334 682-1 | SHAFT; IDLE GEAR | 1 | 2203- | GVZ | (C) | ||
| 008 | I9-09851 850-A | WASHER; CM/SHF GEAR | 1 | 2203- | GVZ | ID=14.5 | ||
| 107 | I8-98145 650-0 | SHAFT; IDLE GEAR | 1 | 2203- | GVZ | (B) | ||
| 112 | I8-98145 647-1 | GEAR; IDLE | 1 | 2203- | GVZ | (D) Z=72-60-30 | ||
| 101 | I0-23951 430-0 | BOLT; THRUST COLLAR | 1 | 2203- | GVZ | (A) M14X30 | ||
| 071 | I8-94390 783-2 | SEAT; SPR | 24 | 2203- | GVZ | (A) UPPER OD=32.8 T=12.75 | ||
| 075 | I0-28050 840-0 | BOLT; BRKT | 2 | 2203- | GVZ | (A) M8X40 FLANGE | ||
| 101 | I0-16956 460-0 | BOLT; THRUST COLLAR | 1 | 2203- | GVZ | (C) M14X60 |
