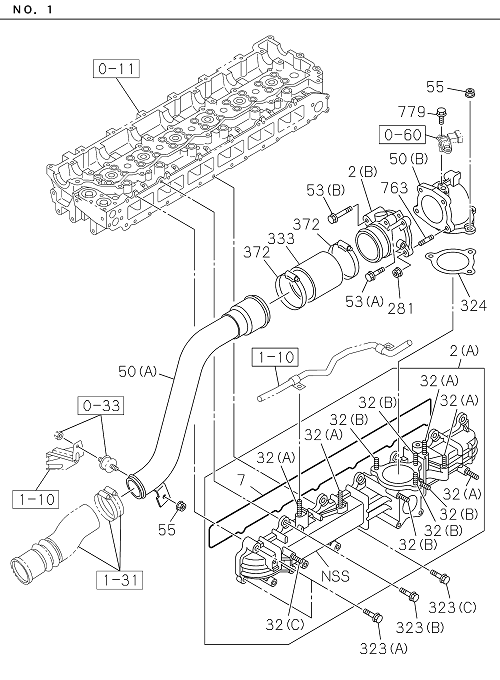

0-25 | INLET MANIFOLD
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 002 | I8-98217 016-0 | COVER; INL | 1 | 2203- | GVZ | (A) | ||
| 053 | I0-28050 870-0 | BOLT; INL PIPE | 1 | 2203- | GVZ | (B) M8X70 FLANGE | ||
| 323 | I0-28050 850-0 | BOLT; DUCT | 6 | 2203- | GVZ | (A) M8X50 FLANGE | ||
| 372 | I1-09707 141-0 | CLIP; HOSE | 2 | 2203- | GVZ | ID=77-99 | ||
| 002 | I8-98239 918-0 | COVER; INL | 1 | 2203- | GVZ | (B) | ||
| 053 | I0-28050 830-0 | BOLT; INL PIPE | 1 | 2203- | GVZ | (A) M8X30 FLANGE | ||
| 032 | I0-41010 630-0 | STUD; INL PIPE | 5 | 2203- | GVZ | (A) M6X30 L=38 | ||
| 008 | I8-98196 271-0 | GASKET; INT DUCT | 1 | 2203- | GVZ | |||
| 050 | I8-97607 412-2 | PIPE; INL | 1 | 2203- | GVZ | (A) | ||
| 055 | I0-91180 108-0 | NUT; INL PIPE | 4 | 2203- | GVZ | M8 FLANGE | ||
| 050 | I8-98239 524-1 | PIPE; INL | 1 | 2203- | GVZ | (B) | ||
| 323 | I8-97229 317-1 | BOLT; DUCT | 2 | 2203- | GVZ | (C) M8X48 FLANGE | ||
| 007 | I8-94390 775-0 | GASKET; INL MANIF TO HD | 1 | 2203- | GVZ | |||
| 281 | I0-91180 108-0 | NUT; INL COVER | 2 | 2203- | GVZ | M8 FLANGE | ||
| 763 | I0-40110 830-0 | STUD | 2 | 2203- | GVZ | M8X30 L=46 | ||
| 333 | I8-97611 306-0 | HOSE; RUBBER,INL PIPE | 1 | 2203- | GVZ | ID=80 OD=90 L=80 | ||
| 032 | I0-44011 030-0 | STUD; INL PIPE | 1 | 2203- | GVZ | (C) M10X30 L=45 | ||
| 779 | I8-97316 615-0 | BOLT; SENSOR | 2 | 2203- | GVZ | M4X10 W/PL WASHER | ||
| 032 | I0-41010 828-0 | STUD; INL PIPE | 5 | 2203- | GVZ | (B) M8X28 L=40 | ||
| 323 | I0-28650 825-0 | BOLT; DUCT | 6 | 2203- | GVZ | (B) M8X25 FLANGE | ||
| 324 | I8-97601 777-0 | GASKET; INL PIPE TO INL CVR | 1 | 2203- | GVZ | ID=78 |
