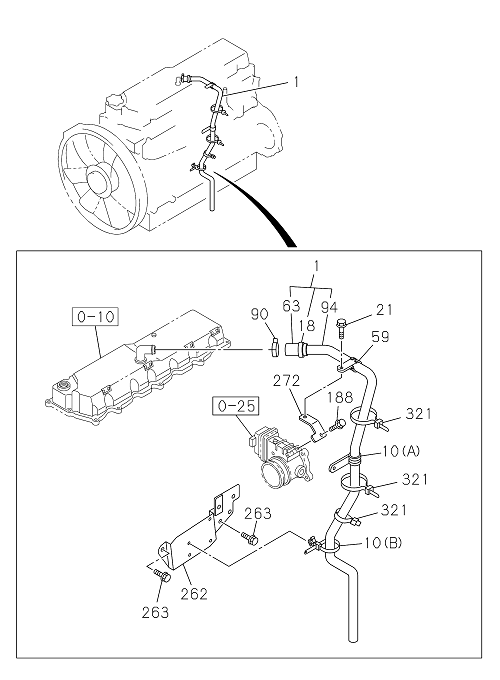

0-28 | VENTILATION SYSTEM
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 090 | I8-97237 146-0 | CLIP; RUBBER HOSE | 1 | 2203- | GVZ | ID=31.2 | ||
| 010 | I1-09700 704-1 | CLIP; AIR BREATHER | 1 | 2203- | GVZ | (A) ID=32 L=75 | ||
| 262 | I8-97610 919-1 | BRACKET; OIL SEPARATOR | 1 | 2203- | GVZ | |||
| 321 | I1-09707 001-1 | CLIP; HOSE,SEPARATOR | 3 | 2203- | GVZ | L=300 | ||
| 094 | I8-94392 082-0 | HOSE; BREATHER TO PIPE | 1 | 2203- | GVZ | L=1260 | ||
| 063 | I0-02728 070-0 | HOSE; RUBBER,AIR BREATHER | 1 | 2203- | GVZ | L=70 | ||
| 263 | I0-28751 025-0 | BOLT; BRKT,OIL SEPARATOR | 2 | 2203- | GVZ | M10X25 FLANGE | ||
| 021 | I0-28050 612-0 | BOLT; CLIP | 1 | 2203- | GVZ | M6X12 FLANGE | ||
| 010 | I8-98000 506-1 | CLIP; AIR BREATHER | 1 | 2203- | GVZ | (B) L=213.5 | ||
| 001 | I8-98211 104-0 | BREATHER; AIR | 1 | 2203- | GVZ | |||
| 059 | I1-09700 945-0 | CLIP; HOSE | 1 | 2203- | GVZ | ID=35 L=33 | ||
| 188 | I0-28050 612-0 | BOLT; BRKT | 1 | 2203- | GVZ | M6X12 FLANGE | ||
| 018 | I8-98133 958-0 | CLIP; RUBBER HOSE,AIR BREATHER | 1 | 2203- | GVZ | |||
| 272 | I8-97607 397-0 | BRACKET; PIPE | 1 | 2203- | GVZ |
