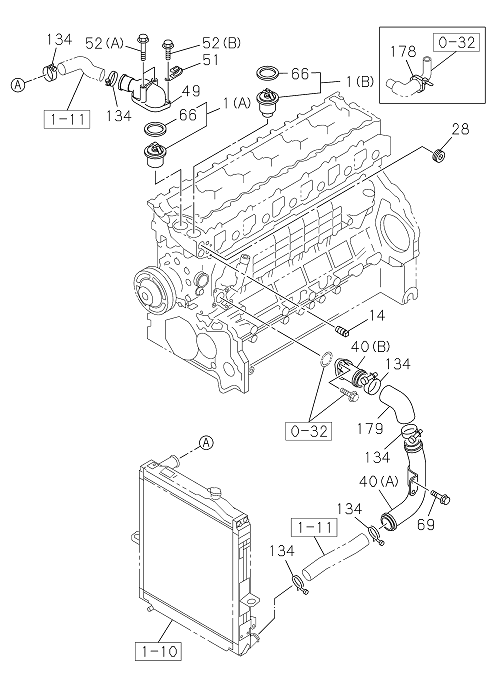

0-31 | THERMOSTAT AND HOUSING
GIGA E4
GIGA GVZ E4
| Key | PART NO | ITC | DESCRIPTION | QTY | APP DATE | LR | MODEL | REMARKS |
|---|---|---|---|---|---|---|---|---|
| 051 | I8-97367 985-1 | CLIP; JOINT,THERMOSTAT | 1 | 2203- | GVZ | ID=18 L=44 | ||
| 134 | I1-09704 106-0 | CLIP; RUBBER HOSE | 4 | 2203- | GVZ | ID=63 | ||
| 040 | I8-94394 404-A | DUCT; WATER,SUCTION | 1 | 2203- | GVZ | (A) | ||
| 049 | I8-97602 047-0 | PIPE; WATER OUTLET | 1 | 2203- | GVZ | |||
| 001 | I8-97602 048-3 | THERMOSTAT | 1 | 2203- | GVZ | (A) 82 CELSIUS | ||
| 069 | I0-28650 820-0 | BOLT; DUCT,WATER OUTLET | 2 | 2203- | GVZ | M8X20 FLANGE | ||
| 028 | I1-09605 020-0 | PLUG; HTR | 1 | 2203- | GVZ | PT3/4 | ||
| 066 | I8-98280 281-0 | GASKET; THERMOSTAT HSG | 2 | 2203- | GVZ | ID=49.5 OD=56.5 | ||
| 179 | I8-94390 400-A | HOSE; RUBBER,WATER DUCT | 1 | 2203- | GVZ | |||
| 001 | I8-98295 921-0 | THERMOSTAT | 1 | 2203- | GVZ | (B) 82 CELSIUS W/JIGGLU VALVE | ||
| 134 | I9-09915 265-A | CLIP; RUBBER HOSE | 4 | 2203- | GVZ | ID=63 | ||
| 134 | I1-09704 106-0 | CLIP; RUBBER HOSE | 2 | 2203- | GVZ | ID=63 | ||
| 014 | I8-94397 338-0 | PLUG; SW | 1 | 2203- | GVZ | PT3/8 | ||
| 134 | I9-09915 265-A | CLIP; RUBBER HOSE | 2 | 2203- | GVZ | ID=63 | ||
| 178 | I8-98216 430-0 | CLIP; BAND,HARNESS | 1 | 2203- | GVZ | L=250 | ||
| 052 | I8-97023 062-0 | BOLT; JOINT,THERMOSTAT | 2 | 2203- | GVZ | (A) M8X85 FLANGE | ||
| 040 | I8-94391 091-1 | DUCT; WATER,SUCTION | 1 | 2203- | GVZ | (B) | ||
| 052 | I0-28650 825-0 | BOLT; JOINT,THERMOSTAT | 2 | 2203- | GVZ | (B) M8X25 FLANGE |
